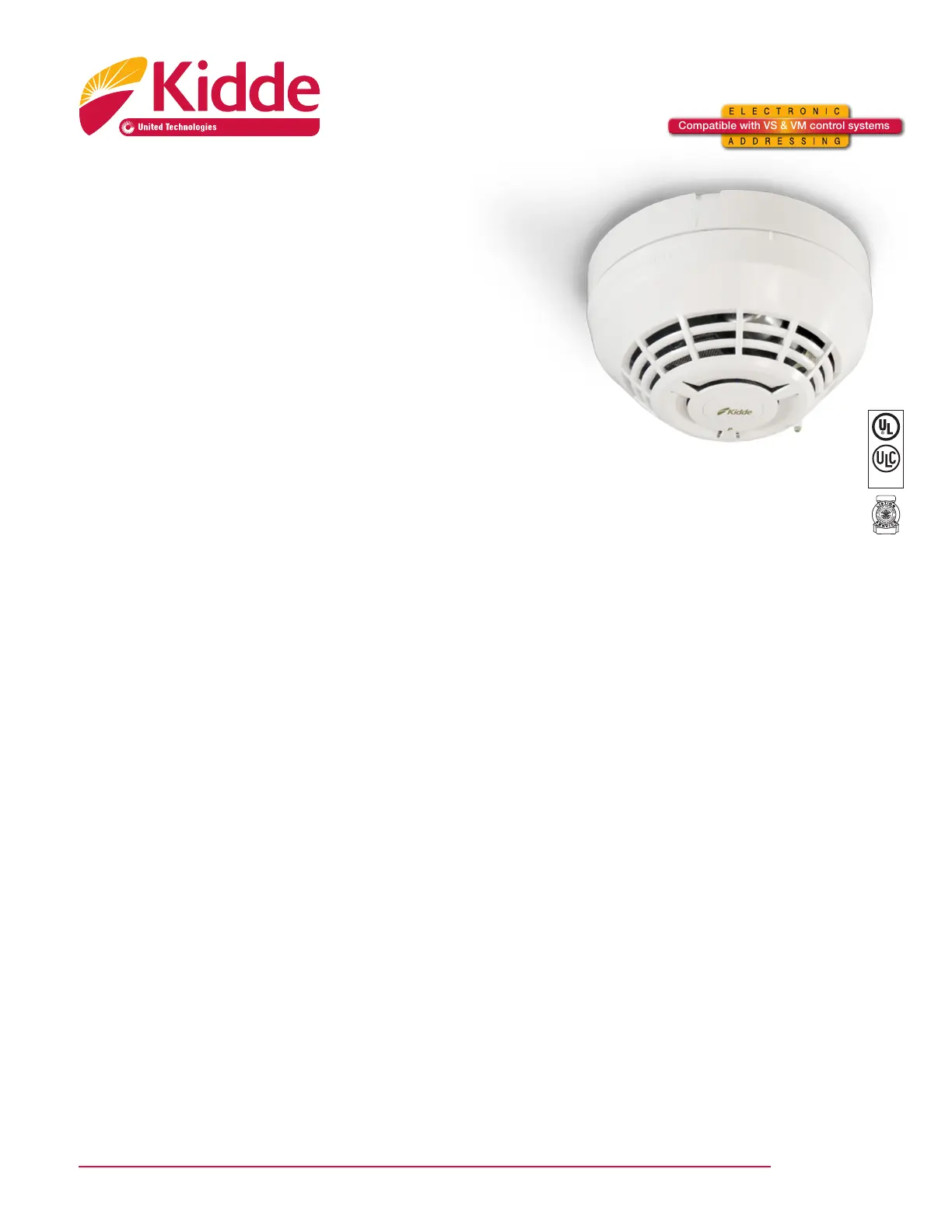

Page 1 of 4 DATA SHEET K85001-0646

Not to be used for installation purposes. Issue 1

KIDDE

Catalog  Intelligent Initiating Devices

Technology that saves lives

Intelligent Smoke

Detector

KI-PD

Overview

The KI-PD optical smoke detector brings advanced sensing

technology to a practical design that increases efﬁciency, saves

installation time, cuts costs, and extends life safety and property

protection capabilities. Continuous self-diagnostics ensure reli-

ability over the long-haul, while environmental compensation helps

reduce maintenance costs.

Like all KI Series detectors, the KI-PD is an intelligent device that

gathers analog information from its optical sensor, converting this

data into digital signals. To make an alarm decision, the detector’s

on-board microprocessor measures and analyzes sensor read-

ings and compares this information to historical data. Digital ﬁlters

remove signal patterns that are not typical of ﬁres, thus virtually

eliminating unwanted alarms.

Standard Features

Note: Some features described here may not be supported by

all control systems. Check your control panel’s Installation and

Operation Guide for details.

• Next generation optical smoke sensing technology

• Wide 0.53 to 3.94 %/ft. (1.7 to 12.35 %/m) smoke obscuration

• Uses Existing Wiring

• Automatic Device Mapping

• Up To 250 Total Addresses Per Loop

• Two Levels of Environmental Compensation

• Two Levels of Dirty Detector Warning

• Twenty Pre-Alarm Settings

• Five Sensitivity Settings

• Non-Volatile Memory

• Electronic Addressing

• Identiﬁcation of Dirty or Defective Detectors

• Automatic Day/Night Sensitivity Adjustment

• Bicolor (Green/Red) Status Led

• Standard, Relay, Fault Isolator, and Audible Mounting Bases

• Sensor Markings Provide Easy Testing Identiﬁcation

S853

Compatible with VS & VM control systemsCompatible with VS & VM control systems

Page 2 of 4 DATA SHEET K85001-0646

Not to be used for installation purposes. Issue 1

Application

The KI-PD detects extremely small particles of combustion and

triggers an alarm at the ﬁrst sign of smoke. Thanks to its high-

performance forward-scattering reﬂective response technology,

the photoelectric smoke sensor responds quickly and reliably to

a wide range of ﬁre types, espe cially slow burning ﬁres fuelled by

combustibles typically found in modern multi-use buildings.

Compatibility

The KI-PD detector is compatible with Kidde VS and VM series

panels.

Installation

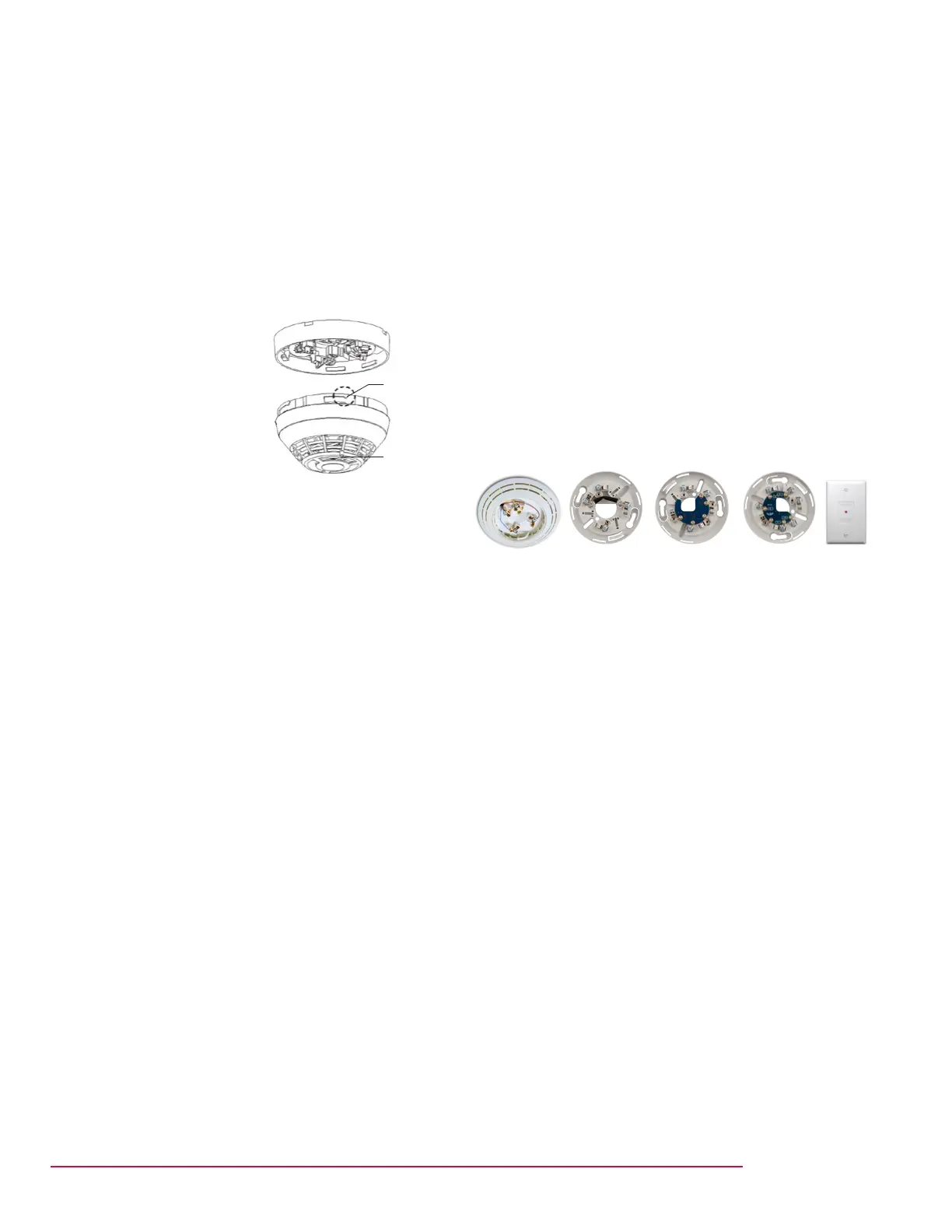

Self-locking tab

LED Indicator

KI Series detector bases mount

to North American 1-gang boxes,

3-1/2 inch or 4 inch octagon

boxes, and to 4 inch square elec-

trical boxes 1-1/2 inches (38 mm)

deep. They mount to European

BESA and 1-gang boxes with 60.3

mm ﬁxing centers. See mounting

base installation and wiring for

more information.

Sensing and reporting technology

The microprocessor in each detector provides additional beneﬁts -

Self-diagnostics and History Log, Automatic Device Mapping, and

Fast, Stable Communication.

Self-diagnostics and History Log - Each KI Series detector

constantly runs self-checks to provide important maintenance in-

formation. The results of the self-check are automatically updated

and permanently stored in the detector’s non-volatile memory

Automatic Device Mapping - The loop controller learns where

each device’s serial number address is installed relative to other

devices on the circuit. The mapping feature provides supervision

of each device’s installed location to prevent a detector from being

reinstalled (after cleaning etc.) in a different location from where it

was originally.

Fast Stable Communication - On-board intelligence means less

information needs to be sent between the detector and the loop

controller. Other than regular supervisory polling response, the

detector only needs to communicate with the loop controller when

it has something new to report.

Testing & Maintenance

Each detector automatically identiﬁes when it is dirty or defective

and causes a “dirty detector” message. The detector’s sensitiv-

ity measurement can also be transmitted to the loop controller. A

sensitivity report may be printed to satisfy NFPA sensitivity mea-

surements, which must be conducted at the end of the ﬁrst year

and every two years thereafter.

The user-friendly maintenance program shows the current state

of each detector and other pertinent messages. Single detectors

may be turned off temporarily from the control panel. Availability of

maintenance features is dependent on the ﬁre alarm system used.

Accessories

Detector mounting bases have wiring terminals that are acces-

sible from the “room-side” after mounting the base to the electrical

box. The bases mount to North American 1-gang boxes and to

3½ inch or 4 inch octagon boxes, 1½ inches (38 mm) deep. They

also mount to European BESA and 1-gang boxes with 60.3 mm

ﬁxing centers. The KI-SB4, KI-RB4, and KI-IB4 mount to North

American 4 inch sq. electrical boxes in addition to the above

boxes. They include the GSA-TS4 Trim Skirt, which is used to

cover the “mounting ears” on the base. The KI-ABST mounts to a

4 inch square box only.

KI-IB

Isolator Base

GSA-LED

Remote LED

KI-RB

Relay Base

KI-SB

Standard Base

KI-ABST/T/LF

Audible Base

Remote LED GSA-LED - The remote LED connects to the KI-SB

or KI-SB4 Standard Base only. It features a North American size

1-gang plastic faceplate with a white ﬁnish and red alarm LED.

GSA-TS4 Trim Skirt - Supplied with 4 inch bases, it can also

be ordered separately to use with the other bases to help hide

surface imperfections not covered by the smaller bases.

Sounder Bases - KI Series sounder bases are designed for use

where localized or group alarm signaling is required.

• KI-ABST bases provide sounder capability to KI Series heat

and smoke detectors. They are not intended for use with

combination carbon monoxide detectors in Fire-plus-CO

mode.

• KI-ABDT bases provide sounder capability to KI Series

smoke and heat detectors, as well as carbon monoxide

detectors when used with a GSA-T3T4 Temporal Pattern

Generator.

• KI-ABLT bases provide 520 Hz low frequency sounder

capability to KI Series smoke and heat detectors, as well as

carbon monoxide detectors when used with a GSA-T3T4

Temporal Pattern Generator. The KI-ABLT is suitable for ap-

plications requiring low frequency audible tones.

Produkt Specifikationer

Mærke:	Kidde
Kategori:	Røgdetektor
Model:	KI-PD
Antal pr. pakke:	1 stk
Produktfarve:	Hvid
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	0 - 93 %
Driftstemperatur (T-T):	0 - 49 °C
Husmateriale:	Plast
Pakketype:	Kasse
Forbindelsesteknologi:	Ledningsført
Strømkilde:	Vekselstrøm
Detektor type:	Kulilte-detektor
Kan forbindes indbyrdes:	Ja
Monteringstype:	Overflademonteret
Nem at installere:	Ja
Trådløs forbindelse:	Ja
Understøttet placering:	Vandret
Maks. rækkevidde:	12.35 m
Bedste anvendelsesmuligheder:	Home, Office
