P/N: 2900-301405 Rev 5 www.kramerAV.com

Installation Instructions

MODEL:

PT-3H2

HDMI 2.0 Extender

P/N:

2900- 301405

Rev:

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where

updates to this user manual may be found.

We welcome your questions, comments, and feedback.

www.KramerAV.com

info@KramerAV.com

Kramer Electronics Ltd.

PT-3H2 HDMI 2.0 Extender –

Introduction

Thank you for purchasing the Kramer , a 4K UHD HDMI EXTENDER that is ideal for ProAV, PT-3H2 ™

multimedia and home cinema applications. The user-friendly, easy to install, matchbox-sized device extends the

HDMI transmission length by reclocking and regenerating the HDMI signal before it sends the output to the HDMI

display or projector. It extends the HDMI cable distance between the HDMI player and the HDMI TV set.

By placing your in the transmission path, it removes dropout and digital noise (sparkles) in your picture PT-3H2

that may result from using long HDMI cables.

In addition, the :PT-3H2

• Provides a method of transmitting 4K@60Hz (4:4:4) signals at a distance of up to 20m from the source (10m

from the source to the , and 10m from the to the display). PT-3H2 PT-3H2

• Maintains an HDMI single link video resolution of up to 4K@60Hz (4:4:4) UHD.

• Supports the DDWG standard for HDMI compliant displays.

• Complies with HDCP 1.4 and HDCP 2.2 and supports HDMI 1.4 and HDMI 2.0.

• Supports ARC and CEC.

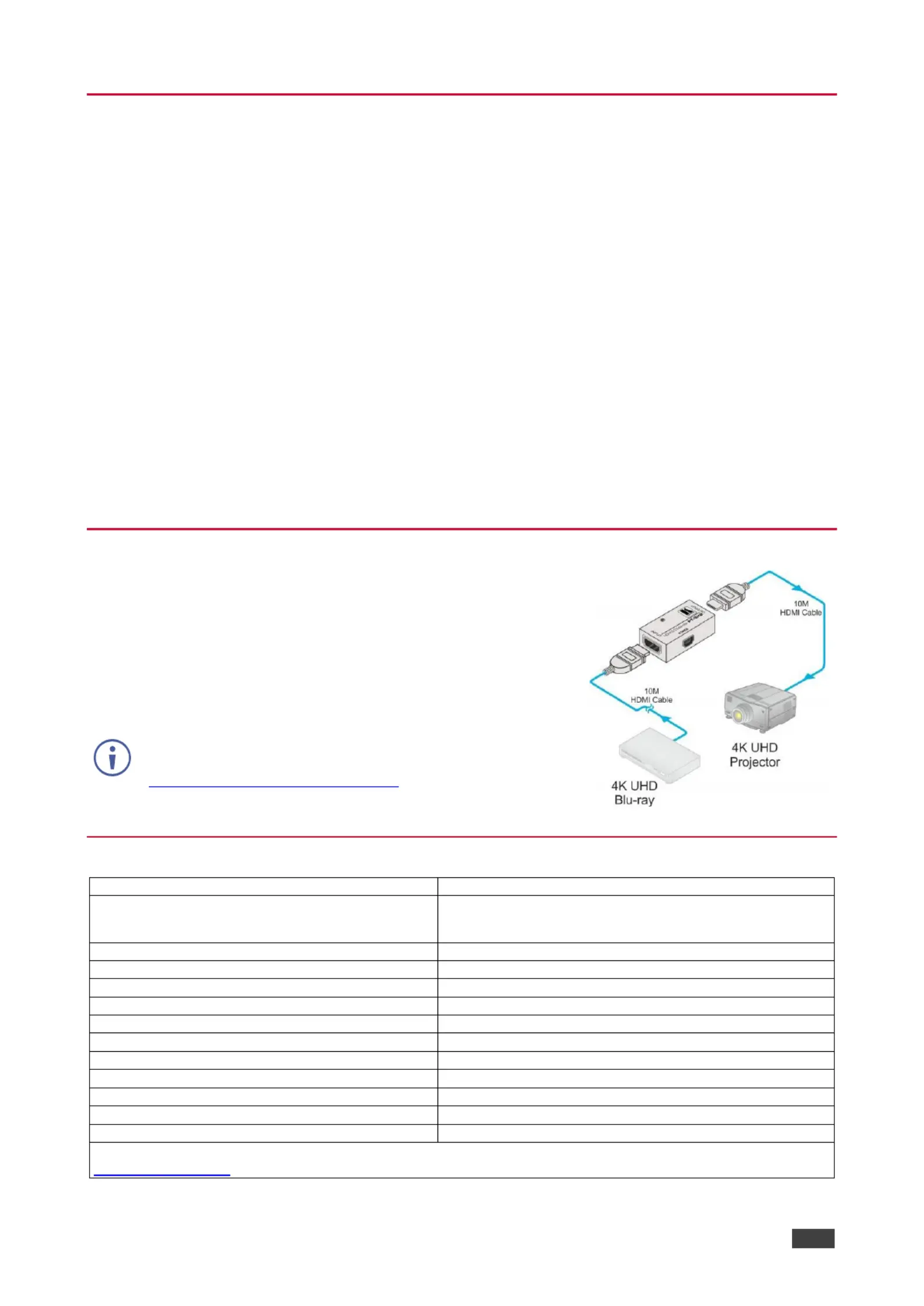

Connecting your - PT 3H2

The input is connected via a long male- -male HDMI cable (not PT-3H2 to

provided) to an HDMI source, such as a 4K UHD Blu-ray player.

The output is connected via a second male- -male HDMI cable PT-3H2 to

(not provided) to an HDMI acceptor, such as a 4K UHD projector or

display.

To achieve specied extension distances, use the

recommended Kramer cables available at

www.kramerav.com/product/PT-3H2.

Using third-party cables may cause damage!

Specifications

INPUT/OUTPUT:

HDMI

MAXIMUM RANGE:

4K@60 4:4:4 20m (65ft); 10m to PT-3H2, 10m to display –

4K@60 4:2:0 / 4K@30 40m (130ft); 25m to PT-3H2, 15m to display –

1080p@60 45m (150ft): 30m to PT-3H2, 15m to display –

MAXIMUM RESOLUTION:

4K@60Hz 4:4:4

HDMI COMPLIANCE:

Up to HDMI 2.0

HDCP COMLIANCE:

Up to HDCP 2.2

HDMI SUPPORT

ARC, CEC

OPERATING TEMPERATURE:

0ºC to +70ºC (32ºF to 158ºF)

OPERATING HUMIDITY:

10% to 85% RH (no condensation)

STORAGE TEMPERATURE:

-10ºC to +80ºC (14ºF to 176ºF)

STORAGE HUMIDITY:

5% to 90% RH (no condensation)

DIMENSIONS:

2.7cm x 4.9cm x 1.5cm (1.1” x 2.0” x 0.6”) W, D, H.

WEIGHT:

17g (0.6oz)

EXTERNAL POWER SOURCE (OPTIONAL):

5V, 150mA on micro-USB connector

Specications are subject to change without notice. For the most updated resolution list, go to our Web site at

www.kramer .comav

The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

All brand names, product names, and trademarks are the property of their respective owners.
