AZTEC SPEAKER GRILLS, CHROME 5182
866 277 9598 | INFO@KURYAKYN.COM
454 COUNTY ROAD VV SOMERSET, WI 54025
KURYAKYN.COM
INSTALLATION INSTRUCTIONS
THANK YOU FOR CHOOSING KURYAKYN!
Protect yourself and others from possible injury and property damage or loss. Pay close attention to all instructions, warnings, cautions, and notices regarding the installation, use, and care of this product.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR SERIOUS INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN MINOR OR MODERATE POTENTIAL INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN MAY NEGATIVELY AFFECT PRODUCT PERFORMANCE AND FUNCTIONALITY OR
DAMAGE THE PRODUCT ITSELF OR THE PRODUCT TO WHICH IT IS BEING ATTACHED.
ENSURE THAT THE FOLLOWING PARTS HAVE BEEN INCLUDED IN THE KIT:
1 Left Speaker Grill
1 Right Speaker Grill
YOU WILL ALSO NEED:
Torx screwdriver set
THESE INSTALLATION INSTRUCTIONS CONTAIN IMPORTANT INFORMATION. ENSURE THE END USER RECEIVES THIS COPY AND IS AWARE
OF ITS IMPORTANCE FOR FUTURE USE.
STEP 1
Read and understand all steps in the instructions before starting the
installation. Park the motorcycle on a hard, level surface and turn off
the ignition. Let motorcycle cool.
STEP 2
Refer to PIC 2 and 3. Starting on the right (brake) side of the bike,
remove existing hardware from the bottom side of the existing speaker
grill. Remove the speaker grill. Set the mounting hardware aside, it will
be reused.
STEP 3
Refer to PIC 4 and 5. Locate provided Right Speaker Grill. Align and
insert the tabs on top of the speaker grill with the top inside section of
the fairing where the previous speaker was installed. Press the bottom
portion of the speaker grill in to align mounting holes of the speaker
with the fairing.

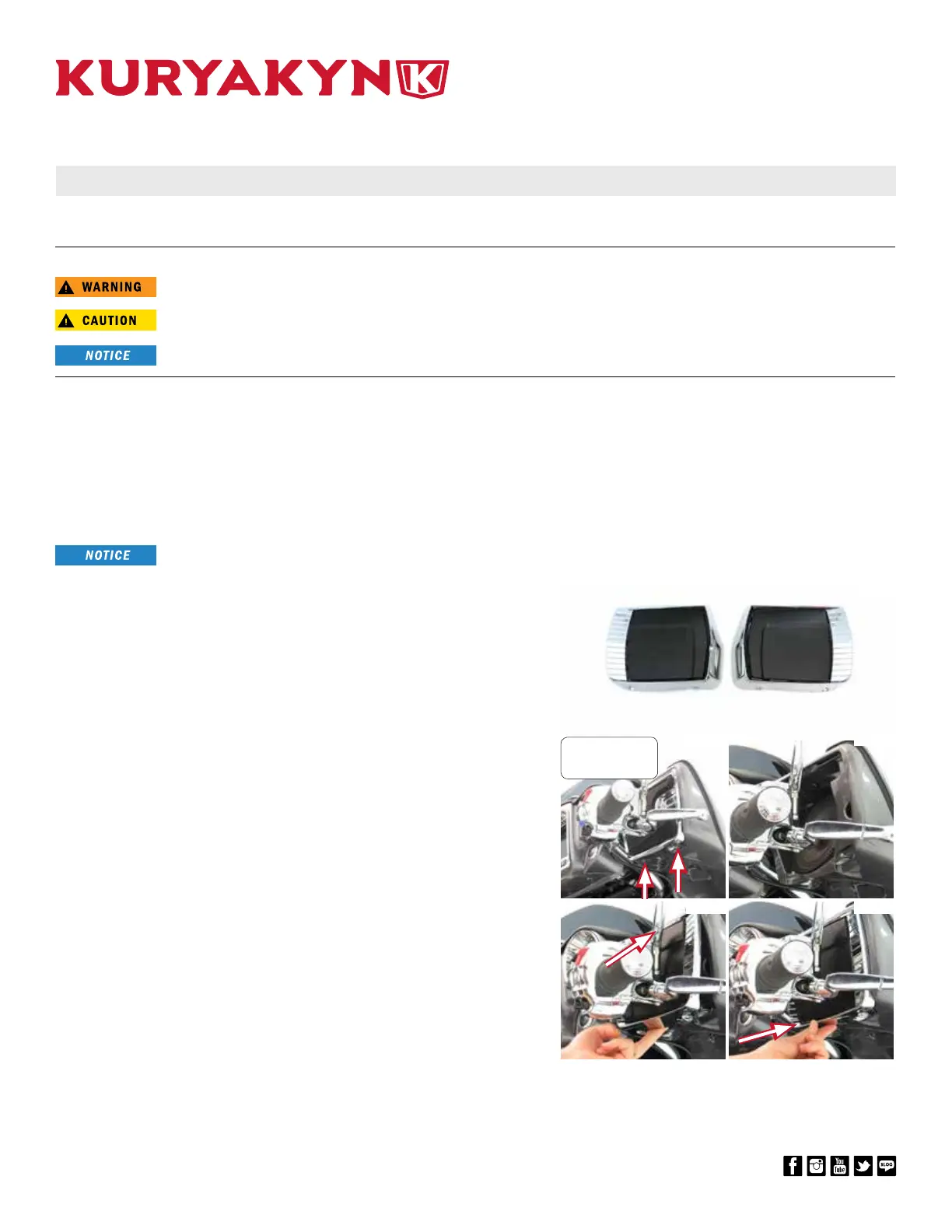

PIC 1
PIC 3
PIC 5
PIC 2
PIC 4
LEFT SPEAKER RIGHT SPEAKER
RIGHT (BRAKE)
SIDE VIEW
