Side 1/2

Port Fa

4 PoE Outputs, 802.3a

Quick

IFP-0503

ast Ethernet Industrial PoE Switch

at PoE Plus, 1 Port SC Single

Mod

Installation Guid

de Fiber, 30km

v1.0

IFP-0503 Page 1

Overview

The LevelOne IFP-0503 Industrial Fast Ethernet PoE+ Switch

provides 4 ports at 10/100M TX PSE to supply power and

internet to PoE+ compatible Powered Devices (PD) in a large-

scale indoor or outdoor network setting. The IFP-0503 supplies

15.4 Watts for IEEE802.3af or 30 Watts (Max 36W) for

IEEE802.3at per port. Duplex mode Fibre allows installation up

to 30km from the power source. With an industrial-standard

DIN-rail mount for easy cabinet deployment and metal casing

rated to IP30, this ruggedized switch is engineered for

installation in industrial settings where humidity, dust, high or

low operating temperatures or vibrations could cause standard

devices to fail.

High Reliability

All components are built to withstand harsh environment

applications without compromise where humidity, temperature

variation and even shock vibration are concerns, including

Electric & Utility, Critical Infrastructure, Transportation and

Surveillance Security. This device operates under -40 to 75

Celsius (-40 to 167 Fahrenheit) temperature.

Plug & Play

This unmanaged Industrial Ethernet Switch is designed for the

demanding industrial environments at businesses in need of

instant connectivity with no setup or congure required, truly

plug and play.

IFP-0503 Page 2

Power over Ethernet

This switch is Power Sourcing Equipment (PSE), and it is fully

complied with IEEE 802.3at PoE standard at maximum 30W

power budget per port. It helps to save infrastructure wiring

costs dramatically by eliminating electric wiring and less UPS

needed. Also, it is compatible with IEEE802.3af standard PD

devices.

IFP-0503 Page 3

Features

• Meets NEMA TS1/TS2 Environmental requirements such as temperature,

shock, and vibration for trac control equipment

• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for

industrial environment

• Supports 1024 MAC addresses. Provides 1M bits memory buer

• Provides one Port SC Single-Mode Fiber with a maximum networking

range of 30km.

• Store-and-forward mechanism. Full wire-speed forwarding rate.

• Power Supply: 44~56VDC Terminal Block power input.

• 3.76W power consumption 48VDC full load

• -40 to 75 (-40 to 167 ) operating temperature range. ℃ ℃ ℉ ℉

• Tested for functional operation @ -40 to 85 (-40 to 185 ). ℃ ℃ ℉ ℉

• Metal case design and compliant with IP30 standard

Package Contents

 IFP-0503

 Din rail*1, wall mount*2, terminal block*1, screw*4

 Quick Installation Guide

IFP-0503 Page 4

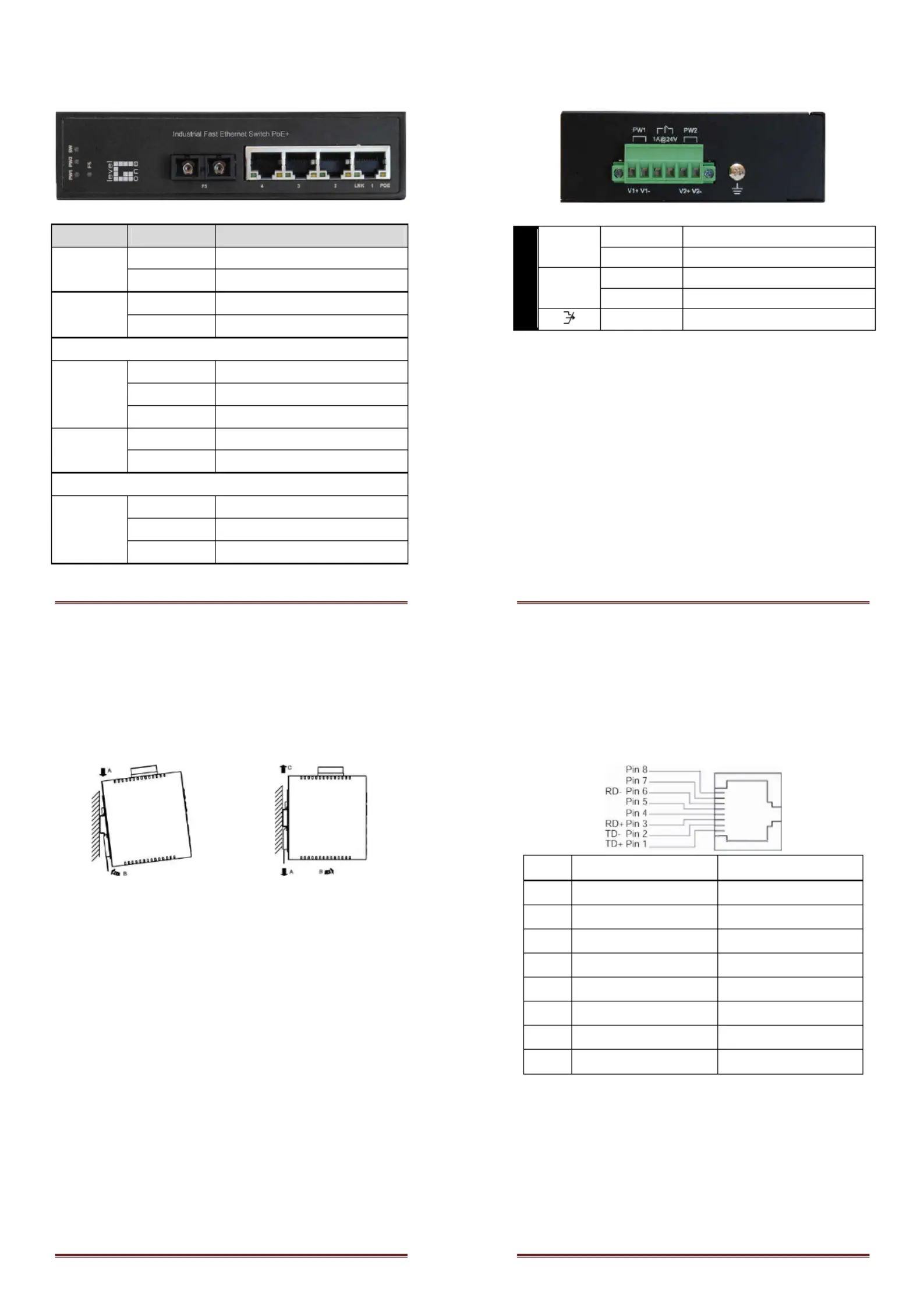

LED Status

LED

Status

Description

PWR 1, 2

ON Power On

OFF Power O

SW (relay)

ON both PW1 and PW2 are connected

OFF only PW1 or PW2 is connected

10/100

Base

LNK(1 ~ 4)

ON TX link is detected

OFF TX port is not detected

Flashing TX port is active

POE(1 ~ 4)

ON PD is connected

OFF No PD is connected

Fiber

ON FX ber is detected

OFF FX ber is not detected

Flashing FX ber is active

IFP-0503 Page 5

Power Input

Terminal Block

PW1

44–56VDC

–

Power Ground

PW2

44–56VDC

–

Power Ground

Relay Output

1A @ 24VDC

IFP-0503 Page 6

DIN Rail Mount

• Assembly: Place the switch on the DIN rail from above using

the slot. Push the front of the switch toward the mounting

surface until it audibly snaps into place

• Start-up: Connect the supply voltage to start up the switch

via the terminal block (or DC JACK)

• Dismantling: Pull out the lower edge and then remove the

switch from the DIN rail.

IFP-0503 Page 7

10/100Base-TX Connector

The following lists the pin-out of 10/100Base-TX ports.

Standard Port

Uplink Port

1 Output Transmit Data + Input Receive Data +

2 Output Transmit Data - Input Receive Data -

3 Input Receive Data + Output Transmit Data +

4 NC NC

5 NC NC

6 Input Receive Data - Output Transmit Data -

7 NC NC

8 NC NC

Produkt Specifikationer

Mærke:	LevelOne
Kategori:	Skifte
Model:	IFP-0503
Kode for international beskyttelse (IP):	IP30
Bredde:	114 mm
Dybde:	50 mm
Højde:	165 mm
Vægt:	500 g
Produktfarve:	Sort
Pakkedybde:	60 mm
Pakkebredde:	120 mm
Pakkehøjde:	185 mm
Strømforbrug (typisk):	3.76 W
Driftstemperatur (T-T):	-40 - 75 °C
Intern hukommelse:	1 MB
Husmateriale:	Metal
Hurtig start guide:	Ja
Pakketype:	Gaveæske
Strømkilde:	DC/PoE
Pallens bruttobredde:	1200 mm
Pallens bruttolængde:	800 mm
Netværksstandarder:	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
LED-indikatorer:	Activity, Link, Power
Kan monteres på væggen:	Ja
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	CE, Federal Communications Commission (FCC)
Indgangsspænding:	0 - 56 V
Hovedkassen højde (udvendigt):	320 mm
Hovedkassens længde (udvendigt):	380 mm
Hovedkassens bruttovægt (udvendigt):	8000 g
Hovedkassens bredde (udvendigt):	450 mm
Oprindelsesland:	Kina
Fiber optisk strømstik:	SC
Produkter pr. hovedkasse (udvendigt):	15 stk
Flashhukommelse:	1 MB
Fuld duplex:	Ja
Strøm over Ethernet (PoE):	Ja
Overholdelse af bæredygtighed:	Ja
Gennemsnitstid mellem fejl (MTBF):	150000 t
Switch-type:	Ikke administreret
Total Power over Ethernet (PoE):	126 W
Power over Ethernet (PoE) effekt pr. port:	30 W
10G understøttelse:	Ingen
Flowkontrol support:	Ja
Kobber ethernet kabelteknologi:	10BASE-T, 100BASE-TX
Basis omskiftning RJ-45 Ethernet porte, antal:	4
Basis omskiftning RJ-45 Ethernet porttype:	Fast Ethernet (10/100)
MAC adresselabel:	1000 entries
Switch kapacitet:	1 Gbit/sek.
Fast Ethernet (kobber) porte, antal:	4
Strømforsyning inkluderet:	Ja
DIN-skinne montering:	Ja
Monteringssæt til væggen:	Ja
Klemrække port:	Ja
Klemrække inkluderet:	Ja
DIN skinne inkluderet:	Ja
Fibertype:	Enkeltilstand
Fiberkanal porte:	1
Pakke videresendelsesrate (100 Mbps):	148000 pps
Pakke videresendelsesrate (10 Mbps):	14880 pps
Transmissionsafstand (maks.):	30 km
Pallehøjde (luft):	1620 mm
Antal papkasser pr. palle (hav):	12 stk
