Side 1/2

Port

1 Po

Quick

IFS-0502

Fast Ethernet Industrial Switch,

ort SC Multi

-Mode Fiber, 2km

k Installation Guid





IFS-0502 Page 1

Overview

The LevelOne IFS-0502 Industrial Fast Ethernet Switch

provides four ports at 10/100M TX and one multi-modal ﬁber

port at 100M FX SC to enable high speed networks in mission-

critical environments. With an industrial standard DIN-rail

mount, this switch can be installed in a cabinet, and clearly

visible status LEDs provide simple monitoring of port link

activity. The multi-modal ﬁber port allows connections of up to

2km. The switch is housed in a solid metal case rated at IP30,

keeping it safe from dust, vibration, heat and humidity, while an

operational temperature range of -40°C to +75°C ma kes it

suitable for deployment in almost any environment.

High Reliability

All components are built to withstand harsh environment

applications without compromise where humidity, temperature

variation and even shock vibration are concerns, including

Electric & Utility, Critical Infrastructure, Transportation and

Surveillance Security. This device operates under -40 to 75

Celsius (-40 to 167 Fahrenheit) temperature.

Plug & Play

This unmanaged Industrial Ethernet Switch is designed for the

demanding industrial environments at businesses in need of

instant connectivity with no setup or conﬁgure required, truly

plug and play.

IFS-0502 Page 2

Features

• Meets NEMA TS1/TS2 Environmental requirements such as temperature,

shock, and vibration for traﬃc control equipment

• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for

industrial environment

• Supports 1024 MAC addresses. Provides 1M bits memory buﬀer

• Provides one Port SC Multi-Mode Fiber with a maximum networking range

of 2km.

• Store-and-forward mechanism. Full wire-speed forwarding rate.

• Power Supply: 9~56VDC Terminal Block power input.

• 3.76W power consumption 48VDC full load

• -40 to 75 (-40 to 167 ) operating temperature range. ℃ ℃ ℉ ℉

• Tested for functional operation @ -40 to 85 (-40 to 185 ). ℃ ℃ ℉ ℉

• Metal case design and compliant with IP30 standard

Package Contents

 IFS-0502

 Din rail*1, wall mount*2, terminal block*1, screw*4

 Quick Installation Guide

IFS-0502 Page 3

LED Status

LED

Status

Description

PWR 1, 2 ON Power On

OFF Power Oﬀ

SW (relay) ON both PW1 and PW2 are connected

OFF only PW1 or PW2 is connected

10/100

Base

LNK(1 ~ 4)

ON TX link is detected

OFF TX port is not detected

Flashing TX port is active

Fiber

ON FX ﬁber is detected

OFF FX ﬁber is not detected

Flashing FX ﬁber is active

IFS-0502 Page 4

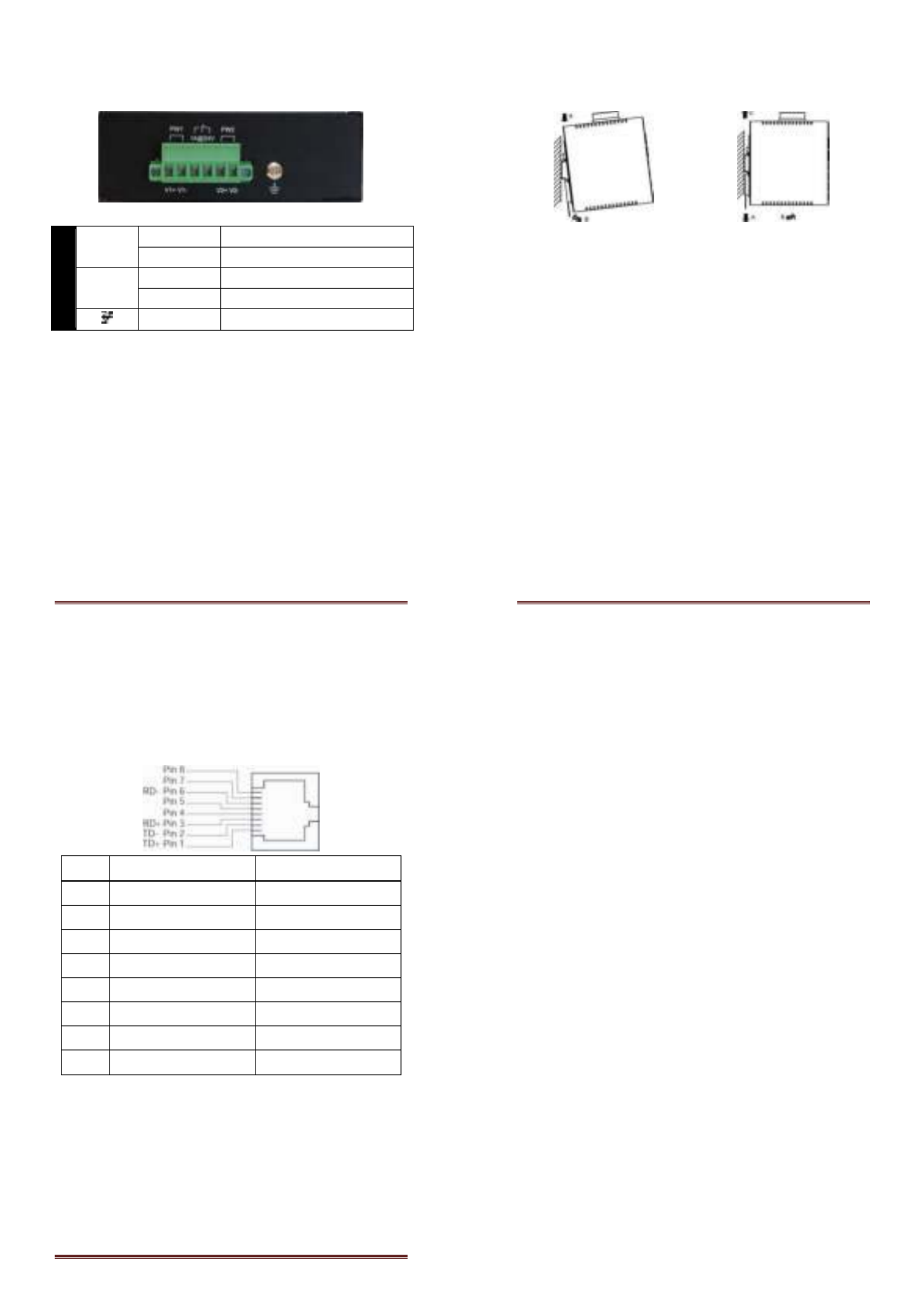

Power Input

Terminal Block

PW1

44–56VDC

–

Power Ground

PW2

44–56VDC

–

Power Ground

Relay Output 1A @ 24VDC

IFS-0502 Page 5

DIN Rail Mount

• Assembly: Place the switch on the DIN rail from above using

the slot. Push the front of the switch toward the mounting

surface until it audibly snaps into place

• Start-up: Connect the supply voltage to start up the switch

via the terminal block (or DC JACK)

• Dismantling: Pull out the lower edge and then remove the

switch from the DIN rail.

IFS-0502 Page 6

10/100Base-TX Connector

The following lists the pin-out of 10/100Base-TX ports.

Standard Port

Uplink Port

1 Output Transmit Data + Input Receive Data +

2 Output Transmit Data - Input Receive Data -

3 Input Receive Data + Output Transmit Data +

4 NC NC

5 NC NC

6 Input Receive Data - Output Transmit Data -

7 NC NC

8 NC NC

Produkt Specifikationer

Mærke:	LevelOne
Kategori:	Skifte
Model:	IFS-0501
Kode for international beskyttelse (IP):	IP30
Bredde:	36 mm
Dybde:	105 mm
Højde:	142 mm
Vægt:	470 g
Produktfarve:	Sort
Pakkevægt:	180 g
Pakkedybde:	165 mm
Pakkebredde:	65 mm
Pakkehøjde:	215 mm
Opbevaringstemperatur (T-T):	-40 - 85 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Strømforbrug (typisk):	3.76 W
Driftstemperatur (T-T):	-40 - 75 °C
Intern hukommelse:	1 MB
Husmateriale:	Metal
Hurtig start guide:	Ja
Pakketype:	Kasse
Certificering:	FCC, CE, RoHS, VCCI\nEN55022/24 \nEN55011\nEN50121-3-2\nEN50121-4 (pending)\nEN50155 (pending)\nEN60068-2-6\nEN60068-2-27\nEN60068-2-32
Netværksstandarder:	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
LED-indikatorer:	Link, Power
Kan monteres på væggen:	Ja
Udgangsspænding:	24 V
Udgangsstrøm:	1 A
Harmoniseret systemkode (HS):	85176990
Maksimal dataoverførselshastighed:	100 Mbit/s
Oprindelsesland:	Taiwan
Fuld duplex:	Ja
Strøm over Ethernet (PoE):	Ingen
Switch-type:	Ikke administreret
10G understøttelse:	Ingen
Auto MDI/MDI-X:	Ja
Flowkontrol support:	Ja
Kobber ethernet kabelteknologi:	10BASE-T, 100BASE-TX
Basis omskiftning RJ-45 Ethernet porte, antal:	5
Basis omskiftning RJ-45 Ethernet porttype:	Fast Ethernet (10/100)
Opbevar-og-frem:	Ja
MAC adresselabel:	1024 entries
Switch kapacitet:	1 Gbit/sek.
Stativ-montering:	Ingen
Sikkerhed:	EN60950-1
Monteringssæt til væggen:	Ja
Auto-forhandling:	Ja
Pakke bufferlager:	1 MB
Klemrække inkluderet:	Ja
Pakke videresendelsesrate (100 Mbps):	148000 pps
Pakke videresendelsesrate (10 Mbps):	14880 pps
