Overview

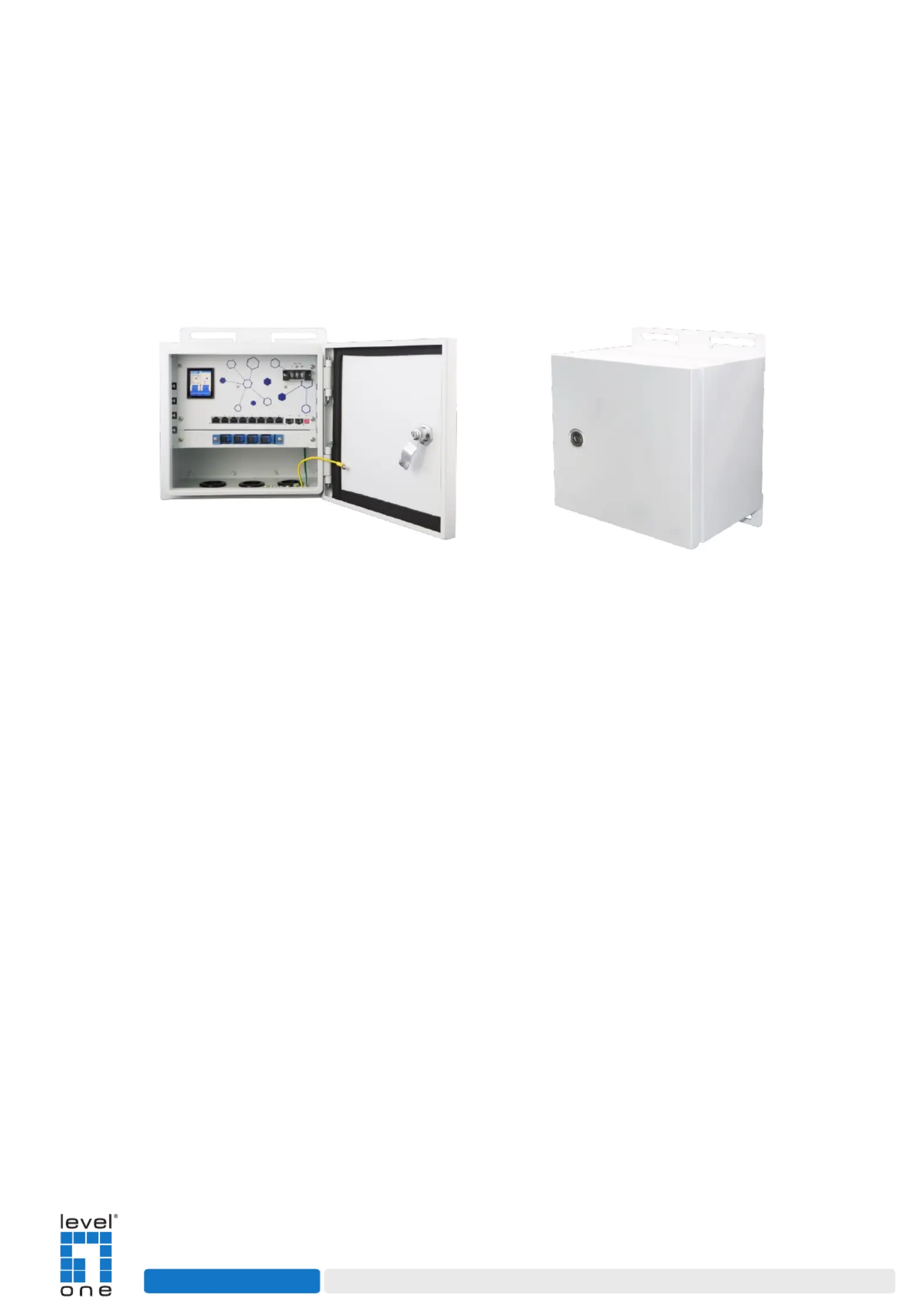

OSW 1031 is an outdoor switch. It is integrated switch, optical tray, breaker, lightning -PoE of PoE fiber air

arrester etc. It has IP55 can be for outdoor using.It can be applied for surveillance monitoring, protection grade,

forest etc.monitoring,

Features

120W DC52V power module inside.

With 8*10/100/1000M PoE downlink ports and 2*1000M SFP uplink ports.

The maximum PoE power of single port is 30W, and the maximum PoE power of the whole machine is 115W.

Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can

automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It

greatly reduces the maintenance diculty of engineering.

6KV surge protection, 6KV contact / 8KV air ESD protection.

The box adopts waterproof (protection level IP55), anti-rust treatment, suitable for long time outdoor use.

Outdoor PoE

Outdoor PoE Outdoor PoE switch

switch

switch switch

10-Port Gigabit Ethernet PoE Switch, 8 PoE Outputs

10/100/1000Mbps +2 uplink Gigabit SFP port

OSW-103

OSW-103OSW-1031

w w w . l e v e l 1 . c o m

Hardware specification

Parameter

Specifications

Power supply

AC100-240V, 50/60Hz

Consumption

Self consumption<5W, PoE output max. 1 W 15

Downlink ports

Ports 1~8 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)

Uplink ports

Ports 9~10 1000Base-X SFP

PoE ports

Ports 1~8 support IEEE802.3af/at, end-span, 30W per port Max.

PoE Auto-check

If detect the frozen PD device, restart it

Working mode

V:VLAN: 1~8 ports are isolated, only can communicate with the uplink ports; restrain the networkt

storm; close ow control.

P:PoE Auto-Check: PoE Auto-Check function is open/ closed by dip switch.

The switch always auto detect 1~8 ports whether frozen, if some ports are frozen, the switch will

restart them,but other ports are unaected.

Cable and distance

Use cat5e/6,100m max.

Standard

IEEE802.3, IEEE802.3u, IEEE802.3z

Switch fabric

5.6Gbps

Though put

4.2Mpps

Buer

12KB

MAC address table

Indicator

Power: 1 *red ;

Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE

Uplink9, 10: On RJ45 green LEDs indicate Link/Act

Protection

Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2

SPD

AC lightning arrester, 385v AC@20KA , 2p, - , lower incoming line, dxh06-fcs / 2r40 40 ～70 ℃

Working temperature

-20 ~ ℃70℃

Storage temperature

- ~85 40℃ ℃

Humidity

0~95%(No condensation)

Dimension(L×W×H)

280mm×200 260 mm× mm

Material

Metal

Color

White

Net weight-

8KG

w w w. l e v e l 1 . c o m
