Leviton Manufacturing Co., Inc. Global Headquarters

201 North Service Road, Melville, NY 11747-3138 800-323-8920 (8:30AM-7:00PM ET Mon-Fri) 800-824-3005 tel tech line

Description

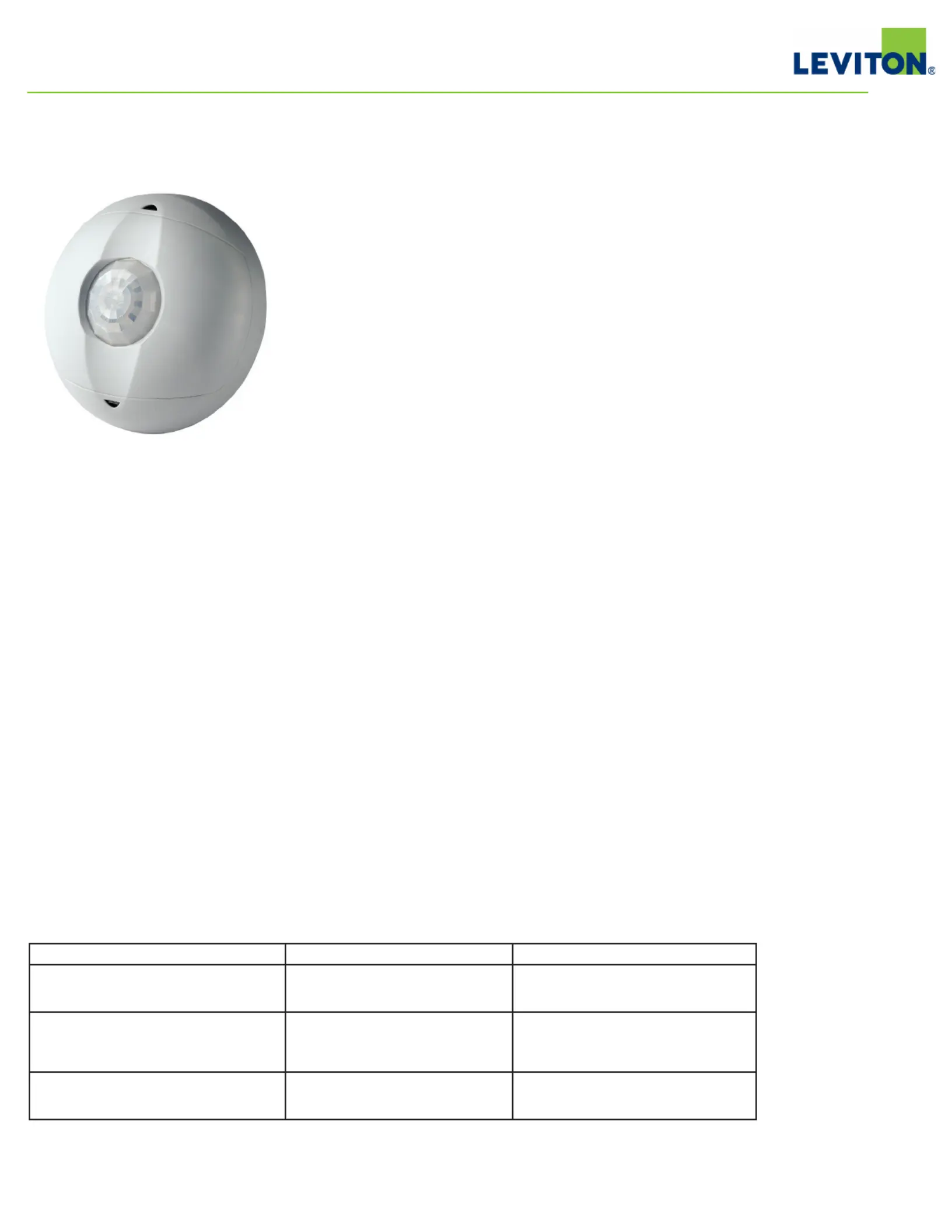

The OSCxx-I0W is a Passive Infrared (PIR) ceiling mount, low

voltage oc cu pan cy sensor that works in con junc tion with the

Leviton OSPxx Power Pack to control lighting. The sensor’s

main function is to turn the lights ON or maintain the lights

ON while movement is detected within the sensor’s range

and to turn the lights OFF when the space is left un oc cu pied.

The sensor uses a dual element PIR heat detector that

resides behind a multi-zone optical lens. This Fresnel lens

es tab lish es dozens of zones of de tec tion. The sensor is

sensitive to the heat emitted by the human body. In order to

trigger the sensor, the source of heat must move from one

zone of sensing to another. Non-moving hot objects will not

cause the lights to turn ON (like incandescent lights).

Product Data

OSCxx-I0W

Passive Infrared Ceiling Occupancy Sensor

Features

• Fast, sim ple installation: easy base mount, three wire

connection (low voltage) and twist-and-lock

• Self-adjusting: internal microprocessor con tin u al ly

analyzes, evaluates and adjusts the infrared sensitivity and

time delay. Performance is kept at a maximum and user

complaints are eliminated.

• Flexible base mounting: supplied twist-and-lock base mount

permits fast alignment. Supplied cover hides mounting

hardware and wires. Can be used with raceways for hard

surface installations.

• Range & coverage: 450 sq. feet and 1,500 sq. feet models

available

• Maximum reliability, low cost: all digital circuitry uses a

minimum of components

• Power base (OPB15) available for line voltage applications

• Ambient light recognition: a light sensor prevents lights

from turning on when the room is adequately lit by natural

light

• Non-volatile memory: learned and ad just ed settings saved

in protected memory are not lost during power outages

• Timer setting feature: automatic—30sec–30min. Test

mode—6sec with auto exit programming.

• PIR masking: pre-scored masking disks are provided with the

device for fine tuning the field-of-view

• Walk-through: provides increased energy savings by

decreasing the time delay to 2.5min when someone

momentarily walks through the monitored space

• High motion sensitivity: large lens area and multi-element

lens design gives excellent range and sensitivity

• Custom off-white color matched for shaded ceilings and

most common ceiling tiles

• Device: rugged, high-impact, injection

molded plastic. Color

coded leads are 6” long (16.24 cm).

Applications

• Classrooms • Utility closets • Conference rooms

• Copy rooms • Hallways • Small offices

• Open areas • Private restrooms • Storage rooms

• Vending rooms • Open warehouses • Work spaces

Condition Example Adaptive Reaction

Timer left in text mode—the sensor remains in a 6

sec. test mode

An installer accidently leaves the sensor in

the 6 sec. timer text mode and the lights

may go on or o every 6 seconds

The sensor automatically resets the timer to 10

minutes after 15 minutes of test mode

False ON—the sensor incorrectly turns the lights

The sensor detects movement in the

corridor hallway and the room lights turn

After an initial movement is sensed, if another

movement is not sensed within the timer

setting, then the delayed OFF time setting is

automatically reduced

False OFF—the sensor incorrectly turns the lights

OFF

The sensor does not detect movement

because an occupant sits virtually

motionless at a desk and the lights turn OFF

If motion is sensed within a short period after

the lights go OFF, then the current delayed OFF

time setting is increased

DIP Switch Settings

*Bold items are factory defaults

Switch Switch Functions Switch Settings

Bank A OFF ON

A1 N/A

A2 N/A

A3 Manual Mode

Auto Adapting

Enabled

Auto Adapting

Disabled

A4 Walk-Thru Disabled Walk-Thru Enabled Walk-Thru Disabled

Bank B

B1 Override to ON Auto Mode Lights forced ON

B2 Override to OFF Auto Mode Lights forced OFF

B3 Test Mode OFF ON OFF Enter/Exit Test Mode

B4 LED Disabled LEDs Enabled LEDs Disabled

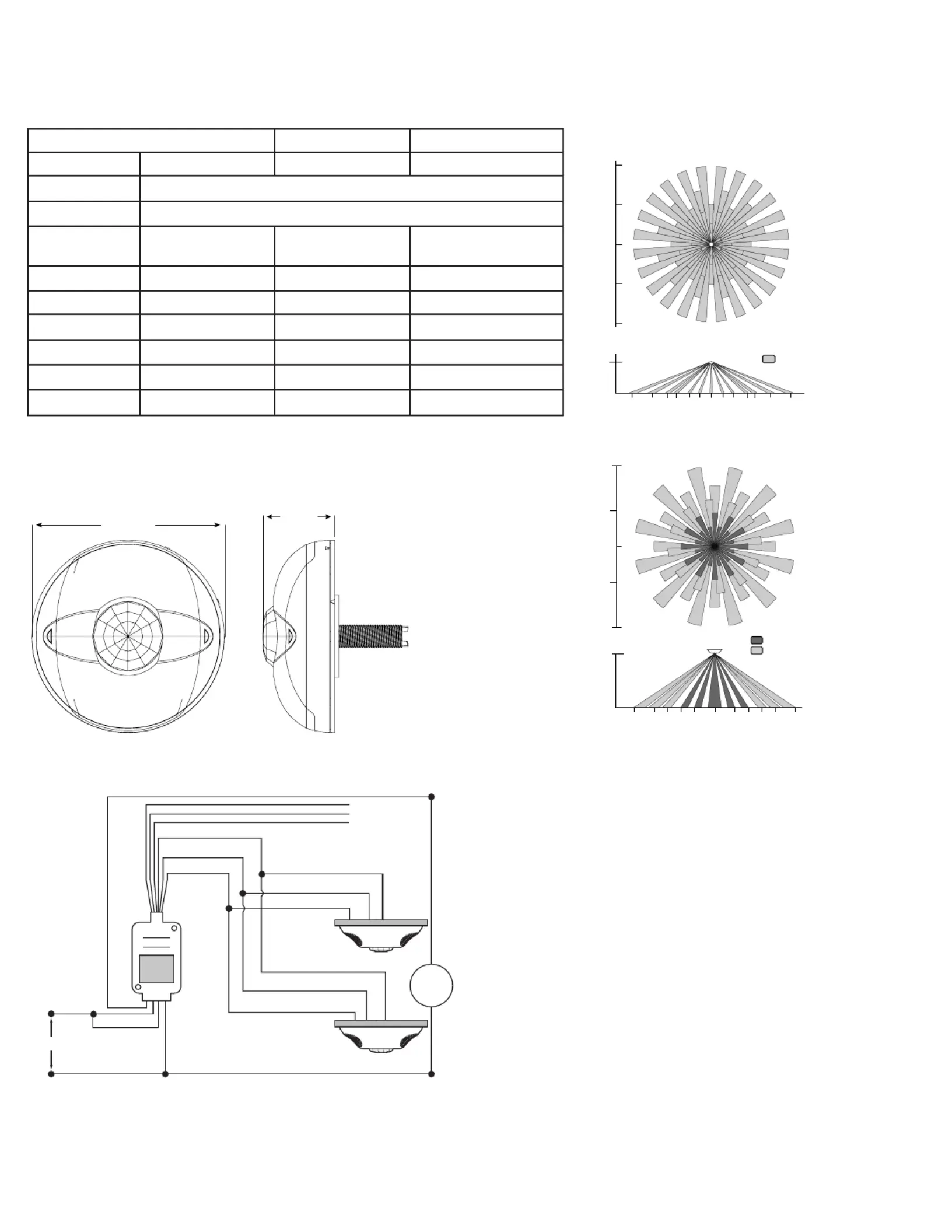

Wiring Diagram

Field-Of-View Diagrams

Minor Motion, IR

Major Motion, IR

SIDE VIEW

12 5

OSC04

SIDE VIEW

TOP VIEW

1515 5.65.6

Major Motion, IR

OSC15

Load

Sensor

OSPxx Series Power Pack

Black White

Neutral (White)

Hot

Black

Blue

Black

White

Red

Black

Blue*

(occupancy)

Red

Black

Blue

(occupancy)

Red (24VDC)

Black

Blue

(control)

NC-Brown

Common-Green

NO-Brown/White

To HVAC System

120/277/347

VAC60Hz

Line

Dimensions Diagrams

4.20”

(106.68 mm)

1.57”

(39.90 mm)

Produkt Specifikationer

Mærke:	Leviton
Kategori:	Bevægelsesdetektor
Model:	OSC04-IAW
Bredde:	106.68 mm
Højde:	39.9 mm
Antal pr. pakke:	1 stk
Produktfarve:	Hvid
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Forbindelsesteknologi:	Ledningsført
Strømkilde type:	Vekselstrøm
Indgangsspænding:	24 V
Sensortype:	Passiv infrarød (PIR) sensor
Oprindelsesland:	USA
Garantiperiode:	5 År
Svartid:	30 sek./side
