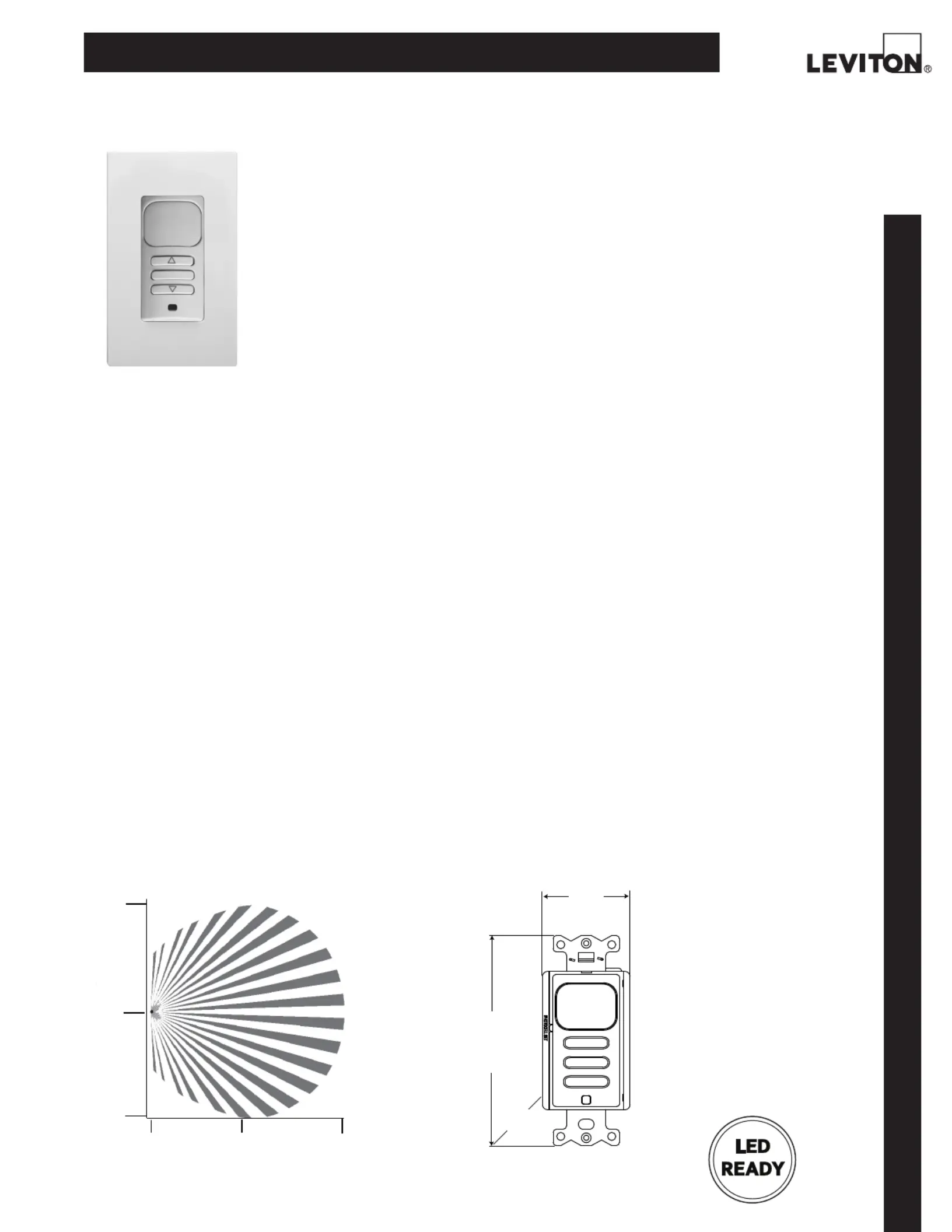

PRODUCT DATA

0-10V PIR Dimming Wall Switch Sensor (OSD10)

0-10V PIR Dimming Wall Switch Sensor

DESCRIPTION

The Leviton 0-10V Passive Infrared (PIR)

Dimming Wall Switch Sensor (OSD10)

combines passive infrared technology for

0-10V ON/OFF dimming control and daylight

harvesting.

The OSD10 sensor uses a self-adjusting timer

and PIR technology to scan for movement

and turn lights off after a set amount of time,

preventing false triggers. The OSD10 offers

selectable operating modes for auto-ON/OFF

and manual-ON/auto-OFF operation.

APPLICATIONS

• Small office

• Lobbies

• Small meeting rooms

• Restrooms

Leviton Manufacturing Co., Inc. Global Headquarters

201 North Service Road, Melville, NY 11747-3138 800-824-3005 800-832-9538 tech line fax

FEATURES

• Self-adaptive technology: no manual

adjustment required

• Can be used to comply with ASHRAE 90.1,

2016 Title 24, Part 6 occupancy sensing

requirements, IECC, UL and cUL listed

• One relay module for single-level switching

• Field of view: 1,000 square feet and 180° of

detection

• Adjustable time delay:

- Auto mode: 4-30 minutes; self-adjusts

based on occupancy

- Fixed mode: 4, 8, 15 and 30 minutes

- Test mode: 5 seconds for simpliﬁed

commissioning

• The OSD10 provides a maintenance free,

install-and-forget operation with selectable

operating modes:

- Auto-ON/OFF

- Manual-ON/OFF

• No minimum load requirement

• Zero arc point switching

• Five-year limited warranty

FIELD-OF-VIEW (IN FEET)

5025

DIMENSIONS

1.8”

(45.72mm)

4.2”

(106.68mm)

1.75”

(44.45mm)

PRODUCT DATA

0-10V PIR Dimming Wall Switch Sensor (OSD10)

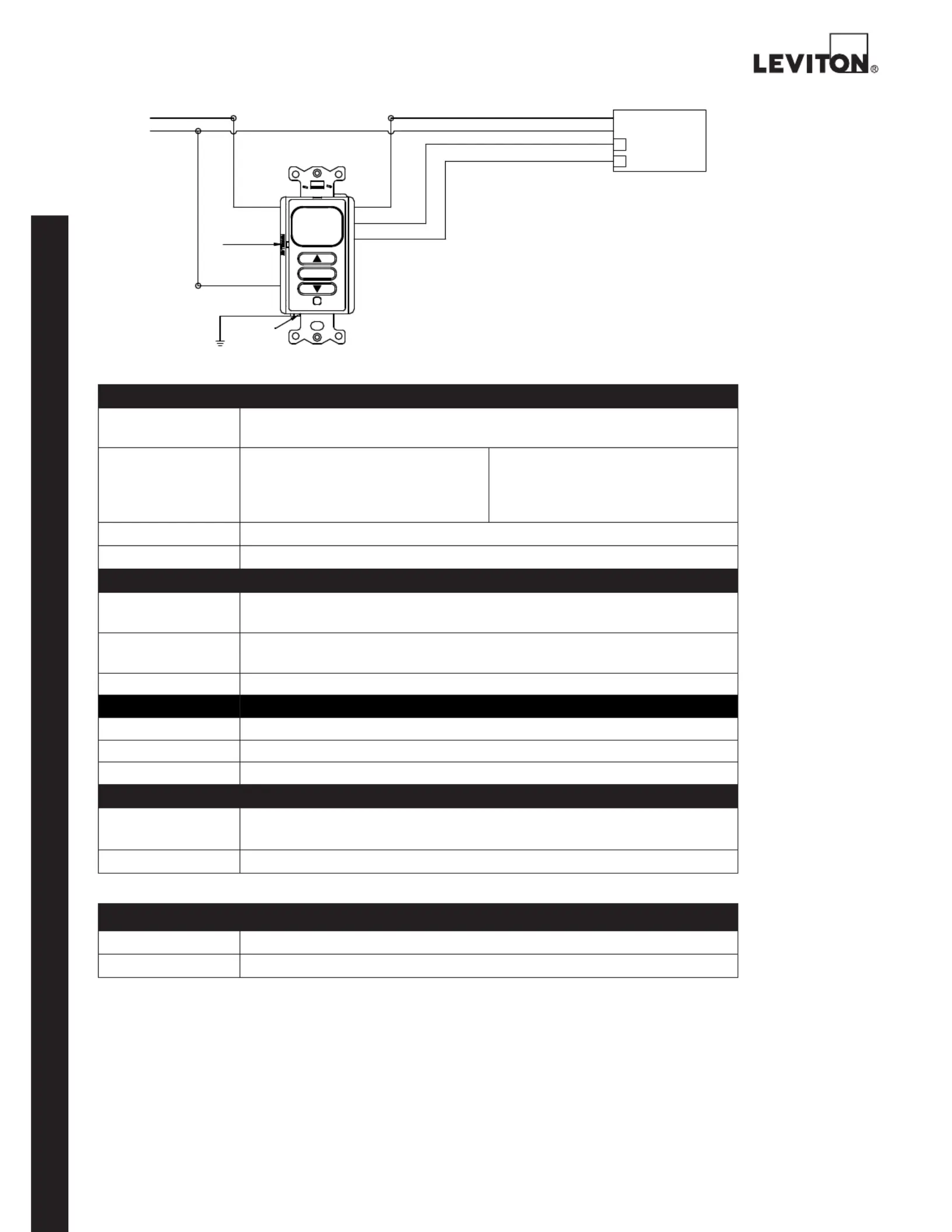

WIRING DIAGRAM

SPECIFICATIONS

Leviton Manufacturing Co., Inc. Global Headquarters

201 North Service Road, Melville, NY 11747-3138 800-323-8920 800-832-9538 (8:30AM-7:00PM ET Mon-Fri) 800-824-3005 tel fax tech line

Leviton Manufacturing Co., Inc. Energy Management, Controls and Automation

20497 SW Teton Avenue, Tualatin, OR 97062 tel 800-736-6682 fax 503-404-5594 tech line (6:00AM-4:00PM PT Mon-Fri) 800-959-6004

Visit our Website at: www.leviton.com/sensors

G-9654C/B19-aa

REV FEB 2019

ELECTRICAL

Power

Requirements

120/277VAC, 50/60Hz

Electrical Ratings

120VAC

800W Electronic Ballast/LED Driver

1,000W Magnetic Ballast

1/6 HP Motor

277VAC

1,800W Electronic Ballast/LED Driver/

Magnetic Ballast

1/6 HP Motor

Coverage 1,000sqft, 180°

Photocell Range 10 - 500FC (107.63 - 5381.96 LUX)

ENVIRONMENTAL

Operating

Temperature

32 to 104°F (0 to 40°C)

Operating

Environment

Indoor only

Relative Humidity 0-95% (non-condensing )

PHYSICAL

Dimensions 4.2” (106.68mm) H x 1.8” (45.42mm) W x 1.75” (1.75mm) D

Construction High-impact, injection-molded plastic, impact resistant lens

Colors White, Ivory

OTHER

Listings

Can be used to comply with ASHRAE 90.1, 2016 Title 24, Part 6 occupancy

sensing requirements, IECC, UL and cUL listed

Warranty Limited five-year warranty

ORDERING INFORMATION

CAT NO. DESCRIPTION

OSD10-I0W 0-10V PIR Dimming Wall Switch Sensor, White

OSD10-I0I 0-10V PIR Dimming Wall Switch Sensor, Ivory

Note: Single-gang NEMA-style standard switch box wall plate sold separately

PHOTOCELL

PUSHBUTTON

RED

LINE CIRCUIT

BLACK

NEUTRAL

WHITE

VIOLET

GRAY

GROUND

CONNECTION

Hot

Neutral

Dimming

Lighting

Load
