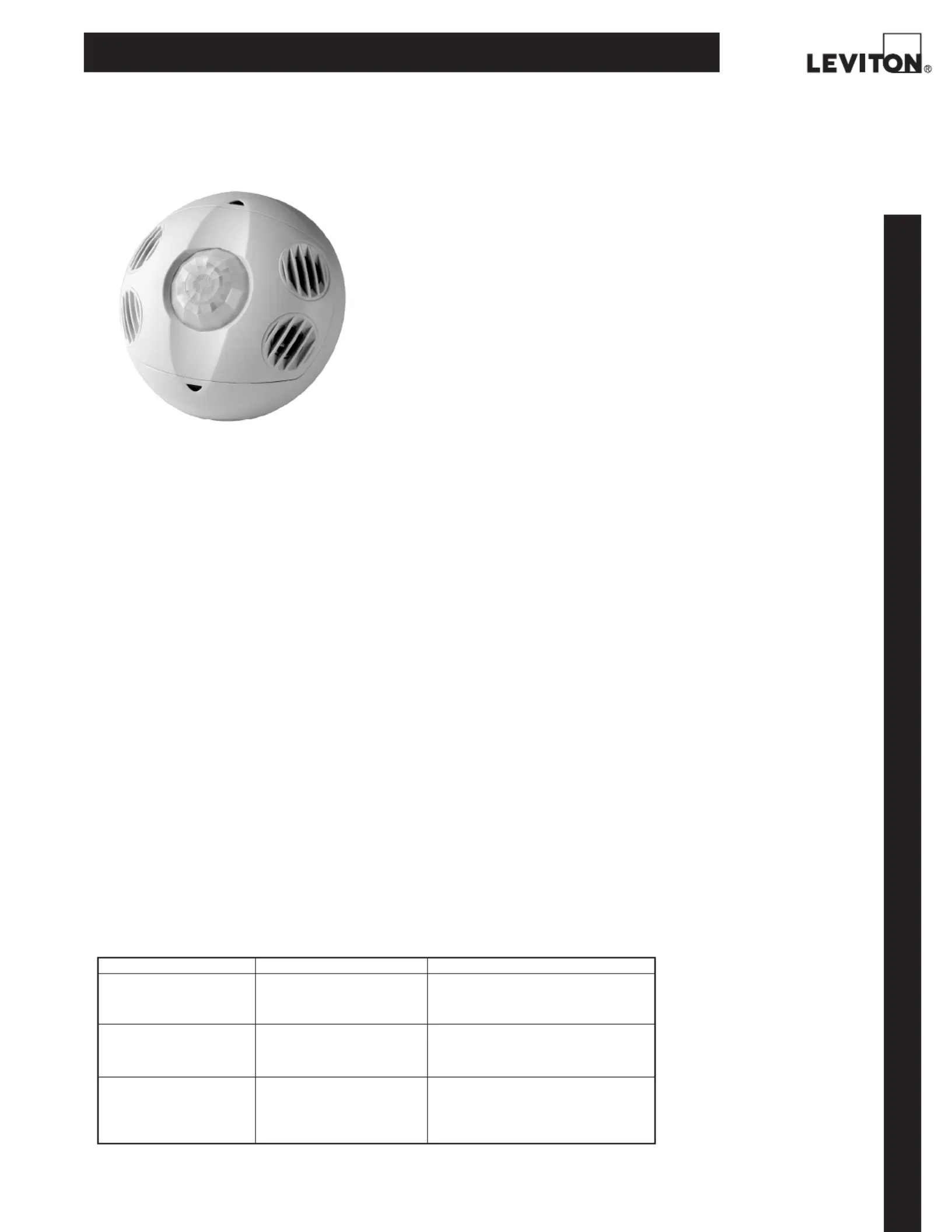

PRODUCT DATA

OSCxx-M0W

Multi-Technology Ceiling

Occupancy Sensor

GENERAL OPERATION

Occupancy sensors have two tasks: 1) Keeping the

lights ON while the room is occupied, and 2) Saving

energy by keeping the lights OFF while the room is

unoccupied.

Passive Infrared (PIR) is an excellent and precise

technology for initially turning the lights ON, but

lacks sensitivity for minor motion at distances.

Ultrasonic (U/S) technology provides maximum

sensitivity with continuous reflective high frequency

waves. This is optimal for keeping the lights ON.

Leviton’s multi-technology sensor combines the

benefits of both PIR and U/S technologies for

unrivaled performance and reliability.

APPLICATIONS

• Cafeterias • Classrooms

• Computer rooms • Conference rooms

• Day care centers • Filing rooms

• Workspaces • Open warehouses

• Offices with cubicles • Open areas

• Restrooms • Stairwells

• Storage rooms • Executive, open

and private offices

Timer Left In Test Mode - The

sensor remains in an 6 sec.

test mode.

False-On - The sensor

incorrectly turns the lights on.

False-O - The sensor

incorrectly turns the lights o.

An installer accidentally leaves

the sensor in the 6 sec. timer

test mode and the lights may go

o or on every 6 sec.

The sensor detects movement

in the corridor or hall y andwa

the room lights turn on.

The sensor does not detect

movement because an

occupant sits virtually

motionless at a desk and the

lights turn o.

The sensor automatically resets the timer

to 10 min . after 15 min of test mode.

After an initial movement is sensed,

if another mov ement is not sensed within

the timer setting then the delayed o time

setting is automatically reduced.

Condition Example Self-Adaptive Reaction

If motion is sensed within a short period after

the lights go o, then the current delayed

o-time setting is increased.

HOW THE OSCxx-M AUTOMATICALLY ADAPTS

FEATURES

• Self-adjusting: internal microprocessor con tin u al ly

analyzes, evaluates and adjusts the sensitivity and

Leviton Manufacturing Co., Inc. Global Headquarters

201 North Service Road, Melville, NY 11747-3138 800-824-3005 800-832-9538 tech line fax

time delay. Performance is kept at a maximum and user

complaints are eliminated.

• Custom off-white color matched for shaded ceilings

• Fast, simple in stal la tion: easy ceiling mount, three wire con-

nec tion (low voltage) and twist-lock sensor attachment for

360° rotation and flexibility

• Maximum reliability, low cost: digital circuitry uses a

minimum of components

• Small motion sensitivity: the ultrasonic

tech nol o gy provides excellent small motion sensitivity

• Timer setting feature: automatic—30sec–30min. Test

mode—6sec with auto exit programming.

• Non-volatile memory: learned and adjusted settings

saved

in protected memory are not lost during power outages

• Walk-through: provides increased energy savings by

decreasing the time delay to 2.5min when someone

momentarily walks through the monitored space

• Wide coverage: units from 500 to 2,000 sq. ft. available

• Power base (OPB15) available for line voltage applications

• Ambient light recognition: a light sensor prevents lights

from turning on when the room is adequately lit by natural

light

• Ultrasonic (U/S) components: one or two U/S transducers

and one or two narrow bandwidth receivers each 16mm in

diameter. Frequency—Crystal controlled to ±.005%.

• Device: rug ged, high-im pact, in jec tion molded plas tic, off

-white. Col or coded leads 6” (16.24 cm).

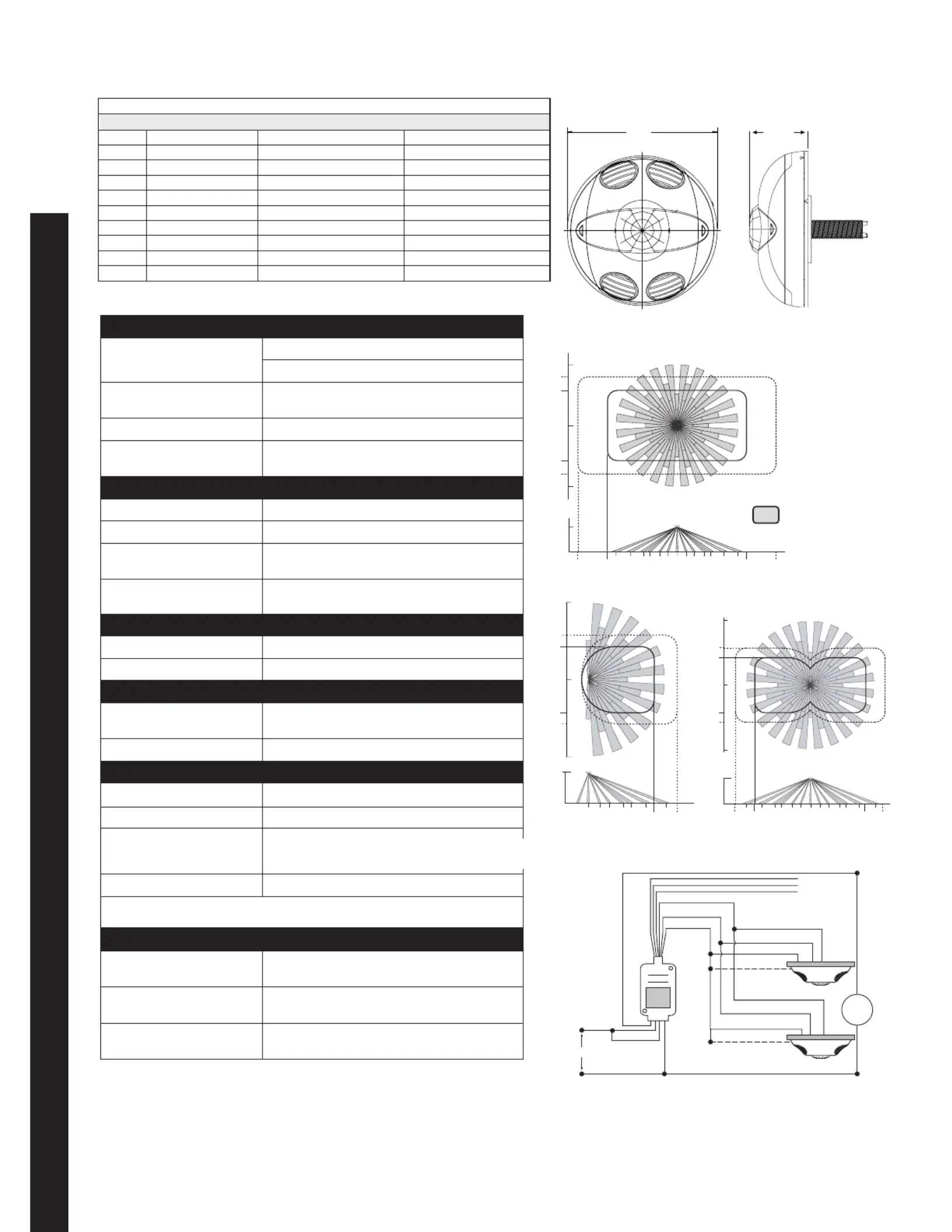

PRODUCT DATA

Load

Sensor

OSPxx Series

Power Pack

Black White

Neutral (White)

Hot

Black

Blue

Black

White

Red

Black

Blue*

(occupancy)

Red

Black

Blue* (occupancy)

Gray*

(photocell

+ occupancy)

Gray*

(photocell

+ occupancy)

Red (24VDC)

Black

Blue

(control)

NC-Brown

Common-Green

NO-Brown/White

To HVAC System

120-277-347

VAC60Hz

Line

OSCxx-M0W

11.5

8.5

TOP VIEW

SIDE VIEW

5.6

FIELD-OF-VIEW

11.5

8.5

SIDE VIEW

TOP VIEW

2323

111115 1520 2099 33 0 5.65.6

11.5

SIDE VIEW

TOP VIEW

03 35.5 5.59 911 1115 1520 20

32 32

22.5 22.5

OSC05-M, 500 SQ. FT.

OSC10-M, 1000 sq. ft.

OSC20-M, 2000 sq. ft.

*Bold items are factory defaults

PHYSICAL WIRING

G-8357D/K23-am

REV NOV 2023

Made in USA with globally sourced components and NAFTA compliant models available.

DIP SWITCH SETTINGS

SWITCH SWITCH FUNCTIONS SWITCH SETTINGS

BANK A OFF ON

A1 N/A Multi-Tech Single Tech

A2 N/A PIR Ultrasonic

A3 Manual Mode Auto Adapting DisabledAuto Adapting Enabled

A4 Walk-Thru Disable Walk-Thru DisabledWalk-Thru Enabled

BANK B

B1 Override to On Lights forced OnAuto Mode

B2 Override to Off Lights forced OffAuto Mode

B3 Test Mode Enter/Exit Test ModeOFF’ON’OFF

B4 LED Disable LEDs DisabledLEDs Enabled

Major Motion, PIR

DIMENSIONS

4.20”

(106.68 mm)

SPECIFICATIONS

ELECTRICAL

Frequency

OSC05-M0W, OSC10-M0W: 40kHz

OSC20-M0W: 32Khz

Power Requirements

24 VDC, from OSPxx Power Pack or OPB15

Power Base

Power Consumption OSC05: 25mA, OSC10: 35mA, OSC20: 30mA

Output

24 VDC active high logic control signal with

short circuit protection

CONTROLS

Ultrasonic Sensitivity 0-100%; green knob (factory setting: 50%)

Infrared Sensitivity 0-100%; red knob; (factory setting: 75%)

Light Sensor

20 to 3,000 Lux; blue knob; factory set at

100% (*grey wire required)

Time Delay

30sec-30min; black knob (factory setting:

10min)

INDICATORS

Green LED U/S motion technology

Red LED Infrared motion technology

ENVIRONMENTAL

Operating

Temperature Range

32-104°F (0-40°C)

Relative Humidity 0-95% non-condensing, for indoor use only

OTHER

Mounting Height 8-12 feet

Listings CUL/US Certified

Energy Codes

Can be used to comply with IECC, ASHRAE

90.1, and 2019 Title 24, Part 6 occupancy

sensing requirements

Warranty Limited Five-Year Warranty

ORDERING INFORMATION

CAT NO. DESCRIPTION

OSC05-M0W

Multi-Technology Ceiling Sensor, 500 sq. feet

of coverage

OSC10-M0W

Multi-Technology Ceiling Sensor, 1,000 sq.

feet of coverage

OSC20-M0W

Multi-Technology Ceiling Sensor, 2,000 sq.

feet of coverage

1.57”

(39.90 mm)

Leviton Manufacturing Co., Inc. Global Headquarters

201 North Service Road, Melville, NY 11747-3138 800-323-8920 800-832-9538 (8:30AM-7:00PM ET Mon-Fri) 800-824-3005 tel fax tech line

Leviton Manufacturing Co., Inc. Lighting & Controls

10385 SW Avery St., Tualatin, OR 97062 tel 800-736-6682 fax 503-404-5594 tech line (6:00AM-4:00PM PT Mon-Fri) 800-959-6004

Visit our Website at: www.leviton.com/sensors
