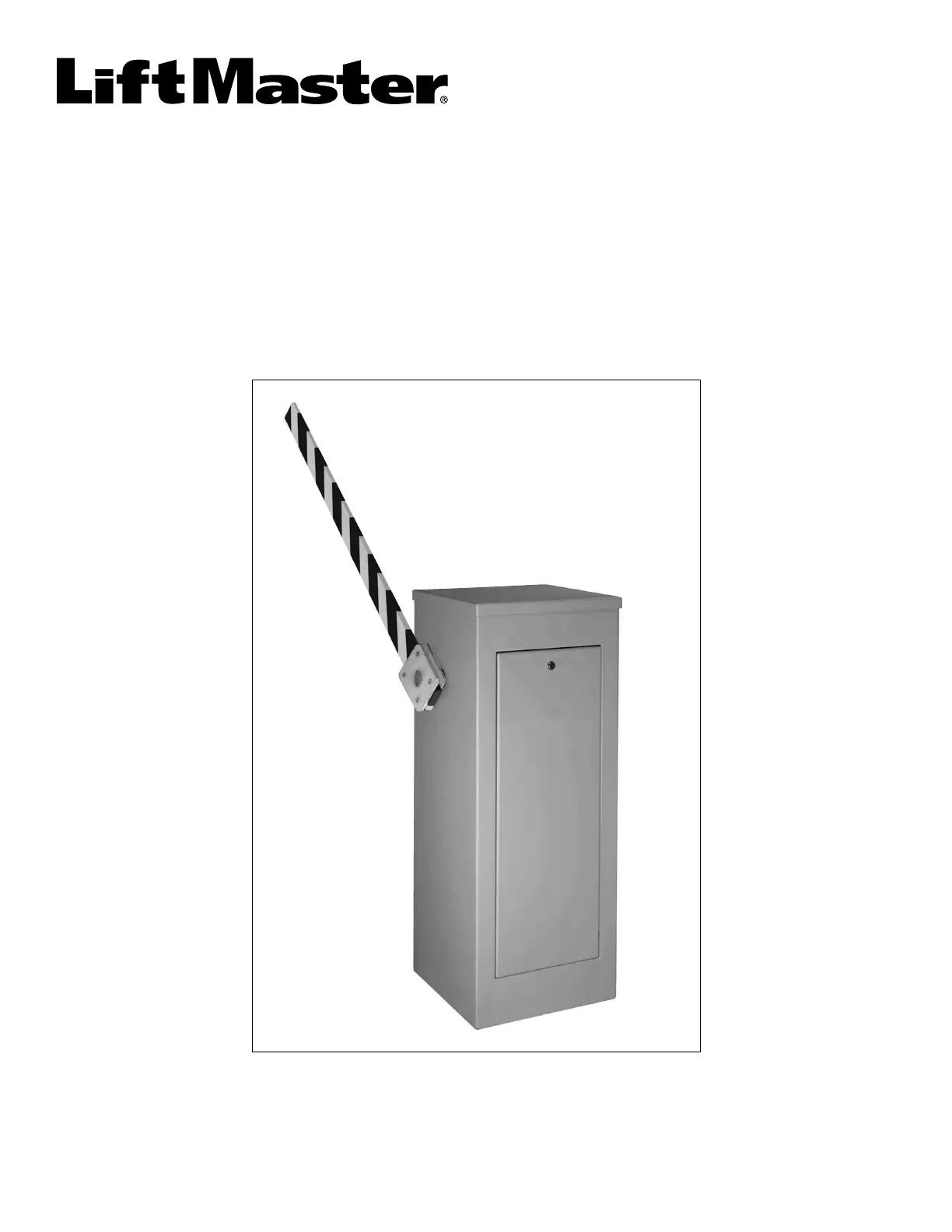

Side 1/24

BG770 & BG790

I N D U S T R I AL - D U T Y B A R R I E R G A T E O P E R A T O R

OWNER' S MANUAL

MODELS BG770 AND BG790 ARE FOR VEHICULAR PASSAGE GATES ONLY

AND ARE NOT INTENDED FOR PEDESTRIAN PASSAGE GATE USE

LiftMaster

845 Larch Avenue

Elmhurst, IL 60126-1196

LiftMaster.com

SPECIFICATIONS

Operator Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Operator Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

OPERATOR WARNINGS

Safety Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PREPARATION

Carton Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Operation Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

INSTALLATION

Pad Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Arm Fabrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Calculate Arm Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Wiring Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Arm Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

Arm and Turnbuckle Shaft Adjustments . . . . . . . . . . . . . . . . . . . 10

Limit Switch Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

OPTIONAL ACCESSORIES

Vehicle Detectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Radio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Card Readers, Keypads or Other. . . . . . . . . . . . . . . . . . . . . . . . . 12

Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

OPERATING INSTRUCTIONS

Electrical Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Manual Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

TROUBLESHOOTING

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Primary Voltage Circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Low Voltage Circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

General Reference Information . . . . . . . . . . . . . . . . . . . . . . . . . .15

REPAIR PARTS

Illustrated Parts - Model BG770 . . . . . . . . . . . . . . . . . . . . . . . . .16

Repair Parts - Model BG770. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Illustrated Parts - Model BG790 . . . . . . . . . . . . . . . . . . . . . . . . .18

Repair Parts - Model BG790. . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

MAINTENANCE

Limited Bearing Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Grease Turnbuckle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

WIRING DIAGRAMS

Single Phase Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Three Phase Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Control Connection Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

WARRANTY POLICY AND SERVICE

. . . . . . . . . . . . . . 24

T A B L E O F C O N T E N T S

Mechanical

Electrical

WARNING

CAUTIO

WAR I G

When you see these Safety Symbols and Signal Words on the

following pages, they will alert you to the possibility of SERIOUS

INJURY DEATH or if you do not comply with the warnings that

accompany them. The hazard may come from something

mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will

alert you to the possibility of damage to your gate and/or the gate

operator if you do not comply with the cautionary statements that

accompany it. Read them carefully.

IMPORTANT NOTES

• BEFORE attempting to install, operate or maintain the operator,

you MUST read and fully understand this manual and follow

ALL safety instructions.

• These instructions are intended to highlight certain safety

related issues. These instructions are not intended to be

comprehensive. Because each application is unique, it is the

responsibility of the purchaser, designer, installer and end user

to ensure that the total gate system is safe for its intended use

WARNING: This product can expose you to chemicals

including lead, which are known to the State of California to

cause cancer or birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov
