TRIM PLATES AND HOOD

MODELS: CAPXSTK, CAPXSTKPL, AND CAPXSHOOD

INTRODUCTION

The CAPXSTK and CAPXSTKPL are available to conceal the replacement of

an existing telephone entry system or buzzer with a CAPXS. The CAPXSTK

is a standard trim plate, and the CAPXSTKPL provides a postal lock

provision for buildings that require the integration of a postal lock.

CAPXSTKPL INSTALLATION

CARTON INVENTORY

Trim Panel, Postal Lock Cover, (4) #10 Phillips Screw and Hex Nut, (4)

#8T20 Torx Screw

ADDITIONAL ITEMS YOU MAY NEED

Silicone Sealant, Phillips Screwdriver, T20 Screw Driver/Bit, Mounting

Hardware per CAPXS Installation manual, Postal Lock Device (provided by

USPS)

POSTAL LOCK INSTALLATION

1. Fasten Postal Lock to Trim Panel using #10 Phillips screws and hex

nuts provided. (See Figure 1)

2. Verify switch is depressed while in the locked position. Adjust as

needed. (See inset of Figure 1)

3. Position Cover over Postal Lock. Make sure that sealing gasket is

properly seated. (See Figure 2)

4. Secure the Cover over the Postal Lock from the rear using #8 T20

Screws.

5. Make sure Postal Lock Switch wires are routed through the wire egress

opening. (See inset of Figure 1)

6. Fasten to the gang box or wall through the Mounting Bracket and Trim

Panel using the hardware speciﬁed in the CAPXS Installation Manual.

(See Figure 3)

7. Silicone Sealant can be used on the rear edge of the trim panel or along

the mating edge after installation.

8. Follow CAPXS manual to ﬁnish the installation. (See Figure 4)

WARNING: This product can expose you to chemicals

including lead, which are known to the State of California to

cause cancer or birth defects or other reproductive harm. For

more information go to www.P65Warnings.ca.gov.

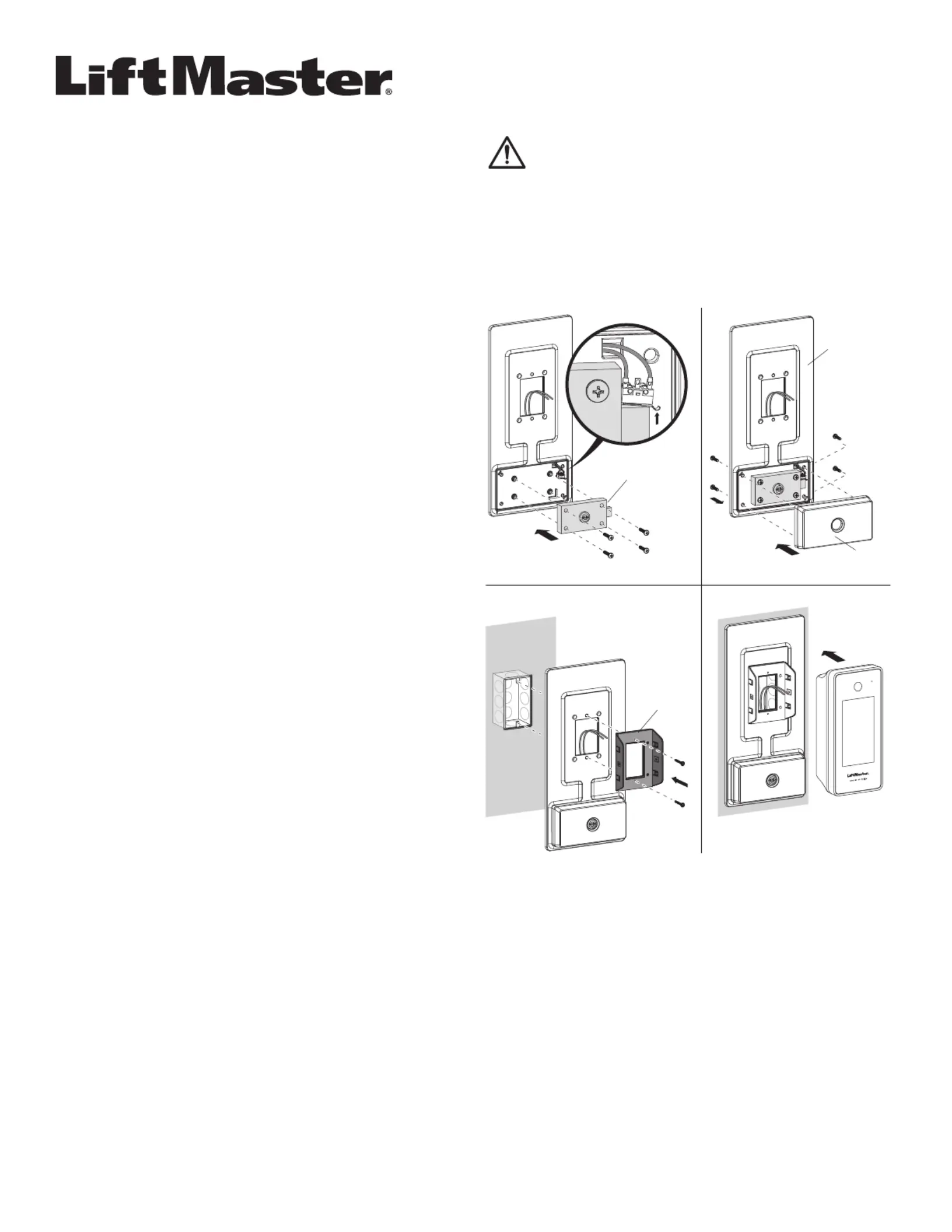

Figure 1

Figure 3

Figure 2

Figure 4

CAPXSTKPL

Postal Lock

(not provided)

Cover

CAPXS

Bracket

CAPXSTK INSTALLATION

CARTON INVENTORY

Trim panel

ADDITIONAL ITEMS YOU MAY NEED

Silicone Sealant, Mounting Hardware per CAPXS Installation manual

TRIM PANEL INSTALLATION

1. Place the Mounting Bracket on the Trim Panel.

2. Fasten to the gang box or wall through the Mounting Bracket and Trim

Panel using the hardware speciﬁed in the CAPXS Installation Manual.

(See Figure 5)

3. Silicone Sealant can be used on the rear edge of the trim panel or along

the mating edge after installation.

4. Follow CAPXS manual to ﬁnish the installation.

CAPXSHOOD INSTALLATION

CARTON INVENTORY

Hood, (2) T20 Torx Screw

ADDITIONAL ITEMS YOU MAY NEED

T20 Screw Driver/Bit

HOOD INSTALLATION

The CAPXS Hood can be installed on CAPXS during a new install, or it can

be installed on a existing installation.

1. If installing on an existing installation, remove the side screws on the

CAPXS. Discard these screws. (See Figure 6)

For new installations proceed to step 2.

2. For new installation, follow CAPXS manual for installation of the

CAPXS.

3. Place the CAPXS Hood. The side detent will ﬁt into the Mounting

Bracket recesses. (See Figure 7)

4. Once both sides are seated, using new screws provided with

CAPXSHOOD, tighten using a T20 Torx Screw Driver. (See Figure 8)

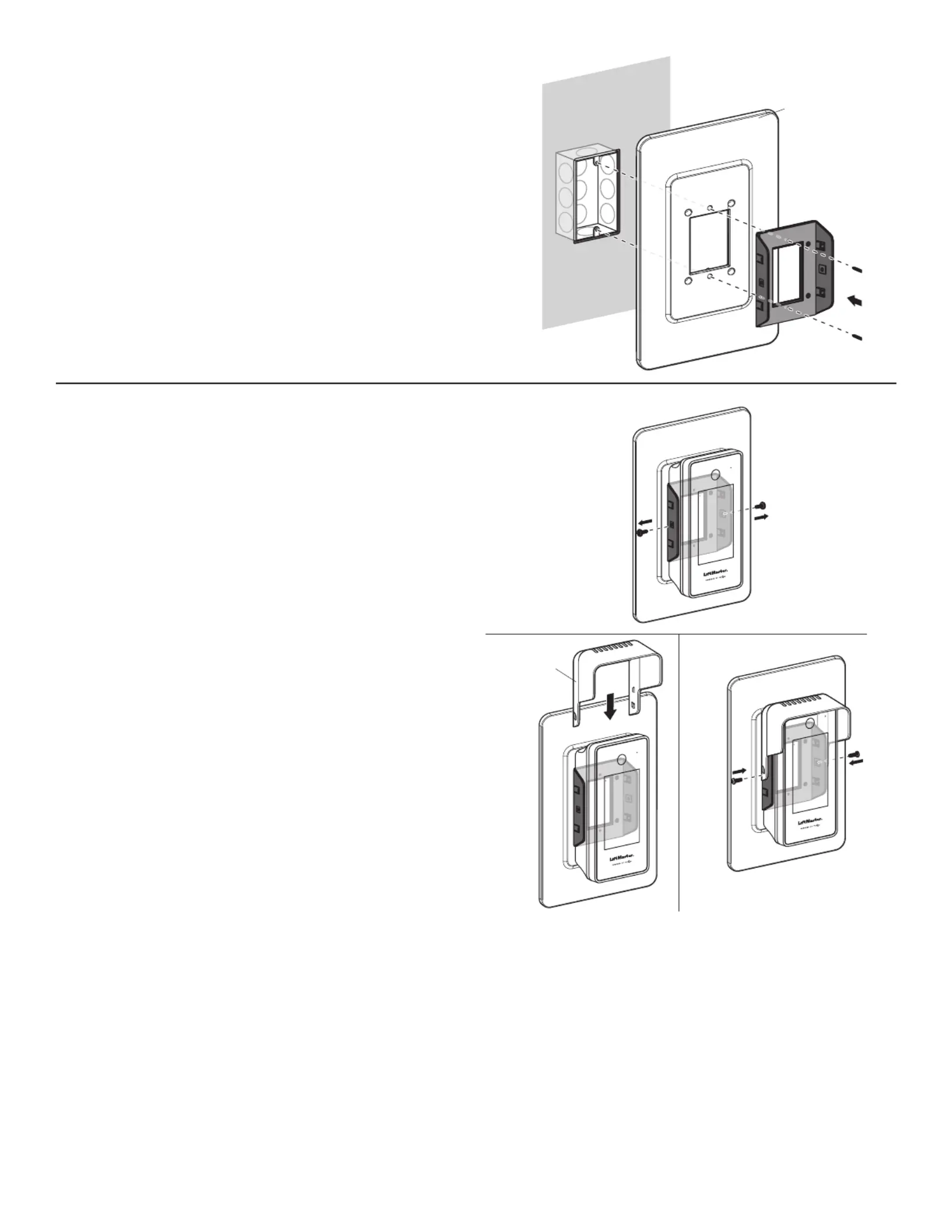

Figure 5

CAPXSTK

Figure 8

CAPXSHOOD

Figure 6

Figure 7

114-5813-000

LiftMaster

300 Windsor Drive

Oak Brook, IL 60523

LiftMaster.com
