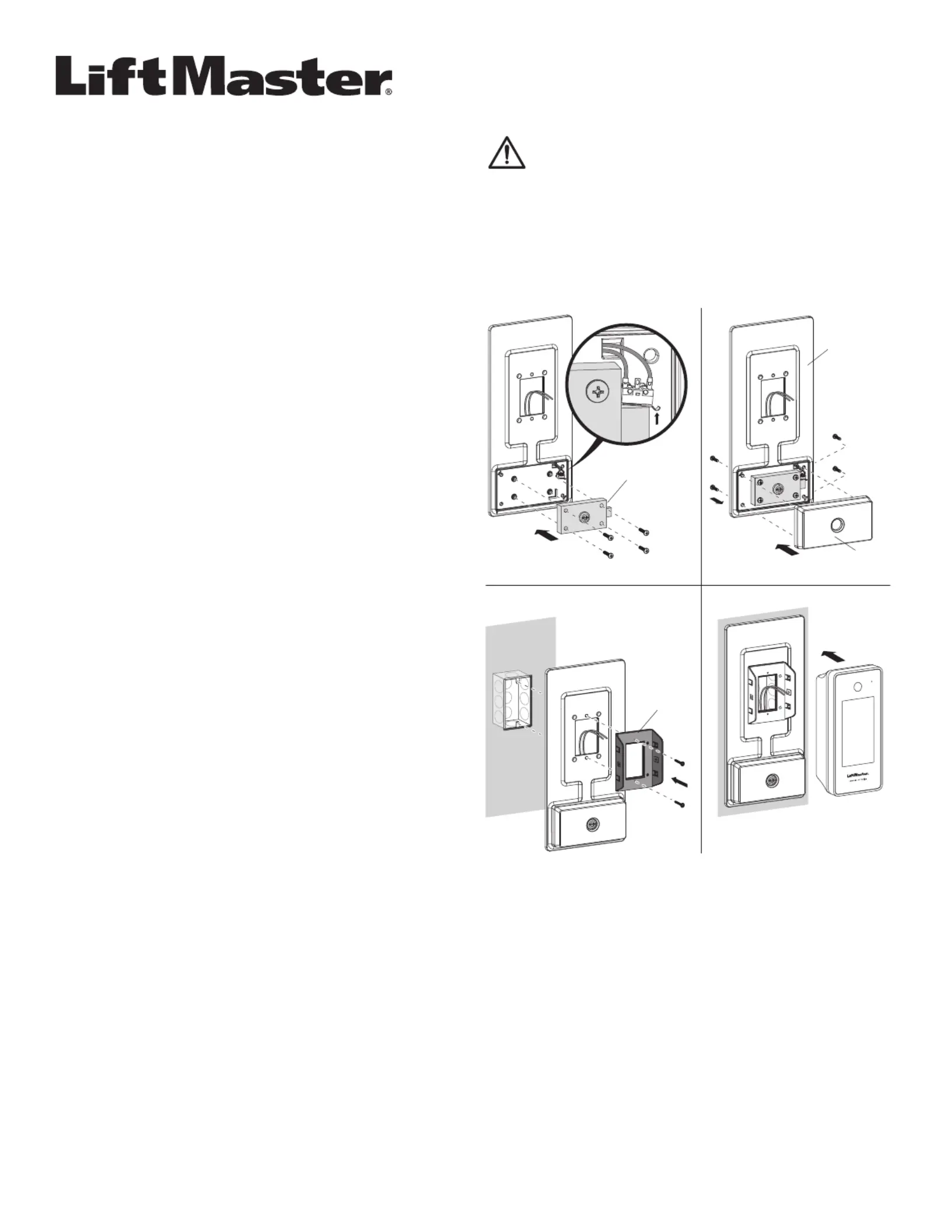

Side 1/8
TRIM PLATES AND HOOD
MODELS: CAPXSTK, CAPXSTKPL, AND CAPXSHOOD
INTRODUCTION
The CAPXSTK and CAPXSTKPL are available to conceal the replacement of
an existing telephone entry system or buzzer with a CAPXS. The CAPXSTK
is a standard trim plate, and the CAPXSTKPL provides a postal lock
provision for buildings that require the integration of a postal lock.
CAPXSTKPL INSTALLATION
CARTON INVENTORY
Trim Panel, Postal Lock Cover, (4) #10 Phillips Screw and Hex Nut, (4)
#8T20 Torx Screw
ADDITIONAL ITEMS YOU MAY NEED
Silicone Sealant, Phillips Screwdriver, T20 Screw Driver/Bit, Mounting
Hardware per CAPXS Installation manual, Postal Lock Device (provided by
USPS)
POSTAL LOCK INSTALLATION
1. Fasten Postal Lock to Trim Panel using #10 Phillips screws and hex
nuts provided. (See Figure 1)
2. Verify switch is depressed while in the locked position. Adjust as
needed. (See inset of Figure 1)
3. Position Cover over Postal Lock. Make sure that sealing gasket is
properly seated. (See Figure 2)
4. Secure the Cover over the Postal Lock from the rear using #8 T20
Screws.
5. Make sure Postal Lock Switch wires are routed through the wire egress
opening. (See inset of Figure 1)
6. Fasten to the gang box or wall through the Mounting Bracket and Trim
Panel using the hardware specified in the CAPXS Installation Manual.
(See Figure 3)
7. Silicone Sealant can be used on the rear edge of the trim panel or along
the mating edge after installation.
8. Follow CAPXS manual to finish the installation. (See Figure 4)
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California to
cause cancer or birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov.
Figure 1
Figure 3
Figure 2
Figure 4
CAPXSTKPL
Postal Lock
(not provided)
Cover
CAPXS
Bracket
CAPXSTK INSTALLATION
CARTON INVENTORY
Trim panel
ADDITIONAL ITEMS YOU MAY NEED
Silicone Sealant, Mounting Hardware per CAPXS Installation manual
TRIM PANEL INSTALLATION
1. Place the Mounting Bracket on the Trim Panel.
2. Fasten to the gang box or wall through the Mounting Bracket and Trim
Panel using the hardware specified in the CAPXS Installation Manual.
(See Figure 5)
3. Silicone Sealant can be used on the rear edge of the trim panel or along
the mating edge after installation.
4. Follow CAPXS manual to finish the installation.

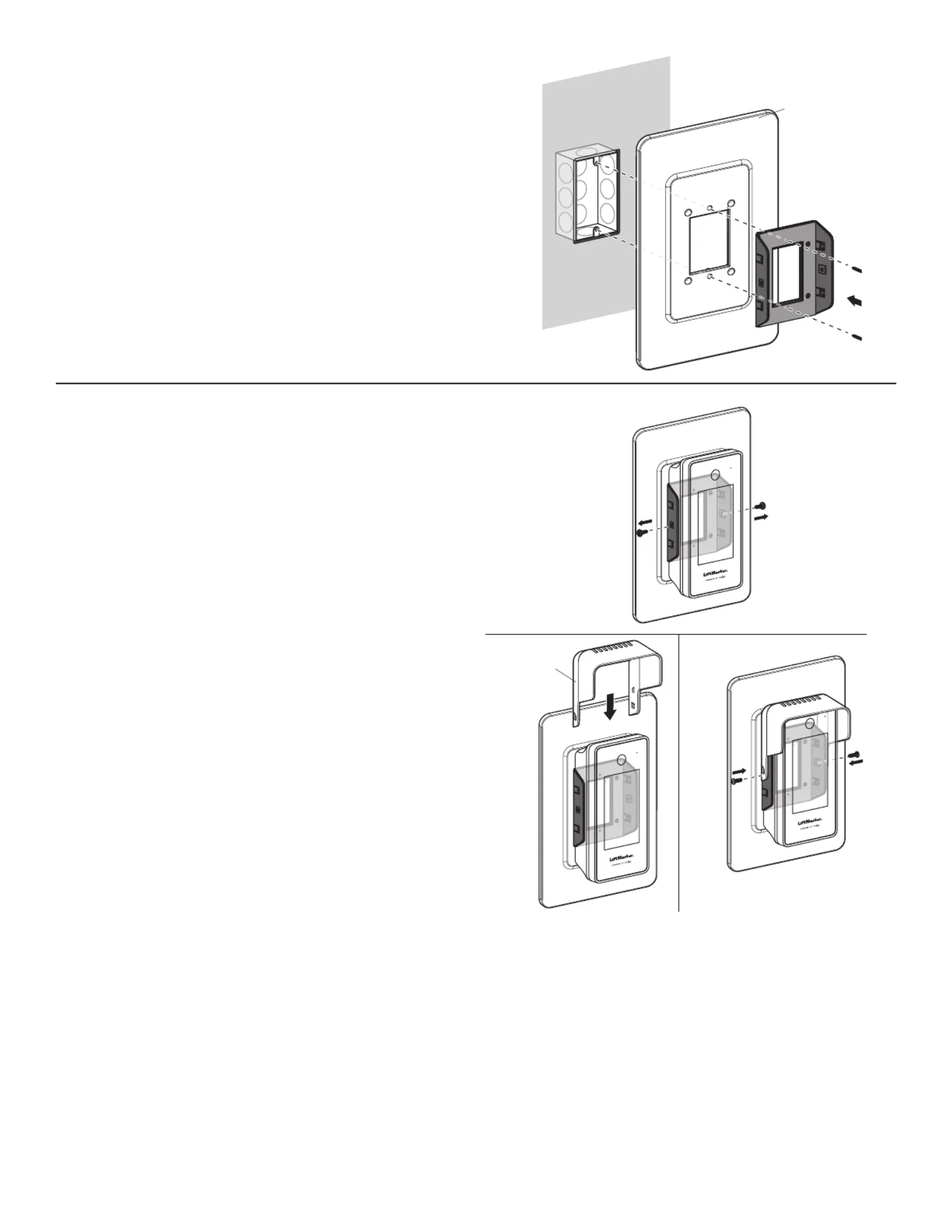

CAPXSHOOD INSTALLATION
CARTON INVENTORY
Hood, (2) T20 Torx Screw
ADDITIONAL ITEMS YOU MAY NEED
T20 Screw Driver/Bit
HOOD INSTALLATION
The CAPXS Hood can be installed on CAPXS during a new install, or it can
be installed on a existing installation.
1. If installing on an existing installation, remove the side screws on the
CAPXS. Discard these screws. (See Figure 6)
For new installations proceed to step 2.
2. For new installation, follow CAPXS manual for installation of the
CAPXS.
3. Place the CAPXS Hood. The side detent will fit into the Mounting
Bracket recesses. (See Figure 7)
4. Once both sides are seated, using new screws provided with
CAPXSHOOD, tighten using a T20 Torx Screw Driver. (See Figure 8)
Figure 5
CAPXSTK
Figure 8
CAPXSHOOD
Figure 6
Figure 7
114-5813-000
© 2022, LiftMaster
All Rights Reserved
Tous droits réservés
Todos los derechos reservados
LiftMaster
300 Windsor Drive
Oak Brook, IL 60523
LiftMaster.com
