Teaching Aid Toolbox

IM10446 November-17 ©Lincoln Global Inc. The graphics may not exactly reect the latest design.

The Teaching Aid Toolbox is a convenient way for instructors to teach the operation, theory, and assembly of various

welding tools for SMAW, GMAW, GTAW and OxyFuel Cutting. The toolbox comes with a variety of parts to pass around

a classroom to provide hands-on teaching to students of all ages.

Note: These items are intended to be non-functional teaching aids

For more information on Welding Education with Lincoln Electric please visit:

www.lincolnelectric.com/education

or call our education department at 1-888-610-1095

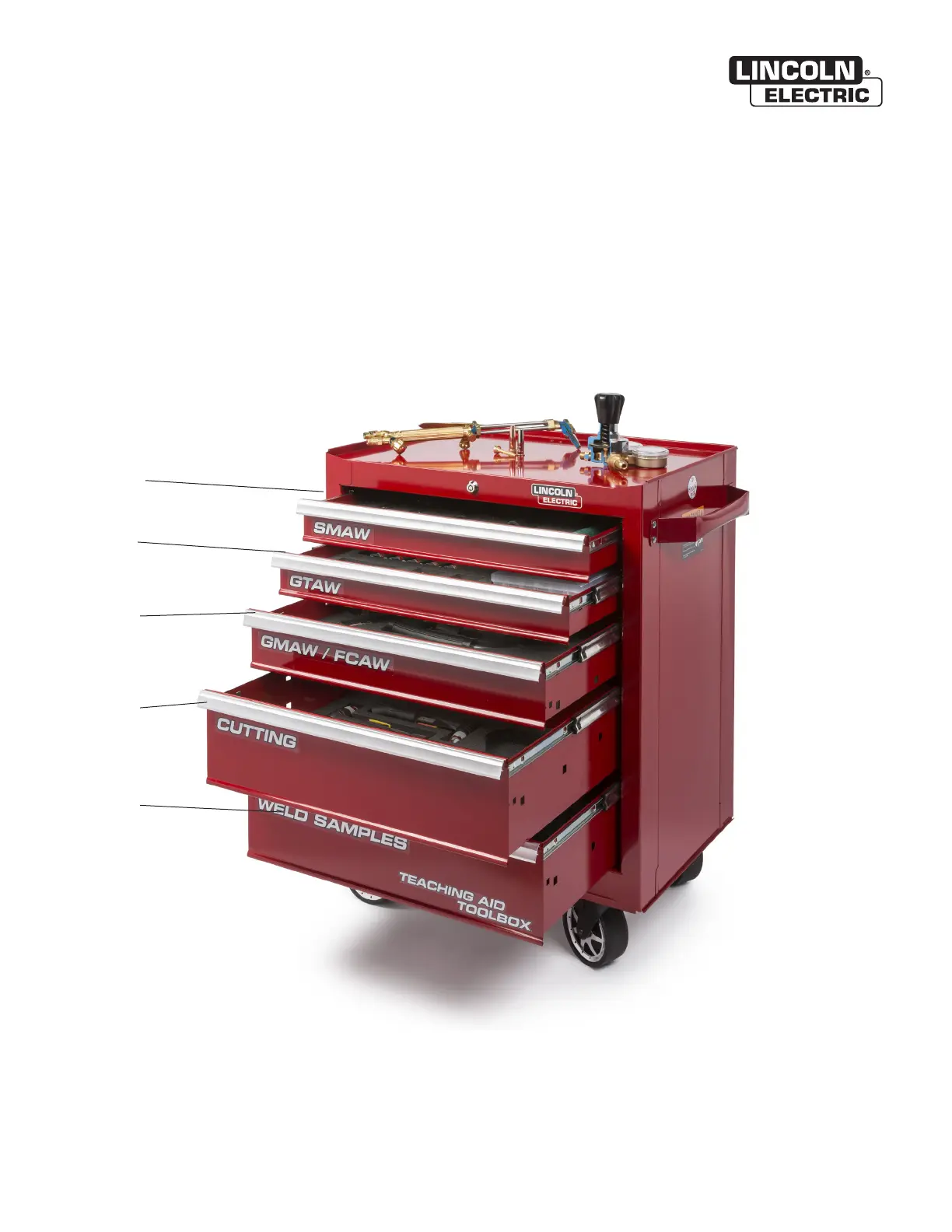

Drawer 1

Drawer 2

Drawer 3

Drawer 4

Drawer 5

ITEM PART NUMBER DESCRIPTION QTY

DRAWER 1

1K910-1 GC-300 WORK CLAMP 1

2K2374-1 200A ELECTRODE HOLDER 1

3K909-7 EH-305HD MAGNUM ELECTRODE HOLDER 1

4K909-6 T300 ELECTRODE HOLDER 1

53/32x14 CUTWIRE GREEN ROD 1

61/8x14 CUTWIRE GREEN ROD 1

75/32x14 CUTWIRE GREEN ROD 1

8ED032086 EXCALIBUR 7018 MR 1

DRAWER 2

99SS19259-1 PTA-17 TORCH BODY 10

10 9SS19511-1 PTA-17 TORCH HANDLE 10

11 KP3539-1 GLK-3 BASIC TIG KIT 1

12 KP2036-1B1 PTA17 BACKCAP, LONG 10

13 KP2030-4B1 PTA-17 3/32" COLLET 10

14 KP2032-4B1 PTA-17 3/32" COLLET BODY 10

15 KP2016-4B1 PTA17 ALUMINA NOZZLE #6 10

16 9SS19259-2 PTA-17V TORCH BODY 1

17 9SS24923-1 PTA-17F TORCH BODY 1

DRAWER 3

19 9SS28906 MAGNUM PRO 550 TEACHING AID 1

20 9SS28623 MAGNUM PRO 250L TEACHING AID 2

21 KP2744-035T CONTACT TIP 350A, TAPERED, .035 DIA 20

22 KP2745-035 CONTACT TIP 550A, .035 DIA 10

23 KP3285-1 DRIVE ROLL .035 - .045 in CORED WIRE KNURLED 2

24 KP1696-1 DRIVE ROLL .035 in / .045 in SOLID WIRE SMOOTH 1

25 KP2747-2 DIFFUSER 550A, SLIP ON 1

26 KP2743-2-75F NOZZLE 550A, SLIP ON, FLUSH, 3/4 ID 1

27 KP2747-1 DIFFUSER 550A, THREAD ON 1

28 KP2743-1-62R NOZZLE 550A, THREAD ON, RECESSED, 5/8" ID 1

29 KP2746-2 DIFFUSER 350A, SLIP ON 1

30 KP2742-2-50F NOZZLE 350A, SLIP ON, FLUSH, 1/2" ID 1

31 KP2746-1 DIFFUSER 350A, THREAD ON 5

32 KP2742-1-50R NOZZLE 350A, THREAD ON, RECESSED, 1/2 ID 1

33 KP2742-1-50F NOZZLE 350A, THREAD ON, FLUSH, 1/2" ID 1

34 KP2742-1-38F NOZZLE 350A, THREAD ON, FLUSH, 3/8" ID 1

35 KP2742-1-50S NOZZLE 350A, THREAD ON, 1/8" STICKOUT, 1/2 ID 1

36 KP3160-1-50F NOZZLE 350A, THREAD ON, FLUSH, BOTTLENECK, 1/2 ID 1

37 KP3360-1 DIFFUSER 350A, THREAD ON, EXTENDED REACH 1

38 KP3359-1-50R NOZZLE 350A, THREAD ON, RECESSED, EXTENDED REACH, 1/2" ID 1

DRAWER 4

39 9SS31650 LC40 HANDHELD PLASMA TORCH TEACHING AID 2

40 K4442-3 CUTAWAY REGULATOR 2

41 1800820 ACETYLENE-HYDROGEN-OXYGEN HEATING ASSEMBLY 1

42 K4442-2 CUTAWAY TORCH 2

43 KP2843-1 LC40 ELECTRODE 3

44 KP2842-4 LC40 SWIRL RING 1

45 KP2843-2 LC40 NOZZLE 3

46 1502172 TORCH TWO PIECE PREHEAT TIP 1

47 1501230 TORCH CUTTING TIP 1

DRAWER 5

48 9SS26524-1 BUTT JOINT 1

49 9SS26524-3 EDGE JOINT 1

50 9SS26524-4 LAP JOINT 1

51 9SS26524-7 6 PASS GROOVE 1

52 9SS26524-2 CORNER JOINT 1

53 9SS26524-5 TEE JOINT 1

54 9SS26524-6 3 PASS T 1

55 9SL15912 DISCONTINUITY FLASH CARDS 1

Drawer 1

15,6,7

9, 10

13 14

25,

27,

29,

31,

37,

46,

19 22

43,

48 53

16,17

Drawer 2

Drawer 3

Drawer

Drawer 5

WARNING

If used or moved improperly, unit can tip over and cause injury.

- Move unit slowly and only transport with drawers locked.

- When stationary, always place unit in stable, at area and lock casters.

- Only have one drawer open at a time.

- Do not use any part of this equipment as a seat or step.
