Side 1/2

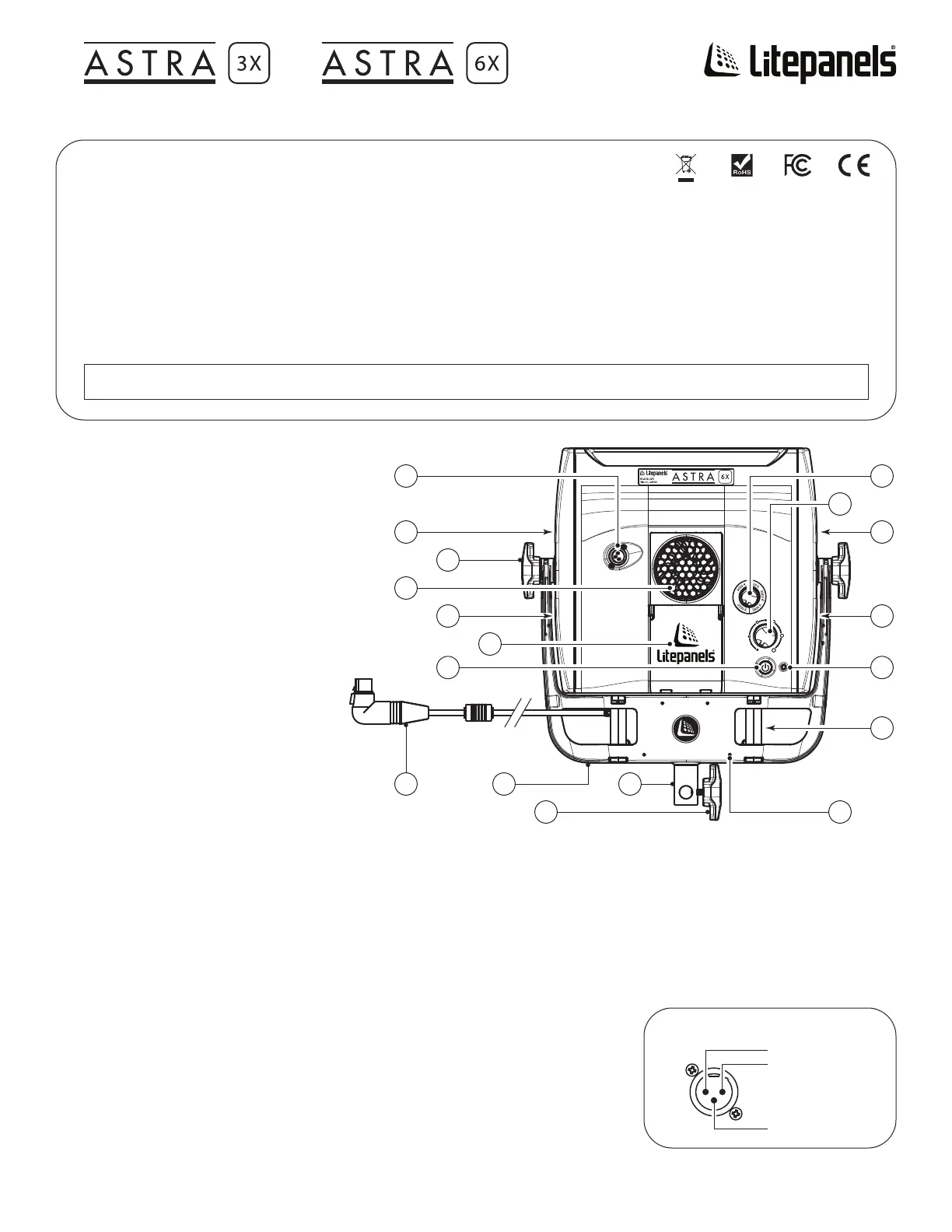

ON / OFF BUTTON

DIMMER KNOB

COLOR KNOB

POWER / STATUS INDICATOR LIGHT

3-PIN MALE XLR POWER JACK

3-PIN FEMALE XLR POWER PLUG

YOKE

YOKE KNOB (2 PLACES)

FAN MODULE (ASTRA 6X ONLY)

MODULE WELL COVER

IEC POWER RECEPTACLE

BATTERY PLATE MOUNTING HOLES

VENTS

TVMP ADAPTER

TVMP KNOB

(A)

(B)

(C)

(D)

(E)

(F)

(G)

(H)

(I)

(J)

(K)

(L)

(M)

(N)

(O)

SEE REVERSE

POWERING THE FIXTURE

Plug the Power Supply Adapter (included) into the mains using the US or EU AC Power Cord (included). The

power supply adapter is affixed to the yoke by clips and can be detached if desired.

CAUTION: The power supply adapter can get hot during use.

CAUTION: Use only the included power supply adapter.

Plug the 3-pin Female XLR Plug (“F”) from the Power Supply Adapter into the 3-Pin Male XLR Jack (“E”) on

the rear of the fixture. Insert the plug firmly and completely.

For battery use, attach a compatible Anton Bauer

V-Mount or Gold Mount battery plate to the back of the

yoke using the four 4-40 threaded Battery Plate Mounting Holes (“L”). Plug the battery plate power inlet cable

into the 3-pin male XLR jack on the rear of the fixture. (Battery, battery plate, mounting hardware, and battery

plate power inlet cable are not included.)

MOUNTING THE FIXTURE

The ASTRA fixture is attached to a Yoke (included, see “G” above) that features a TVMP Adapter (“N”). If desired, the TVMP adapter can be removed and

replaced with other standard mounting hardware (not included). Always comply with applicable local regulations, and use other safety equipment (e.g. safety chain

or cable, not included) when required.

CAUTION: When hanging the fixture or mounting it to a stand, position the yoke such that the fixture is oriented mostly right-side-up.

WARNING: Keep the fixture’s Vents (“M”) clear from obstruction. Allow more than 15 cm [6 inches] of air space between the side vents and the nearest

obstruction. Allow more than 15 cm [6 inches] of air space between the rear of the fixture and the nearest obstruction.

Use only accessories made or approved by the manufacturer, and ensure that accessories do not obstruct the vents.

Do not operate the ASTRA fixture in an environment other than as specified by the following: ambient temperature between -20°C and 45°C [between -4°F and

113°F]; less than 85% relative humidity (RH), no condensation.

INCLUDED

ASTRA 3X or ASTRA 6X Bi-Color LED Fixture

Yoke w/ Power Supply Adapter

AC Power Cord, US (not pictured)

AC Power Cord, EU (not pictured)

SAFETY INFORMATION

To clean the ASTRA, wipe with a clean, dry cloth.

Do not restrict air flow around the ASTRA. Keep the fixture’s vents clear of obstruction.

Plug the ASTRA into a mains electrical receptacle using only the included Power Supply Adapter.

Use a mains electrical receptable rated 100/120V 220/240V 50/60Hz only.

Use the US AC Power Cord only with a grounded, polarized 3-pin power receptacle (Type B).

Do not use, mount, transport, or store the ASTRA near radiators, space heaters, ovens, stoves, heat registers, open flame, or any heat source.

Do not use, mount, transport, or store the fixture in an environment with an ambient temperature greater than 65°C [149° F].

Protect the power cables of the ASTRA from pinching, twisting, or crushing.

Unless otherwise herein specified, the ASTRA contains no user-servicable parts. Tampering with or disassembling the fixture will void the manufacturer’s warranty.

WARNING: To reduce the risk of electric shock or fire, do not expose the ASTRA to rain, moisture, or liquids.

Immediately consult with qualified Litepanels

service personnel when any of the following have occurred: The fixture has been dropped or impacted; the power

cables have been damaged; the fixture has been exposed to rain, moisture, or liquid; the fixture does not operate normally.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

STUDIO LIGHT FLOOD BI-COLOR LED FIXTURE (935-2023 / 935-1023)

BI-COLOR

1 2

PIN 1 = GRND

PIN 2 = +V

PIN 3 = Not Connected

PINOUT DIAGRAM (3-PIN MALE XLR JACK)

www.litepanels.com

Produkt Specifikationer

Mærke:	Litepanels
Kategori:	Lys
Model:	Astra 6X
Vekselstrømsindgangsspænding:	120 - 240 V
Bredde:	413 mm
Dybde:	134 mm
Højde:	450 mm
Vægt:	3200 g
Produktfarve:	Sort
Kabler inkluderet:	Vekselstrøm
Lampetype:	LED
Fjernbetjening inkluderet:	Ja
Strømforbrug (maks.):	105 W
Strømkilde type:	Vekselstrøm
Udgangsspænding:	13 - 24 V
Pæreeffekt:	- W
Lysfarve:	Cool white, Warm white
Strålevinkel:	46 °
Pære levetid:	- t
Lys farvetype:	Hvid
Farvetemperatur (maks.):	- K
DC indgangsspænding:	13 - 24 V
Form:	Rektangulær
Antal lyskilder:	- pære(r )
Total effekt:	105 W
Højde (maks.):	450 mm
Farve-gengivelse (CRI):	98
