Side 1/2
SAFETY INFORMATION
To clean the GEMINI 1X1 HARD, wipe with a clean, dry, non-abrasive cloth only.
Weight (including Yoke, not including accessories): 6.0 kg [13.25 lb]
Dimensions (including Yoke, not including accessories): W = 40.7 cm [16.0 in], H = 47.0 cm [18.5 in], D = 11.8 cm [4.7 in]
Do not restrict air flow around the GEMINI 1X1 HARD. Keep the fixture’s air intakes and air exhaust space clear of obstruction.
Plug the GEMINI 1X1 HARD into a mains electrical outlet using only a provided AC IEC Power Cable or one specified by Litepanels
®
. Protect the cable from
pinching, twisting, or crushing. Use a mains electrical outlet that is grounded and rated for 100-240VAC, 50/60Hz only.
Do not use, mount, transport, or store the GEMINI 1X1 HARD near radiators, space heaters, ovens, stoves, heat registers, open flame, or any heat source, or in an
environment with an ambient temperature greater than 65°C [149° F].
The GEMINI 1X1 HARD is suitable for operation only in an environment as follows: ambient air temperature between -20°C and 45°C [between -4°F and 113°F]; less
than 85% relative humidity (RH), no condensation. Use in a dry environment; do not place on a wet surface or submerge the GEMINI 1X1 HARD in liquid.
WARNING: Tampering with or disassembling the GEMINI 1X1 HARD may result in electric shock and will void the manufacturer’s warranty.
WARNING: To reduce the risk of electric shock or fire, do not expose the GEMINI 1X1 HARD to rain, moisture, or liquids.
Immediately consult with qualified Litepanels
®
service personnel if any of the following have occurred: The fixture has been dropped or impacted; the power cable
has been damaged; the fixture has been exposed to rain, moisture, or liquid; or the fixture does not operate normally.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

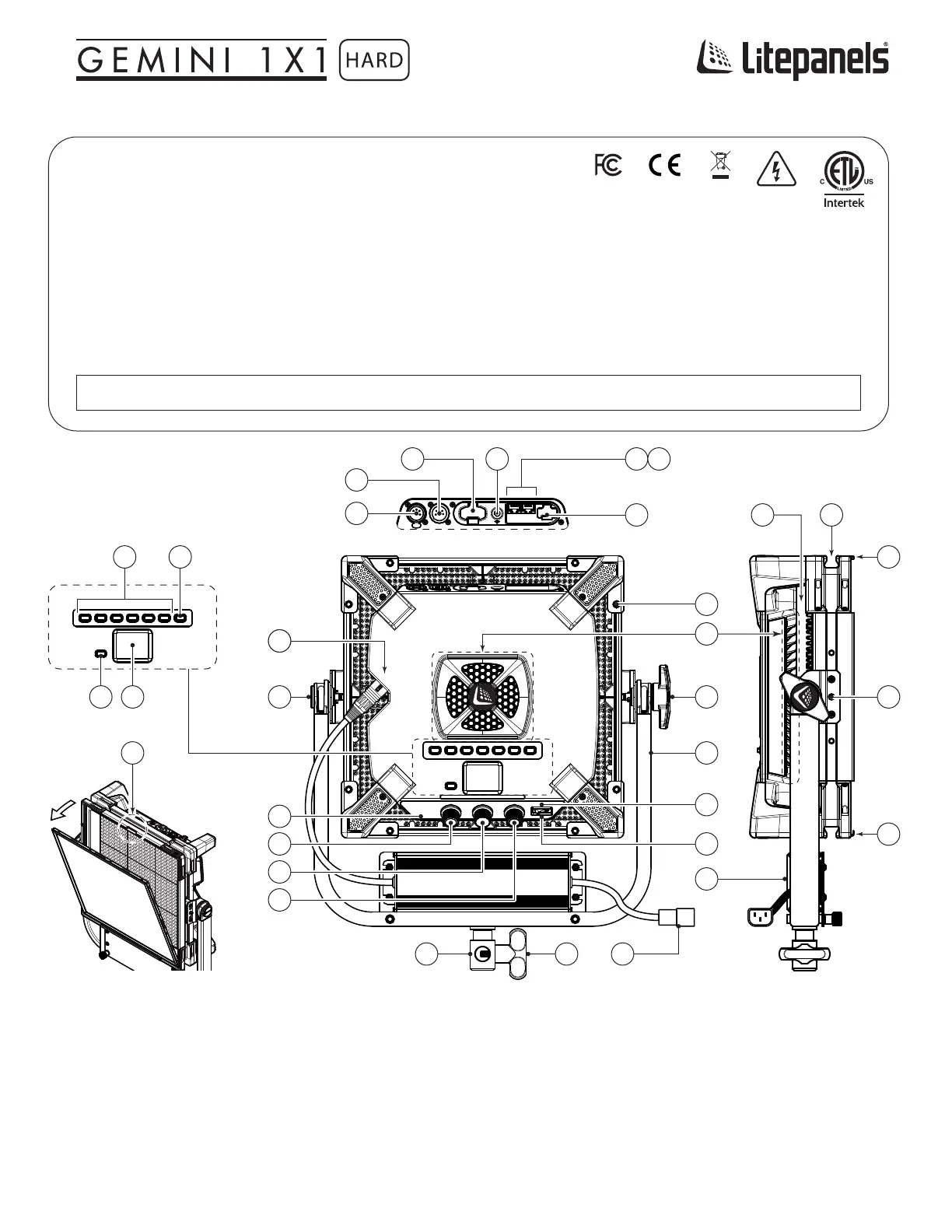

STUDIO FULL COLOR LENSED PANEL LED FIXTURE (945-2001)
www.litepanels.com
PRESET BUTTONS (6X)
PRESET TOGGLE BUTTON
CANCEL BUTTON
DISPLAY
DIFFUSER RELEASE NOTCH
3-PIN XLR DC POWER INPUT JACK
TILT LOCK SCREW
ACTIVE COMMS INDICATOR LIGHT
GREEN OFFSET / HUE / MENU KNOB
CCT / SATURATION KNOB
DIMMER / INTENSITY KNOB
TVMP BABY PIN STAND ADAPTER
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)
(I)
(J)
(K)
(L)
TVMP PAN LOCK KNOB
IEC AC INPUT
5-PIN XLR DMX / MASTER/REPLICA INPUT
5-PIN XLR DMX / MASTER/REPLICA OUTPUT
BLUETOOTH
(R)
/ WIRELESS DMX PORT
ANTENNA
RJ45 DMX / MASTER/REPLICA OUTPUT
RJ45 DMX / MASTER/REPLICA INPUT
USB PORT
1/4-20 FEMALE THREAD (8X)
AIR INTAKE
YOKE TILT LOCK KNOB
(M)
(N)
(O)
(P)
(Q)
(R)
(S)
(T)
(U)
(V)
(W)
(X)
YOKE
POWER / STATUS INDICATOR LIGHT
ON / OFF SWITCH
POWER SUPPLY ADAPTER
AIR EXHAUST SPACE
DOVETAIL CHANNEL (4X)
ACCESSORY LATCH
YOKE LOCKING PIN (2X)
ACCESSORY RAIL (3X)
(Y)
(Z)
(AA)
(AB)
(AC)
(AD)
(AE)
(AF)
(AG)
SEE REVERSE
INCLUDED
GEMINI 1X1 HARD Lensed LED Fixture
GEMINI 1X1 HARD Yoke
A
ADAC
Q
B
C D
E
P
U
AF
AE
V
X
M
Y
AA
Z
H
I
EF
G
K
J
AG
AB
O
R S T
W
L N
Register your product online at www.litepanels.com
SETUP
Mount the GEMINI 1X1 HARD with its included
Yoke (see “Y” above) and TVMP Baby Pin Stand
Adapter (“L”) to a rigging or support system rated
for the weight of the fixture and its accessories (not
included). Ensure that the two Yoke Locking
Pins (“AF”) are set and fully tightened. Always
comply with applicable local regulations. Use
supplemental safety equipment (e.g. safety chain
or cable, not included) as required.
Remove the included diffuser by pulling it out at the
Diffuser Release Notch (“E”). Install a diffuser by
pressing it in until it snaps into place fully.
WARNING: Keep the air intakes (“W”) and the air
exhaust space (“AC”) clear of blockage. Allow
more than 25 cm [10 inches] of clear air space
from the rear of the GEMINI 1X1 HARD to the
nearest obstruction. Use only covers and
accessories approved by Litepanels
®
, and ensure
that they do not obstruct the air intakes or exhaust.
Ensure that the Power Supply Adapter (“AB”) is
plugged into the fixture via the 3-Pin XLR DC
Power Input Jack (“F”) (33 VDC MAX). Connect
the power supply adapter to the AC power cable
(not pictured) at the IEC AC Input (“N”). Use only a
provided AC power cable. Plug the power cable
into a mains power outlet. Switch the ON / OFF
Power Switch (“AA”) to the “ON” position. The
GEMINI 1X1 HARD is ready for operation.
For information on customizing effects or
controlling the GEMINI 1X1 HARD via DMX, refer
to the Litepanels GEMINI Effects Details or DMX
Map at www.litepanels.com
red flash, pause, (repeat)
red solid on
red flashes (2X), pause, (repeat)
red flashes (4X), pause, (repeat)
red flashes (other)
red flash, pause, red flashes (3X),
pause, (repeat)
Note the red flashes pattern and contact service at
litepanels.com/support
Fixture is operating normally.green solid on

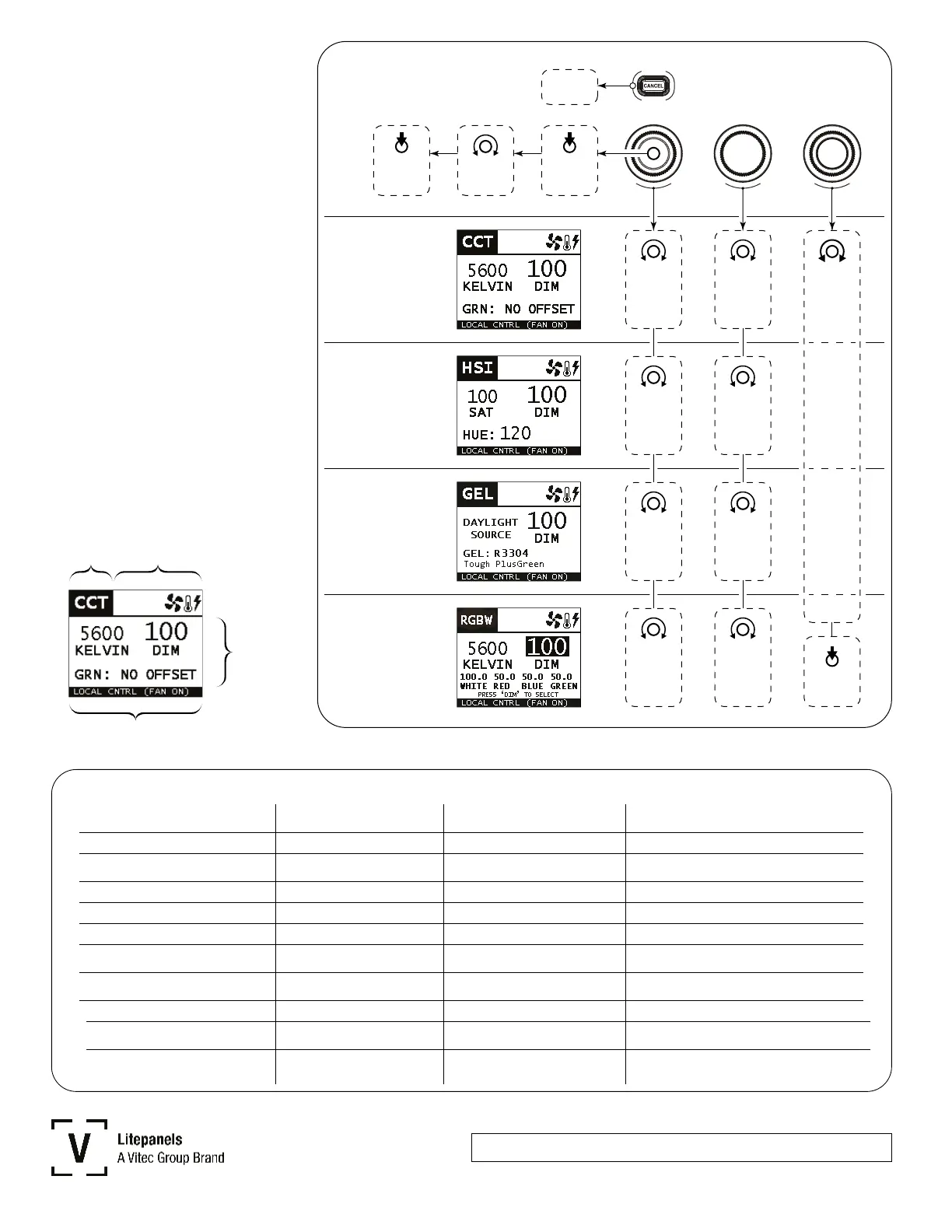

TROUBLESHOOTING
COLOR MODES
There is no light output.
Light turns off.
Adjust dimmer knob to change brightness.
Turn the dimmer down to 0% and allow fixture
to cool. Check fan and vents.
Turn the dimmer down to 0% and allow fixture
to cool. Check fan and vents.
Change fan settings, if desired.
Change power source.
Turn fixture off; change power source.
Turn fixture off; change power source.
ConditionPower/Status IndicatorBehavior Recommended Action
Input Over Voltage Fault
green flashesPower/Status Indicator flashes green
when fixture is powered on.
Take no action. The green flashing stops shortly after
the fixture has been powered on.
Fixture is operating normally.
red solid onLight turns off.
Light turns off.
Input Under Voltage Fault
Input Under Voltage Warning
The light is not operating
normally.
Light intensity is decreased by 50%.
Light is on.
Light is on.
Over Temperature Fault
Over Temperature Warning
Fan is OFF (Local or DMX control).green solid on
Check the fan for stoppage or blockage. Replace
fan module if fan is permanently disabled.
Light intensity is decreased by 50%. Fan is malfunctioning.
Fixture is malfunctioning.
+/- GRN CCT DIM
HUE
MENU
(PUSH)
SAT INT
+- +-
+- +-
↑ ↓
T D
+-
Add /
subtract
green
offset
(+/- 1.00)
Raise /
lower
CCT
value (K)
Increase /
decrease
color hue
value
(0 – 359°)
Increase /
decrease
color
saturation
(0 – 100%)
Increase /
decrease
dimmer
(intensity)
(0 – 100%)
Choose
gel
Make
source
daylight /
tungsten
+-
Raise /
lower
CCT
value (K)
No
function
+-
CCT MODE
HSI MODE
GEL MODE
COLOR MODE
→ GEL MODE
COLOR MODE
→ HSI MODE
STATUS BAR
COMMS DATA
COLOR
MODE
COLOR
VALUES
↑ ↓
Scroll
menu
items
Go to
onscreen
menu
Go back /
cancel
Select
menu
item
Go to onscreen
menu
(Default)
Go to onscreen
menu
RGBW MODE
COLOR MODE
→ RGBW MODE
Go to onscreen
menu
Select DIM
Overall,
R, G, B, W
Document 725-0073/A
