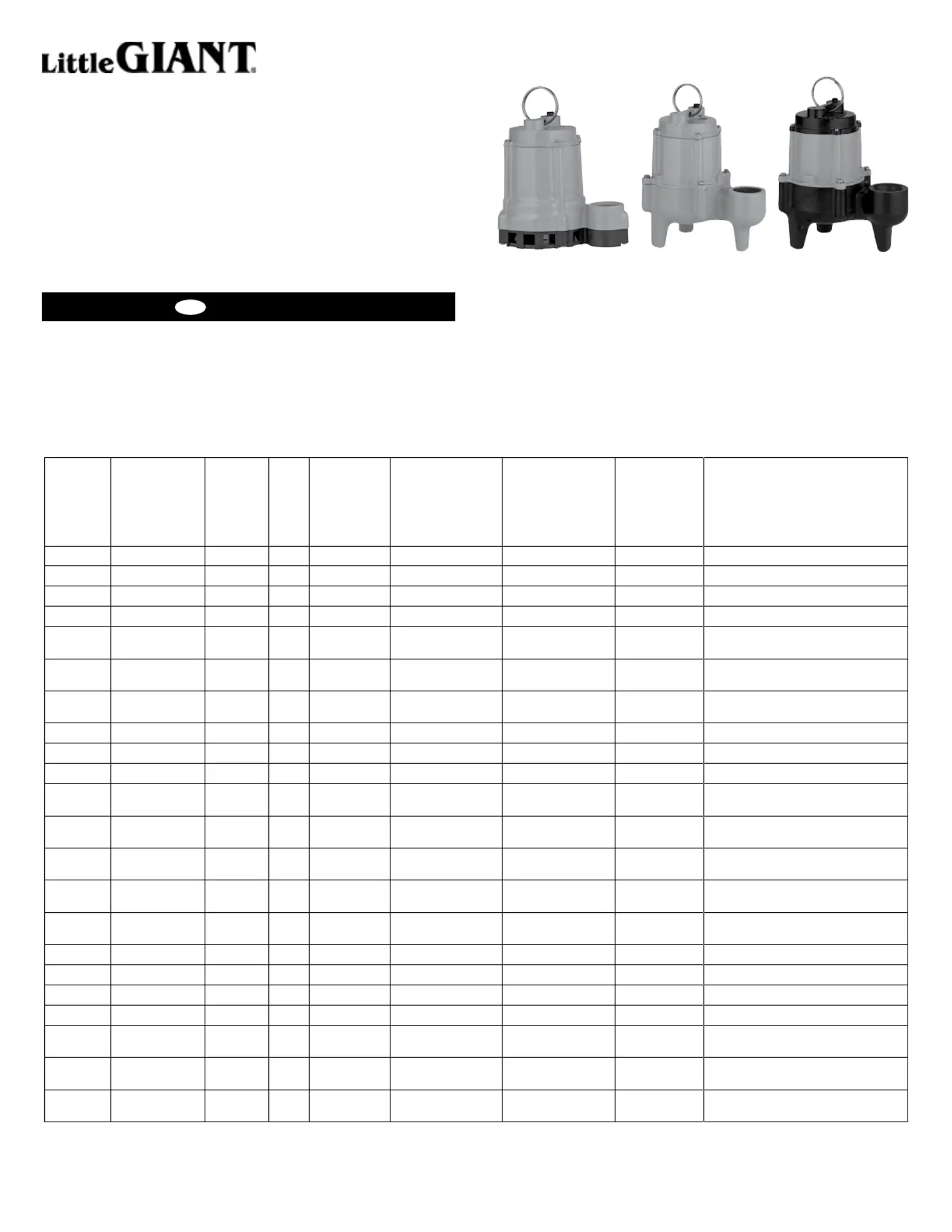

This instruction sheet provides you with the information required to safely

own and operate your Little Giant product. Retain these instructions for

future reference.

Before installation, read the instructions carefully. Each Little Giant pump is

of the highest quality workmanship and material and has been engineered

to give you long and reliable service. This product has been carefully tested,







Oklahoma City, OK 73157-2010

www.LittleGiantPump.com

Customerservice@lgpc.com































































509203 9SN-CIM 115 4/10 8.5 2 2 20 Manual • • ManualManuel

509226 9SN-CIM 115 4/10 8.5 3 2 20 Manual • • ManualManuel

509217 9SN-CIM 208-230 4/10 4 2 2 20 Manual • • ManualManuel

509227 9SN-CIM 208-230 4/10 4 3 2 20 Manual • • ManualManuel

509204 9SN-CIA-RF 115 4/10 8.5 2 2 20

Remote Float • Flotteur à Distance

• Flotante Remoto

509215 9SN-CIA-RF 115 4/10 8.5 3 2 20

Remote Float • Flotteur à Distance

• Flotante Remoto

509228 9SN-CIA-SFS 115 4/10 8.5 2 2 20

Snap-Action Float • Flotteur à Coup

Sec • Flotante de Acción Rápida

509207 9EN-CIM 115 4/10 9 1-1/2 3/4 20 Manual • • ManualManuel

509208 9EN-CIM 115 4/10 9 1-1/2 3/4 30 Manual • • ManualManuel

509219 9EN-CIM 208-230 4/10 4 1-1/2 3/4 20 Manual • • ManualManuel

509209 9EN-CIA-RF 115 4/10 9 1-1/2 3/4 20

Remote Float • Flotteur à Distance

• Flotante Remoto

509210 9EN-CIA-RF 115 4/10 9 1-1/2 3/4 30

Remote Float • Flotteur à Distance

• Flotante Remoto

509221 9EN-CIA-RF 208-230 4/10 4 1-1/2 3/4 20

Remote Float • Flotteur à Distance

• Flotante Remoto

509260 9EN-CIA-SFS 115 4/10 9 1-1/2 3/4 20

Snap-Action Float • Flotteur à Coup

Sec • Flotante de Acción Rápida

509261 9EN-CIA-SFS 115 4/10 9 1-1/2 3/4 30

Snap-Action Float • Flotteur à Coup

Sec • Flotante de Acción Rápida

511322 10SN-CIM 115 1/2 9.5 2 2 20 Manual • • ManualManuel

511344 10SN-CIM 115 1/2 9.5 3 2 20 Manual • • ManualManuel

511328 10SN-CIM 208-230 1/2 4.5 2 2 20 Manual • • ManualManuel

511345 10SN-CIM 208-230 1/2 4.5 3 2 20 Manual • • ManualManuel

511323 10SN-CIA-RF 115 1/2 9.5 2 2 20

Remote Float • Flotteur à Distance

• Flotante Remoto

511326 10SN-CIA-RF 115 1/2 9.5 3 2 20

Remote Float • Flotteur à Distance

• Flotante Remoto

511346 10SN-CIA-SFS 115 1/2 9.5 2 2 20

Snap-Action Float • Flotteur à Coup

Sec • Flotante de Acción Rápida

 Modèles Modelos

inspected, and packaged to ensure safe delivery and operation. Please

examine your item(s) carefully to ensure that no damage occurred during

shipment. If damage has occurred, please contact the place of purchase

and they will assist you in replacement or repair, if required.









WARNING

WARNING: RISK OF ELECTRIC SHOCK! This pump is supplied with a

grounding conductor and/or grounding-type attachment plug. To reduce the

risk of electric shock, be certain that it is connected to a properly grounded

grounding-type receptacle.

Your 115 V pump is equipped with a 3-prong electrical plug. The third prong is

to ground the pump to prevent possible electrical shock hazard. Do not remove

the third prong from the plug. A separate branch circuit is recommended. Do

not use an extension cord.

When a pump is in a basin, etc., do not touch motor, pipes or water until unit

is unplugged or shut off. If your installation has water or moisture present, do

not touch wet area until all power has been turned off. If shut-off box is not

accessible, call the electric company to shut off service to the house, or call

your local fire department for instructions. Failure to follow this warning can

result in fatal electrical shock.

The flexible PVC jacketed cord assembly mounted to the pump must not be

modified in any way, with the exception of shortening the cord to fit into a

control panel. Any splice between the pump and the control panel must be

made within a junction box and mounted outside of the basin and comply with

the National Electrical Code. DO NOT use the power cord for lifting the pump.

The pump motor is equipped with an automatic resetting thermal protector

and may restart unexpectedly. Protector tripping is an indication of motor

overloading as a result of operating the pump at low heads (low discharge

restriction), excessively high or low voltage, inadequate wiring, incorrect motor

connections, or a defective motor or pump.

1. Read all instructions and safety guidelines thoroughly. Failure to follow the

guidelines and the instructions could result in serious bodily injury and/or

property damage.

2. DO NOT USE TO PUMP FLAMMABLE OR EXPLOSIVE FLUIDS SUCH AS

GASOLINE, FUEL OIL, KEROSENE, ETC. DO NOT USE IN EXPLOSIVE

ATMOSHPHERES OR HAZARDOUS LOCATIONS AS CLASSIFIED BY

NEC, ANSI/NFPA70. FAILURE TO FOLLOW THIS WARNING CAN RESULT

IN PERSONAL INJURY AND/OR PROPERTY DAMAGE.

3. During normal operation the pump is immersed in water. Also, during rain

storms, water may be present in the surrounding area of the pump. Caution

must be used to prevent bodily injury when working near the pump:

a. The plug must be removed from the receptacle prior to

touching, servicing, or repairing the pump.

b. To minimize possible fatal electrical shock hazard, extreme care

should be used when changing the fuses. Do not stand in water

while changing fuses or insert your finger into the fuse socket.

4. Do not run the pump in a dry basin. If the pump is run in a dry basin, the

surface temperature of the pump will rise to a high level. This high level

could cause skin burns if the pump is touched and will cause serious

damage to your pump.

5. Do not oil the motor. The pump housing is sealed. High grade dielectric oil

devoid of water has been put into the motor housing at the factory. Use of

other oil could cause serious electric shock and/or permanent damage to

the pump.

6. This pump’s motor housing is filled with a dielectric lubricant at the factory

for optimum motor heat transfer and lifetime lubrication of the bearings.

Use of any other lubricant could cause damage and void the warranty.

This lubricant is non-toxic; however, if it escapes the motor housing it

should be removed from the surface quickly by placing newspapers or

other absorbent material on the water surface to soak it up, so aquatic life

is undisturbed.

7. In any installation where property damage and/or personal injury might

result from an inoperative or leaking pump due to power outages,

discharge line blockage, or any other reason, a backup system(s) and/or

alarm should be used.

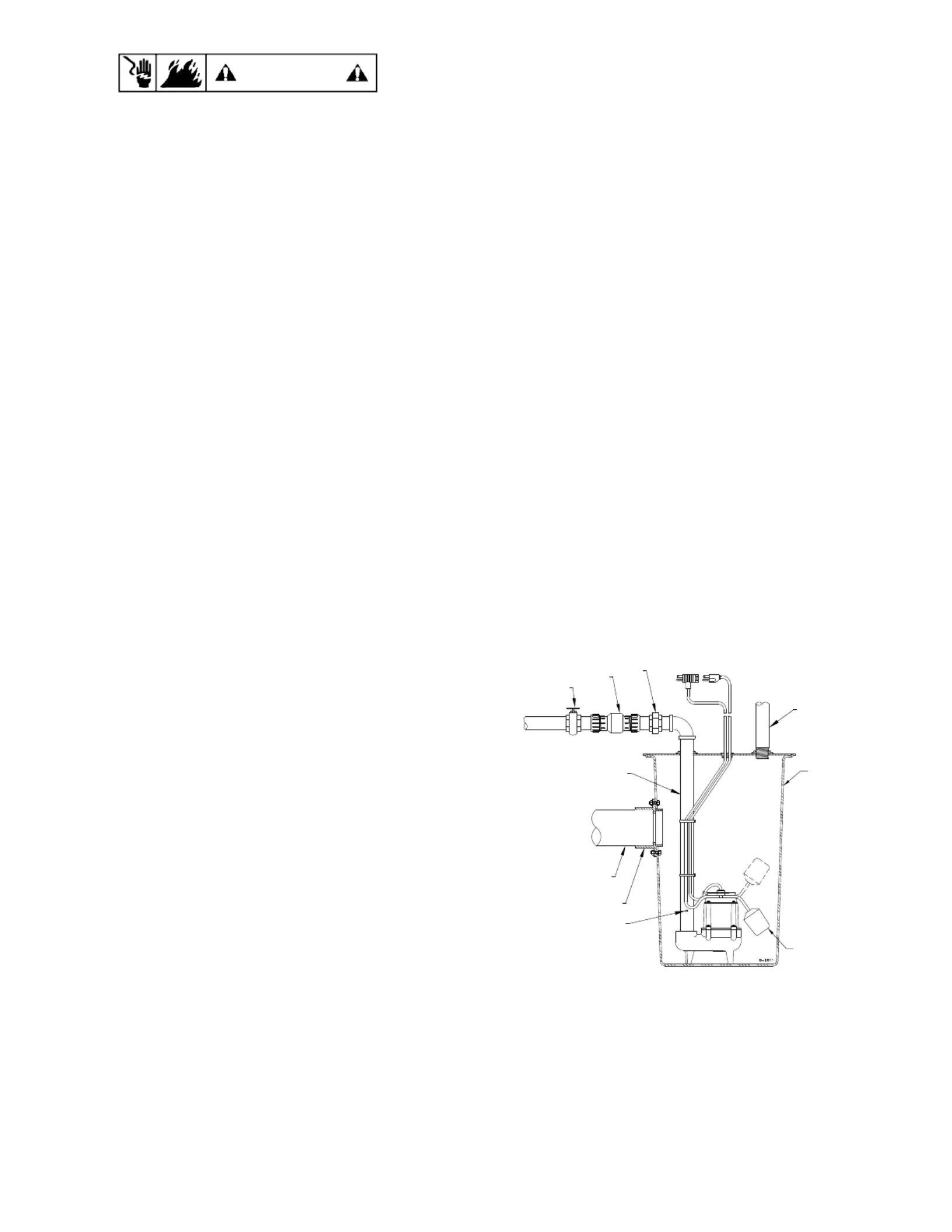

9SN Automatic T ypical Installation

Gate Valve

Check Valve

Union

Vent

Discharge

Intake

Caulking Hub

3/16" Air Bleed Hole

Gas Tight Basin

18" x 24"Deep Min

Tether Length 3.5"

7" to 9" off level

13.5" to 15.5" on level

BASIN

Pump must be installed in a suitable gas-tight basin which is at least 18" in

diameter and 24" deep. It must be sealed and vented to meet local, state, and

federal plumbing codes. Pump must be placed on a hard level surface. Never

place pump directly on clay, earth, or gravel surfaces. A check valve must be

used in the discharge line to prevent back flow of liquid into the basin. The

check valve should be a free flow valve that will easily pass solids.

Caution: For best performance of check valves, when handling solids

install in a horizontal position or at no more than at a 45° angle. Do not

install check valve in a vertical position as solids may settle in valve and

prevent opening on start-up.

When a check valve is used, drill a 3/16" hole in the discharge pipe

approximately 1" to 2" above the pump discharge and below the check valve to

prevent air locking of the pump.

WIRING

Check local electrical and building codes before installation. The installation

must be in accordance with their regulations as well as the most recent National

Electrical Code (NEC). To conform to the NEC, all pumps must be wired with 14

AWG or larger wire. For runs to 250', 14 AWG wire is sufficient. For longer runs

consult a qualified electrician or the factory. Pump should be connected or wired

to its own circuit with no other outlets or equipment in the circuit line. Fuses and

circuit breaker should be of ample capacity in the electrical circuit.

rEMotE Float SwitCH lEVEl CoNtrol

The RF series pumps are equipped with a remote float switch level control. For

automatic operation, the pump must be plugged or wired into this remote float

switch. Pump will run continuously if plugged directly into an electrical outlet.

When the level rises in the basin, the cylinder floats up with the level. When

the cylinder position is at an angle of about 45°, the switch activates and starts

the pump motor. As the level draws down, the cylinder floats down and when

it is again at an angle of about 45°, the switch deactivates and the pump motor

stops.

NOTE: Be certain pump is secure in basin and cylinder floats

UNOBSTRUCTED without touching the basin walls or plumbing. A minimum

tether length of 3.5" is required.
