Side 1/24

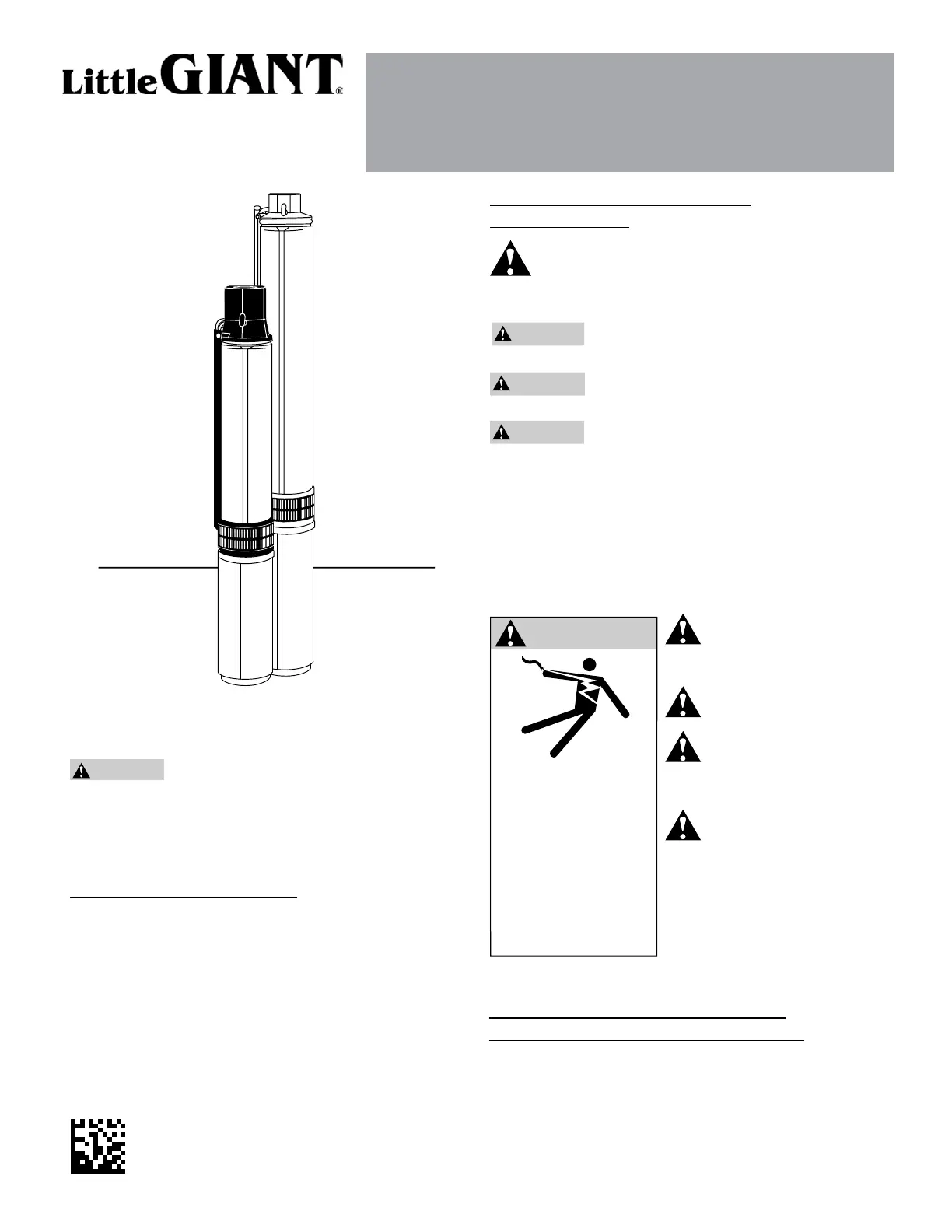

OWNER’S MANUAL
4” SUBMERSIBLE PUMP
BEFORE INSTALLING PUMP, BE SURE TO READ
THIS OWNER’S MANUAL CAREFULLY.
Fill the pump with water before starting or
the pump will be damaged. The motor on this pump is
guaranteed by the manufacturer, and in the event of failure
it must be returned to an authorized service station for
repairs. The motor warranty is void if repairs are not made
by an authorized repair station.
INSPECT THE SHIPMENT
Examine the pump when it is received to be sure there
has been no damage in shipping. Should any be evident,
report it immediately to the dealer from whom the pump
was purchased. Please check the pump package to see
that it includes pump, motor, and motor leads (if your pump
purchase includes a motor).
This pump includes either a built-in or externally-mounted
check valve with the discharge head. Make certain that your
available voltage corresponds to that of your motor.
C A U T I O N
READ AND FOLLOW SAFETY
INSTRUCTIONS
This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for one of
the following signal words and be alert to the potential for
personal injury:
D A N G E R
warns about hazards that cause serious will
personal injury, death, or major property damage if ignored.
WARNING
warns about hazards that cause serious can
personal injury, death, or major property damage if ignored.
C A U T I O N
warns about hazards that or cause will can
minor personal injury or major property damage if ignored.
The label indicates special instructions, which are NOTICE
important but not related to hazards.
Carefully read and follow all safety instructions in this
manual and on pump.
Keep safety labels in good condition.
Replace missing or damaged safety labels.
Wire motor for correct
voltage. See Electrical
Information section of this manual
and motor nameplate.
Ground motor before
connecting to power supply.
Meet National Electrical
Code, Canadian Electrical
Code, and local codes for all
wiring.
Follow wiring instructions in
this manual when
connecting motor to power lines.
Hazardous voltage.
Can shock, burn, or
cause death.
Ground pump before
connecting to power
supply. Disconnect
power before working
on pump, motor
or tank.
WA R N I N G
Franklin Electric Co., Inc.
www.franklinwater.com
customerservice@lgpc.com
ATTENTION!
IMPORTANT INFORMATION FOR
INSTALLERS OF THIS EQUIPMENT!
THIS EQUIPMENT IS INTENDED FOR INSTALLATION BY
TECHNICALLY-QUALIFIED PERSONNEL. FAILURE TO
INSTALL IT IN COMPLIANCE WITH NATIONAL AND LOCAL
ELECTRICAL CODES AND WITH FRANKLIN ELECTRIC
RECOMMENDATIONS MAY RESULT IN ELECTRICAL SHOCK
OR FIRE HAZARD, UNSATISFACTORY PERFORMANCE,
Form 106257101 Rev. 002 11/2013
2
AND EQUIPMENT FAILURE. FRANKLIN ELECTRIC
INSTALLATION INFORMATION IS AVAILABLE FROM PUMP
MANUFACTURERS AND DISTRIBUTORS, AND DIRECTLY
FROM FRANKLIN ELECTRIC. CALL FRANKLIN ELECTRIC
TOLL FREE AT 800-701-7894 FOR INFORMATION. RETAIN
THIS INFORMATION SHEET WITH THE EQUIPMENT FOR
FUTURE REFERENCE.
W A R N I N G
SERIOUS OR FATAL ELECTRICAL SHOCK MAY RESULT
FROM FAILURE TO CONNECT THE MOTOR, CONTROL
ENCLOSURES, METAL PLUMBING, AND ALL OTHER
METAL NEAR THE MOTOR OR CABLE TO THE POWER
SUPPLY GROUND TERMINAL USING WIRE NO SMALLER
THAN MOTOR CABLE WIRES. TO REDUCE RISK OF
ELECTRICAL SHOCK, DISCONNECT POWER BEFORE
WORKING ON OR AROUND THE WATER SYSTEM. DO
NOT USE MOTOR IN SWIMMING AREAS.
INSTALLATION RECORDS
It is a good idea to keep an accurate record of your
installation. Be sure to record the data below:
Purchased from:
Date of installation:
Pump model*:
Pump date code*:
Well inside diameter (in/mm):
Depth of well (ft/m):
Depth of water (ft/m):
Pump setting (ft/m):
Drop pipe size:
Wire size (pump to control box):
Wire size (control box to power source):
Horizontal offset (between well & house):
Make of motor*
Amps HP Volts Phase
Make of control box
HP Volts
Power supply
Volts HZ
Pressure switch limits
Cut-in (PSI) Cut-out (PSI)
*This information is on your pump or motor tag. It will help
us identify your pump in case of later inquiries.
TEST RUNNING
If test running pump before installation:
1. Ensure that the power supply corresponds with that
shown on the nameplate of the motor and control box (if
required).
2. Install pump and components appropriate for the test as
shown in Fig. 1.
3. Make sure power supply is turned off and circuit
breaker or disconnect switch is open. Make electrical
connections appropriate to your motor as shown in
Figure 2, 3 or 4.
4. On a three-phase motor, use a magnetic starter equipped
with quick-trip, ambient compensated heaters of correct
size for the horsepower of the motor.
To ensure correct rotation of three-phase units, brace
pump shell securely and apply power momentarily by
snapping line switch quickly on and off. If rotation is
correct, reaction of the shell will be clockwise when
viewed from pump discharge (that is, pump shaft will
rotate counter clockwise). Interchange any two leads at
magnetic starter to reverse rotation.
5. Run pump and motor unit for a few seconds to ensure
that it is in working order.
FIGURE 1
Installation Diagram
Pressure tank
Pressure switch
Gate valv
Service pipe
Pressure gauge
Pressure relief valve
Spring-loaded
check valve
See Wiring Diagrams
Sanitary well seal
or pitless adapter Discharge pipe
Submersible cable
Spring-loaded
check valve
(Recommended every 100’/30m)
Safety cable
Drop pipe
Cable
(secured to drop
pipe with tape or
clamps every 10’/3m)
Well casing
Spring-loaded
check valve
at pump discharge
Submersible
pump
Suction screen
Motor
Well screen or
casing perforations
Note: Keep pump at least 5' (1.5 m) from
bottom of well and above well screen
or casing perforations.
Torque arrestor
SUITABILITY OF WELL
Install the pump only in a well that has been properly
developed. Water from an undeveloped well often contains
an excessive amount of sand, dirt, and abrasives which can
damage the pump. Check that the well is large enough to
