Side 1/18

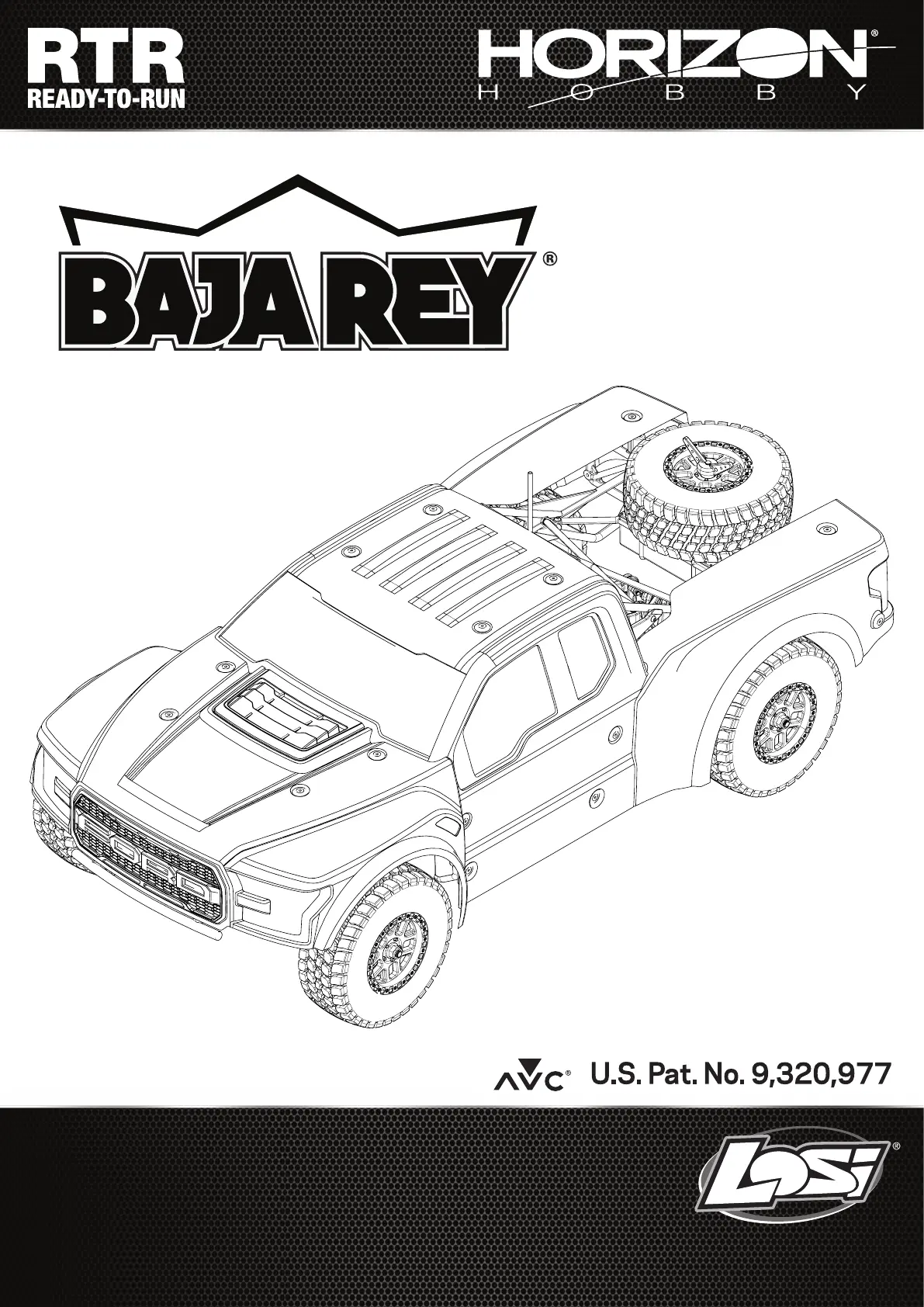

Before operating this vehicle, please read all printed materials thoroughly.
Horizon Hobby is not responsible for inadvertent errors in this manual.
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’UTILISATION
MANUALE DI ISTRUZIONI
FORD RAPTOR 1:10 SCALE 4WD
EN
2FORD® RAPTOR BAJA REY®: 1:10 4WD RTR • INSTRUCTION MANUAL
Age Recommendation: Not for children under 14 years. This is not a toy.
CONTENTS
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in dam-
age to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and
responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with
incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and mainte-
nance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
WARNING AGAINST COUNTERFEIT PRODUCTS Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon
Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products
or products claiming compatibility with DSM or Spektrum technology.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC.
For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.
REGISTER YOUR LOSI PRODUCT ONLINE
Register your vehicle now and be the first to find out about the latest option parts, product
updates and more. Click on the Support tab at www.losi.com and follow the product
registration link to stay connected.
COMPONENTS
• Losi® Ford Raptor Baja Rey® RTR with AVC® technology: 1/10-Scale 4WD Desert Truck
• Spektrum™ DX2E 2.4GHz Transmitter (SPM2335)
• Spektrum™ 6-Channel DSMR®
AVC Surface Receiver (SPMSRS6000)
• Spektrum™ 9KG 23T Waterproof Servo (SPMS605)
• Dynamite® Fuze™ 130A Sensorless Brushless Waterproof ESC (DYN4955)
• Dynamite® Fuze™ 550 Brushless Motor 3800Kv (DYNS1616)
• 4 AA batteries (for transmitter)
TABLE OF CONTENTS
CONTENTS ................................................................................................................. 2
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS .........................3
QUICK START ............................................................................................................. 3
CHARGING THE BATTERY ......................................................................................... 3
INSTALLING THE BATTERY........................................................................................4
SPEKTRUM DX2E RADIO SYSTEM ........................................................................... 4
INSTALLING THE TRANSMITTER BATTERIES ........................................................... 4
SRS6000 AVC TECHNOLOGY RECEIVER ................................................................4
STABILITY ASSIST RECEIVER ....................................................................................5
DRIVING PRECAUTIONS ........................................................................................... 5
POWERING ON THE VEHICLE ...................................................................................5
BEFORE RUNNING YOUR VEHICLE ..........................................................................5
AVC SENSITIVITY ......................................................................................................5
DISABLING AVC TECHNOLOGY ................................................................................6
PERFORMING A CONTROL DIRECTION TEST .......................................................... 6
RUN TIME...................................................................................................................6
CHANGING THE TRAVEL ADJUST SETTINGS ........................................................... 6
DYNAMITE FUZE 130A SENSORLESS BRUSHLESS ESC .........................................6
DYNAMITE FUZE 3800KV BRUSHLESS MOTOR ...................................................... 8
TROUBLESHOOTING GUIDE ..................................................................................... 8
LIMITED WARRANTY ................................................................................................9
FCC INFORMATION 10 ............................................................................................
IC INFORMATION 10 ...............................................................................................
WARRANTY AND SERVICE CONTACT INFORMATION 10 ..........................................
COMPLIANCE INFORMATION FOR THE EUROPEAN UNION................................10
REPLACEMENT PARTS ......................................................................................35–36
OPTIONAL PARTS .................................................................................................... 36
EXPLODED VIEWS .............................................................................................37–41
As the user of this product, you are solely responsible for operating in a manner that does not
endanger yourself and others or result in damage to the product or property of others.
This model is controlled by a radio signal subject to interference from many sources outside
your control. This interference can cause momentary loss of control, so it is advisable to
always keep a safe distance in all directions around your model as this margin will help avoid
collisions or injury.
• Never operate your model with low transmitter batteries.
• Always operate your model in open spaces away from full-size vehicles, traffic and people.
• Never operate the model in the street or in populated areas for any reason.
• Carefully follow the directions and warnings for this and any optional support equipment
(chargers, rechargeable battery packs, etc.) you use.
• Keep all chemicals, small parts and anything electrical out of the reach of children.
• Never lick or place any portion of the model in your mouth as it could cause serious injury
or even death.
• Exercise caution when using tools and sharp instruments.
• Take care during maintenance as some parts may have sharp edges.
• Immediately after using your model, do NOT touch equipment such as the motor,
electronic speed control and battery, because they generate high temperatures. You may
burn yourself seriously touching them.
• Do not put fingers or any objects inside rotating and moving parts, as this may cause
damage or serious injury.
• Always turn on your transmitter before you turn on the receiver in the car. Always turn off
the receiver before turning your transmitter off.
• Keep the wheels of the model off the ground when checking the operation of the radio
equipment.
SAFETY PRECAUTIONS AND WARNINGS
2 FORD® RAPTOR BAJA REY®: 1:10 4WD RTR • INSTRUCTION MANUAL
EN
