Before operating this vehicle, please read all printed materials thoroughly.

Horizon Hobby is not responsible for inadvertent errors in this manual.

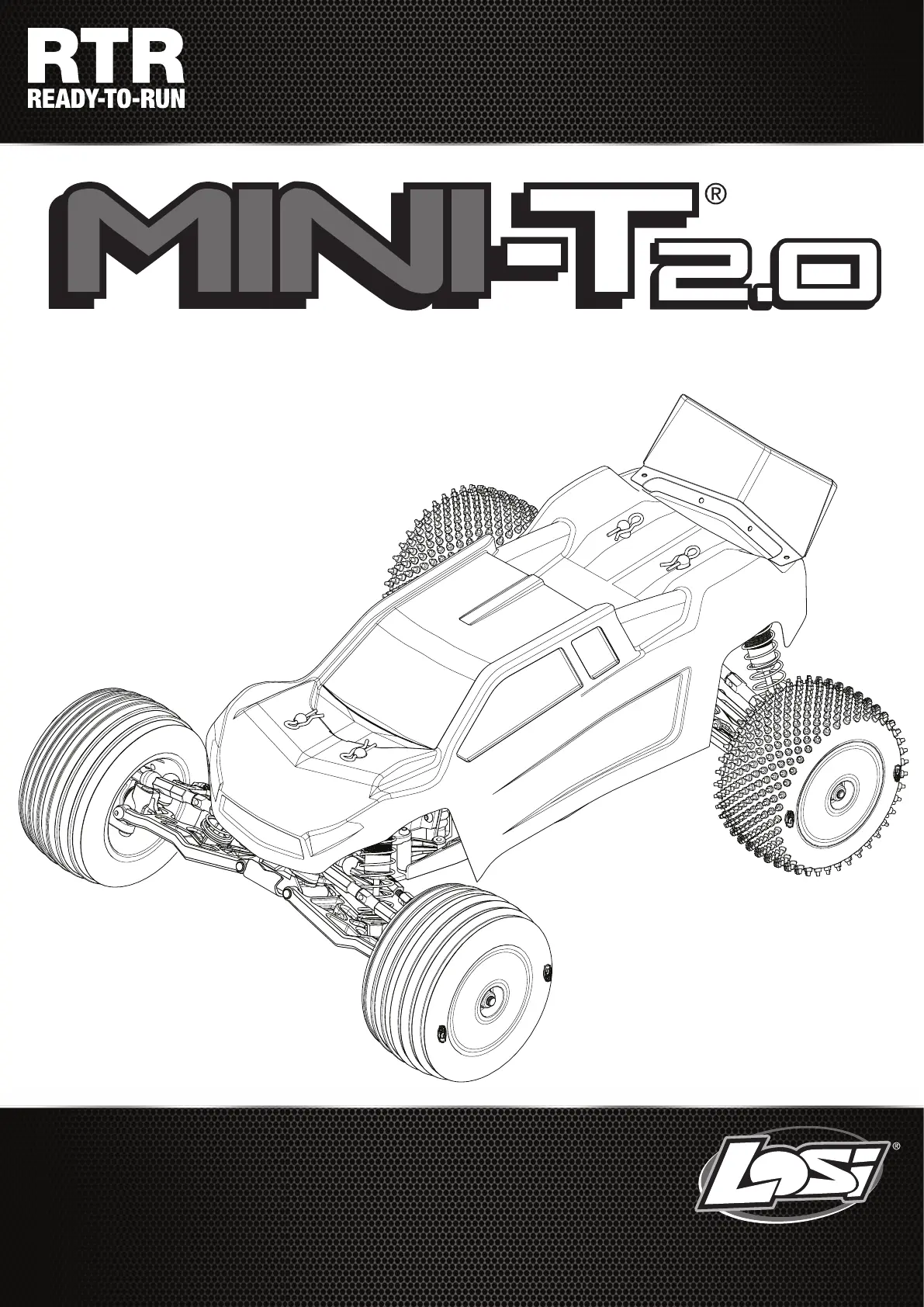

INSTRUCTION MANUAL

BEDIENUNGSANLEITUNG

MANUEL D’UTILISATION

MANUALE DI ISTRUZIONI

1/18 BRUSHLESS 2WD TRUCK

Age Recommendation: Not for children under 14 years. This is not a toy.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in

damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible

manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible

components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential

to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature,

visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product.

MEANING OF SPECIAL LANGUAGE

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superﬁcial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.

QUICK START

Please read the entire manual to gain a full understanding of the Mini-T 2.0 RTR vehicle, ﬁne-tuning the setup and performing maintenance.

1. Read the safety precautions found in this manual.

2. Charge the battery. Refer to the included charging warnings

and instructions for battery charging information.

3. Install the AAA batteries in the transmitter. Only use alkaline

or rechargeable batteries.

4. Install a fully charged battery in the vehicle.

5. Power ON the transmitter and then the vehicle. Always power the transmitter

ON before the vehicle and power it OFF after the vehicle has been powered OFF.

6. Check the steering and throttle control directions. Verify that the servos

are moving in the correct direction.

7. Drive your vehicle.

8. Perform any necessary maintenance.

SAFETY PRECAUTIONS AND WARNINGS

• Always keep a safe distance in all directions around your model to avoid collisions

or injury. This model is controlled by a radio signal subject to interference from

many sources outside your control. Interference can cause momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles, trafﬁc and people.

• Always carefully follow the directions and warnings for this and any optional support

equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁcally designed and protected

for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious injury

or even death.

• Never operate your model with low transmitter batteries.

updates and more. Click on the Support tab at www.LOSI.com and follow the product

registration link to stay connected.

COMPONENTS

• Losi

1/18 Mini-T 2.0 RTR Truck

• Horizon

3-CH 2.4GHz Transmitter (HRZ00001)

• Horizon

2.4GHz Receiver WP 3-Channel (HRZ00006)

• Dynamite BL Motor/ESC 2-in-1, 6000Kv: Mini-T 2.0 (DYNS0501)

• Spektrum

™

SX107 Micro Metal Gear Servo (SPMSSX107)

• Dynamite

7.4V 800mAh 2S 50C LiPo Hardcase: EC2 (DYNB825H2)

• Dynamite

USB 2S LiPo Charger (DYNC1063)

• 4 AAA batteries (for transmitter)

RECOMMENDED ACCESSORIES

• Soft bristle brush for cleaning (TLR70006)

• Startup Tool Set: Metric (DYN2834)

• Thread Lock (DYNK0073)

TOOLS INCLUDED

• 4-Way Wrench

• 1.5mm Hex ˝L˝ Wrench

Use only Dynamite

tools or other high-quality tools. Other tools can cause damage to the

small screws and parts used on this model.

TABLE OF CONTENTS

COMPONENTS ............................................................................................................. 2

RECOMMENDED ACCESSORIES ..............................................................................2

TOOLS INCLUDED ..................................................................................................2

QUICK START ...............................................................................................................2

CONTENTS ...................................................................................................................3

CHARGING WARNINGS ................................................................................................ 3

CHARGING THE BATTERY ............................................................................................. 3

INSTALLING THE BATTERY AND POWERING ON THE VEHICLE .......................................3

TRANSMITTER ..............................................................................................................4

ASSEMBLING AND DISASSEMBLING THE TRANSMITTER HANDLE ...........................4

INSTALLING THE TRANSMITTER BATTERIES ............................................................4

ADJUSTING THE DUAL RATES .................................................................................4

BINDING ...................................................................................................................... 4

CONTROL TEST ............................................................................................................5

DRIVING PRECAUTIONS ...............................................................................................5

RUN TIME ....................................................................................................................5

GETTING STARTED .......................................................................................................5

OPERATION .................................................................................................................5

TUNING, ADJUSTING AND MAINTAINING THE VEHICLE .................................................6

SERVICE/REPAIR ...........................................................................................................6

TROUBLESHOOTING GUIDE ..........................................................................................6

LIMITED WARRANTY ....................................................................................................6

WARRANTY AND SERVICE CONTACT INFORMATION ..............................................7

FCC INFORMATION ......................................................................................................7

IC INFORMATION .........................................................................................................7

EU COMPLIANCE STATEMENT ...................................................................................... 7

PARTS LISTINGS .........................................................................................................26

OPTIONAL PARTS .......................................................................................................26

EXPLODED VIEW ..................................................................................................27–31

LOSI MINI-T 2.0 BRUSHLESS RTR • INSTRUCTION MANUAL

LOSI MINI-T 2.0 RTR 40TH ANNIVERSARY LIMITED EDITION • INSTRUCTION MANUAL

LOSI MINI-T 2.0 BRUSHLESS RTR • INSTRUCTION MANUAL
