Before operating this vehicle, please read all printed materials thoroughly.

Horizon Hobby is not responsible for inadvertent errors in this manual.

INSTRUCTION MANUAL

BEDIENUNGSANLEITUNG

MANUEL D’UTILISATION

MANUALE DI ISTRUZIONI

TEN-MT RTR, AVC: 1:10 4WD • INSTRUCTION MANUAL

Age Recommendation: Not for children under 14 years. This is not a toy.

CONTENTS

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in dam-

age to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and

responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with

incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and mainte-

nance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

WARNING AGAINST COUNTERFEIT PRODUCTS Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon

Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM

or Spektrum.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC.

For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.

MEANING OF SPECIAL LANGUAGE

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superﬁcial injury.

updates and more. Click on the Support tab at WWW.LOSI.COM and follow the product

registration link to stay connected.

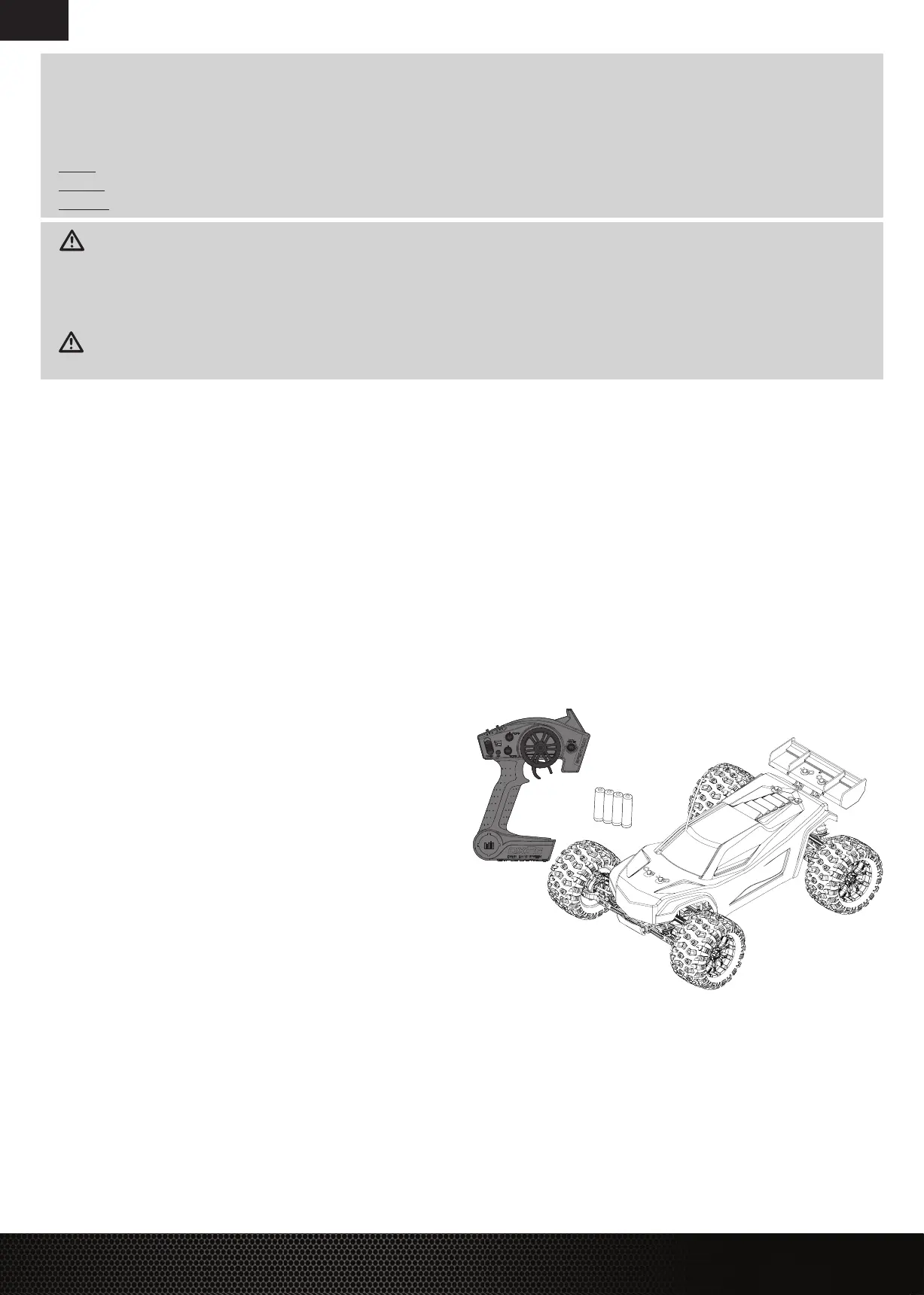

COMPONENTS

• Losi

TEN-MT RTR with AVC

technology: 1/10-Scale 4WD Monster Truck (LOS03006 T1/T2)

• Spektrum™ DX2E 2.4GHz Transmitter (SPM2330)

• Spektrum™ 4-Channel DSMR

AVC Surface Receiver (SPMSRS4201)

• Spektrum™

9KG 23T Waterproof Servo (SPMS605)

• Dynamite

Fuze™ 130A Sensorless Brushless Waterproof ESC (DYN4955)

• Dynamite

Fuze™ 550 Brushless Motor 3800Kv (DYNS1616)

• 4 AA batteries (for transmitter)

TABLE OF CONTENTS

CONTENTS ................................................................................................................. 2

WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS .........................3

QUICK START ............................................................................................................. 3

CHARGING THE BATTERY ......................................................................................... 3

INSTALLING THE BATTERY........................................................................................4

SPEKTRUM DX2E RADIO SYSTEM ........................................................................... 4

SRS4201 AVC TECHNOLOGY RECEIVER ................................................................4

INSTALLING THE TRANSMITTER BATTERIES ........................................................... 4

SRS4201 STABILITY ASSIST RECEIVER....................................................................5

DRIVING PRECAUTIONS ........................................................................................... 5

POWERING ON THE VEHICLE ...................................................................................5

BEFORE RUNNING YOUR VEHICLE ..........................................................................5

AVC SENSITIVITY ......................................................................................................5

DISABLING AVC.........................................................................................................6

PERFORMING A CONTROL DIRECTION TEST .......................................................... 6

RUN TIME...................................................................................................................6

CHANING THE TRAVEL ADJUST SETTINGS..............................................................6

DYNAMITE FUZE 130A SENSORLESS BRUSHLESS ESC (DYN4955) ...................... 6

DYNAMITE FUZE 3800KV BRUSHLESS MOTOR (DYNS1616) ................................8

TROUBLESHOOTING GUIDE .....................................................................................8

LIMITED WARRANTY ................................................................................................9

FCC INFORMATION ............................................................................................10

IC INFORMATION ...............................................................................................10

WARRANTY AND SERVICE CONTACT INFORMATION ..........................................10

COMPLIANCE INFORMATION FOR THE EUROPEAN UNION................................10

REPLACEMENT PARTS ......................................................................................36–37

OPTIONAL PARTS .................................................................................................... 37

EXPLODED VIEWS .............................................................................................38–41

As the user of this product, you are solely responsible for operating in a manner that does not

endanger yourself and others or result in damage to the product or property of others.

This model is controlled by a radio signal subject to interference from many sources outside

your control. This interference can cause momentary loss of control, so it is advisable to

always keep a safe distance in all directions around your model as this margin will help avoid

collisions or injury.

• Never operate your model with low transmitter batteries.

• Always operate your model in open spaces away from full-size vehicles, traffic and people.

• Never operate the model in the street or in populated areas for any reason.

• Carefully follow the directions and warnings for this and any optional support equipment

(chargers, rechargeable battery packs, etc.) you use.

• Keep all chemicals, small parts and anything electrical out of the reach of children.

• Never lick or place any portion of the model in your mouth as it could cause serious injury

or even death.

• Exercise caution when using tools and sharp instruments.

• Take care during maintenance as some parts may have sharp edges.

• Immediately after using your model, do NOT touch equipment such as the motor,

electronic speed control and battery, because they generate high temperatures. You may

burn yourself seriously touching them.

• Do not put ﬁngers or any objects inside rotating and moving parts, as this may cause

damage or serious injury.

• Always turn on your transmitter before you turn on the receiver in the car. Always turn off

the receiver before turning your transmitter off.

• Keep the wheels of the model off the ground when checking the operation of the radio

equipment.

SAFETY PRECAUTIONS AND WARNINGS

TEN-MT RTR, AVC: 1:10 4WD • INSTRUCTION MANUAL
