THRILL Vertical Fogger
User Guide
Introduction
Congratulations on your purchase of this Martin atmospheric
effect machine The THRILL Vertical Fogger combines brilliant .
color-mixing LEDs with powerful fog output to produce stunning
atmospheric effects. Its flexible rigging and control options make
it well suited for a wide range of applications.
This guide describes how to operate and maintain the product.
Read the Safety and Installation Guide before using the product .

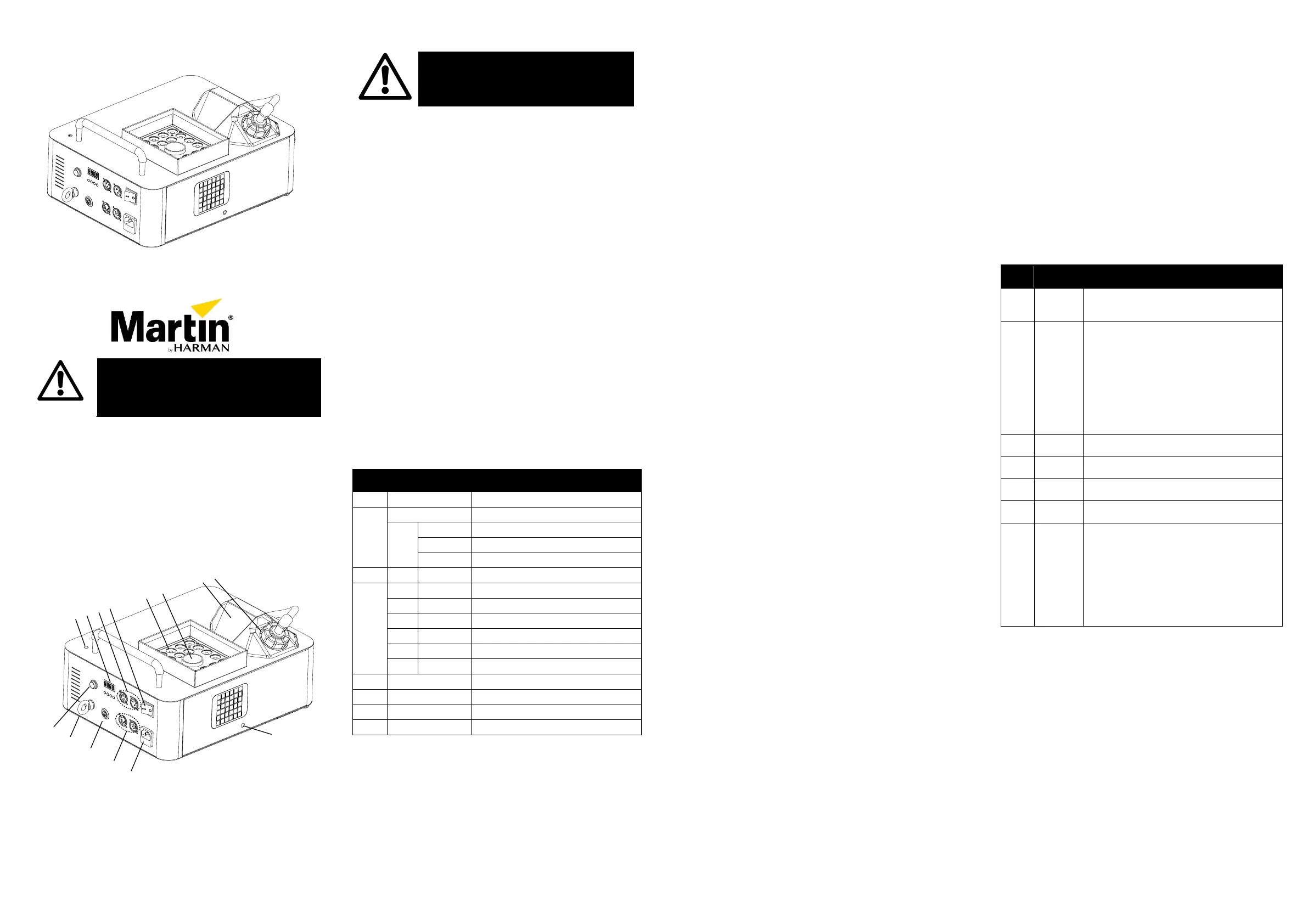

Overview
1
Eye-bolt attachment point
8
Fluid tank filler cap
2
User Interface
9
Pushbutton
3
3-pin XLR DMX sockets
10
Safety cable attachment point
4
Power switch
11
Remote control socket
5
LEDs
12
5-pin XLR DMX sockets
6
Fog output nozzle
13
AC power inpu fuseholder t /
7
Fluid tank bracket
14
Bracket attachment point
Filling the fluid tank
Warning! Use only fog fluids specifically
approved for this machine.
Important! Monitor the fluid level frequently. Do not run the
machine without fluid, or you may damage the machine.
Fill the fluid tank only with Other fluids may RUSH™ Fog Fluid.
damage the machine or cause the release of toxic gases,
presenting a severe health hazard.
Always keep the fluid below the level of the filler cap. See the
Safety and Installation Guide to flip the fluid tank for upside-down
operation from a truss .
To fill the fluid tank:
1. Check that the effect machine is turned off.
2. Remove the filler cap.
3. Use a funnel to fill the fluid tank with Do RUSH™ Fog Fluid.
not overfill.
4. Replace the filler cap, making sure that the feed hose
touches the bottom of the fluid tank.
5. Wipe up any spills or drips before turning on the machine.
User settings
Using the control menu
To access the control menu, press the MENU button. Scroll
through the menu options using the (down) and (up)  
buttons. Press ENTER to select an option. To return to a higher
level in the menu without making a change, press MENU. To exit
the control menu, press and hold MENU.
Control menu
Menu
Explanation

Set DMX address

Remote control button 1-4

No light

Premixed color 1- 36

Random color


 /
Inverted/normal display



Set strobe value


Set dimmer value


Set red LED value


Set green LED value


Set blue LED value


Set premixed color value

Enable/disable pushbutton

Run test of all effects

Readout firmware version

Reset all settings to default values
DMX address
A DMX controller uses 7 DMX channels to control the THRILL
Vertical Fogger. The DMX address is the first channel used. If the
Vertical Fogger , then the controller ’s DMX address is set to 25
sends DMX commands on channels 25 - 31. DMX channel 25 on
the controller corresponds to DMX channel 1 on the THRILL
Vertical Fogger.
For independent control, each Vertical Fogger must have its own
unique control channels. Two or more Vertical Foggers may be
set to the same address and share control channels for diagnostic
purposes or if symmetric control is desired.
To set the DMX address:
1. Press MENU to enter the control menu.
2. Press or to scroll to . Press ENTER.  




3. Scroll to an address from 1 to 506 .
4. Press ENTER to save the address setting .
Manual settings
The THRILL Vertical Fogger has a pushbutton that releases fog
and activates the LEDs with the settings programmed for remote
control channel 1. The button can be disabled to prevent
unintended firing.
To enable or disable the manual pushbutton:
1. Press MENU to enter the control menu.
2. Press or to scroll to Press ENTER.  



.
3. Select to enable the button, or to disable



 it.
4. Press ENTER to save the setting.
The LEDs can also be controlled from the control panel. The
settings are retained until the effect machine is operated by
remote control or DMX, or is turned off.
To set the LEDs manually:
1. Press MENU to enter the control menu.
2. Press or to scroll to Press ENTER.  



.
3. an Select effect to set: strobe ( ), dimmer ( ), red  
( ), green ( ), blue ( ), or premixed colors ( ).    
Press ENTER.
4. Referring to the DMX commands below, scroll to the value
from to that gives the desired look.  
5. Press ENTER to save the setting.
6. Repeat steps 3-5 for each desired effect.
Remote control settings
Pressing a button on the remote control releases fog lights and
the LEDs with a programmed or random color. The pushbutton
uses the color programmed for button 1 .
To program a color for each button:
1. Press MENU to enter the control menu.
2. Scroll to Press ENTER.




.
3. Scroll to Press ENTER.



.
4. Select to select no light, a number from to to select a
 
premixed color, or for a random color. 
5. Press ENTER to save the options for button 1 .
6. Repeat steps 3-5 to program buttons 2, 3, and 4 .
Display setting
The flips the display for easier   setting under
reading.
Note that the display automatically enters sleep mode after a
short period if no buttons are pressed. Pressing any button
reactivates the display.
DMX operation
DMX operation provides access to the full range of features
provided by the THRILL Vertical Fogger. The effect machine can
be operated using any DMX compliant controller. Both 3-pin and
5-pin sockets are provided for data connection.
DMX control features
Fog
Fog output is controlled on channel 1. Output is either on or off.
To prevent damage to the pump, monitor fluid level. Do not run
the pump without fluid.
Strobe effects
A variable strobe effect is available on channel 2 along with pulse
effects and random flash. Select one of the “open” values for
steady light. At values from 0-7, the LEDs are off.
Dimming
The intensity of the light is controlled on channel 3 and increases
with fader level.
Custom color mixing
The LEDs are individually controllable on channels 4 5, and 6, ,
allowing you to mix them in any combination. The amount of each
color in the mix increases with fader level. To use custom color
mixing, the premixed color function on channel 7 must be off.
Premixed colors
Channel 7 provides a “color wheel” effect with 36 premixed
colors. You can also scroll continuously up or down through the
colors or select random colors at slow, medium, or fast speeds.
When selected, premixed colors override custom colors.
DMX commands
Ch.
Value
Function
1
0- 127
128 255-
Fog
Fog output off
Fog output on
2
0-7
8- 15
16 131-
132 139-
140 181-
182 189-
190 231-
232 239-
240 247-
248 255-
Strobe Effects
Light off (blackout)
Light on (no flash)
Strobe, slow to fast
Light on
Pulse effect, fast close/slow open
Light on
Pulse effect, fast open/slow close
Light on
Random strobe
Open
3
0- 255
Dimmer
Dimmer intensity, 0-100%
4
0- 255
Red
Red intensity, 0-100%
5
0- 255
Green
Green intensity, 0-100%
6
0- 255
Blue
Blue intensity, 0-100%
7
0- 10
11 190-
191 192-
193 214-
215 221-
222 243-
244 247-
248 251-
252 255-
Premixed Colors
No premixed color
Stepped scroll, colors 1- 36
No premixed color
Continuous scroll, increasing, fast to slow
Scroll stop
Continuous scroll, decreasing, slow to fast
Random color, fast
Random color, medium
Random color, slow
Getting started
1. Connect the Vertical Fogger effect machine to the controller
as described in the Safety and Installation Guide.
2. At the controller, assign a DMX address the machine to .
3. Use the control panel to set the same DMX machine’s
address on the machine ) (see ‘User Settings’ .
4. Check that the machine has fluid, is ready ( is 
displayed on control panel), and can safely be triggered.
5. Trigger the effects from the controller. machine’s
6. nitor the fluid level. Refill the tank when low to avoid Mo
running the pump dry. A flashing display indicates an empty
fluid tank. Do not release fog until you have refilled the
tank.
7. When finished, turn off the machine and allow it to cool
before handling. The nozzle remains hot for three hours.
WARNING!
Read the safety precautions in the Safety
and Installation Guide before installing or
using this product.
1234
5
78
6
12
13
9
10
11
14
Remote control operation
The THRILL Vertical Fogger comes with a 4-button wireless
remote control with a range of 30 meters (100 feet). The 4 buttons
can be used to trigger different combinations of fog and light.
There are two parts: a transmitter and a receiver. Some
transmitters may require a plastic insulator to be removed from
the battery prior to use.
The receiver connects to the remote control socket on the
machine and has a magnet on the back for attachment. The
receiver’s red LED indicates the machine is heating; when it goes
off, the machine is ready to use .
Remote control operation is disabled when the effect
machine is controlled by DMX.
The green LED and DIP switch on the receiver are not
used.
The remote control system looks similar to system used
for the Martin RUSH SM 650 and RUSH SM 850, but
components are not compatible. Unexpected results will
occur if used in proximity to each other.
Getting started
1. Fill the fluid tank as directed above .
2. Connect the remote control receiver to the machine as
described in the Safety and Installation Guide and apply
power.
3. a Install battery in the transmitter as described below.
4. Use the control panel to program the remote control buttons
as described under ‘User Settings’.
5. and Check that the machine has fluid is ready ( is 
displayed on control panel and the red LED on the receiver
is off). Also check that the machine can safely be triggered.
6. Press any button on the remote control transmitter until fog
is released. Once the system has been primed, fog will be
released instantly.
7. Press buttons on the remote control to trigger different
looks.
8. Monitor the fluid level. Refill the tank when low to avoid
running the pump dry. A flashing display indicates empty an
fluid tank. Do not release fog until you have refilled the
tank.
9. When finished, turn off the machine and allow it to cool
before handling. The nozzle remains hot for three hours.
Installing the wireless remote control battery
The remote control transmitter uses a single 12-volt A23 (MN27)
alkaline battery. To install or replace the battery:
1. Remove the screws from the back cover of the remote
control. Remove the back cover.
2. If replacing, remove the old battery.
3. Insert fresh battery with negative terminal towards the
spring.
4. Align the covers and replace the screw to close.
Manual operation
The effect machine can be operated manually simply by pressing
the pushbutton. The color can be selected by programming
remote control button 1. In addition, the LEDs can be manually
programmed to light with the options in the menu. See 
‘Manual Settings’ for options.
Before releasing fog, verify that the machine has fluid, is ready
( is displayed on control panel), and can safely be triggered. 
Monitor the fluid level. Refill the tank when low to avoid running
the pump dry. A flashing display indicates an empty fluid tank. Do
not release fog until you have refilled the tank.
When finished, turn off the machine and allow it to cool before
handling. The nozzle remains hot for three hours.
Maintenance
The user may carry out the maintenance operations described
below. Do not attempt to repair a defective fixture. Refer all
service to your Martin dealer or contact Martin directly for
technical support through www.martin.com/contact-support.
Allow the fog output nozzle to cool completely before cleaning or
servicing the effect machine. The nozzle remains hot for up to 3
hours after use.
Service the machine in a well-ventilated area where there is no
risk of injury from failing parts, tools or other materials.
Cleaning
Excessive dust, fog fluid, and particle buildup degrades
performance, causes overheating and will damage the effect
machine. Damage caused by inadequate cleaning or
maintenance is not covered by the product warranty.
Inspect effect machines within their first 100 hours of operation to
see whether cleaning is necessary. Check again at frequent
intervals. This procedure will allow you to assess cleaning
requirements in your particular situation.
Use gentle pressure only when cleaning, and work in a clean,
well-lit area. Do not use any product that contains solvents or
abrasives, as these can cause surface damage.
To clean the effect machine, vacuum or gently blow away dust
and loose particles from the outside of the effect machine with
low-pressure compressed air. Clean the surfaces by wiping
gently with a soft, clean lint-free cloth moistened with a weak
detergent solution. Check that the effect machine is dry before
reapplying power.
Fluid system maintenance
Specially designed for optimum performance while providing
longevity of the fluid system and heat exchanger, Pro Clean
Supreme is the ultimate cleaning solution for Martin atmospheric
effect machines. Using Pro Clean Supreme fluid in the THRILL
Vertical Fogger on a regular basis reduces clogging and extends
its life.
Use Pro Clean Supreme at least once every 90 days. For best
results, use it every 30 days or 200 hours of operation, whichever
comes first .
Perform fluid system maintenance in a well-ventilated ar as ea
follows:
1. If there is fluid in the tank, run the machine until the fluid
tank is nearly empty, but not completely dry.
2. Turn off the machine, allow it to cool, and disconnect from
AC power.
3. Fill the fluid tank with Pro Clean Supreme fluid as directed .
4. up Reapply power and allow the machine to heat .
5. Run the fluid through the system by operating the machine
until the fluid tank is nearly empty, but not completely dry.
6. Refill the fluid tank with prior to use RUSH™ Fog Fluid .
Preparing for storage
If storing the machine for an extended period of 30 days or more,
clean the fluid system as described above. Do not refill the fluid
tank until you are ready to use the machine again.
Replacing the primary fuse
If the fixture is completely dead, the primary fuse may have blown
and it may be necessary to install a new fuse. Replace with a fuse
of the same size and specified rating only. A spare fuse is located
in the fuse holder, located directly below the AC input.
Troubleshooting
This section describes remedies for some possible problems.
Symptom
Potential cause
Remedies
Fixture appears
dead
No power at AC cable
inlet
Check power cable and
circuit breaker
Fuse blown
Check and replace fuse with
one of same type and rating
Fog output is weak
Fixture requires priming
Press and hold the
pushbutton until output is
strong
Wet, greasy, non-
uniform output,
fluid drips or spits
from nozzle, or
loud noise when
firing machine
Incompatible fog fluid
Discard fluid. Perform fluid
system maintenance.
Clogged fluid line
Perform fluid system
maintenance
No fog output
Machine not ready
Allow machine several
minutes to heat up
Fluid level low
Add fluid
Hose too high
Check that fluid hose
reaches bottom of fluid tank
Wireless remote control
out of range
Move closer to effect
machine
Wireless remote control
battery exhausted
Replace battery
No light output
Dimmer channel value too
low
Increase dimming level on
channel 3
Fixture does not
respond to DMX
control
Fault in the DMX network
due to connector or cable
damage, incorrect DMX
addressing, or potential
interference from
proximity to a high voltage
installation.
Verify that DMX address
matches address set on
DMX control device
Check DMX cables and
connections. Ensure that
DMX link is terminated
Move or shield link if it is
close to an unshielded high-
voltage installation
Do not open the housing, there are no user
serviceable parts inside the fixture.
Disconnect the fixture from mains power
before performing maintenance.
Transmitter
Receiver
Information subject to change without notice. HARMAN
Professional Denmark ApS disclaims liability for any
injury, damage, direct or indirect loss, consequential or
economic loss or any other loss occasioned by the use
of, inability to use or reliance on the information
contained in this document.
©2017 HARMAN Professional Denmark ApS. All rights
reserved. Martin® is a registered trademark of HARMAN
Professional Denmark ApS registered in the United States
and/or other countries. Features, specifications, and
appearance are subject to change without notice.
HARMAN Professional Denmark ApS
Olof Palmes Allé 18 • 8200 Aarhus N • Denmark
www.martin.com
Document revision: A

Produkt Specifikationer

Mærke: Martin
Kategori: Lettelse
Model: Thrill Vertical Fogger

Har du brug for hjælp?

Hvis du har brug for hjælp til Martin Thrill Vertical Fogger stil et spørgsmål nedenfor, og andre brugere vil svare dig


Lettelse Martin Manualer

Martin

Martin ERA 700 Performance IP Manual

29 August 2024
Martin

Martin Thrill Vertical Fogger Manual

23 August 2024
Martin

Martin Extube Manual

22 August 2024
Martin

Martin MUM Manual

22 August 2024
Martin

Martin Freekie Manual

22 August 2024
Martin

Martin P3-100 Manual

21 August 2024
Martin

Martin THRILL Multi-FX LED Manual

21 August 2024
Martin

Martin Fixture Beam Analyzer Manual

21 August 2024
Martin

Martin MAC Ultra Wash Manual

21 August 2024
Martin

Martin RUSH MH 4 Beam Manual

21 August 2024

Lettelse Manualer

Nyeste Lettelse Manualer

Dainolite

Dainolite V166-1W Manual

5 April 2025
Dainolite

Dainolite OFE-161P Manual

5 April 2025
Dainolite

Dainolite DMLED10-A-5D Manual

5 April 2025
Dainolite

Dainolite DM1958F Manual

5 April 2025
NUVO

NUVO Ballerina 60/1265 Manual

4 April 2025
NUVO

NUVO SF77/196 Manual

4 April 2025
NUVO

NUVO Ballerina 60/329 Manual

4 April 2025
NUVO

NUVO Cordello 60/7883 Manual

4 April 2025
NUVO

NUVO Destin 60/7706 Manual

4 April 2025
NUVO

NUVO Livingston 60/7669 Manual

4 April 2025
