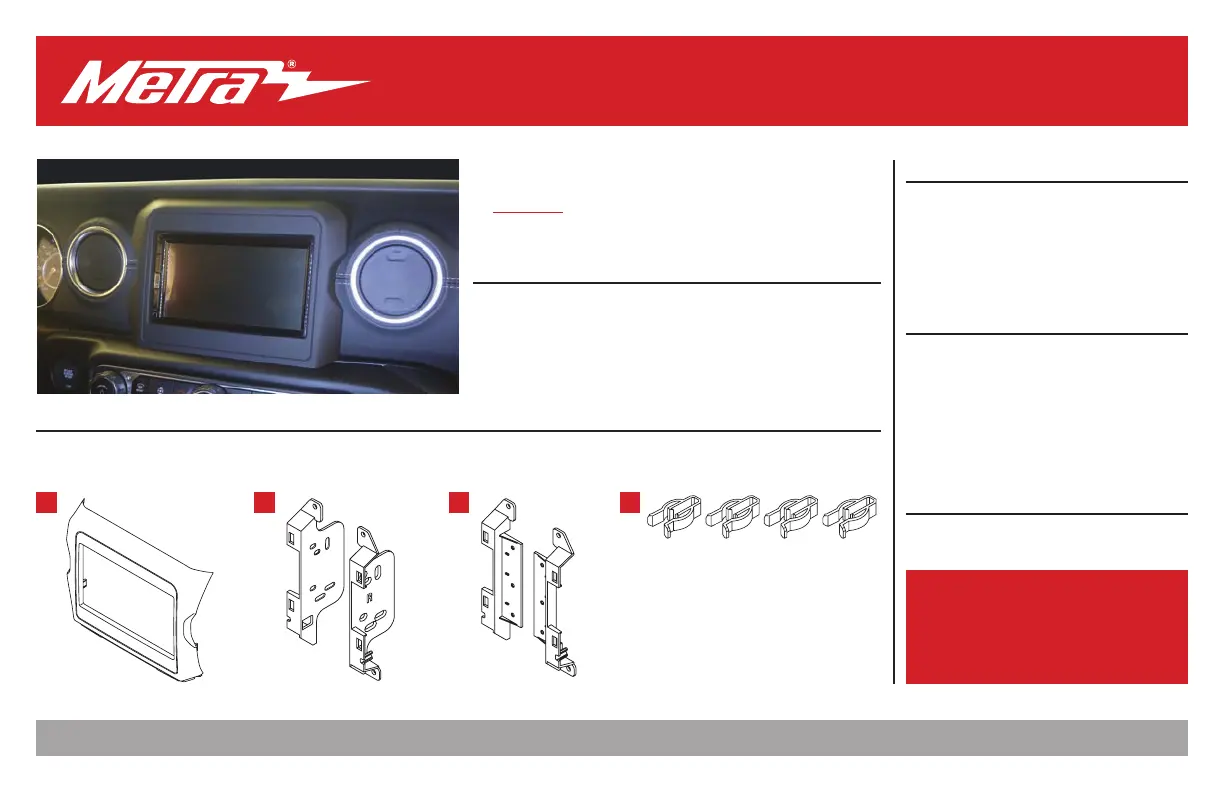

INSTALLATION INSTRUCTIONS

107-CH3B

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

• Designed for shallow mount ‡ radios like the Alpine iLX-W650 †

• Brackets included for Pioneer modular radios DMH-C2550NEX and

DMH-C2500NEX †

• Painted scratch resistant matte black to match the factory ﬁnish

† Refer to the radio manufacturer for current models

‡ Radio chassis depth allowed is 3.75”, not including the screen

KIT COMPONENTS

• A) Radio bezel • B) Radio brackets • C) Pioneer adapter brackets • D) Panel clips (4)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly

- ISO DDIN radio provision .....................................2

- Pioneer Modular DDIN radio provision ..............3

Jeep Wrangler (JL) † 201

8-Up , Gladiator † 2020-Up

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

specific applications

A B C D

WIRING & ANTENNA CONNECTIONS

Wiring Harness: See metraonline for harness

interface solutions

Antenna Adapter: 40-EU55 (sold separately)

RGB Extension Cable: Pioneer part # CD-RGB150E

(not sold by Metra)

Patent Pending

KIT FEATURES

† Models with a Uconnect® 3.0 radio with 5-inch display
