Side 1/5

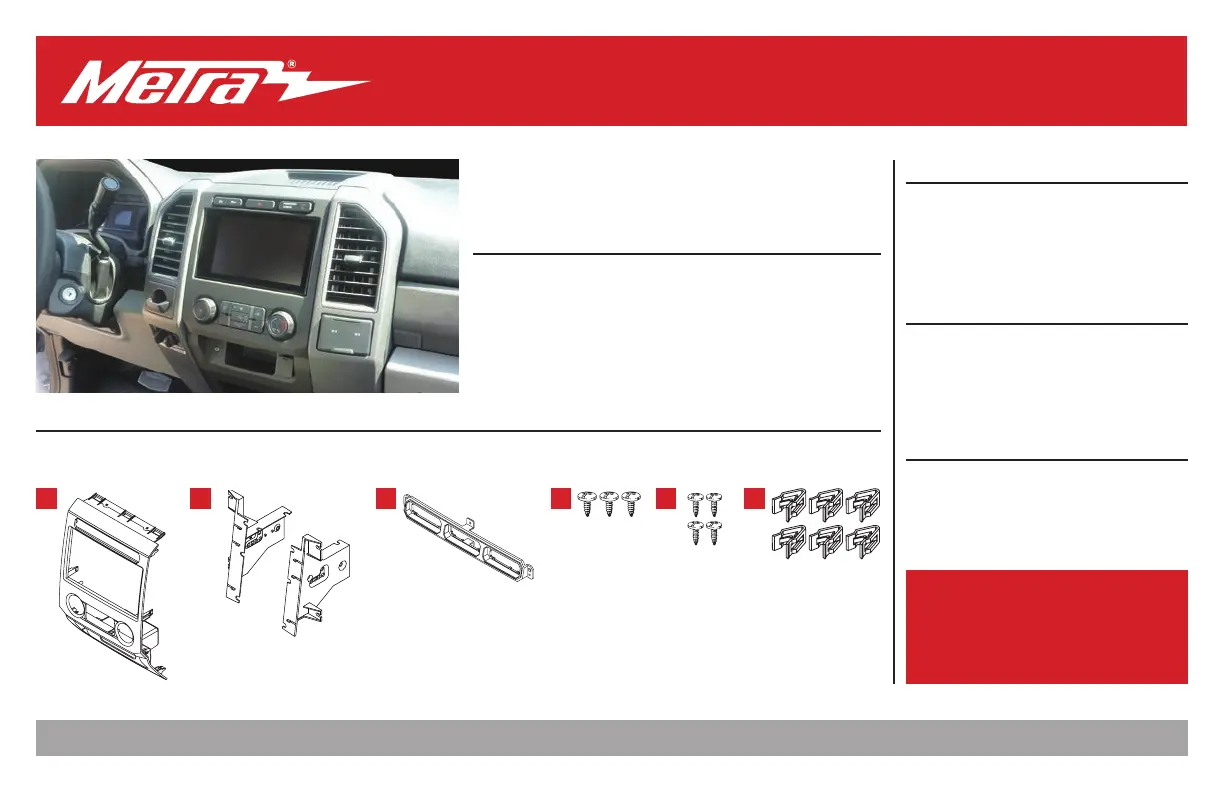

I N S TA L L AT I O N I N S T R U C T I O N S

108-FD7B

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

Patent Pending

KIT FEATURES

• Designed speciﬁcally for the Pioneer DMH-C5500NEX 8-inch radio

• Painted scratch-resistant matte black to match the

factory color and ﬁnish

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Switch housing • D) #8 x 3/8” Phillips screws (3) • E) #6 x 3/8” Phillips screws (4) • F) Panel clips (6)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench • Torx screwdriver

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: XSVI-5524-NAV

Antenna Adapter: 40-EU10

Steering wheel control interface: ASWC-1

A B C D E F

*Visit for up-to-date vehicle speciﬁc applications.MetraOnline.com

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................2

Kit Assembly ..........................................................3

Ford F-250/350/450/550 XL

(w/o color screen)

2017-up*

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY KIT PREPARATION

1. Remove the storage mat in the pocket

above the climate-control/radio trim

panel, then remove (2) 9/32” screws

exposed. (Figure A)

2. Unclip and remove the pocket, then

remove (2) 9/32” screws exposed.

(Figure B)

3. Unclip, unplug, and remove the climate-

control/radio trim panel.

Continue to Kit Preparation

From the factory climate-control/radio

trim panel:

Remove (4) Torx screws securing the climate

control panel, then remove.

(Figure A)

Unclip and remove the switches.

(Figure A)

Unclip and remove the LINE IN jack.

(Figure A)

Unclip and remove the power port assembly.

(Figure A)

To the 108-FD7B climate-control/radio trim panel:

Secure the climate control panel to the panel using

(4) #6 x 3/8” Phillips screws provided.

(Figure B)

Trim the bottom tab from the switch housing

(see inset). Secure the to the switch housing

panel using (3) #8 x 3/8” Phillips pan-head

screws

provided.

(Figure B)

Snap the factory switches into the switch housing.

(Figure B)

Snap the LINE IN jack to the panel.

(Figure B)

Snap the power port assembly to

the panel.

(Figure B)

10.

Attach (6) panel clips to the panel.

Continue to Kit Assembly

(Figure A) (Figure A)

(Figure B)

Remove

shaded area
