Side 1/24

APPLICATIONS

REV. 3/28/2014 INST99-7523S

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

Table of Contents

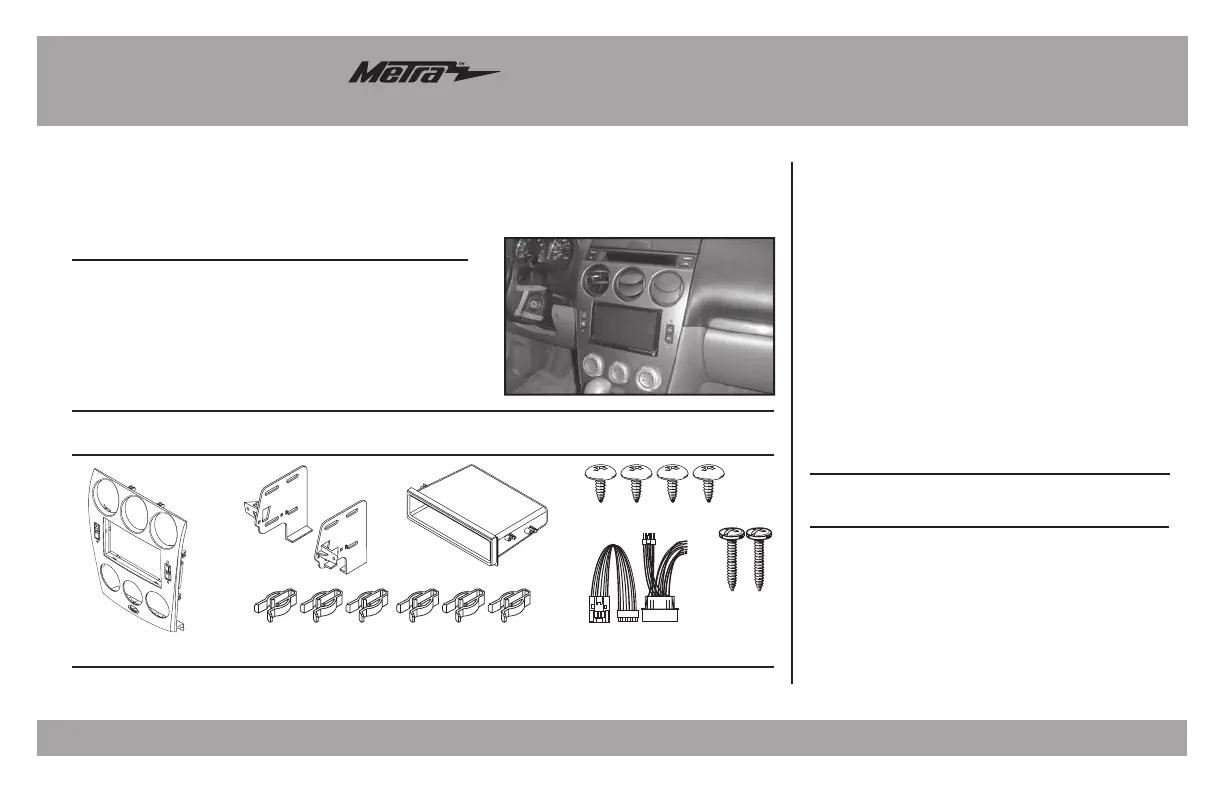

INSTALLATION INSTRUCTIONS FOR PART 99-7523S

• A) Radio/Climate control housing • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws

• E) (6) Plastic panel clips • F) Harness • G) (2) #8 x 1” Phillips screws

KIT COMPONENTS

• Double DIN radio provision

• ISO DIN radio provision with pocket

• Painted silver

• Pre-wired ASWC-1 harness included (ASWC-1

sold separately)

KIT FEATURES

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • Included with kit

Antenna Adapter: • Not required

• Small flat blade screwdriver • Phillips screwdriver

• Socket wrench

TOOLS REQUIRED

A B

C D

F G

Dash Disassembly

– Mazda 6 2003-2005 .........................................2-4

Kit Assembly

– Electronic climate control ..................................... 5

– Manual climate control ......................................... 6

– Felt tape application ............................................. 7

– ISO DIN radio provision with pocket ...................... 8

– Double DIN radio provision ................................... 8

– Display customization .......................................... 9

– Final wiring and assembly .............................10-11

99-7523S

Electronic Climate Control

1. Unscrew the shift knob counter

clockwise to remove. (Figure A)

2. Unclip and remove the cup holder/

parking brake cover and shifter

cover as one radio. (Figure B)

3. Remove (2) Phillips screws from

the bottom of the radio/climate

control panel. (Figure C)

4. Open glove box, squeeze sides

together and let open fully then

remove (1) 10 mm bolt from the

side of the radio bracket.

(Figure D)

Dash Disassembly

Rear of Electronic Climate Control

Rear of Radio/Climate Control Panel

INSIDE

GLOVE BOX

(Figure B) (Figure F)

(Figure E)

(Figure C) (Figure G)

(Figure D) (Figure H)(Figure A)

5. Unsnap and remove radio/climate

control panel including climate

control vents at the top. (Figure D)

6. Remove (4) Phillips screws

securing vents to radio/climate

control panel to remove. (Figure E)

7. Remove (8) Phillips screws

securing the electronic climate

control to the radio/climate control

panel to remove. (Figure F)

8. Remove (4) Phillips screws

securing the radio display harness

bracket to the radio chassis then

unclip and remove the radio

display harness. (Figure H)

Continue to kit assembly
