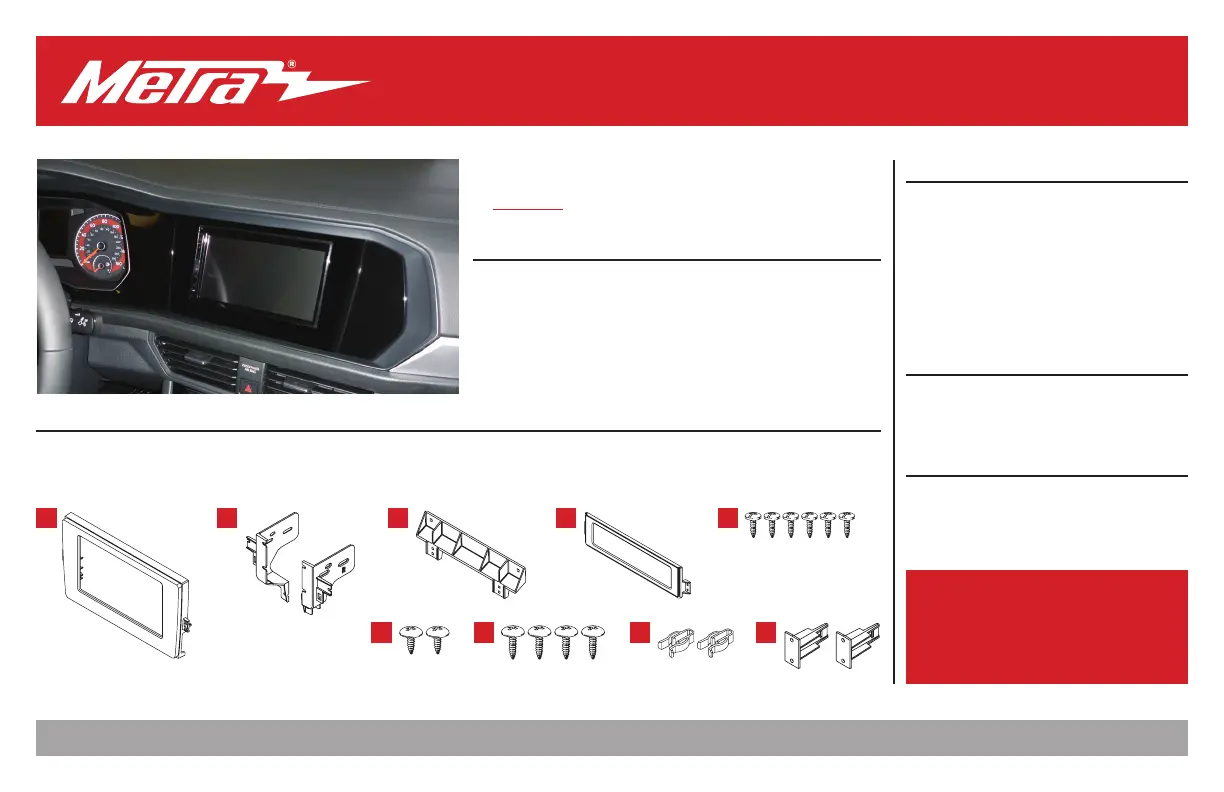

I N S TA L L AT I O N I N S T R U C T I O N S

99-9014HG

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

KIT FEATURES

• ISO DIN radio provision

• ISO DDIN radio provision †

• Pioneer modular DDIN radio provision †

• Painted high gloss black to match the factory ﬁnish

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Support bracket • D) Blank panel • E) #4 x 3/8” Phillips pan-head screws (6)

• F) #8 x 3/8” Phillips truss-head screws (2) • G) #8 x 1/2” Phillips truss-head screws (4) • H) Panel clips (2) • I) Panel clip mounts (2) TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Cutting tool • T-20 Torx driver

• VW radio removal tool (Metra part #86-9001)

TABLE OF CONTENTS

Dash Disassembly ...............................................2-3

Kit Preparation .......................................................4

Kit Assembly

–ISO DIN radio provision .......................................5

–ISO DDIN radio provision .....................................6

–Pioneer modular DDIN radio provision .............7

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: AXTC-VW2

Antenna Adapter: 40-EU56-36

A B

F G

C D E

Volkswagen Jetta 2019-Up

H I

Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com

speciﬁc applications

† Only for with ISO DDIN radios which have an “L” shaped chassis design, with the radio chassis at the

top of the screen. At present only the Sony XAV-AX100, XAV-AX200, and XAV-AX5000 radios have this

design. The Pioneer modular radios, DMH-C2550NEX and DMH-C2500NEX, can also be used.

1.800.221.0932

MetraOnline.com

1. Open the driver’s door, then unclip

and remove the dashboard side panel.

(Figure A)

2. Unclip and remove the trim panel

directly below the far left a/c vent.

Remove (1) T-20 Torx screw exposed.

(Figure B)

3. Unclip and remove the trim panel to the

left of the steering column. (Figure C)

4. Unclip and remove the trim panel

directly below the far right a/c vent.

Remove (2) T-20 Torx screws exposed.

(Figure D)

5. Unclip and remove the far right a/c vent.

(Figure E)

Continued on the next page

(Figure E)

(Figure D)

DASH DISASSEMBLY

(Figure A)

(Figure B)

(Figure C)
