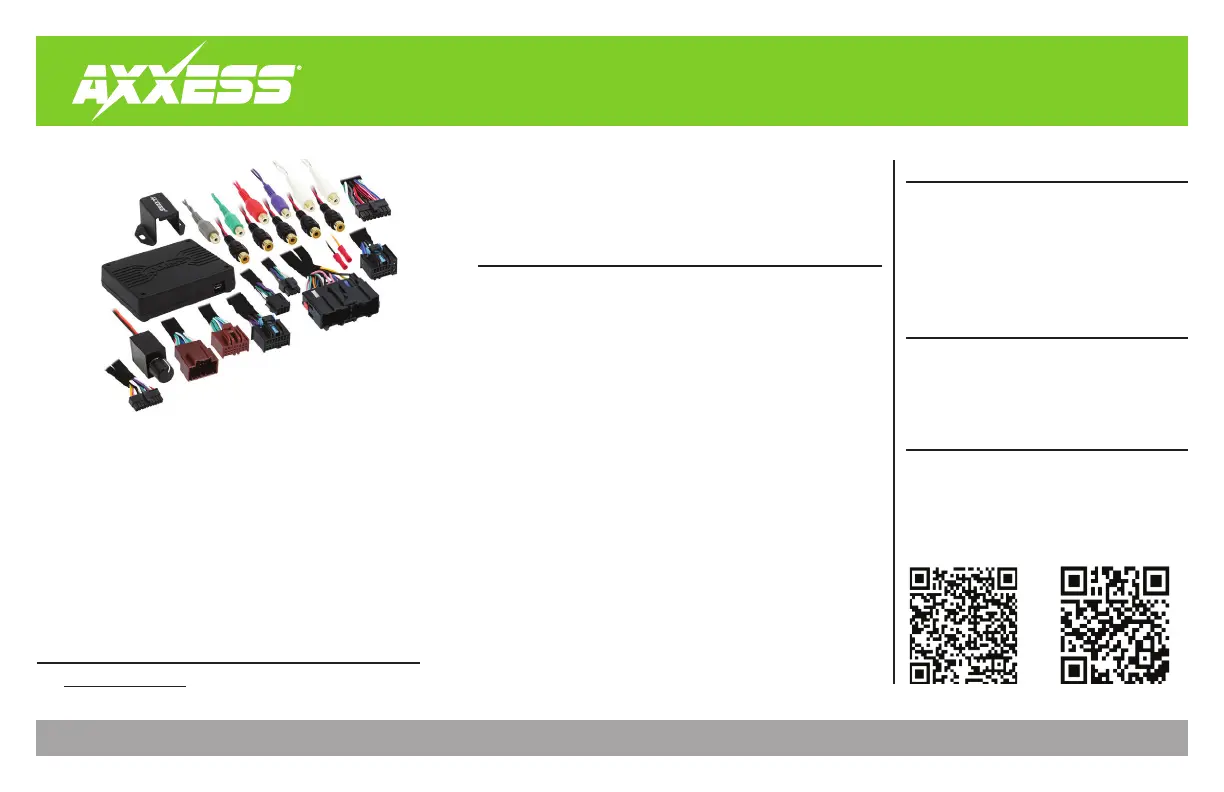

AXDSPX- GL1

INSTALLATION INSTRUCTIONS

Google Play Store

Apple App Store

iOS 12.1 or higher

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

TABLE OF CONTENTS

Installation Options ...............................................2

Installation .............................................................2

Connections ........................................................3-4

Mobile App ........................................................ 5-13

Speciﬁcations ....................................................... 14

GM DSP Interface With Pre-Wired Harness

2007-2017

• Includes a DSP (Digital Signal Processor)

• 31 Band graphic EQ

• 10 individually assignable outputs

• Independent equalization on each of the 10 outputs

• Independent high pass, low pass, and bandpass ﬁlters

• Each channel can be delayed independently up to 10ms

• Clipping detection and limiting circuits

• Retains factory parking sensor chimes

• Retains OnStar® voice prompts

• Adjustable chime level

• Can be used in ampliﬁed and non-ampliﬁed models

• Easy behind the radio installation with pre-wired harness

• Bass knob included for level control of subwoofer amp

• Settings adjusted via Bluetooth

in a smart device application (tablet

or mobile phone), compatible with both Android and Apple devices

• Read, write, and store conﬁgurations for future recall

• Password protect feature available in the mobile app

• Micro-B USB updatable

• AXDSPX-GL1 interface

• AXDSPX-GL1 interface harness

• AXDSPX-GL1 vehicle T-harness • Bass knob

APPLICATIONS

Visit axxessinterfaces.com for current application list

Adding a sub to a factory system:

This feature offers the ability to add a subwoofer to a factory system, whether ampliﬁed or non-

ampliﬁed. (refer to page 3)

Adding a full-range amp & sub to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system, whether

ampliﬁed

†

or non-ampliﬁed. (refer to page 4)

†

For ampliﬁed models the amp must be bypassed/unplugged, and With OE Ampliﬁer chosen in

the Conﬁguration tab under Vehicle Type.

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Remove the factory radio †, then unplug all connectors.

2. Install the AX-DSPX-GL1 vehicle T-harness to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. Plug the AX-DSPX-GL1 vehicle T-harness to the AX-DSPX-GL1 interface.

4. Plug the AX-DSPX-GL1 interface harness to the AX-DSPX-GL1 interface.

5. Download and install the AXDSP-X app from the Google Play Store or Apple App

Store.

6. Open the app then select the Bluetooth Connection tab. Follow the instructions to

pair the mobile device to the interface. Refer to page 6 for more information.

7. Scroll to the Conﬁguration tab then select the vehicle type. Press the Lock Down ‡

button to save the conﬁguration. Refer to page 7 for more information.

8. Connect the amp turn-on wire.

9. Adjust the settings in the app as desired. Press the Lock Down ‡ button to save any

new conﬁgurations.

† Refer to Metra online for dash disassembly. If Metra makes a dash kit for the vehicle,

disassembly will be within those instructions.

‡ Anytime the interface is locked down the key must be cycled off then back on

INSTALLATION OPTIONS I N STALL ATI O N
