AXDSPL-HN3

INSTALLATION INSTRUCTIONS

Google Play Store

Apple App Store

iOS 12.1 or higher

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

TABLE OF CONTENTS

Connections ............................................................2

Installation .............................................................3

AXDSPL-BT Installation...........................................4

AXDSPL-SP Installation...........................................5

Mobile App ........................................................6-14

Speciﬁcations ........................................................15

Honda DSP Interface With Amp Bypass Harness

2016-Up

• Includes a DSP (Digital Signal Processor)

• 15 Band graphic EQ

• 4 inputs and 6 individually assignable outputs

• Independent equalization for front, rear, and sub

• Selectable low pass, band pass, and high pass ﬁlters

• Selectable crossover slopes; 12db, 24db, 36db, 48db

• Each channel can be delayed independently up to 10ms

• Clipping detection and limiting circuits

• Designed for ampliﬁed models

• Includes an amp bypass harness

• Internal header port for adding interface modules

• Retains level control of subwoofer through the factory radio

• Settings adjusted via Bluetooth

in a smart device application (tablet

or mobile phone), compatible with both Android and Apple devices

• Read, write, and store conﬁgurations for future recall

• Password protect feature available in the mobile app

• Micro-B USB updatable

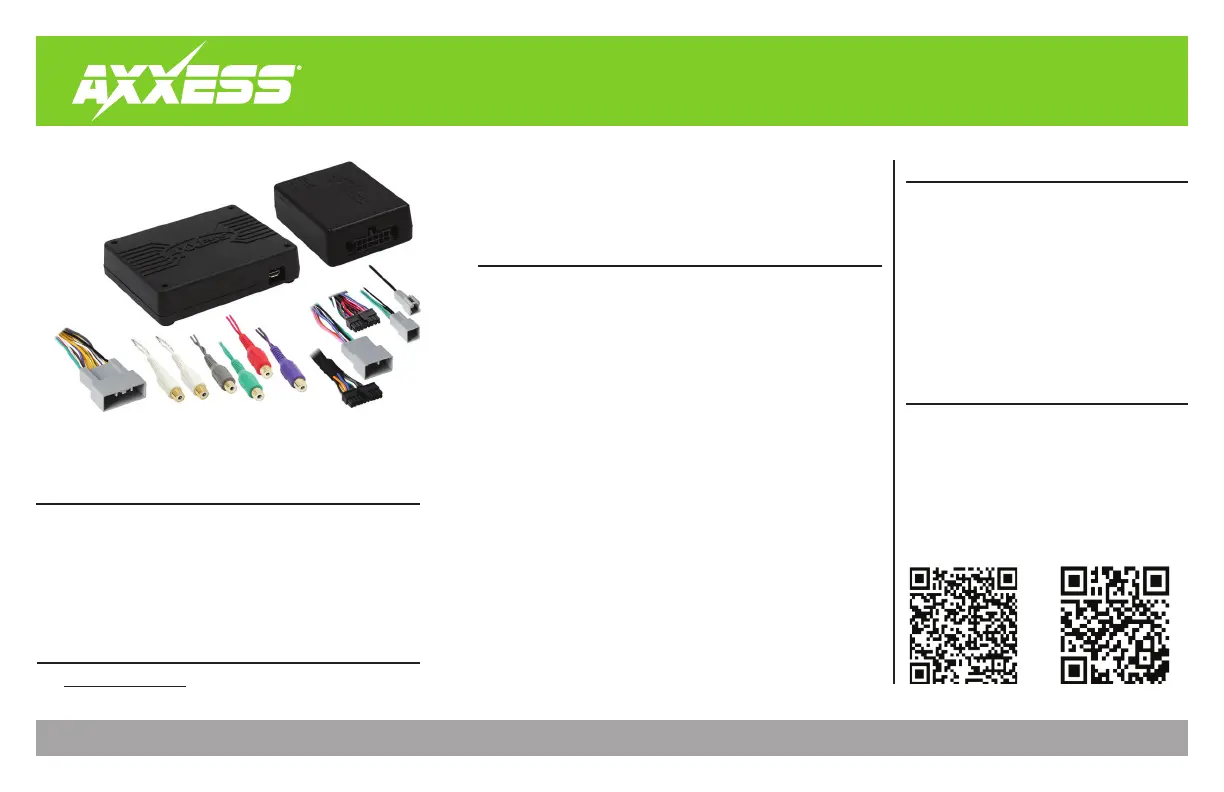

• AXDSPL-HN3 interface

• AXDSPL-HN3 interface harness

• AXDSPL-HN3 amp bypass harness

APPLICATIONS

Visit axxessinterfaces.com for current application list

TBA

Blue/White - Amp Turn-On Wire

Any remaining wires

tape off and disregard

RCA Jacks

(sold separately)

Any remaining wires

tape off and disregard

White / Front Left Woofer +

White/Black / Front Left Woofer -

Gray / Front Right Woofer +

Gray/Black Front Right Woofer -

Green / Rear Left Woofer +

Green/Black / Rear Left Woofer -

Purple / Rear Right Woofer +

Purple/Black / Rear Right Woofer -

Brown/White / Center +

Blue/Pink / Center -

Green/White / Subwoofer +

White/Red / Subwoofer -

TBA

An SPDT relay, Metra part number

E-123, is required if the amp turn-on

current of all amps exceeds 1-amp.

Yellow/Blue / Front Left Tweeter +

Yellow/Black / Front Left Tweeter -

Yellow/Red / Front Right Tweeter +

Yellow/Orange Front Right Tweeter -

Green/Orange / Rear Left Tweeter +

Green/Red / Rear Left Tweeter -

Black/Yellow / Rear Right Tweeter +

Black/Green / Rear Right Tweeter -

Factory Amp

Passenger Side Kick Panel

(Remove Amp)

Interface

SPDIF interface

Amp Bypass Harness

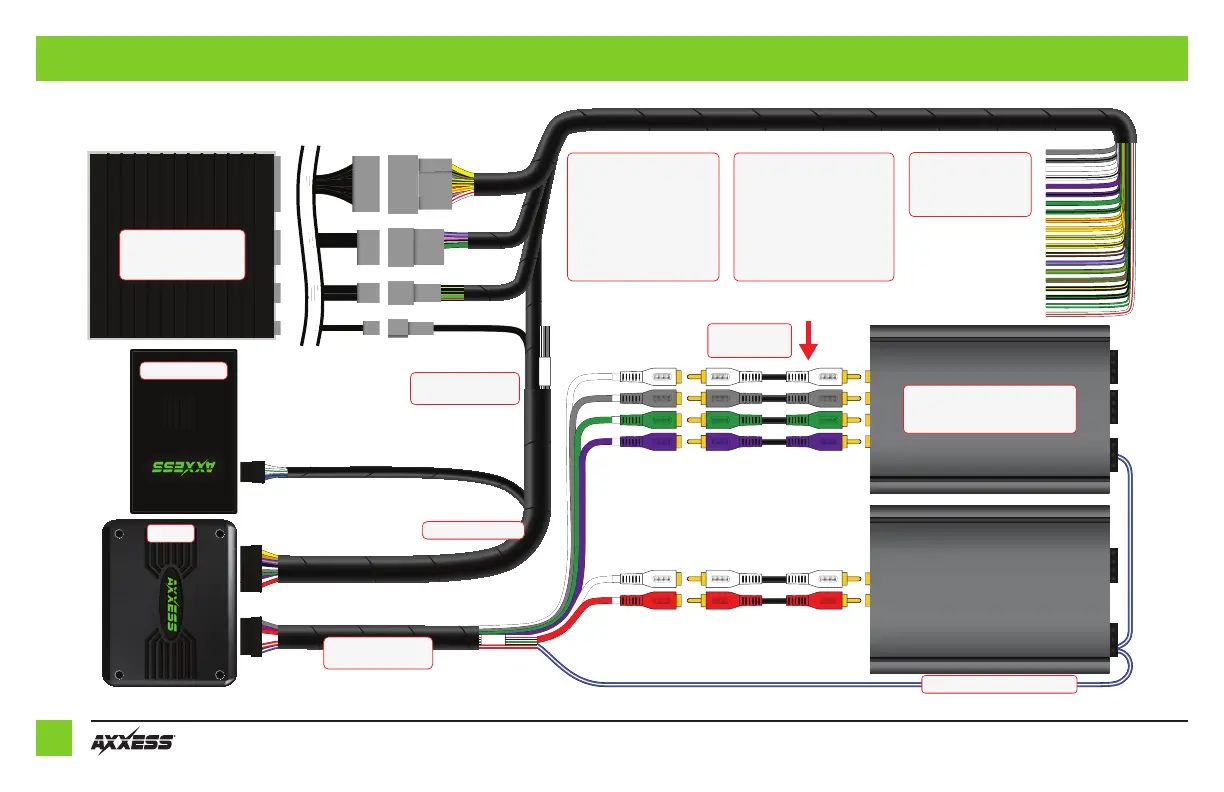

CONNECTIONS
