MPS-DPSL-BT

I N S T A L L A T I O N I N S T R U C T I O N S

Google Play Store Apple App Store

iOS 12.1 or higher

INTERFACE FEATURES

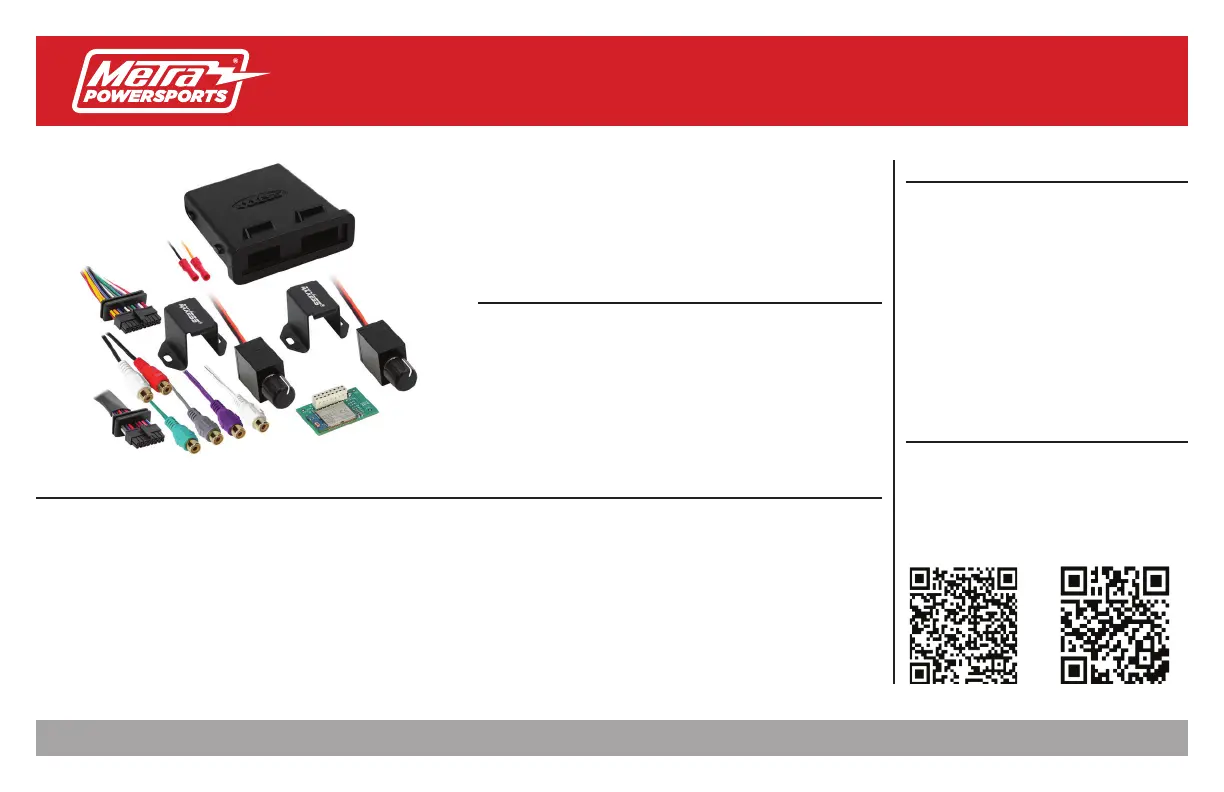

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

TABLE OF CONTENTS

Preface ....................................................................2

Installing bluetooth board ....................................3

Pinout .....................................................................4

Installation .............................................................5

Stand-alone bluetooth diagram ..........................6

Quick setup guide ..............................................7-12

Advanced DSP features & control options .....13-14

Other installation options ....................................15

Speciﬁcations ....................................................... 16

Marine & Powersports Bluetooth Streaming

Audio Interface w/ DSP Controls

No Source Needed.

• 15 Band graphic EQ

• Bluetooth streaming from your smart device

• 4 inputs and 6 outputs, including front, rear, and subwoofer

• Independent equalization for front, rear, and sub

• Independent crossover for front, rear, and sub

• Selectable slope (12, 24, 36, or 48db per octave)

• Front and rear channels can be delayed independently up to 10ms

• Water resistant enclosure with zip tie mounts included

• Clipping detection and limiting circuits

• Bluetooth interface module included

• Volume knob & Bass knob included

•

Settings adjusted via Bluetooth® in a smart device application (tablet

or mobile phone), compatible with both Android and Apple devices

• Read, write, and store conﬁgurations for future recall

• Password protect feature available in the mobile app

• Micro-B USB updatable

• MPS-DSPL-BT circuit board

• Bluetooth streaming audio circuit board

• Volume and Subwoofer knobs

• MPS-DPSL-BT harness (16-pin & 20-pin, with gaskets)

• MPS-DPSL-BT enclosure

• Case

• Cap (with O-ring)

PREFACE

The MPS-DSPL-BT is designed for UTV, Marine and Motorcycle applications when a source is not required. The interface includes the AXDSPL-BT Bluetooth Streaming circuit board. This

board plugs directly into the DSP’s circuit board and will allow your phone or tablet to stream music directly to your aftermarket ampliﬁers. The MPS-DSP-BT is housed in a water tight

case making it perfect for ON/OFF road vehicles that are exposed to the elements. We recommend matching the MPS-DSPL-BT with our MPS-RZKIT for 2014-2020 Polaris RZR.

The MPS-DSPL-BT provides 6 outputs that are assignable to match your systems requirements. Outputs are commonly assigned as Front, Rear, and Subwoofer, which are all setup

through the free Axxess AX-DSP-XL application. Included with interface are two separate knobs that are used as an overall system volume control and a subwoofer’s volume control.

The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all

amps combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
