AIR FORCE QUICKDRAW SERIES

ALL MODELS ARE: All Steel Construction; 12 ft. Grounded Cord

ACCESSORIES: Air Concentration and Air Flare.

Different models and what they come with:

PED-500 (114-517245): Single Speed; .75 Peak Speed; 4.0 Amps, 540 Watts; Airflow: CFM 70.

PED-500V (114-582052): Variable Speed; .75 Peak Speed; 4.0 Amps, 540 Watts; Airflow: CFM 70.

QD-1-6FT (114-887030): Single Speed; 1.3 Peak HP Motor; 8.3 Amps; 1,000 Watts; Air Volume

(CFM,FPM): 85/200; Shoulder Strap & Table Mounting Hook. 6’ Hose;

QD- -6FT (114-582618): 1V Variable Speed; 1.3 Peak HP Motor; 8.3 Amps; 1,000 Watts; Air Volume

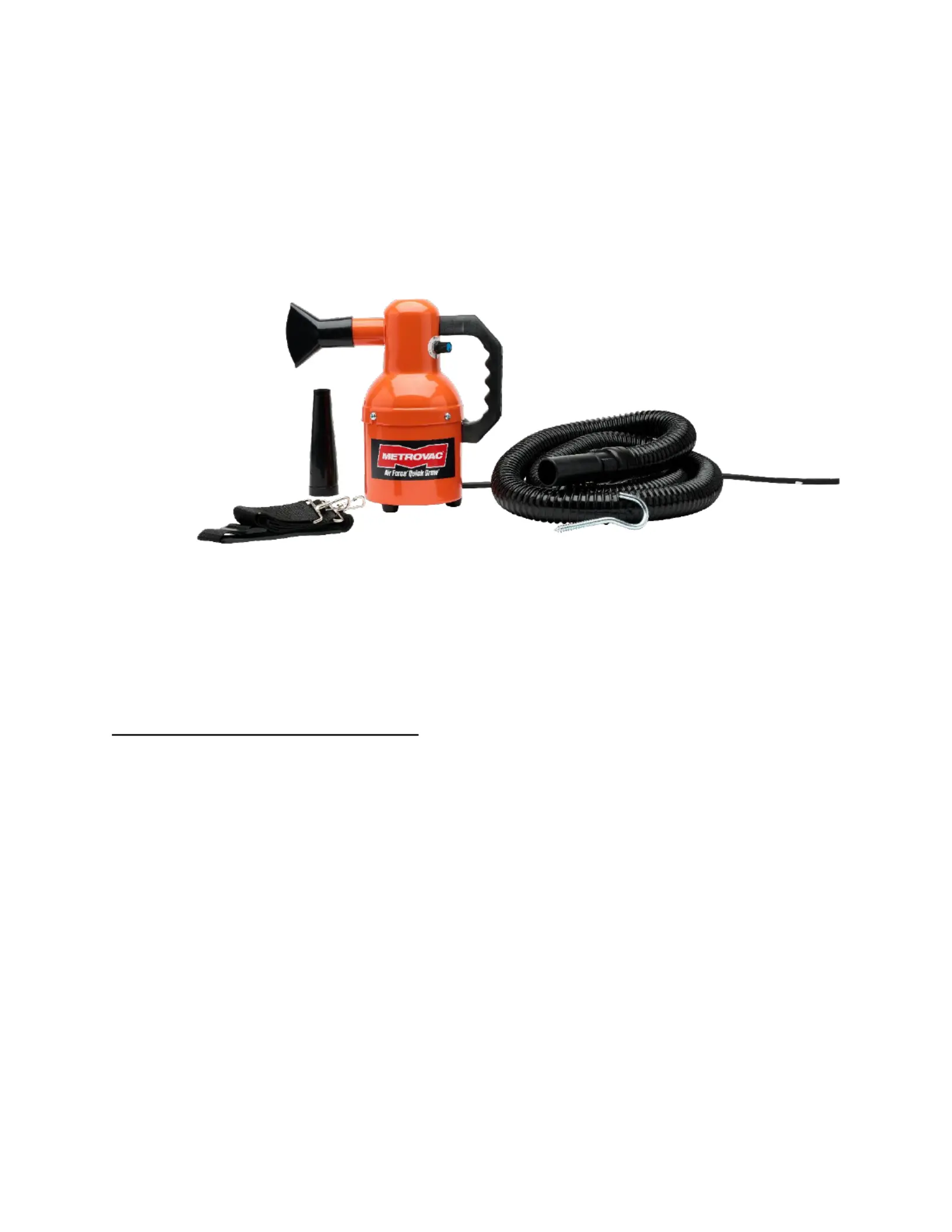

(CFM,FPM): 85/200; Shoulder Strap & Table Mounting Hook. 6’ Hose; (Model shown.)

INSTRUCTIONS: (Instructions are general for all PED Models. Some of the below information may

not pertain to your specific model. Check list above for parts and accessories that go with your particular

machine):

• Insert the grounded Power Supply Cord (D) into a grounded three conductor outlet.

o IMPORTANT: PRODUCT MUST BE GROUNDED.

o WARNING: IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING

CONDUCTOR CAN RESULT IN A RISK OF ELECTRIC SHOCK!

• Start your Quick Draw by pushing the toggle On/Off Switch UP FOR On and down for Off.

o HOLD THE DRYER BY THE HANDLE

• The QuickDraw machine can be used with or without the 6 ft. Hose. The hose is friction fit at the

end of the protruding steel tube.

• The Air Concentrator and the Air Flare also fit directly at the end of the steel tube to use without the

hose to control the air velocity.

• To use the Shoulder Strap, loop through the Handle, and join the clips together.

• To mount the Quick Draw under a grooming table or on a wall, screw the supplied hook into the

desired location, and hang the dryer Handle over the hook.

• PLEASE NOTE:

o DUE TO THE TREMENDOUS VELOCITY OF AIR PRODUCED BY THE AIR FORCE

QUICK DRAW, YOU MAY EXPERIENCE SOME AIR VENTING BY THE SEAMS, THIS IS

COMPLETELY NORMAL AND HELPS KEEP THE UNIT RUNNING EFFICIENTLY.

o FILTER LIFE IS DEPENDENT ON USAGE. CHECK AND REPLACE WHEN REQUIRED.

o CAUTION: DO NOT DROP THIS APPLIANCE. MOTOR MALFUNCTION CAUSED BY

PRODUCT BEING DROPPED IS NOT COVERED UNDER WARRANTY.

ADDITIONAL PARTS FOR PURCHASE (the below items are available for purchase on our website

www.MetroVac.com; use the provided product # in the search):

• Foam Filters MVC 49BX – –

• Groomers Rake/ Massager MVC 186 – –

• Rubber Blower Nozzle MVC 196AB – –

• Air Concentrator MVC 196AA – –

• “Airflare” Utility Nozzle – Hose MVC-195AB

• Shoulder Strap MVC 204A – –

• Hoses

o 3’ Flexible Hose – – MVC 178A

o 6’ Standard Flexible Hose – – MVC 202A

• Motor MVC 308 – –

• Carbon Brushes MVC 308C –

• 110 – – – – 120 Volt Variable Switch MVC 46C OHM

WARRANTY:

This machine carries a One Year Limited* Warranty.

The One Year Warranty includes the unit and the motor.*

There is also a on Parts, Switches, and Cords. One Year Warranty*

This warranty covers any defects in materials or workmanship, including installation, with the exceptions

stated below:

*MetroVac will repair or replace any defective or malfunctioning part* at no charge. If the machine is not

repairable, it will be replaced.
