Features and definitions:

High Resolution

Uses a high performance sensor, providing high

definition and clear image.

High Transmission Performance

Real-time transmission with high speed through

long distance.

High Light Compensation (HLC)

Masks and compensates the high lighted areas.

DNR

Reduces noise from brightness and color signal.

OSD

It’s easy for user to access the internal setup

menu and configure cameras. Access the camera

settings by easy steps main menu.

White Balance

Adjust automatically the color temperature

according to the environment.

ICR Auto Switch

The ICR filter will filter infrared light during the

daytime and change to normal at night to ensure

a high sensitivity and clear image is obtained.

AGC

Adjusts the gain of amplifier, enabling the

camera to output the standard video signal in

different lighting conditions.

Wide Dynamic Range (WDR)

When there are both very bright and very dark

areas simultaneously in the field of view, this

function will balance the brightness level and

provide clear images.

Privacy Masking

This function allows you to block or mask certain

area of a scene for privacy purposes.

Backlight Compensation (BLC)

When the back of the captured object is too

bright, you can set BLC for the captured object

to balance and show a clearer image.

Motion Detection

When there are moving objects captured by the

camera, it will send signal to DVR to trigger

alarm or other notifications.

NOTES:

*The cable's illustrations are only for reference.

The video output will be different for different

cameras.

*For the camera with video switch cable, there

are two kinds of video switches: button switch

and dial switch.

Button Switch: The video outputs will recycled

by holding and pressing the button in the video

switch cable for 5 seconds.

Dial Switch: The video output will be selected

according to the positions of the pin switches

which are described on the tag of the video

switch cable.

*Some models do not have the video switch

cable. These are set by accessing the OSD menu

to change video outputs.

1 2 3 4

Precautions

Introduction

This camera series has the latest technology

and advanced circuit design, which features

high definition, sensitivity and low noise and

distortion. They support HD video transmission

with the common coaxial cable, ensuring the

requirement of a HD monitoring in the

traditional surveillance system.

Cables and Connections

Video output

Rubber

plug

Fixing ring

Rotation

Fixing

screws

Rubber

plug

Power source cable

Video output

Video switch cable

Power source cable

Installation

Before you start, please make sure that the wall

or ceiling is strong enough to withstand three

times the weight of the camera. Please install

and use the camera in a dry environment. It is

recommended that you install back the lens

cover or lower dome less than 4 hours after

removing it.

The mounting types of cameras are only for

reference.

Mounting for Bullet Camera

•Type A

1. Attach the drill template to the place where

you want to fix the camera and then drill the

screw holes according to the drill template.

2. Route and connect the cables.

3. Secure the mounting base with the camera to

the wall with the screws as shown below.

Mounting for CameraDome

* Please do not remove the lens protection film

until the installation has been completed.

1. Drill the screw holes and the cable hole on

the surface where camera will be mounted

according to the drill template.

2. Loosen the screws to remove the lower

dome section of the camera.

4. Bracket adjustment. Before adjustment,

preview the image of the camera on a monitor

and then loosen the fixed ring or screws to

adjust the view angle of the camera.

5. Focus and zoom adjustment (applies only for

manual varifocal models).

Remove the lens cover and then adjust the focus

and zoom screws manually to get a clear image.

Once adjustments are made, tighten these two

screws and screw back the lens cover.

Lens cover

Focus

Analog Cameras

Analog Cameras Analog Cameras

Quick Guide

•Please, read carefully these instructions

before operating thisyour camera and save

as reference.

•All examples and images used in this guide

are only for reference.

•The content of this guide is subject to

changes without previous notice.

•If the product does not work properly,

please contact your dealer or the nearest

service center. Never attempt to

disassemble the camera yourself. Your

warranty will be voided if any problems are

caused by unauthorized repair or

maintenance.

•Handle with care and prevent dropping the

camera.

•When the product is mounted on a wall or

ceiling, ensure that the device is properly

firmly fixed.

•Prevent touching the lens of the camera.

•If cleaning is necessary, please use a clean

cloth to wipe it gently.

•If the device will not be used for a long time,

please cover the lens cap to protect the

device from dust.

Prevent aiming the camera directly to the

sun or to very bright environments.

•Do not place the camera in extremely hot or

cold environments (operating temperature

is -20˚C~50˚C), dusty or damp locations.

•To avoid increase of heat of product, good

ventilation is required.

•Type A

Lower dome

3. Route and connect the cables.

4. Secure the mounting base with camera to the

wall with the screws provided.

Rubber plug

56 7 8

Rubber plug

(f available)

Zoom

Focus

Adjustment screw

Rotation

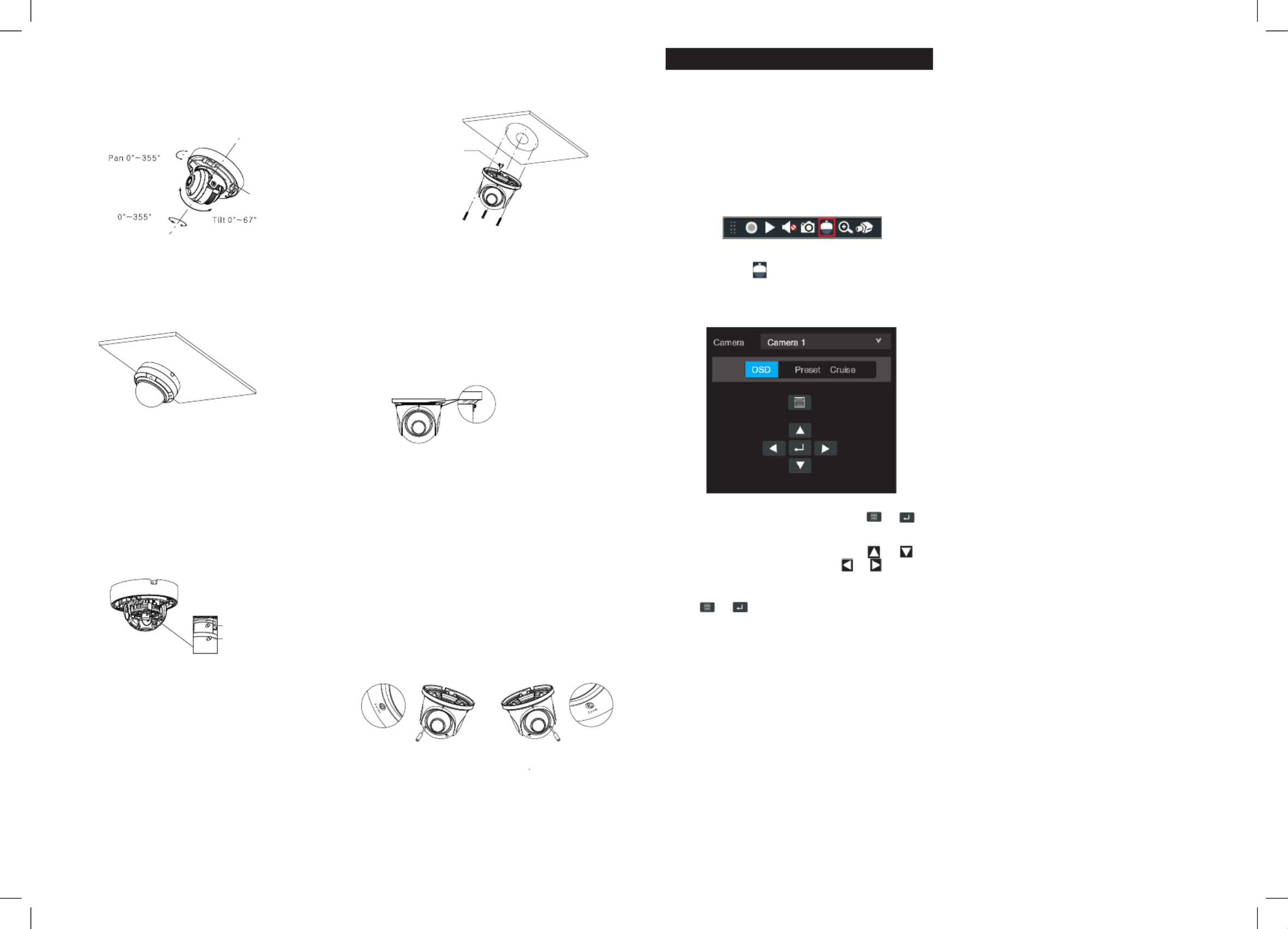

5. Three-axis adjustment. Before adjustment,

preview the image of the camera on a monitor

and then adjust the camera according to the

figure below to get an optimum angle.

6. Install the lower dome back to the camera and

secure it with the screws. After these steps and

ready to use your product, remove the protection

film to finish the installation.

1. Attach the drill template to the place where

you want to fix the camera and then drill screw

holes according to the template.

2. Insert the plastic plugs inside the drilled holes

to be used with screws.

3. Route and connect the cables.

4. Secure the camera to the wall or ceiling with

the screws provided as shown below.

2. Click on the icon of the toolbar to open

the PTZ menu window (or right click the

mouse to select “PTZ Control”).

Select the “OSD” tab and then click /

to call up the camera main menu.

You can select the menu by clicking or

to move in that direction. Click or key to

select the menu on the left. The menus with an

arrow icon means it has sub-menu to access.

Click / to go to the sub-menu or to

confirm the settings. If the model of your

camera does have an direction keys and enter

key on the cable, then you can also use these

direction keys to select menu and the in the

enter key to go to the sub-menu or confirm

the settings.

Note: This series of the camera must be

connected to a DVR which supports calling up

the main menu of the camera. Other DVR

manufacturers may have different modes to

access and use menu operation. Please refer

to the relevant User Manual for the DVR for

detail instructions.

5. Adjust the camera to obtain the optimum

angle by loosening the fixed screws. Before

adjustment, it is recommended to preview the

image of the camera on a monitor so perfect

adjustments can be achieved. Tighten the lock

screws after the proper image and view angle is

obtained by the camera.

*If your camera has no fixed screws on any of its

sides, proceed to adjust manually your camera

by rotating the dome to adjust the view angle.

6. Adjust the Focus and Zoom screw to adjust

the image as needed (applies only to manual

varifocal models).

Turn the Zoom screw to determine how close or

far the image is needed and then turn the focus

screw to adjust the focus of the image until the

best image is obtained.

Main menu

You'll need the camera connected to a DVR or

connect an OSD controller in order to be able

to access the camera OSD (On screen display)

menu.

Connected to the DVR

1. Select the preview window of the camera and

right click the mouse to how the following s

menu list on the DVR.

6. Focus and zoom adjustment (applies only for

manual varifocal models).

There are two screws that represent the Zoom

and the Focus of your camera. Turn the Zoom

screw to determine how close or far the image is

needed and then turn the focus screw to adjust

the focus of the image until the best image is

obtained.

•Type B

Motorola Limited Warranty

This Motorola brand Product is produced under license

by MDX ELECTRONICS, LLC. Subject to the exclusions

below, MDX ELECTRONICS warrants that this Motorola

brand product

("Product") will remain free from defects in materials

and workmanship under normal consumer usage for 1

year. This Warranty is your exclusive warranty. This

Warranty extends only to the ﬁrst consumer purchaser

and is not transferable. MDX ELECTRONICS at no will

charge repair or replace any Product that qualiﬁes

under this Warranty. We may use functionally

equivalent reconditioned, refurbished, or new Products.

MOTOROLA and MDX ELECTRONICS are not

responsible for defects or damage that result from: (a)

improper operation, storage, misuse, abuse,

maintenance, alteration, accident or neglect, such as

physical damage (cracks, scratches, etc.) to the surface

of the product or lens resulting from misuse; (b)

subjecting the Product or Accessory to abnormal

usage or conditions; (c) service provider alteration of

the Product including alteration of the Product’s

ﬁrmware; or (d) other acts which are not he fault of t

MOTOROLA or MDX ELECTRONICS, are excluded from

coverage.

Any implied warranties, including without limitation the

implied warranties of merchantability and ﬁtness for a

particular purpose, shall be limited to the duration of

this limited warranty. This warranty is provided in lieu

of all other warranties, express or implied. In no event

shall MOTOROLA or MDX ELECTRONICS be liable,

whether in contract or tort (including negligence) for

damages in excess of the purchase price of the

product, or for any indirect, incidental, special or

consequential damages of any kind, or loss of revenue

or proﬁts, loss of business, loss of information or other

ﬁnancial loss arising out of or in connection with the

ability or inability to use the product, to the full extent

these damages may be disclaimed by law.

Some jurisdictions do not allow the limitation or

exclusion of incidental or consequential damages, or

limitation on the length of an implied warranty, so the

above limitations or exclusions may not apply to you.

This Warranty gives you speciﬁc legal rights, and you

may also have other rights that vary from one

jurisdiction to another.

To obtain support or need of information, doubts

or questions, please contact us at:

Tel: 01 800 801 6398 (México)

Tel: +011 52 55 9688-8814 (México, Latin America

and Caribe)

WhatsApp: +52 155 7657 5586 (México, Latin

America and Caribe)

Skype: soporte.motorolasecurity

Email: soporte@mdx-motorolasecurity.com

9:00AM - 5:00PM CST (Mon-Fri)

Manufactured, distributed or sold by MDX ELECTRONICS,

LLC, official licensee for this product. MOTOROLA and the

Stylized M Logo are trademarks or registered trademarks

of Motorola Trademark Holdings, LLC. and are used under

license. All other trademarks are the property of their

Produkt Specifikationer

Mærke:	Motorola
Kategori:	Overvågningskamera
Model:	MTABM042611
Kode for international beskyttelse (IP):	IP66
Type:	CCTV sikkerhedskamera
Vægt:	580 g
Produktfarve:	Black, White
Wi-Fi:	Ingen
Bluetooth:	Ingen
Formfaktor:	Kugle
Understøttede videotilstande:	1080p
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Format til analogt signal:	NTSC, PAL
Ethernet LAN:	Ingen
Strømforbrug (typisk):	1 W
Driftstemperatur (T-T):	-30 - 50 °C
Maksimal opløsning:	1920 x 1080 pixel
Husmateriale:	Metal
Understøttede grafikopløsninger:	1920 x 1080 (HD 1080)
Forbindelsesteknologi:	Ledningsført
Strømforbrug (maks.):	4 W
DC-in-stik:	Ja
Strømkilde type:	DC
Monteringstype:	Væg
Diameter:	86.7 mm
Indbygget HDD:	Ingen
Understøttet placering:	Indendørs & udendørs
Hvidbalance:	Automatisk
Sensortype:	CMOS
Samlet antal megapixels:	2 MP
Støjreduktion:	Ja
Fokus:	Vejledning
Længde:	221.1 mm
Bredt dynamikområde (WDR):	Ja
Dag/nat funktion:	Ja
Vandafvisende:	Ja
Minimumsbelysning:	0 Lux
Antal sensorer:	1
Optisk sensorstørrelse:	1/2.9 "
Antal effektive pixels (HxV):	1920 x 1080 pixel
Nattesyn:	Ja
Billedhastighed:	30 fps
DC udgangsspænding:	12
Antal kameraer:	1
Brændviddeområde:	2.8 - 12 mm
Kameraets lukkerhastighed:	1/50 - 1/100000 sek./side
Kamera lukker type:	Elektronisk
Nattesyn, afstand:	40 m
BNC porte, udgående:	1
Termisk rammehastighed (PAL):	50 Hz
NTSC opløsninger:	1920 x 1080 pixel
PAL opløsninger:	1920 x 1080 pixel
Termisk rammehastighed (NTSC):	60 Hz
Kompensation for baggrundslys:	Ja
Digital Wide Dynamic Range (DWDR):	Ja
Smart IR:	Ja
