• It is recommended to install the safety plug for

outdoor installations.

• The power supply is not required is camera is

installed to a PoE device.

2. Content

3. General Info

CD Wrench Drilling

template 3 screw plugs

Cámara IP - Bala

IP camera

Quick Guide

•Please, read carefully these instructions before

operating your camera and save this as reference.

•All examples and images used in this guide are only

for reference.

•The content of this guide is subject to changes

without previous notice.

1. Precautions

• If the product does not work properly, please contact

your dealer or the nearest service center. Never

attempt to disassemble the camera yourself. Your

warranty will be voided if any problems are caused

by unauthorized repair or maintenance.

•

Handle with care and prevent dropping the camera.

When the product is mounted on a wall or ceiling,

ensure that the device is properly firmly fixed.

• Prevent touching the lens of the camera.

•

If cleaning is necessary, please use a clean cloth to

wipe it gently. If the device will not be used for a long

time, please cover the lens cap to protect the device

from dust.

Prevent aiming the camera directly to the sun or to

very bright environments.

• Do not place the camera in extremely hot or cold

environments (operating temperature is -30˚C~60˚C),

dusty or damp locations.

• Para evitar exceso de calentamiento To avoid increase

in heat of product, good ventilation is required.

CAMERA QUICK GUIDE 4 Tapping screws

1 Set screw

Connecting the network cable

1. Remove the connector cap by unscrewing it.

2. Run a network cable through the two caps parts and

install RJ45 connector to cable and connect both

cables together .

3. Screw together the cap parts and then screw cap to

the camera network connector cable .

4. Installation

1 Network cable

2 Power

3 Mounting base

4 Set screw

5 Micro SD slot

6 Reset button

Note: Some models may not have available a micro SD card or

Reset button. Please consult your product specification.

Cable de red

CVBS

Audio

Voltaje

Note: Some models do

have CVBS or audio as

shown below.

safety plug

12 Vcc

3. Drill the screw holes and the cable hole on the

mounting surface using the available drill template.

1. Remove the set screw which fixes the base to camera

to remove the dome main body.

2. Remove the side cover of the dome to insert micro sd

card if necessary and install the cover back tight and

secure.

Verify that the wall or surface where product will be

installed is strong enough for the camera.

Set screw

Mounting base

Dome body

Cover

(mm)

Ø 4.5

Ø 51.0

Ø 91.6

44.2

38.2

4. Fix base with the screws tight and secure.

1. Make sure that the camera and the PC are well

connected

via LAN and in the same network.

2. Find the IP-Tool from the CD and then install it in the

computer. After that, run the IP-Tool as shown in this

section.

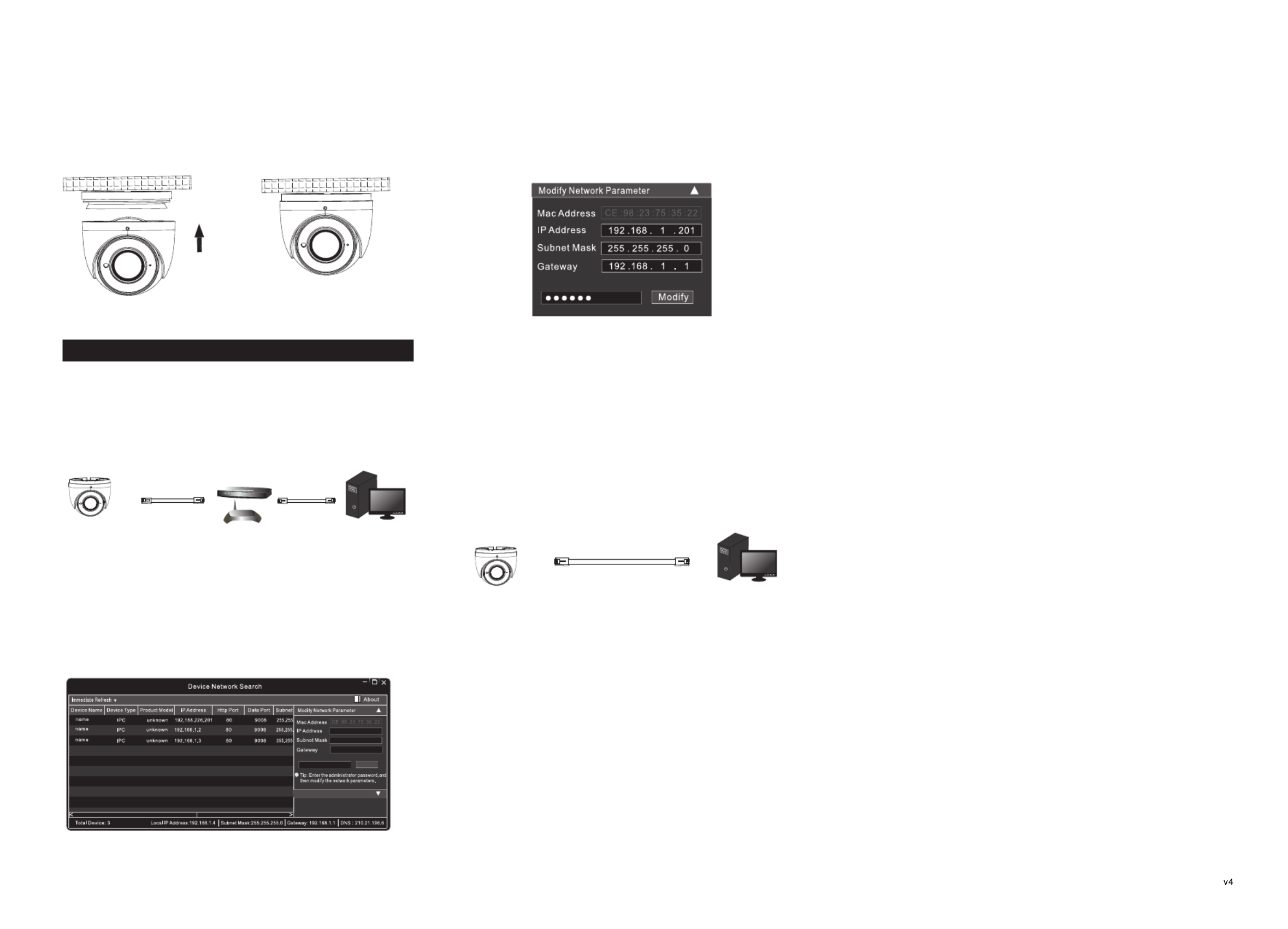

5. Network connection

There are two ways to access camera through LAN:

1. Access using IPTools App.

2. Access through browser, IE. (Explorer)

• IP Tools

Camera

Cable Cable

Router

Switch

3. Modify the IP address. The default IP address of this

camera is 192.168.226.201. Click the information of the

camera listed in the above table to show the network

information on the right hand. Modify the IP address

and gateway of the camera and make sure its network

address is in the same local network segment as that of

the computer. Please modify the IP address of your

device according to the practical situation.

For example, the IP address of your computer is

192.168.1.4. So the IP address of the camera shall be

changed to 192.168.1.X. After modification, please input

the password of the administrator and click “Modify”

button to modify the setting.

The default password of the administrator is “123456”.

4. Double clic the IP address and then the system ill- k w

pop up the IE browser to connect IP-CAM. After

downloading and running the Active X control, input the

user name and password in the window to access.

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP:80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in

the camera for the first time.

1. Set the IP address of the PC and make sure the

network segment should be as the same as the default

settings of IP-CAM. Open the network and share center.

Click “Local Area Connection” to pop up the following

window. Select “Properties” and then select Internet

protocol according to the actual situation (for example:

IPv4). Next, click “Properties” button to set the network

of the PC. Open the IE browser and input the default

address of IP camera and confirm.

• Direct access through PC

Camera Network cable PC

5. Guide the cables through the hole and connect the

cables appropriately.

6. l the dome body to the base and adjust theInstal

camera to the desire view angle and best image

scene possible. Final step is to tighten the set screw to

fix the camera position.
