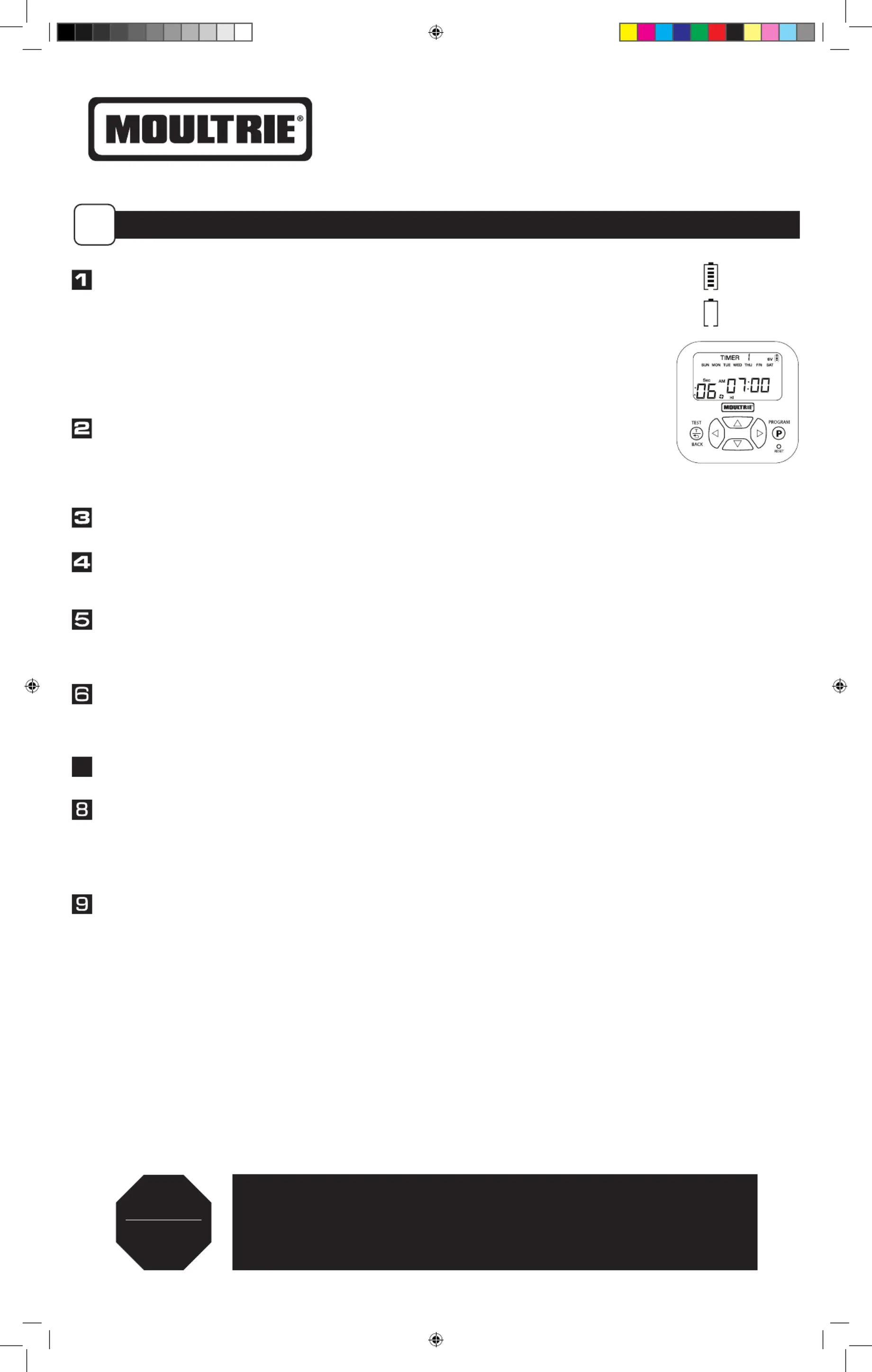

Instructions for Moultrie Directional

Quick-Lock Feeder Kit

Thank you for your purchase of a Moultrie Directional Quick-Lock Feeder Kit. Please read this sheet before

operating

the unit. If you should have any questions about this product or any other Moultrie product, please

using the information on the back of this sheet. Allow us to better serve you by activating your

1-year warranty

online at http://www.moultriefeeders.com/warranty .

CONFIGURING AND TESTING FEEDER

INSTALL BATTERY: Open Kit by removing wingnut located on the bottom and remove outer case. Install a 6-Volt Alkaline

(ex. Energizer™) or Moultrie rechargeable battery (MFHP12406) by attaching the Red Alligator Clip to the positive terminal

(+) and the Black Alligator Clip to the negative (-) terminal, making sure that the leads do not touch. Note: Make sure the

rubber protectors are around the gator clips after installation onto the battery. This helps protect the gator clips

from touching which can cause damage. We recommend using our Moultrie MFHP12406 6V 5ah battery.

CAUTION: DO NOT REVERSE POLARITY OF THE BATTERY LEADS. DO NOT LET THE BATTERY LEADS COME IN CONTACT WITH ONE ANOTHER WHILE CONNECTED

A BATTERY. THIS CAN CAUSE PERSONAL INJURY OR PROPERTY DAMAGE. IN NO EVENT SHALL PRADCO BE LIABLE FOR ANY DIRECT, INDIRECT, PUNITIVE,

INCIDENTAL,

SPECIAL CONSEQUENTIAL DAMAGES, TO PROPERTY OR LIFE, WHATSOEVER ARISING OUT OF OR CONNECTED WITH THE USE OR MISUSE OF THIS

PRODUCT. YOUR USE OF THIS PRODUCT IS AT YOUR OWN RISK.

SET CURRENT TIME: Press the PROGRAM button and SET CURRENT TIME will appear. Press UP or DOWN to set the

hour, then press RIGHT to go to the minutes. Press UP or DOWN to set the minutes. Press the BACK button to return

to the Main Menu , or press PROGRAM to proceed through the settings.

NOTE: The timer is capable up to 10 feed times, each 1-60 seconds each, and each can operate on any

day of the week where each day can be toggled ON/OFF.

SET CURRENT DAY: Press the PROGRAM button until the Set Current Day screen appears. Press LEFT or RIGHT to

select the current day. Press BACK to return to the Main Menu, or press PROGRAM to proceed through the settings.

SET EST. FEED REMAINING: Press the PROGRAM button until the Est. Feed Remaining screen appears. Press UP or

DOWN to select the amount of feed you have in the feeder. Press BACK to return to the Main Menu, or press

PROGRAM to proceed through the settings.

SET FEED TIME: Press the PROGRAM button until the desired Feed Timer appears at the top of the screen. Press the

DOWN button until the feed time is ashing. Press PROGRAM to enter edit mode. Press UP or DOWN to set the hour.

Press the RIGHT button to go over to the minutes. Press UP or DOWN to set the minutes. Press PROGRAM or BACK to

return to the Feed Timer. The factory settings include two feeder times 7am and 6pm, each for 6 seconds.

SET DAYS OF THE WEEK: After setting the feed time, press UP so the days of the week start ashing. Press PROGRAM

to enter edit mode. By default all days should be enabled. Press LEFT or RIGHT to highlight the desired day. Press

DOWN to disable the selected day. Press UP to re-enable the selected day. Once all desired days are selected, press

PROGRAM or BACK to return to the Feed Timer.

SET RUN DURATION: Press DOWN and LEFT until the RUN DURATION seconds are ashing. Press PROGRAM to enter

edit mode. Press UP or DOWN to set desired feed duration. Press PROGRAM or BACK to return to the Feed Timer. 

SET MOTOR SPEED: Press UP or DOWN until the motor speed setting is ashing at the bottom of the screen. Press

PROGRAM to enter edit mode. Press RIGHT or LEFT to select the desired motor setting. Press PROGRAM or BACK to

return to the Feed Timer.

When the Feed Timer is blinking at the top of the screen, press PROGRAM or RIGHT to advance to the next feed

timer. Repeat for all required feed times.

TEST FEEDER: Press the BACK button to reach the Main Menu. Press the TEST button to enter the Test Mode. The

Test duration will appear (this will be the same as the duration as Feed Timer 1). Press UP or DOWN to set the Test

Duration. Press PROGRAM. Press RIGHT or LEFT to select desired motor speed. Press PROGRAM to perform test.

After a 5 second countdown, the test will commence. 

Full Battery

Empty Battery

If mounting the Moultrie Quick Lock Feeder Kit to:

• a Moultrie 30 or 55-gallon barrel* or Moultrie 6.5-gallon bucket, refer to .Section B

• a Moultrie 30-Gallon Quick-Lock Hopper, refer to . Section C

• any other containers, please visit our website at www.moultriefeeders.com

STOP

READ THIS FIRST

BEFORE

PROCEEDING

MFG-13264_Directional QL_Manual-ENGLISH_10-21-22.indd 1

MFG-13264_Directional QL_Manual-ENGLISH_10-21-22.indd 1 10/21/22 11:23 AM

10/21/22 11:23 AM

ALIGN LUGS AND

L-SLOTS

DO NOT EXCEED 400 LBS

OF FEED IN 55-GAL FEEDERS

Quick-Lock

Feeder Kit

Quick-Lock

Adapter

Belly Band

Ring

Bolt

Spacer

Lock

Washer

Nut

NOTE: DO NOT LOAD FEEDER until it is standing up and in place (see Section C-4).

DO NOT EXCEED 200 LBS

OF FEED IN 30-GAL FEEDERS

Belly Band

Ring

ASSEMBLE MOULTRIE 30-GALLON QUICK LOCK HOPPER

Flip hopper top upside-down and mate

to hopper bottom.

Align holes, then press sides of hopper

bottom until it snaps snugly in place.

Insert bolt upward through each hole,

place on bolt and lock washer

screw wingnut onto bolt until tight.

Repeat for all 12 bolts.

Note: Failure to properly secure

two halves can result in leakage.

Hopper

Top

Hopper

Bottom

Bolt

Lock

Washer

Wingnut

Slide the three provided square leg brackets into the

hopper as shown. Make sure to push the brackets into the

hopper as far as they will go to ensure stability.

Connect Quick-Lock feeder kit to

assembled hopper as shown.

ALIGN LUGS AND

L-SLOTS

Quick-Lock

Feeder Kit

Square

Leg

Brackets

Hopper

ASSEMBLE WITH MOULTRIE QUICK-LOCK ADAPTER

55-Gallon or 30-Gallon Barrel*

a. Assemble Quick-Lock adapter bolt tabs by snapping in place as shown.

b. Turn the upside down and slide the metal drum belly band ring

around perimeter and make sure that belly band is snug against

the bottom structure ring as shown (Moultrie barrel only).

c. Slide the bolt through the , and belly band ring spacer

as shown. Tighten nut on bolt until metal lock washer

belly band ring tabs are touching spacer on each side.

d. Mount Quick-Lock adapter using (3) 1/4” x 1” bolts, nuts and

washers provided in the pre-drilled holes (Moultrie barrel only).

Or use the Quick-Lock adapter as a template to mark and drill

the mounting holes (non-Moultrie barrel).

e. Connect to assembled adapter as shown.Quick-Lock feeder kit

*Can also be used on a 6.5-gallon bucket.

Assembled

Quick-Lock

Adapter

Bolt Tabs

MFG-13264_Directional QL_Manual-ENGLISH_10-21-22.indd 2

MFG-13264_Directional QL_Manual-ENGLISH_10-21-22.indd 2 10/21/22 11:23 AM

10/21/22 11:23 AM
