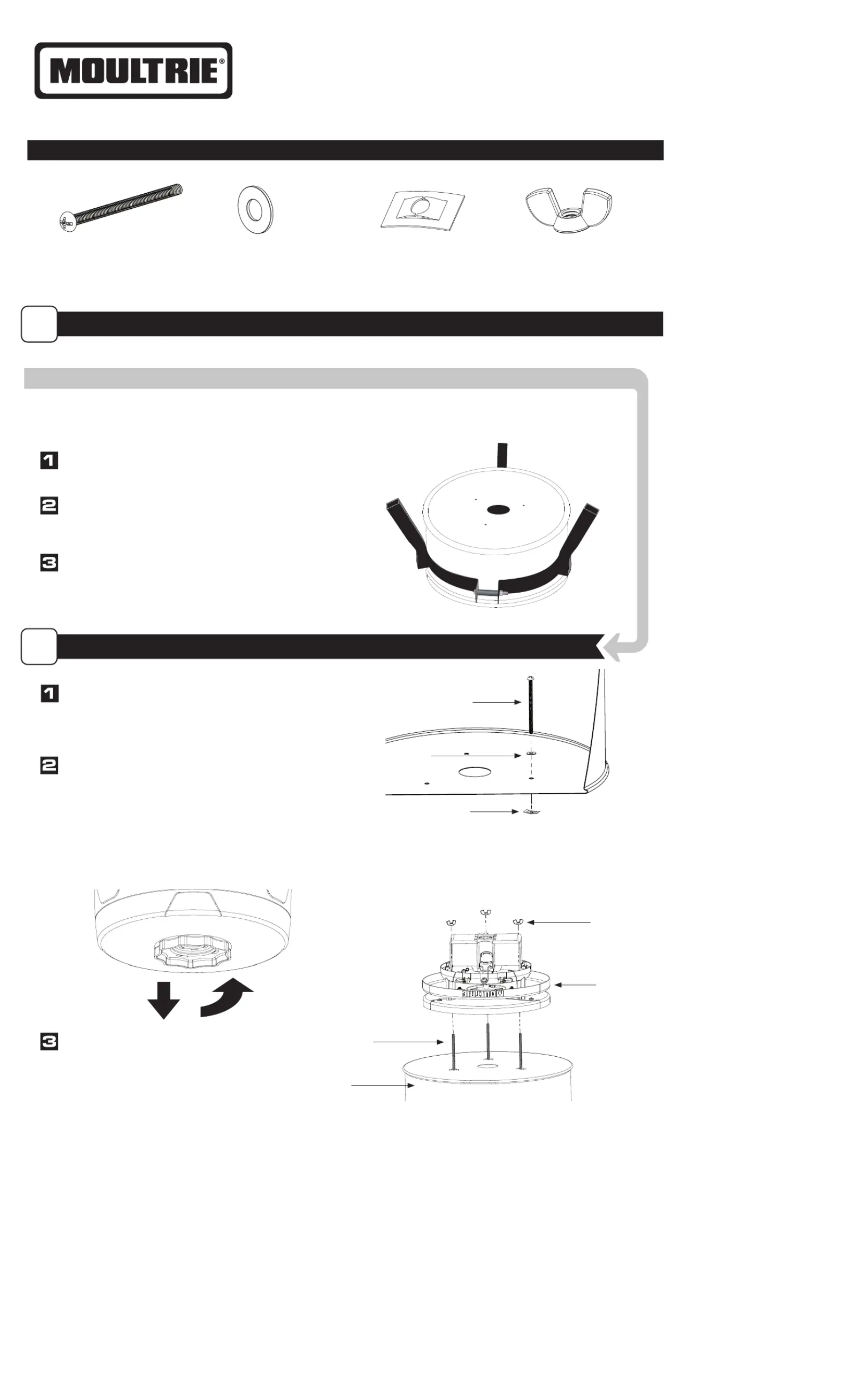

Instructions for Super Pro Magnum Feeder
Thank you for your purchase of the Super Pro Magnum Feeder. Please read this sheet
before
operating the unit. If you should have any questions about this product or any other
Moultrie
product, please contact us using the information on the back of this sheet.
DRILLING YOUR DRUM OR BARREL
A
MOUNTING THE FEEDER
B
Turn drum over, measure and mark the center of the bottom.
Mark where holes of kit are on the bottom of the drum.
Drill three 5/16” Feeder Leg Holes.
Using a Hole Saw, drill a 2.25” hole in the center of the
bottom of your drum.
From the inside of the drum, put at washers on the 1/4-20 x 4”
Combination Drive Screws then slide through the holes in the
bottom of the barrel and screw the push nuts onto the bolts on
the outside of the barrel.
Slide feeder over three Bolts that are sticking rmly through
the bottom of the drum. Attach to the Feeder Kit Drum
using the three provided Wing Nuts.
Super Pro Magnum Kit will mount to the bottom of any drum or barrel
NOTE: If you purchased a Moultrie barrel, go to Step B
Combination Drive Screw
Qty. 3
(¼”-20 x 4”)
Flat Washer
Qty. 3
(¼”)
Push Nut
Qty. 3
(¼”)
Wing Nut
Qty. 3
(¼”)
HARDWARE INCLUDED:
Push Nut
Combination
Drive Screw
Turn grooved handle counterclockwise one click . This will release
the battery cover from the feeder kit. Battery cover can be pulled
o straight downward and set aside.
NOTE: Grooved handle
should stay assembled with battery cover.
DO NOT FORCE THE GROOVED HANDLE COUNTERCLOCKWISE
AN ADDITIONAL CLICK.
This will disassemble the grooved handle
from the battery cover and can cause wear on the parts that
retain this assembly.
Bolts
Super Pro Magnum
Feeder Kit
Wing Nuts
Drum
Flat Washer
O
F
F
INSTALLING BATTERY
C
CAUTION: WEAR EY ROE P TECTION
NOTE: Be sure that the Red and Black alligator clips labeled with a “1” are
both attached to the appropriate terminals on the rst battery, and that
the Red and Black alligator clips labeled with a “2” are both attached to
the appropriate terminals on the second battery (if used).
Make sure grooved handle is in the counterclockwise position,
then slide the battery cover back onto the assembly. Make sure
the design features line up with the features on the feeder kit.
Once fully in place, rotate the grooved handle one click in the
clockwise direction to secure all pieces in place.
NOTE: Make sure grooved handle is rotated
counter-clockwise before trying to install
battery housing or else it will not lock into place.
STAND UP FEEDER AND INSTALL LID
D
Assemble leg poles with the desired amount of leg sections.
Tap legs into place during assembly.
With two legs against the ground, rotate feeder upward until
vertical and supported by all three legs.
Add feed, then install lid and tighten bolt securely.
Leg Section
Leg Pole
Square Leg
Brackets
DO NOT EXCEED 400 LBS
OF FEED IN 55-GAL FEEDERS
DO NOT EXCEED 200 LBS
OF FEED IN 30-GAL FEEDERS
Install one or two 6-volt alkaline (ex. Energizer™) or Moultrie rechargeable batteries by attaching the Red Alligator Clip
to the postitive terminal (+) and the Black Alligator Clip to the negative (-) terminal.
O
N
Super Pro Magnum
Feeder Kit
Belly Band
Ring
Bolt
Spacer
Lock
Washer
Nut
NOTE: DO NOT LOAD FEEDER until it is standing up and in place (see Section D).
Belly Band
Ring
Slide the bolt through the , and Belly Band Ring Spacer
Lock Washer as shown. Tighten nut on bolt until metal
Belly Band Ring tabs are touching spacer on each side.
Turn the upside down and slide the Metal Drum Belly Band Ring
around perimeter and make sure that belly band is snug against
the bottom structure ring as shown (Moultrie barrel only).
