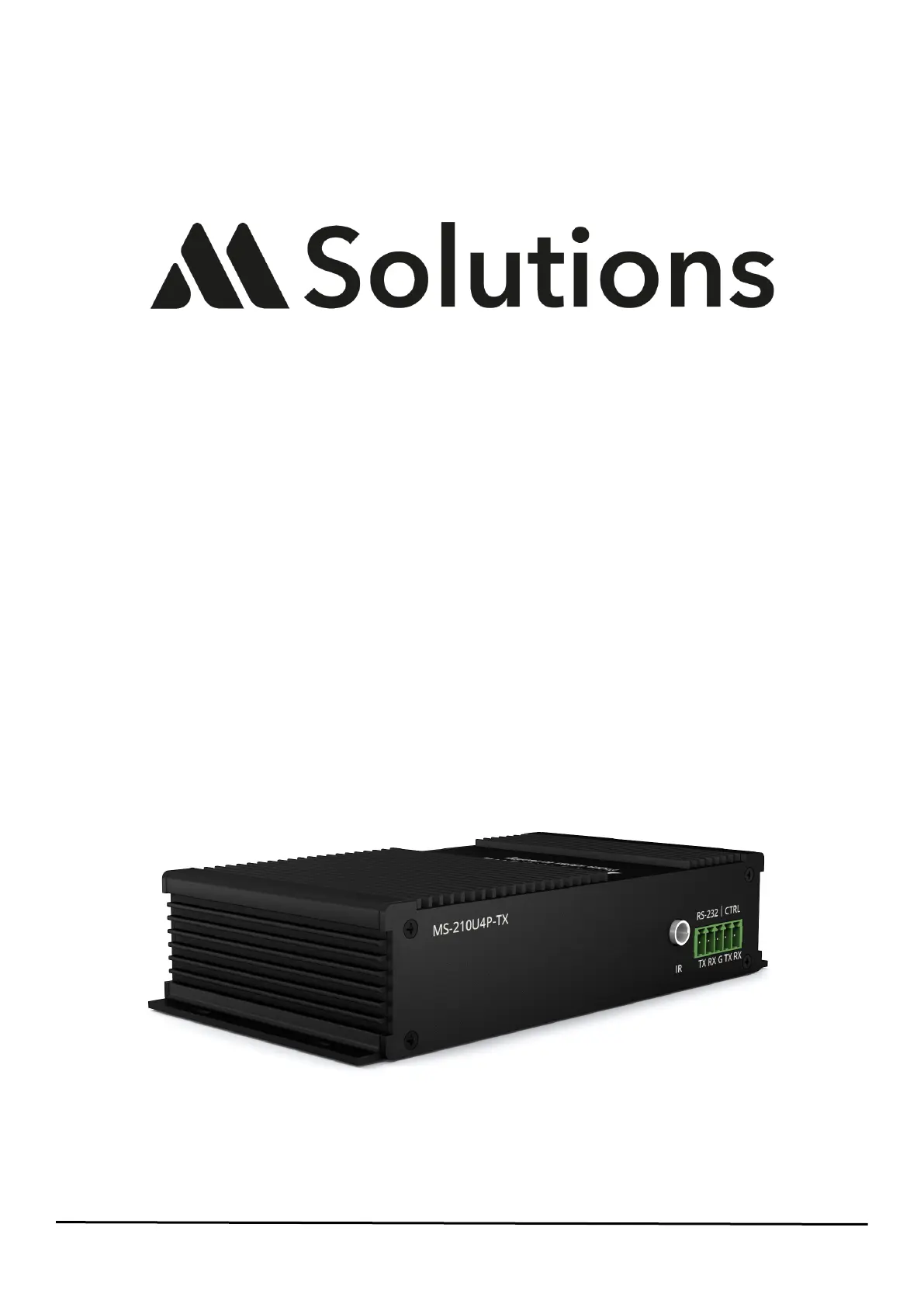

User Guide

MS-210U4P

HDBaseT™ Extender Set - 4K to 40m (10G), 70m @ 1080p. PoC,

USB 2.0 (x4), one-way analogue audio pass-through, RS-232 pass

through, with single channel bi-directional IR. HDCP2.2 compliant

Revision: 1.2 - Jun 2021

support@m4sol.com | www.m4sol.com

MS-210U4P USER GUIDE

Introduction 03

Key Features 03

Connectivity Overview (TX and RX) 04

Understanding the LED’s 05

Cabling for HDBaseT 05

Audio 05

USB 06

IR Control & RS-232 Control 06

Specifications & Package Contents 07

Schematic 08

Contents

Notices

• This MSolutions product contains electrical components that may be damaged by electrical spikes, surges, electric

shock, lightning strikes, etc. Use of surge protection is highly recommended in order to protect and extend the life

of your equipment.

• The transmission distances of HDMI over Cat cables are measured using TE CONNECTIVITY 1427071-6 EIA/

TIA-568-B termination (T568B) of cables is recommended for optimal performance. To minimise interference of

unshielded twisted pairs in the CAT5e/6 cable, do not run the HDBaseT / Cat5e/6/6a cabling with or in close

parallel proximity to mains power cables.

• Do not substitute or use any other power supply other than the enclosed unit, or an MSolutions approved

replacement. Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will void the

manufacturer’s warranty.

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

• Dolby is a trademark of Dolby Laboratories.

• MSolutions reserves the right to change the specifications of this unit without prior notice. As a result of this,

physical representations or graphical elements contained within this user guide may not be accurate.
