MSolutions MS-3PRI Manual

MSolutions Audio/video konverter MS-3PRI

Læs gratis den danske manual til MSolutions MS-3PRI (9 sider) i kategorien Audio/video konverter. Denne vejledning er vurderet som hjælpsom af 3 personer og har en gennemsnitlig bedømmelse på 4.3 stjerner ud af 2 anmeldelser. Har du et spørgsmål om MSolutions MS-3PRI, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/9

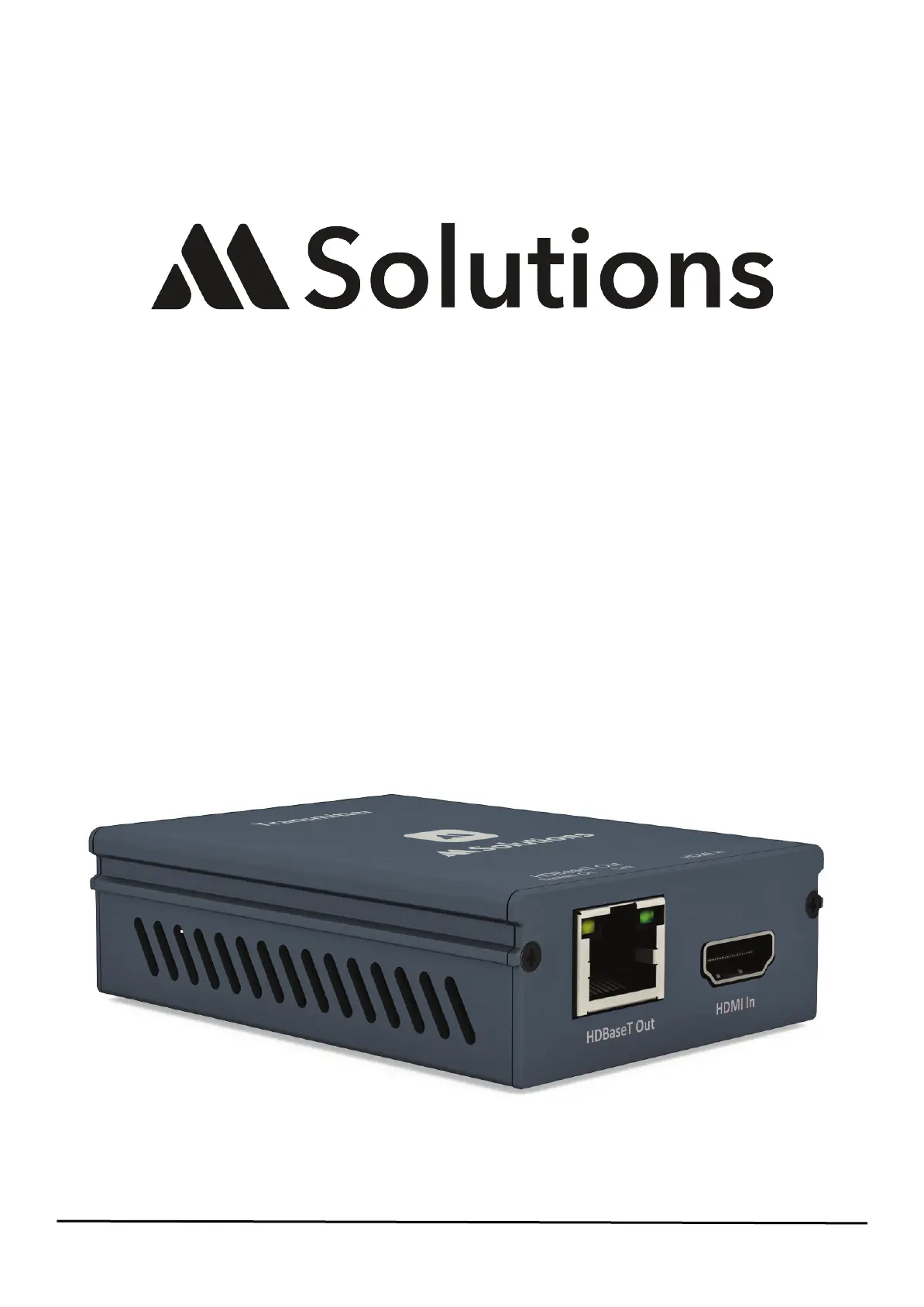

User Guide

MS-3PRI

HDBaseT™ Extender Set - 4K to 90m 18G,

Uncompressed 4K 4:4:4 60, PoC, RS-232 pass through,

with single channel bi-directional IR

Revision: 1.0 January 2024

support@m4sol.com | www.m4sol.com

MS-3PRI USER GUIDE

Introduction 03

Key Features 03

Connectivity Overview (TX and RX) 04

Understanding the LED’s 05

Cabling for HDBaseT 05

Power 06

IR Control & RS-232 Control 06

Specifications & Package Contents 07

Schematic 08

Contents

Notices

• This MSolutions product contains electrical components that may be damaged by electrical spikes, surges, electric

shock, lightning strikes, etc. Use of surge protection is highly recommended in order to protect and extend the life

of your equipment.

• The transmission distances of HDMI over Cat cables are measured using TE CONNECTIVITY 1427071-6 EIA/

TIA-568-B termination (T568B) of cables is recommended for optimal performance. To minimise interference

of unshielded twisted pairs in the Cat5e/6 cable, do not run the HDBaseT / Cat5e/6/6a cabling with or in close

parallel proximity to mains power cables.

• Do not substitute or use any other power supply other than the enclosed unit, or an MSolutions approved

replacement. Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will void the

manufacturer’s warranty.

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

• Dolby is a trademark of Dolby Laboratories.

• MSolutions reserves the right to change the specifications of this unit without prior notice. As a result of this,

physical representations or graphical elements contained within this user guide may not be accurate.
