PVC ADAPTERS - 3/17
¾” PVC Socket x
½” Male Acme (10060-002)
Sch. 40 PVC Riser up to 36” Long
Buried 1”± Below
Soil Surface
Buried 9-12” Below
Soil Surface
¾” Female Acme x ¾” PVC
Socket or 1” PVC Spigot (12214-001)
¾” Female Acme x ¾” PVC
Socket or 1” PVC Spigot (12214-001)
¾” Acme x ¾” MNPT Adapter (11344)
¾” PVC Female Adapter
R2000 Series Rotator
(C. Optional)1 ½” PVC Sleeve
can be used to protect
riser(s) in pastures
& forage crops.

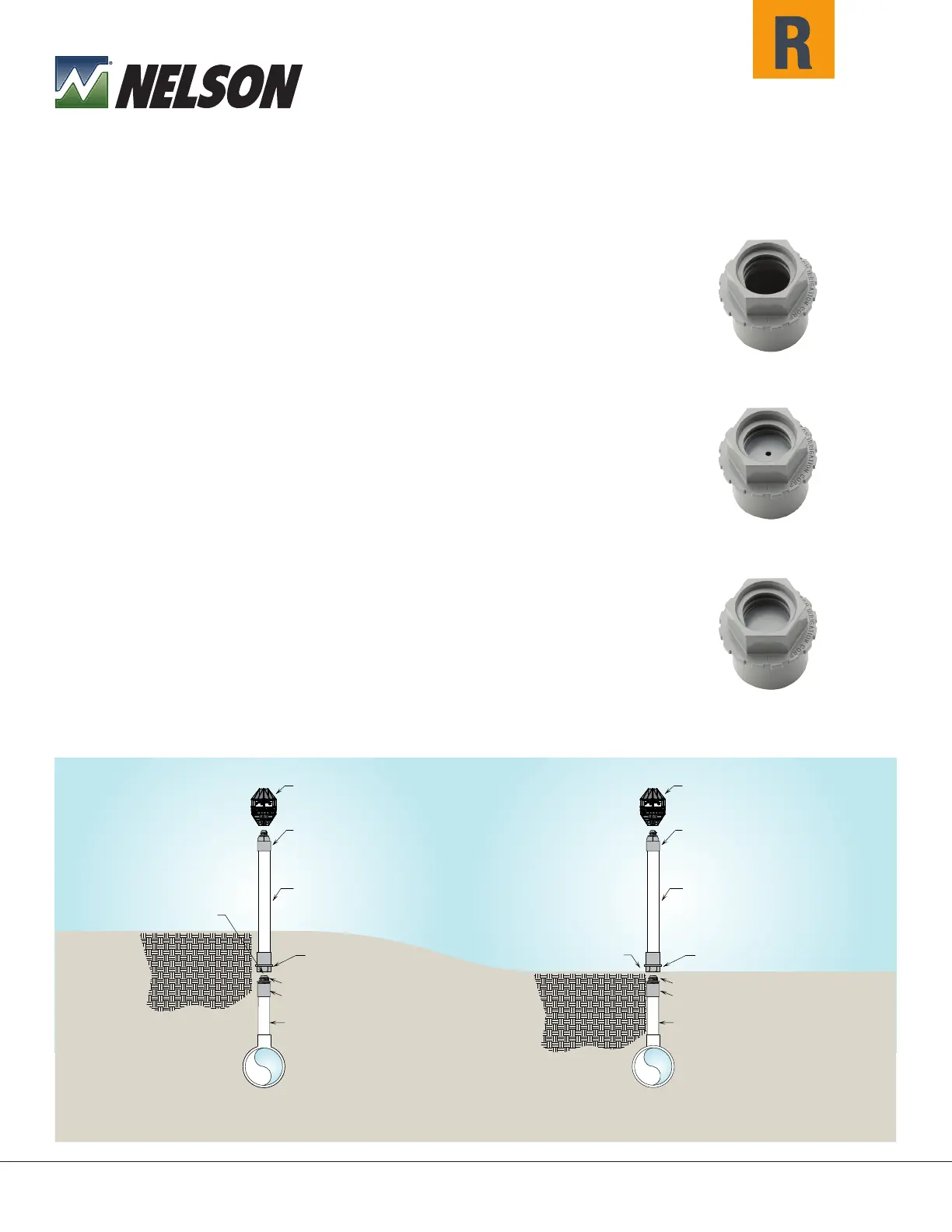

A. DETACHABLE RISER
WITH BELOW GRADE CONNECTION
B. DETACHABLE RISER
WITH AT-GRADE CONNECTION
¾” PVC Socket x
½” Male Acme (10060-002)
Sch. 40 PVC Riser up to 36” Long
R2000 Series Rotator
¾” Acme x ¾” MNPT Adapter (11344)
¾” PVC Female Adapter
¾” Riser Base must be rigid.
Can be mounted several
ways depending on pipe depth.
¾” Riser Base must be rigid.
Can be mounted several
ways depending on pipe depth.
QUICK-CONNECT
FITTINGS FOR
DETACHABLE RISERS
WHY DETACHABLE RISERS? Solid set irrigation with Rotators is an
excellent way to irrigate small and irregular shaped fields. However, the process
of moving pipe in and out of the field several times a season is costly and
problematic. Inexpensive yet rigid detachable risers can be quickly and easily
moved out of the way of farming operations, then easily reinstalled when it is
time to irrigate. Now with two sizes of Nelson ACME Adapters, growers can choose
from a wide range of Rotator
®
Sprinkler flow ranges for their specific needs. ACME
Threads allow users to rethread risers while the system is pressurized, and not
cross-thread the risers. The ½” ACME thread is used in 10 Series and 2000 Series
Rotator sprinklers. The new ¾” ACME Threaded fittings are based on the ACME
Thread used in the R33. With these new ¾” ACME Thread fittings, Detachable
Risers can have higher flow rates and be taller than ever before.
A. SHALLOW CULTIVATED CROPS REQUIRE A BURIED DETACHABLE RISER.
B. DETACHABLE RISERS FOR CRANBERRY AND ALFALFA PRODUCTION.
C. SLEEVE-PROTECTED DETACHABLE RISERS IN PASTURES & FORAGE CROPS.
3 Fittings With ¾” Female
Acme Thread
(Connects to R33 Adapter 11344)
12214-003
Cap, Female Acme x ¾” PVC Socket
or 1” PVC Spigot
12214-002
Small Hole, ¾” Female Acme
x ¾” or 1” PVC Spigot
12214-001
¾” Female Acme x ¾” PVC Socket
or 1” PVC Spigot
