Side 1/2

使用说明书

随附配件

搭扣式镜头前盖

镜头后盖

旋入式镜头遮光罩

HN-

AF Nikkor 85mm f/1.4D IF

中文版（简体）

Printed in Japan

SB5C02(27)

8MNJC332-02

感谢您选购尼康产品。

尼克尔

mm f/

D IF

镜头具备一个圆形光圈（适合拍摄

出自然的散景）、近距矫正（

CRC

）功能（用于在近距离范围内拍摄出清晰图像）以及可

进行快速对焦的内部对焦装置。用于尼康自动对焦照相机（

除外）时，本镜头支

持自动对焦，并可将拍摄对象距离信息提供给兼容的照相机。本镜头同时还支持手

动对焦。在使用本产品前，请仔细阅读这些指南和照相机说明书，以便您在现在和今

后都能充分利用您的镜头。

使用产品前请仔细阅读本使用说明书。

安全须知

请在使用前仔细阅读“安全须知”，并以正确的方法使用。本“安全须知”中记载了重

要的内容，可使您能够安全、正确地使用产品，并预防对您或他人造成人身伤害或财

产损失。请在阅读之后妥善保管，以便本产品的所有使用者可以随时查阅。

有关指示

本节中标注的指示和含义如下。

警告

表示若不遵守该项指示或操作不当，则有可能造成人员死亡或负重伤的内容。

注意

表示若不遵守该项指示或操作不当，则有可能造成人员伤害、以及有可能

造成物品损害的内容。

本节使用以下图示和符号对必须遵守的内容作分类和说明。

图示和符号的实例

符号表示唤起注意（包括警告）的内容。

在图示中或图示附近标有具体的注意内容（左图之例为当心触电）。

符号表示禁止（不允许进行的）的行为。

在图示中或图示附近标有具体的禁止内容（左图之例为禁止拆解）。

符号表示强制执行（必需进行）的行为。

在图示中或图示附近标有具体的强制执行内容（左图之例为取出电池）。

警告

禁止拆解

切勿自行拆解、修理或改装。

否则将会造成触电、发生故障并导致受伤。

禁止触碰

立即委托

修理

当产品由于跌落而破损使得内部外露时，切勿用手触碰外露部分。

否则将会造成触电、或由于破损部分而导致受伤。取出照相机电池，

并委托经销商或尼康授权的维修服务中心进行修理。

取出电池

立即委托

修理

当发现产品变热、冒烟或发出焦味等异常时，请立刻取出照相机电池。

若在此情况下继续使用，将会导致火灾或灼伤。取出电池时，请小心勿

被烫伤。取出电池，并委托经销商或尼康授权的维修服务中心进行修理。

禁止

接触水

切勿浸入水中或接触到水，或被雨水淋湿。

否则将会导致起火或触电。

禁止使用

切勿在有可能起火、爆炸的场所使用。

在有丙烷气、汽油、可燃性喷雾剂等易燃性气体、粉尘的场所使用产

品，将会导致爆炸或火灾。

禁止观看

切勿用镜头或照相机直接观看太阳或强光。

否则将会导致失明或视觉损伤。

注意

当心触电

切勿用湿手触碰。

否则将有可能导致触电。

禁止放置切勿在婴幼儿伸手可及之处保管产品。

否则将有可能导致受伤。

小心使用

进行逆光拍摄时，务必使太阳充分偏离视角。

阳光会在照相机内部聚焦，并有可能导致火灾。

太阳偏离视角的距离微小时，也有可能会导致火灾。

妥善保存

不使用时请盖上镜头盖，或保存在没有阳光照射处。

阳光会聚焦，并有可能导致火灾。

小心移动

进行移动时，切勿将照相机或镜头安装在三脚架上。

摔倒、碰撞时将有可能导致受伤。

禁止放置

切勿放置于封闭的车辆中、直射阳光下或其它异常高温之处。

否则将对内部零件造成不良影响，并导致火灾。

■

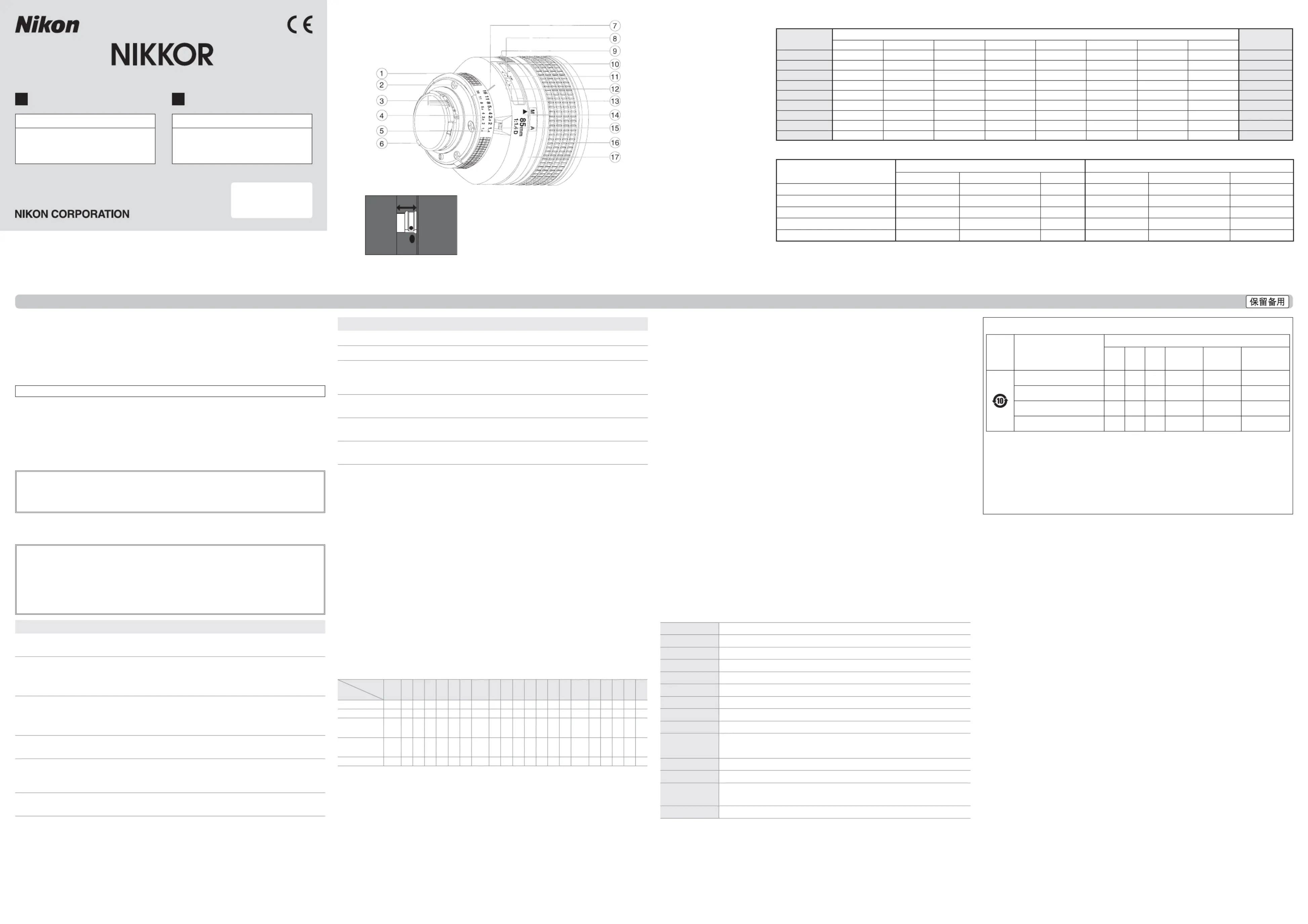

镜头部件

光圈环

测光耦合脊

CPU

接点

光圈直读刻度

光圈刻度

光圈传递杆

光圈标记线

对焦距离指示窗口

A-M

模式环释放按钮

红外线补偿标记（白色）

对焦距离指示

对焦距离标记

景深指示

A-M

模式标记

最小光圈锁定杆

对焦环

A-M

模式环

■

注意事项

•

请保持

CPU

镜头接点清洁并小心不要损坏

CPU

接点。

•

不要将以下配件直接安装至本镜头：

PK-

或

PK-

自动延伸环、

BR-

或

BR-

自动环

（

PK-

和

BR-

可分别代替

PK-

和

BR-

使用）。若不遵守此注意事项，可能会导致

损坏本镜头的

CPU

接点或其他部件。其他镜头配件可能与照相机不兼容；请务必在

使用前先查阅照相机的说明书。

•

本镜头无法与用于尼康

照相机的

DX-

取景器一起使用。

■

对焦屏

“对焦屏”表格中所列照相机支持用于不同镜头或不同情况下的多种对焦屏。表格中所

列对焦屏均适用于本镜头。

当将

、

或

对焦屏用于非此表格中所列照相机时，请分别参考

、

或

列。

对焦屏

照相机

EC-B

EC-BEC-B

A/L

A/LA/L

G1G1

G2G2

G3G3

G4G4

H1H1

H2H2

H3H3

H4H4

K/P

K/PK/P

   

F5+ DP-30

     

F5+ DA-30

   



(+0.5)



F4+ DP-20/

F4+ DA-20

    

          



：

推荐使用。



：

在取景器中可见渐晕（照片不会受到影响）。



：

分屏显示不会提高对焦准确度。

( )

：

括号中的数据是指用于中央重点测光的曝光补偿值。当调整

的曝光

补偿时，请在自定义设定

（“对焦屏补偿”）中选择“其他对焦屏”；请

注意，使用

或

以外的对焦屏时，即使曝光补偿值为

，也必须选择

“其他对焦屏”。

和

的用户可分别使用自定义设定

和对焦屏曝光

补偿拨盘调整曝光补偿；有关详细信息，请参阅照相机的说明书。

空白单元格：

不适用于本镜头。请注意，在放大倍率为

或更高时，

型对焦屏仍可

用于显微拍摄和微距拍摄。

■

对焦

本镜头支持

A-M

模式选择。若要选择

A-M

模式，请按住

A-M

模式环释放按钮并同

时旋转

A-M

模式环。选择

可进行自动对焦，选择

则可进行手动对焦。此时无需

使用照相机对焦模式选择器。

■

最小光圈锁定杆（图

）

在程序自动或快门优先自动模式下进行拍摄时将光圈锁定为

。

将光圈环旋转至最小光圈设定（

）。

朝光圈环滑动锁定杆，以便锁定杆上的白点与橙点对齐。

若要解除锁定，请按相反方向滑动锁定杆。

■

镜头保养

•

用吹气球去除镜头表面的灰尘和浮屑。若要去除污点和指纹，可使用一块滴有少许

乙醇或镜头清洁剂的干净软棉布或镜头清洁纸，以圆周运动方式从里向外进行清洁。

注意不要留下污渍，也不要用手指触碰玻璃。

•

镜头遮光罩或

滤镜可用于保护镜头前部元件。

•

不使用镜头时，请盖上镜头前后盖。

•

保持镜头干燥。内部构造生锈将导致无法挽回的损坏。

•

若在较长时间内不使用镜头，请将其存放在阴凉干燥的地方以防止发霉和生锈。切

不可存放在直射阳光下，也不可与石脑油或樟脑丸一起存放。

•

将镜头放置在过于炎热的地方将会使强化塑料部件受损或变形。

•

运输产品时，请在包装箱内装入足够多的缓冲材料，以减少（避免）由于冲击导致产

品损坏。

■

兼容的配件

•

旋入式滤镜

•

半软镜头袋

CL-

0915

■

技术规格

焦距

最大光圈

镜头结构

组

片

视角

’

对焦距离指示

从

至无穷远（∞），以米和英尺为单位

距离信息

输出到照相机

光圈刻度

标准和光圈直读刻度上均为

至

最小光圈锁定

备有

光圈

全自动

测光

•

CPU/AI

照相机

：全开光圈测光

•

其他照相机

：最小光圈

卡口

尼康卡口

滤镜附件尺寸

（

）

尺寸

约

（最大直径）×

（从照相机镜头卡口边缘开始的距

离）；总体长度约为

重量

约

550

尼康公司保留可随时更改说明书内载之硬件技术规格的权利，而无须事先通知。

图

最小光圈锁定杆

■

景深

（

）

对焦距离

景深

复制比率

f/1.4

f/1.4f/1.4

f/2

f/2f/2

f/2.8

f/2.8f/2.8

f/4

f/4f/4

f/5.6

f/5.6f/5.6

f/8

f/8f/8

f/11

f/11f/11

f/16

f/16f/16

0.85

0.85 0.854 – 0.846 0.855 – 0.845 0.857 – 0.843 0.864 – 0.840 0.864– 0.836 0.871 – 0.830 0.879 – 0.823 0.893 – 0.812

1/8.77

1/8.771/8.77

1.0

1.0 1.01 – 0.995 1.01 – 0.993 1.01 – 0.990 1.01 – 0.986 1.02 – 0.980 1.03 – 0.972 1.04 – 0.962 1.06 – 0.945

1/10.6

1/10.61/10.6

1.2

1.2 1.21 – 1.19 1.21 – 1.19 1.22 – 1.18 1.22 – 1.18 1.23 – 1.17 1.25 – 1.16 1.26 – 1.14 1.30 – 1.12

1/13.0

1/13.01/13.0

1.5

1.5 1.51 – 1.49 1.52 – 1.48 1.53 – 1.48 1.54 – 1.47 1.55 – 1.45 1.58 – 1.43 1.61 – 1.41 1.66 – 1.37

1/16.5

1/16.51/16.5

22.02 – 1.98 2.03 – 1.97 2.05 – 1.95 2.07 – 1.94 2.10 – 1.91 2.14 – 1.88 2.20 – 1.83 2.31 – 1.77

1/22.5

1/22.51/22.5

330.6 – 2.95 3.08 – 2.92 3.11 – 2.90 3.16 – 2.85 3.23 – 2.80 3.35 – 2.72 3.50 – 2.63 3.79 – 2.49

1/34.3

1/34.31/34.3

55.16 – 4.85 5.23 – 4.79 5.33 – 4.71 5.49 – 4.59 5.71 – 4.45 6.08 – 4.25 6.63 – 4.03 7.79 – 3.70

1/57.8

1/57.81/57.8

10 10.7 – 9.41 11.0 – 9.17 11.5 – 8.88 12.2 – 8.47 13.4 – 7.98 15.7 – 7.35 20.0 – 6.69 37.2 – 5.83

1/116.7

∞

∞155 109 78 54 39 27 20 14 – ∞ – ∞ – ∞ – ∞ – ∞ – ∞ – ∞ – ∞

1/∞

1/∞1/∞

■

近摄

（

）

配件

近摄近摄（镜头反装）

复制比率拍摄对象范围对焦距离复制比率拍摄对象范围对焦距离

环

1/10.6 – 1/1.4 25.5 × 38.3 – 3.25 × 4.87 105 – 31.2 –––

环

1/1.6 – 1/1.3 3.89 × 5.83 – 0.98 × 1.47 32.9 – 30.96 –––

PB-

或

PB-

伸缩镜腔

1/2.0 – 2.2 4.74 × 7.12 – 1.1 × 1.65 35.0 – 35.5 –––

PB-

伸缩镜腔

1/1.8 – 2.4 4.25 × 6.38 – 0.98 × 1.47 33.7 – 37.24 –––

PB-

延伸镜腔

1/1.8 – 5.20 4.25 × 6.38 – 0.47 × 0.70 33.7 – 56.99 –––

镜头反装时无法使用。

第一个数据适用于单独使用

PK-

时，其他数据则适用于一起使用从

PK-

到

PK-

、

PK-

到

PK-

或

PK-

到

PK-

的

环时。请注意，

PK-

和

PK-

无法直接安装于镜头。

User’s Manual

Supplied Accessories

Supplied AccessoriesSupplied Accessories

77 mm snap-on front lens cap

Rear lens cap

Screw-on Lens Hood HN-31

产品中有害物质的名称及含量

标志部件名称

有害物质

铅

(Pb)

汞

(Hg)

镉

(Cd)

六价铬

(Cr (VI))

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

外壳

○ ○ ○ ○ ○ ○

机械元件

× ○ ○ ○ ○ ○

光学元件

○ ○ ○ ○ ○ ○

电子元件

× ○ ○ ○ ○ ○

本表格依据

SJ/T

11364

的规定编制。

○

表示该有害物质在该部件所有均质材料中的含量均在

GB/T

26572

规定的限量

要求以下。

表示该有害物质至少在该部件的某一均质材料中的含量超出

GB/T

26572

规定

的限量要求。但是，以现有的技术条件要使照相机相关产品完全不含有上述有

害物质极为困难，并且上述产品都包含在《关于电气电子设备中特定有含物质

使用限制指令

2011

/EU

》的豁免范围之内。

进口商：

尼康映像仪器销售（中国）有限公司

（（上海市茂名南路

205

号瑞金大厦

楼，

200020

）

尼康客户支持中心服务热线：

400

820

1665

（周一至周日

–

，除夕下午休息）

http://www.nikon.com.cn/

在日本印刷

出版日期：

2015

年

月

日

1995 Nikon Corporation

English

Thank you for purchasing a Nikon product. The AF Nikkor 85 mm f/1.4D IF lens features a rounded

diaphragm for natural bokeh, Close-Range Correction (CRC) for sharp images at close range, and

an inner focus mechanism for quick focus. Used with Nikon autofocus cameras (F3AF excluded), it

supports autofocus and can supply subject distance information to compatible cameras. Manual

focus is also supported. Before using this product, please carefully read both these instructions

and the camera manual so you can get the most out of your lens now and for years to come.

■

■■

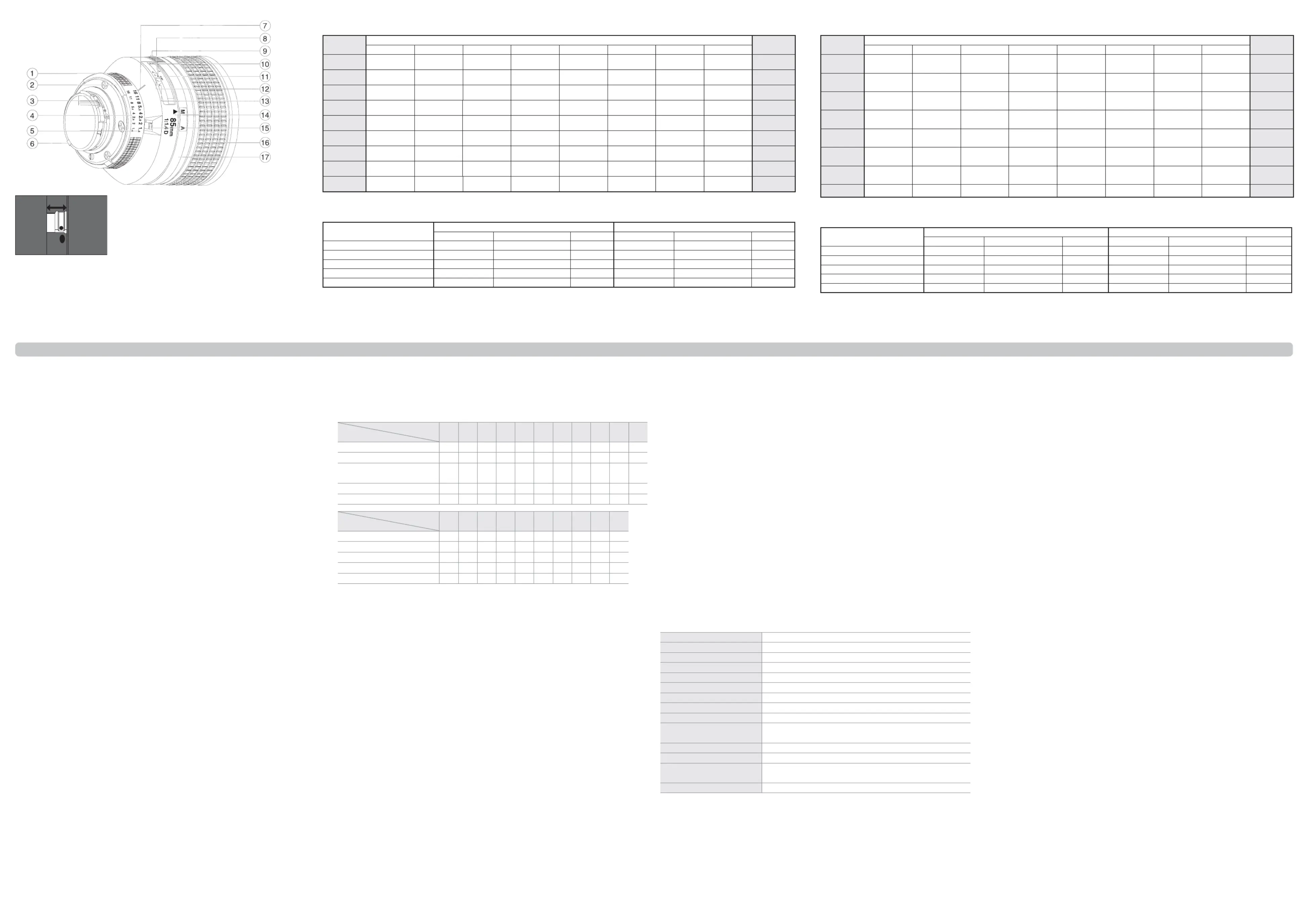

Parts of the Lens

Parts of the Lens Parts of the Lens

q Aperture ring

w Meter coupling guide

e CPU contacts

r Aperture-direct-readout scale

t Aperture scale

y Aperture indexing post

u Aperture index mark

i Focus distance indicator window

o A-M mode ring release button

!0 Infrared compensation index (white)

!1 Focus distance indicator

!2 Focus distance mark

!3 Depth-of- eld indicators

!4 A-M mode index

!5 Minimum aperture lock lever

!6 Focus ring

!7 A-M mode ring

■

■■

For

For Y

Your Safety

our Safety

For Your Safety

CAUTIONS

CAUTIONSCAUTIONS

• Do not disassemble. Touching the internal parts of the camera or lens could result in injury. In the event of

malfunction, the product should be repaired only by a qualiﬁ ed technician. Should the product break

open as the result of a fall or other accident, remove the camera battery and/or disconnect the AC adapter

and then take the product to a Nikon-authorized service center for inspection.

• Turn the camera o immediately in the event of malfunction. Should you notice smoke or an unusual smell com-

ing from the equipment, immediately unplug the AC adapter and remove the camera battery, taking care

to avoid burns. Continued operation could result in ﬁ re or injury. After removing or disconnecting the

power source, take the equipment to a Nikon-authorized service center for inspection.

• Do not use in the presence of  ammable gas. Operating electronic equipment in the presence of ﬂ ammable gas

could result in explosion or ﬁ re.

• Do not look at the sun through the lens or the camera view nder. Viewing the sun or other bright light source

through the lens or viewﬁ nder could cause permanent visual impairment.

• Keep out of reach of children. Particular care should be taken to prevent infants from putting the batteries or

other small parts into their mouths.

• Observe the following precautions when handling the lens and camera:

-Keep the lens and camera dry. Failure to observe this precaution could result in ﬁ re or electric shock.

-Do not handle the lens or camera with wet hands. Failure to observe this precaution could result in

electric shock.

-Keep the sun well out of the frame when shooting backlit subjects. Sunlight focused into the camera

when the sun is in or close to the frame could cause a ﬁ re.

-If the lens will not be used for an extended period, attach the front and rear lens caps and store the lens

out of direct sunlight. If left in direct sunlight, the lens could focus the sun’s rays onto ﬂ ammable objects,

causing ﬁ re.

■

■■

Notices

• Keep the CPU lens contacts clean and be careful not damage the CPU contacts.

• Do not attach the following accessories directly to the lens: PK-1 or PK-11 auto extension rings or BR-4 or

BR-2 auto ring (the PK-11A and BR-6 can be used in place of the PK-11 and BR-4, respectively). Failure to

observe this precaution will result in damage to the CPU contacts or other parts of the lens. Other lens

accessories may not be compatible with the camera; be sure to consult the camera manual before use.

• The lens can not be used with the DX-1 viewﬁ nder for Nikon F3AF cameras.

■

■■

Focusing Screens

The cameras in the “Focusing Screens” table support a variety of focusing screens for use with

di erent lenses or in di erent situations. The screens listed in the table are suited for use with this

lens.

When using B2/B3, E2/E3, or K2/K3 screens with cameras not listed in this table, refer respectively

to columns B, E, or K.

Screen

ScreenScreen

Camera

CameraCamera

EC-B

EC-BEC-B

A/L

A/LA/L

G1G1

G2G2

G3G3

G4G4

H1H1

  

F5+ DP-30

    

F5+ DA-30

   



(+0.5)

F4+ DP-20/F4+ DA-20

  

     

Screen

ScreenScreen

Camera

CameraCamera

H2H2

H3H3

H4H4

K/P

K/PK/P



F5+ DP-30



F5+ DA-30



F4+ DP-20/F4+ DA-20

 

    



: Recommended.

: Vignetting visible in viewﬁ nder (photographs are not aﬀ ected).

: Split-screen display does not improve focus accuracy.

( ): Figures in parentheses give the exposure compensation for center-weighted metering. Select

“Other screen” for Custom Setting b6 (“Screen comp.”) when adjusting exposure compensation

for the F6; note that with screens other than B or E, “Other screen” must be selected even when the

value for exposure compensation is 0. Users of the F5 and F4 can adjust exposure compensation

using Custom Setting 18 or the focusing screen exposure compensation dial, respectively; see the

camera manual for details.

Empty cell: Not suited to use with this lens. Note that type M screens can however be used for photomicrog-

raphy and macro photography at magniﬁ cations of 1 : 1 or higher.

■

■■

Focus

This lens supports A-M mode selection. To choose the A-M mode, rotate the A-M mode ring while

pressing the A-M mode ring release button. Select A for autofocus and M for manual focus. There

is no need to use the camera focus mode selector.

■

■■

The Minimum Aperture Lock Lev

The Minimum Aperture Lock Lever (Figure A)

er (Figure A)

The Minimum Aperture Lock Lever (Figure A)

Lock aperture at f/16 when shooting in programmed auto or shutter-priority auto mode.

Rotate the aperture ring to the minimum aperture setting (f/16).

Slide the lock lever toward the aperture ring so that the white dot on the lock lever aligns

with the orange dot.

To release the lock, slide the lever in the opposite direction.

■

■■

Lens Care

• Use a blower to remove dust and lint from the lens surfaces. To remove smudges and  nger-

prints, apply a small amount of ethanol or lens cleaner to a soft, clean cotton cloth or lens-

cleaning tissue and clean from the center outwards using a circular motion, taking care not to

leave smears or touch the glass with your  ngers.

• A lens hood or NC  lter can be used to protect the front lens element.

• Attach the front and rear caps when the lens is not in use.

• Keep the lens dry. Rusting of the internal mechanism can cause irreparable damage.

• If the lens will not be used for an extended period, store it in a cool, dry location to prevent mold

and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.

• Leaving the lens in extremely hot locations could damage or warp parts made from reinforced

plastic.

■

■■

Compa

Compatible Acc

tible Acc

tible Accessories

essories

Compatible Accessories

• 77 mm screw-on  lters

• Flexible Lens Pouch CL-0915

■

■■

Speciﬁ

cations

Speciﬁ cations

Focal length

Focal length 85 mm

Maximum aperture

Maximum aperture f/1.4

Lens construction

Lens construction 9 elements in 8 groups

Angle of view

Angle of view 28° 30’

Focus distance indicator

Focus distance indicator Graduated in meters and feet from 0.85 m (3 ft) to inﬁ nity (∞)

Distance information

Distance information Output to camera

Aperture sc

Aperture scale

ale

Aperture scale f/1.4 to f/16 on both standard and aperture-direct-readout scales

Minimum aperture lock

Minimum aperture lock Provided

Diaphragm

Diaphragm Fully automatic

Metering

Metering • Full apertureCPU/AI cameras:

• Minimum apertureOther cameras:

Mount

Mount Nikon bayonet mount

Filter-attachment siz

Filter-attachment size

Filter-attachment size 77 mm (P=0.75 mm)

Dimensions

Dimensions Approx. 80 mm maximum diameter × 72.5 mm (distance from camera lens

mount  ange); overall length is approx. 82 mm

Weight

Weight Approx. 550 g (19.4 oz)

Nikon reserves the right to change the speciﬁ cations of the hardware described in this manual at any time and

without prior notice.

Figure A Minimum aperture lock lever

■

■■

Depth of Field (Metric)

Depth of Field (Metric) Depth of Field (Metric)

(m)

Focus

Focus Focus

distance

distancedistance

Depth of 

eld

eld Depth of  eld

Reproduction

Reproduction Reproduction

ratio

ratioratio

f/1.4

f/1.4f/1.4

f/2

f/2f/2

f/2.8

f/2.8f/2.8

f/4

f/4f/4

f/5.6

f/5.6f/5.6

f/8

f/8f/8

f/11

f/11f/11

f/16

f/16f/16

0.85

0.85 0.854 – 0.846 0.855 – 0.845 0.857 – 0.843 0.864 – 0.840 0.864– 0.836 0.871 – 0.830 0.879 – 0.823 0.893 – 0.812

1/8.77

1/8.771/8.77

1.0

1.0 1.01 – 0.995 1.01 – 0.993 1.01 – 0.990 1.01 – 0.986 1.02 – 0.980 1.03 – 0.972 1.04 – 0.962 1.06 – 0.945

1/10.6

1/10.61/10.6

1.2

1.2 1.21 – 1.19 1.21 – 1.19 1.22 – 1.18 1.22 – 1.18 1.23 – 1.17 1.25 – 1.16 1.26 – 1.14 1.30 – 1.12

1/13.0

1/13.01/13.0

1.5

1.5 1.51 – 1.49 1.52 – 1.48 1.53 – 1.48 1.54 – 1.47 1.55 – 1.45 1.58 – 1.43 1.61 – 1.41 1.66 – 1.37

1/16.5

1/16.51/16.5

22.02 – 1.98 2.03 – 1.97 2.05 – 1.95 2.07 – 1.94 2.10 – 1.91 2.14 – 1.88 2.20 – 1.83 2.31 – 1.77

1/22.5

1/22.51/22.5

330.6 – 2.95 3.08 – 2.92 3.11 – 2.90 3.16 – 2.85 3.23 – 2.80 3.35 – 2.72 3.50 – 2.63 3.79 – 2.49

1/34.3

1/34.31/34.3

55.16 – 4.85 5.23 – 4.79 5.33 – 4.71 5.49 – 4.59 5.71 – 4.45 6.08 – 4.25 6.63 – 4.03 7.79 – 3.70

1/57.8

1/57.81/57.8

10 10.7 – 9.41 11.0 – 9.17 11.5 – 8.88 12.2 – 8.47 13.4 – 7.98 15.7 – 7.35 20.0 – 6.69 37.2 – 5.83

1/116.7

1/116.71/116.7

∞

∞155 109 78 54 39 27 20 14 – ∞ – ∞ – ∞ – ∞ – ∞ – ∞ – ∞ – ∞

1/∞

■

■■

Close-up Photography (Metric)

(cm)

Accessory

AccessoryAccessory

Close-up photography

Close-up photographyClose-up photography

Close-up photography (lens reversed)

Close-up photography (lens reversed)Close-up photography (lens reversed)

Reproduction ratio

Reproduction ratioReproduction ratio

Subjec

Subject 

t 

eld

eldSubject  eld

Focus distance

Focus distanceFocus distance

Reproduction ratio

Subjec

Subject 

t 

eld

eldSubject  eld

Focus distance

Focus distanceFocus distance

PK-Ring

PK-Ring PK-Ring

1/10.6 31.2 – 1/1.4 25.5 × 38.3 3.25 × 4.87 105 – – – – –

PN ring

PN ring 1/1.6 30.96 – 1/1.3 3.89 × 5.83 0.98 × 1.47 32.9 – – – – –

PB-4 or PB-5 bellows attachment

PB-4 or PB-5 bellows attachment 1/2.0 – 2.2 4.74 × 7.12 – 1.1 × 1.65 35.0 – 35.5 – – –

PB-6 bellows attachment

PB-6 bellows attachment 1/1.8 37.24 – 2.4 4.25 × 6.38 0.98 × 1.47 33.7 – – – – –

PB-6E extension bellows

PB-6E extension bellows PB-6E extension bellows

1/1.8 56.99 – 5.20 4.25 × 6.38 0.47 × 0.70 33.7 – – – – –

1. Can not be used when lens is reversed.

2. First ﬁ gure is for PK-11A when used alone, remaining ﬁ gures for rings PK-11A through PK-13, PK-11 through PK-13, or PK-1 through PK-3 used together. Note the

PK-11 and PK-1 can not be attached directly to the lens.

■

■■

Depth of Field (Imperial)

Depth of Field (Imperial) Depth of Field (Imperial)

(ft)

Focus

Focus Focus

distance

distancedistance

Depth of 

eld

eld Depth of  eld

Reproduction

Reproduction Reproduction

ratio

ratioratio

f/1.4

f/1.4f/1.4

f/2

f/2f/2

f/2.8

f/2.8f/2.8

f/4

f/4f/4

f/5.6

f/5.6f/5.6

f/8

f/8f/8

f/11

f/11f/11

f/16

f/16f/16

3 ft ⁄ in. –

2 ft 11 ⁄ in.

3 ft ⁄ in. –

2 ft 11 ⁄ in.

3 ft ⁄ in. –

2 ft 11 ⁄ in.

3 ft ⁄ in. –

2 ft 11 ⁄ in.

3 ft ⁄ in. –

2 ft 11 ⁄ in.

3 ft ⁄ in. –

2 ft 11 ⁄ in.

3 ft 1 ⁄ in. –

2 ft 10 ⁄ in.

3 ft 2 ⁄ in. –

2 ft 10 ⁄ in.

1/9.5

1/9.51/9.5

4 ft ⁄ in. –

3 ft 11 ⁄ in.

4 ft ⁄ in. –

3 ft 11 ⁄ in.

4 ft ⁄ in. –

3 ft 11 ⁄ in.

4 ft ⁄ in. –

3 ft 11 ⁄ in.

4 ft 1 ⁄ in. –

3 ft 11 ⁄ in.

4 ft 1 ⁄ in. –

3 ft 10 ⁄ in.

4 ft 2 ⁄ in. –

3 ft 9 ⁄ in.

4 ft 3 ⁄ in. –

3 ft 8 ⁄ in.

1/13.2

1/13.21/13.2

5 ft ⁄ in. –

4 ft 11 ⁄ in.

5 ft ⁄ in. –

4 ft 11 ⁄ in.

5 ft 1 ⁄ in. –

4 ft 10 ⁄ in.

5 ft 1 ⁄ in. –

4 ft 10 ⁄ in.

5 ft 2 ⁄ in. –

4 ft 10 in.

5 ft 3 ⁄ in. –

4 ft 9 ⁄ in.

5 ft 4 ⁄ in. –

4 ft 8 ⁄ in.

5 ft 6 ⁄ in. –

4 ft 6 ⁄ in.

1/16.8

1/16.81/16.8

7 ft 1 ⁄ in. –

6 ft 10 ⁄ in.

7 ft 1 ⁄ in. –

6 ft 10 ⁄ in.

7 ft 2 ⁄ in. –

6 ft 9 ⁄ in.

7 ft 3 ⁄ in. –

6 ft 9 ⁄ in.

7 ft 4 ⁄ in. –

6 ft 8 in.

7 ft 6 ⁄ in. –

6 ft 6 ⁄ in.

7 ft 9 ⁄ in. –

6 ft 4 ⁄ in.

8 ft 2 ⁄ in. –

6 ft 1 ⁄ in.

1/24.0

1/24.01/24.0

1010

10 ft 2 in. –

9 ft 9 ⁄ in.

10 ft 3 in. –

9 ft 8 ⁄ in.

10 ft 4 in. –

9 ft 6 in.

10 ft 6 in. –

9 ft 6 ⁄ in.

10 ft 9 in. –

9 ft 3 ⁄ in.

11 ft 2 in. –

9 ft ⁄ in.

11 ft 8 in. –

8 ft 8 ⁄ in.

12 ft 8 in. –

8 ft 3 ⁄ in.

1/34.8

1/34.81/34.8

1515

15 ft 5 in. –

14 ft 7 in.

15 ft 7 in. –

14 ft 5 in.

15 ft 10 in. –

14 ft 2 in.

16 ft 3 in. –

13 ft 10 in.

16 ft 11 in. –

13 ft 5 in.

17 ft 10 in. –

12 ft 11 in.

29 ft 3 in. –

12 ft 3 in.

22 ft 3 in. –

11 ft 4 in.

1/52.8

1/52.81/52.8

3030

31 ft 10 in. –

28 ft 4 in.

32 ft 8 in. –

27 ft 8 in.

33 ft 11 in. –

26 ft 10 in.

35 ft 11 in. –

25 ft 9 in.

39 ft –

24 ft 4 in.

44 ft 10 in. –

22 ft 6 in.

55 ft 3 in. –

20 ft 8 in.

90 ft 1 in. –

18 ft 1 in.

1/106.6

1/106.61/106.6

∞

∞508 ft 356 ft 254 ft 178 ft 127 ft 89 ft 65 ft 44 ft – ∞ – ∞ – ∞ – ∞ – ∞ – ∞ – ∞ – ∞

1/∞

■

■■

Close-up Photography (Imperial)

(in.)

Accessory

AccessoryAccessory

Close-up photography

Close-up photographyClose-up photography

Close-up photography (lens reversed)

Close-up photography (lens reversed)Close-up photography (lens reversed)

Reproduction ratio

Reproduction ratioReproduction ratio

Subjec

Subject 

t 

eld

eldSubject  eld

Focus distance

Focus distanceFocus distance

Reproduction ratio

Reproduction ratioReproduction ratio

Subjec

Subject 

t 

eld

eldSubject  eld

Focus distance

Focus distanceFocus distance

PK-Ring

PK-Ring PK-Ring

1/10.6 – 1/1.4 10.04 × 15.08 – 1.28 × 1.92 41.34 – 12.28 – – –

PN ring

PN ring 1/1.6 – 1/1.3 1.53 × 2.30 – 0.39 × 0.58 12.95 – 12.19 – – –

PB-4 or PB-5 bellows attachment

PB-4 or PB-5 bellows attachment 1/2.0 – 2.2 1.87 × 2.28 – 0.43 × 0.58 13.78 – 13.98 – – –

PB-6 bellows attachment

PB-6 bellows attachment 1/1.8 – 2.4 1.67 × 2.51 – 0.39 × 0.58 13.27 – 14.66 – – –

PB-6E extension bellows

1/1.8 – 5.20 1.67 × 2.51 – 0.19 × 0.28 13.27 – 22.44 – – –

1. Can not be used when lens is reversed.

2. First ﬁ gure is for PK-11A when used alone, remaining ﬁ gures for rings PK-11A through PK-13, PK-11 through PK-13, or PK-1 through PK-3 used together. Note the

PK-11 and PK-1 can not be attached directly to the lens.
