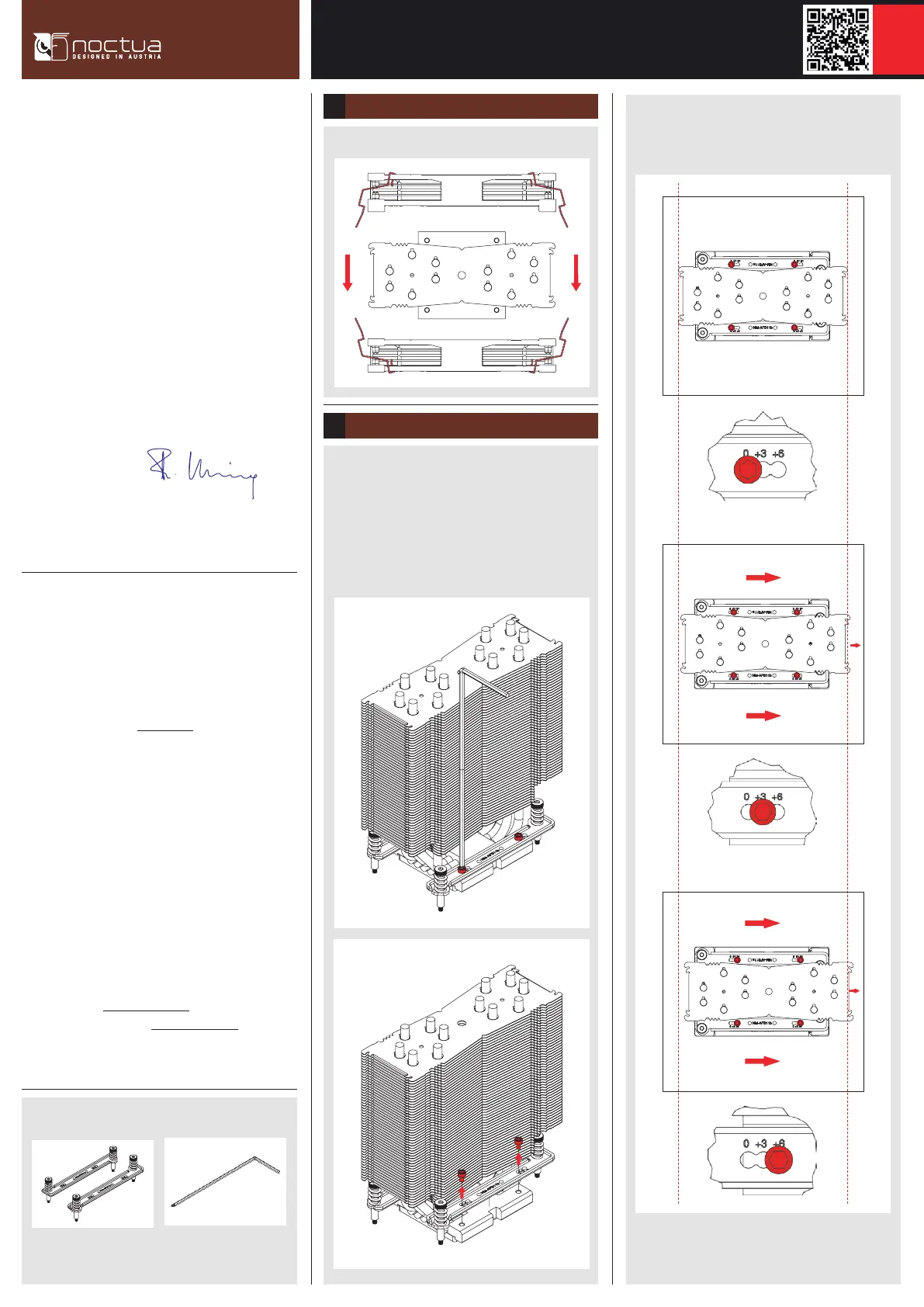

NOCTUA NH-U14S TR5-SP6

INSTALLATION MANUAL

This manual will guide you through the installation process of

the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

centre on our website (ncc.noctua.at) and verify that the

cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient

clearance for the cooler and that there are no compatibility

issues with any other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card, other PCIe cards, motherboard

heatsinks or any other components.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Should you encounter any difficulties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at support@noctua.at.

Dear customer,

Thank you very much for choosing the Noctua NH-U14S

TR5-SP6. Our Threadripper and Epyc coolers have become

a standard choice when it comes to quiet, premium grade

air cooling solutions for AMD-based workstations and

servers, and we’re excited to continue this legacy with the

new TR5-SP6 models. I’m confident that you will be able

to sense some of the research, attention and care we’ve put

into making this product.

Enjoy your Noctua NH-U14S TR5-SP6!

Yours sincerely,

Roland Mossig, Noctua CEO

Take the fans off the cooler.

Removing the fans

Offsetting the cooler

The SecuFirm2™ mounting for TR5/SP6 makes it possible to

offset the cooler by 3 or 6mm. On motherboards with east-to-

west socket orientation, this can be used to offset the cooler(s)

towards the right, increasing clearance towards the I/O panel.

On boards that use a north-to-south orientation of the CPU

socket(s), this allows offsetting the cooler towards the upper

edge of the motherboard in order to increase PCIe clearance.

Required mounting parts:

NM-AFB11 fastening brackets

(pre-installed on the cooler)

NM-SMT4 mounting tool

In order to offset the cooler, please unscrew the NM-AFB11

fastening brackets and reinstall them in the +3 (3mm

offset) or +6 (6mm offset) position.

Caution: Gently tighten the screws until they stop, but don’t

use excessive force (max. torque 0.6 Nm).

+ 0mm offset

+ 3mm offset

+ 6mm offset

Produkt Specifikationer

Mærke:	Noctua
Kategori:	Hardwarekoeling
Model:	NH-U14S TR5-SP6
Type:	Luftkøler
Bredde:	150 mm
Dybde:	111 mm
Højde:	165 mm
Vægt:	1136 g
Antal pr. pakke:	1 stk
Produktfarve:	Lysebrun
Pakkevægt:	1682 g
Pakkedybde:	142 mm
Pakkebredde:	223 mm
Pakkehøjde:	227 mm
Omdrejningshastighed (min.):	300 rpm
Omdrejningshastighed (maks.):	1500 rpm
Pakketype:	Kasse
Luftstrøm:	140.2 m³/t
Monteringssæt:	Ja
Antal blæsere:	2 blæser(e)
Passende til rumtype:	Processor
Skruer inkluderet:	Ja
Ventilator diameter:	140 mm
Antal ventilatorblade:	7
Ventilatorens støjniveau (maks.):	24.6 dB
Blæser, spænding:	12 V
Understøttede procesorsokler:	sTRX5, sWRX9, SP6
Køler bredde:	150 mm
Køler dybde:	52 mm
Køler højde:	165 mm
Ventilator strømforbrug:	1.56 W
Materiale for grundplade:	Kobber
Lejetype:	Self-Stabilising Oil-pressure Bearing (SSO)
Lamelmateriale:	Aluminium
Blæser 2 omdrejningshastighed (min.):	300 rpm
Blæser 2 omdrejningshastighed (maks.):	1500 rpm
Blæser 2 støjniveau (høj hastighed):	24.6 dB
