Reliable motion detection

with a range of up to 6 m (20ft.)

Easy installation in wall or ceiling

creating a curtain detection area

Flexible mounting height

between 2.4 - 3.6 m (8ft. to 12ft.)

Narrow curtain indoor motion detector providing reliable and

performance up to a range of 6m (20ft.). Ideal for protecting

windows, hallways, doors and a variety of other commercial

residential applications.

AP2-20N

Motion detection and smart automation

OPTEX CO., LTD. (JAPAN)

www.optex.co.jp/e

OPTEX EMEA Security Headquarters

OPTEX EUROPE LTD (UK and Africa)

OPTEX Security B.V. (EU)

OPTEX Dubai Branch (Middle East)

W: www.optex-europe.com

E: marketing@optex-europe.com

OPTEX SECURITY SAS

(France, French speaking North

and West African countries)

W: www.optex-europe.com/fr

E: contact@optex-security.com

OPTEX SECURITY Sp.z.o.o.

(Eastern Europe, Turkey)

W: www.optex-europe.com/pl

E: optex@optex.com.pl

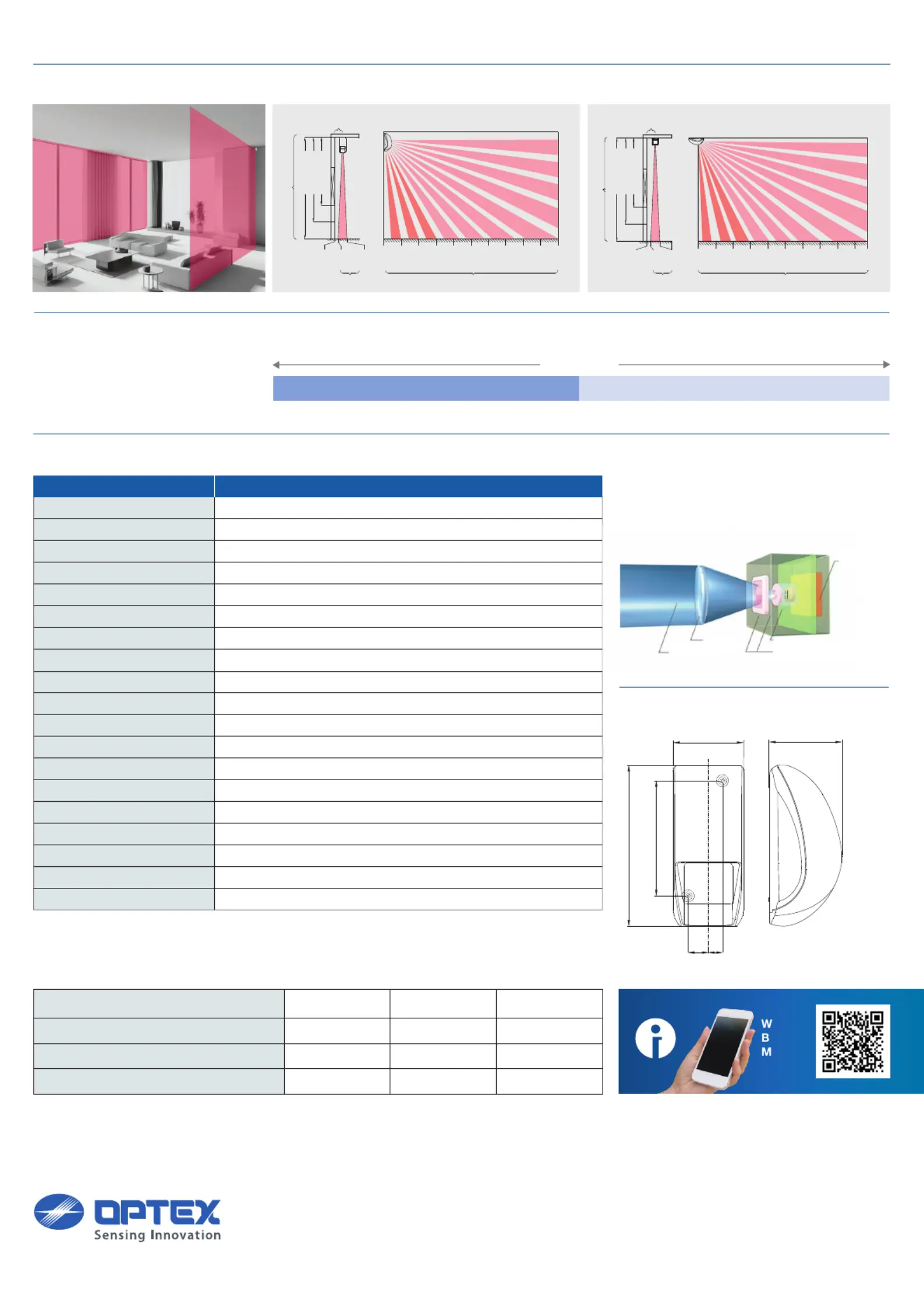

Reliable narrow beam detection with high-density detection field

Selectable sensitivity

Specifications

Dimensions

Installation Parameters

Wall mountFlexible installation Ceiling mount

Amp

Pyro electric element

Double shielding

Lens

Infrared rays

OPTEX patented double conductive shielding

allows the AP2-20N sensor to block RFI and

visible light disturbance from sunlight or

strong lamps.

Installation Height (H) 2.4m (8ft)

0.6m (2ft)

6m (20ft)

0.5m (1.5ft)

3.0m (10ft)

0.8m (2.5ft)

6m (20ft)

0.6m (2ft)

1m (3ft)

6m (20ft)

0.7m (2.5ft)

3.6m (12ft)

Max. area width

Max. area length

(20ft)

6.0m

(16ft)

4.8m

(12ft)

3.6m

(8ft)

2.4mCreep zone Creep zone

(20ft)

6.0m

(16ft)

4.8m

(12ft)

3.6m

(8ft)

2.4m

(4ft)

1.2m

(0.65ft)

0.20m

(0ft)

3.6m (12ft)

3.0m (10ft)

2.4m (8ft )

MODEL

Detection Method

Coverage

Mounting type

Mounting Height

Area Width

Sensitivity

Detection speed

LED Indicator

Sensitivity Adjustment

Alarm Output

Tamper Switch

Warm-up Period

Power Input

Current Draw

Weight

Operating Temperature

Environmental Humidity

RF Interference

Application Environment

*Speciﬁcations and designs are subject to change without prior notice.

Approx. 2.5 sec, N.C., 28V DC, 200mA max

AP2-20N

Passive Infrared

6m x 1m - mounting height at 3.6m (20ft x 3.3ft - mounting height at 12ft)

Wall and ceiling

2.4m - 3.6m (8ft - 12ft)

1m max - mounting height at 3.6m (3.3ft max - mounting height at 12ft)

2°C at 0.6m/s (35.6°F at 2ft/s)

0.3m - 3m/s (1ft - 10ft/s)

Switchable ON/OFF

H/L

N.C., opens when cover is removed. N.C. 28V DC, 100mA (max)

Approx. 60sec

9.5 - 16V DC

12mA (max)

Approx. 1.75oz (Approx. 50g)

-20°C - +50°C (-4°F - +122°F)

95% max

No alarm 10V/m at 80MHz - 1GHz

Indoor

3.6m (12ft)

3.0m (10ft)

2.4m (8ft )

(4ft)

1.2m

(0.65ft)

0.20m

(0ft)

Detection sensitivity can be adapted

to the ambience conditions for stable

performance.

LOW HIGH

SENSITIVITY

ased

anual

Double conductive shielding

3635

10 7

Unit: mm

Recommended Distance Adjacent to Wall or Ceiling
