Side 1/8

WARNING

Failure to follow the instructions provided with this indication and improper handling may cause death or

serious injury.

CAUTION

Failure to follow the instructions provided with this indication and improper handling may cause injury

and / or property damage.

WARNING

Do not use the product for purposes other than the detection of moving objects such as people and vehicles.

Do not use the product to activate a shutter, etc., which may cause an accident.

Do not touch the unit base or power terminals of the product with a wet hand (do not touch when the

product is wet with rain, etc.). It may cause electric shock.

Never attempt to disassemble or repair the product. It may cause ﬁ re or damage to the devices.

Do not exceed the voltage or current rating speciﬁ ed for any of the terminals during installation, doing so

may cause ﬁ re or damage to the devices.

CAUTION

Do not pour water over the product with a bucket, hose, etc. The water may enter, which may cause damage

to the devices.

Clean and check the product periodically for safe use. If any problem is found, do not attempt to use the

product as it is and have the product repaired by a professional engineer or electrician.

INSTALLATION MANUAL

・

Read this instruction manual carefully prior to installation.

・

After reading, store this manual carefully in an easily accessible place for reference.

・

This manual uses the following warning indications for correct use of the product and harm to you or other people and damage to

your assets, which are described below. Be sure to understand the description before reading the rest of this manual.

No. 59-1282-6 0808-20

PHOTOELECTRIC DETECTOR

AX-70TN, AX-130TN, AX-200TN

AX-100TF, AX-200TF

This symbol indicates prohibition. The speciﬁ c prohibited action is provided in and/or around the ﬁ guer.

This symbol requires an action or gives an instruction.

1. PRECAUTIONS

2. PARTS IDENTIFICATION

3. INSTALLATION

3-1 NOTE

3-2 INSTALLATION METHOD

4. WIRE CONNECTION

5. ALIGNMENT

5-1 OPTICAL ALIGNMENT

5-2 BEAM INTERRUPTION TIME

5-3 4 SELECTABLE BEAM FREQUENCIES * TF ONLY

6. WALK TEST

7. SPECIAL FUNCTION * TF ONLY

7-1 ENVIRONMENTAL DISQUALIFICATION

7-2 ALARM MEMORY

8. OPTIONAL ACCESSORIES

8-1 HEATING UNIT : HU-3

8-2 BACK COVER : BC-3

8-3 POLE SIDE COVER : PSC-3

9. TROUBLE SHOOTING

10. SPECIFICATIONS

C O N T E N T S

For Safe Use of the Product

< STANDARD >

< 4 SELECTABLE BEAM FREQUENCIES >

• 4 selectable beam frequencies

• LED indicator for ﬁ ne beam alignment level

• D.Q. circuit (Environmental disqualiﬁ cation)

• Alarm memory

< AX-100/200TF ONLY >

• High-performance waterproof structure

• Horizontal alignment dial for user-friendliness

• Adjustable beam interruption period

• Tamper function

• Optional Accessories : Heating unit (HU-3), Back cover (BC-3),

Pole side cover (PSC-3)

• UL Listed

< AX-70/130/200TN, AX-100/200TF >

Features

N219

Distances between the Receiver and the Transmitter

Wiring

Hole

View Finder

Vertical Alignment

Screw

Terminals

•Transmitting

Condition LED

(Transmitter)

•Alarm Indicator LED

(Receiver)

Monitor Jack

(Receiver)

Horizontal

Alignment Dial

Waterproof Plug

Selection Dip Switch

(See "4 WIRE

CONNECTION",

"5-2 BEAM

INTERRUPTION

TIME", and "7-2

ALARM MEMORY *

TF ONLY")

3.3ft.(1m)

Alarm Memory

(Receiver)

(See "7-2 ALARM

MEMORY * TF

ONLY")

Selection Switch

(See "5-3 4

SELECTABLE BEAM

FREQUENCIES * TF

ONLY")

1) Loosen the cover lock screw to detach the cover.

2) Turn the optical unit and open the waterproof plug.

3) Loosen the unit base lock screw and slide the mounting plate

downward to detach the unit base.

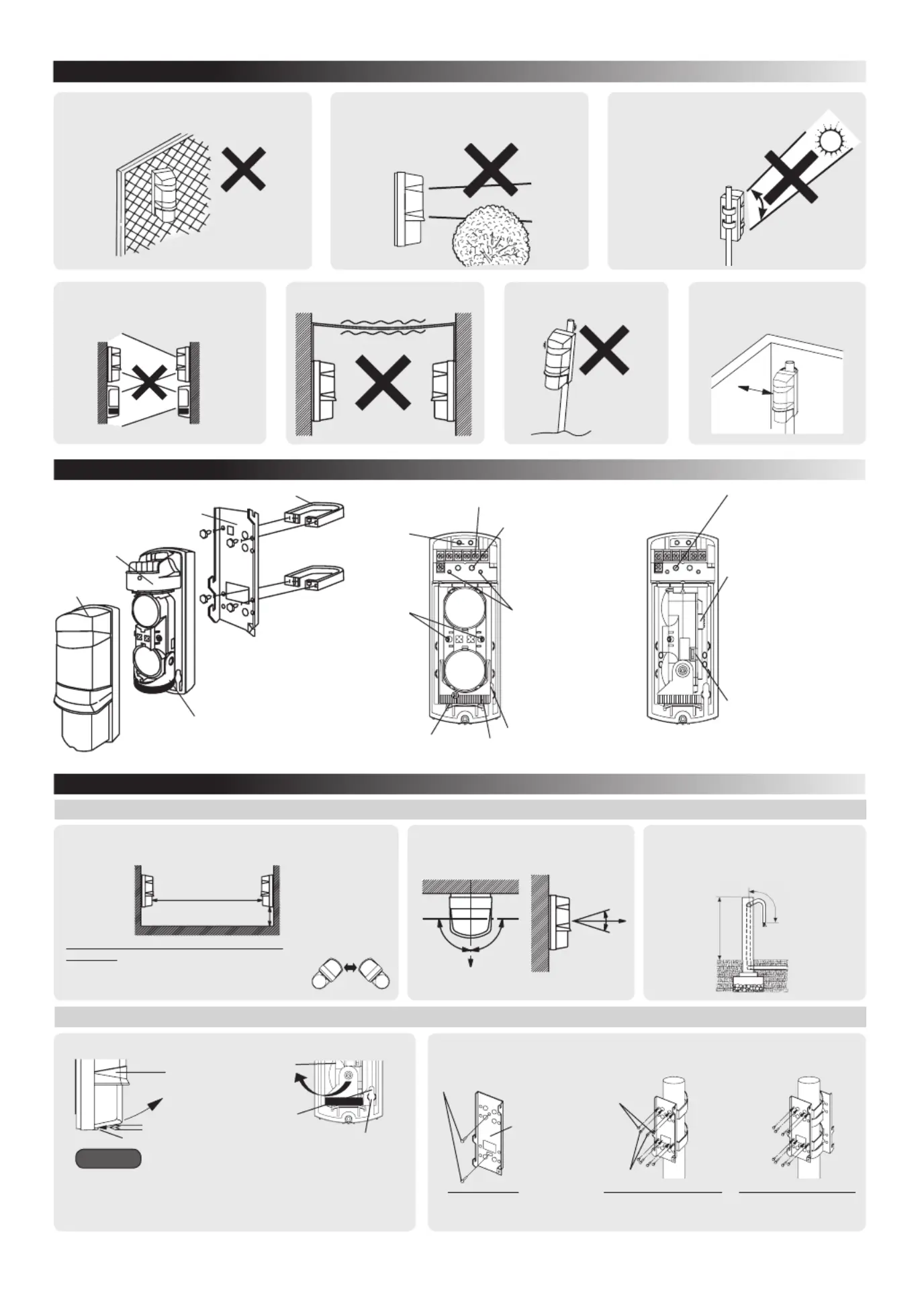

1. PRECAUTIONS

2. Do not install the unit where objects

moved by the wind such as plants and

laundry, which may block the beam.

1. Mount unit only on a solid surface.

4. A different type of beam

should not reach the receiver.

Prevent direct sunlight

from entering into internal

receiver.

5. Avoid aerial wiring.

6. Do not install the unit

on unsteady surfaces.

receiver

transmitter

(other model)

transmitter

3

2. PARTS IDENTIFICATION

Optical Unit

Cover

Unit Base

Mounting Plate

Pole-mounting Bracket

3. INSTALLATION

・

Pole size should be 1 1/4”-1 7/8” (

32-48mm).

(Standard U.S. 1 1/4” or 1 1/2”pipe)

ex) AX-70TN : 70ft.(20m)

2.3ft.-3.3ft. (0.7-1m)

180



(



)



(



)

Horizontally

Vertically

about 2.0ft.(60cm)

about 3.3ft.

(1m)

It is not recommendable to install the units in this way

(or direction). In case you do this installation, maximum

detection range shall be half of the original detection range.

(This is to prevent the attenuation of beam by the edge of

the cover.)

1. Detach the cover and the screw 2. Fix the mounting plate

When removing the cover, do not put your ﬁ ngers

on the hood, whitch may cause damage.

Cover Lock Screw

Hood

Optical Unit

Waterproof Plug

Unit Base lock Screw

Wall Mounting Screws

Mounting Plate

Wall mounting Pole mounting (1 plate) Pole mounting (2 plate)

Mounting Plate

Lock Screws

Pole Lock Screws

7. Mount the units more

than 1m away from the

wall or fence.

Note

3-2. INSTALLATION METHOD

3-1. NOTE

1. Detection range and installation 2. Alignment angle 3. Pole mounting

Produkt Specifikationer

Mærke:	Optex
Kategori:	Bevægelsesdetektor
Model:	AX-200TF
Vægt:	700 g
Produktfarve:	Sort
Udgangsspænding:	10.5 - 28 V
Strøm (maks.):	0.2 A
Omgivelsestemperatur (min):	-35 °C
Omgivelsestemperatur (maks):	60 °C
Gear rækkevidde:	60 - 600 m
