WARNING

Failure to follow the instructions provided with this indication and improper handling may cause death or

serious injury.

CAUTION

Failure to follow the instructions provided with this indication and improper handling may cause injury

and / or property damage.

WARNING

Do not use the product for purposes other than the detection of moving objects such as people and vehicles.

Do not use the product to activate a shutter, etc., which may cause an accident.

Do not touch the unit base or power terminals of the product with a wet hand (do not touch when the

product is wet with rain, etc.). It may cause electric shock.

Never attempt to disassemble or repair the product. It may cause ﬁ re or damage to the devices.

Do not exceed the voltage or current rating speciﬁ ed for any of the terminals during installation, doing so

may cause ﬁ re or damage to the devices.

CAUTION

Do not pour water over the product with a bucket, hose, etc. The water may enter, which may cause damage

to the devices.

Clean and check the product periodically for safe use. If any problem is found, do not attempt to use the

product as it is and have the product repaired by a professional engineer or electrician.

INSTALLATION MANUAL

・

Read this instruction manual carefully prior to installation.

・

After reading, store this manual carefully in an easily accessible place for reference.

・

This manual uses the following warning indications for correct use of the product and harm to you or other people and damage to

your assets, which are described below. Be sure to understand the description before reading the rest of this manual.

No. 59-1282-6 0808-20

PHOTOELECTRIC DETECTOR

AX-70TN, AX-130TN, AX-200TN

AX-100TF, AX-200TF

This symbol indicates prohibition. The speciﬁ c prohibited action is provided in and/or around the ﬁ guer.

This symbol requires an action or gives an instruction.

1. PRECAUTIONS

2. PARTS IDENTIFICATION

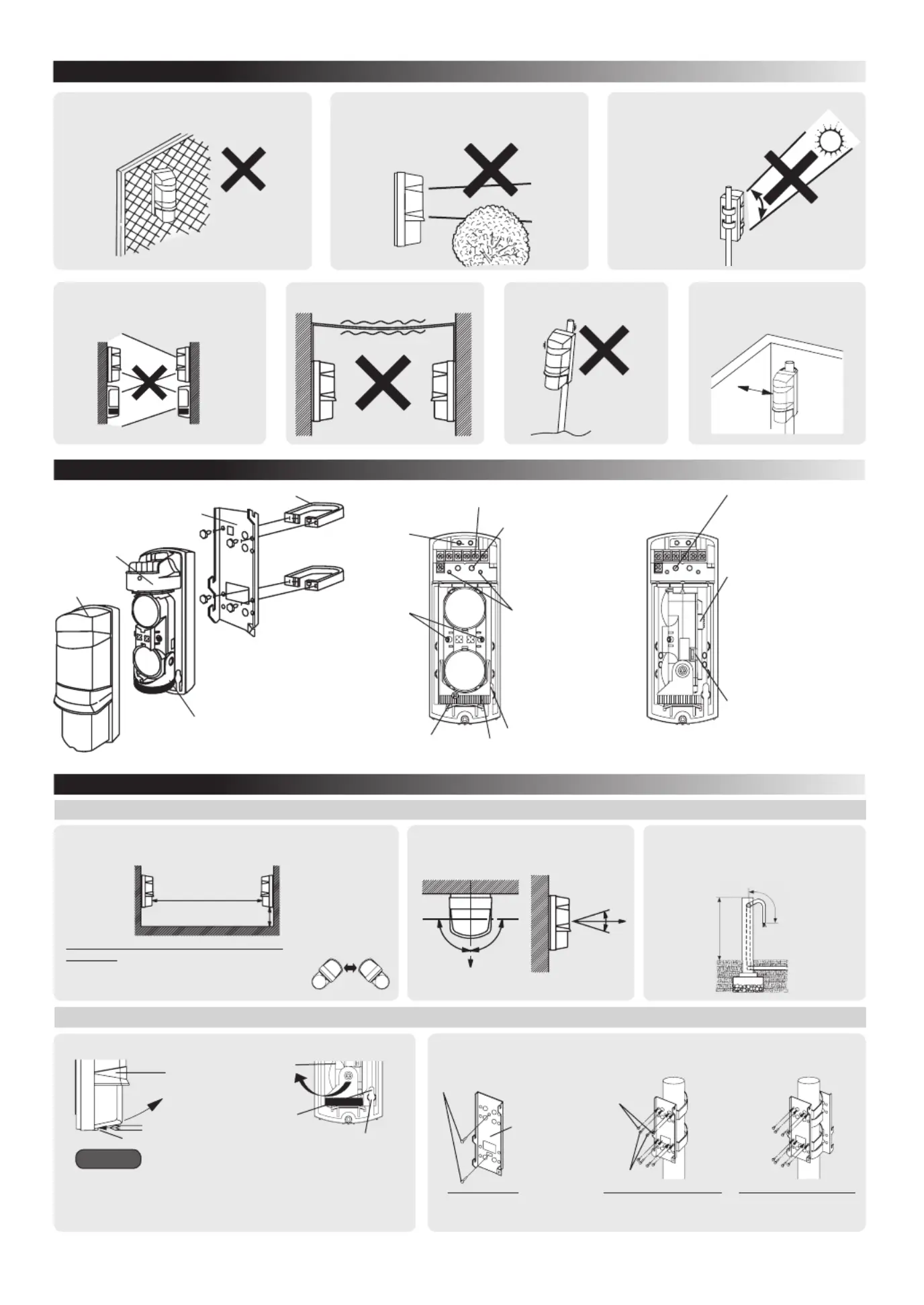

3. INSTALLATION

3-1 NOTE

3-2 INSTALLATION METHOD

4. WIRE CONNECTION

5. ALIGNMENT

5-1 OPTICAL ALIGNMENT

5-2 BEAM INTERRUPTION TIME

5-3 4 SELECTABLE BEAM FREQUENCIES * TF ONLY

6. WALK TEST

7. SPECIAL FUNCTION * TF ONLY

7-1 ENVIRONMENTAL DISQUALIFICATION

7-2 ALARM MEMORY

8. OPTIONAL ACCESSORIES

8-1 HEATING UNIT : HU-3

8-2 BACK COVER : BC-3

8-3 POLE SIDE COVER : PSC-3

9. TROUBLE SHOOTING

10. SPECIFICATIONS

C O N T E N T S

For Safe Use of the Product

< STANDARD >

< 4 SELECTABLE BEAM FREQUENCIES >

• 4 selectable beam frequencies

• LED indicator for ﬁ ne beam alignment level

• D.Q. circuit (Environmental disqualiﬁ cation)

• Alarm memory

< AX-100/200TF ONLY >

• High-performance waterproof structure

• Horizontal alignment dial for user-friendliness

• Adjustable beam interruption period

• Tamper function

• Optional Accessories : Heating unit (HU-3), Back cover (BC-3),

Pole side cover (PSC-3)

• UL Listed

< AX-70/130/200TN, AX-100/200TF >

Features

N219
