INSTALLATION INSTRUCTIONS

PHOTOELECTRIC DETECTOR

AX-330PLUS

• LED indicator for beam alignment level:

Accurate and reliable alignment can be easily achieved by using LED indicator located on the receiver.

The alarm indicating lamp is located in the front end of the inner housing and in viewfinder.

• Aligned fine angle adjustment:

By turning the dial, you can achieve vertical and horizontal optical adjustments.

• Form C relay:

Suitable for various applications.

• Anti-frost structure:

The front cover prevents fog and condensation from blocking the beams.

• Beam interruption time adjustment:

This feature allows you to select suitable beam interruption time for any environment.

• Alignment-level monitor jack

• Optional accessories ( not included):

Heating unit (HU-2), Back cover (BC-2)

PHOTOELECTRIC DETECTOR

AX-330PLUS

FEATURES

Warning

Caution

• Read this instruction manual carefully prior to installation.

• After reading, store this manual carefully in an easily accessible place for reference.

• This manual uses the following warning indications for correct use of the product, harm to you or other people and damage to your assets, which

are described below. Be sure to understand the description before reading the rest of this manual.

INTRODUCTION

1-1 BEFORE YOUR OPERATION

Failure to follow the instructions provided with this indication and improper handling may cause

death or serious injury.

Failure to follow the instructions provided with this indication and improper handling may cause

injury and/or property damage.

This symbol indicates prohibition. The specific prohibited action is provided in and/or around the figure.

This symbol requires an action or gives an instruction.

Warning

Caution

Do not use the product for purposes other than the detection of moving objects such as

people and vehicles. Do not use the product to activate a shutter, etc., which may

cause an accident.

Do not touch the unit base or power terminals of the product with a wet hand (do not

touch when the product is wet with rain, etc.). It may cause electric shock.

Never attempt to disassemble or repair the product. It may cause fire or damage to the

devices.

Do not exceed the voltage or current rating specified for any of the terminals during

installation, doing so may cause fire or damage to the devices.

Do not pour water over the product with a bucket, hose, etc. The water may enter,

which may cause damage to the devices.

Clean and check the product periodically for safe use. If any problem is found, do not

attempt to use the product as it is and have the product repaired by a professional

engineer or electrician.

No.59-2709-0 1712-25

Detection range

AX-330PLUS

100 m / 330 ft.

Model

- 1 -

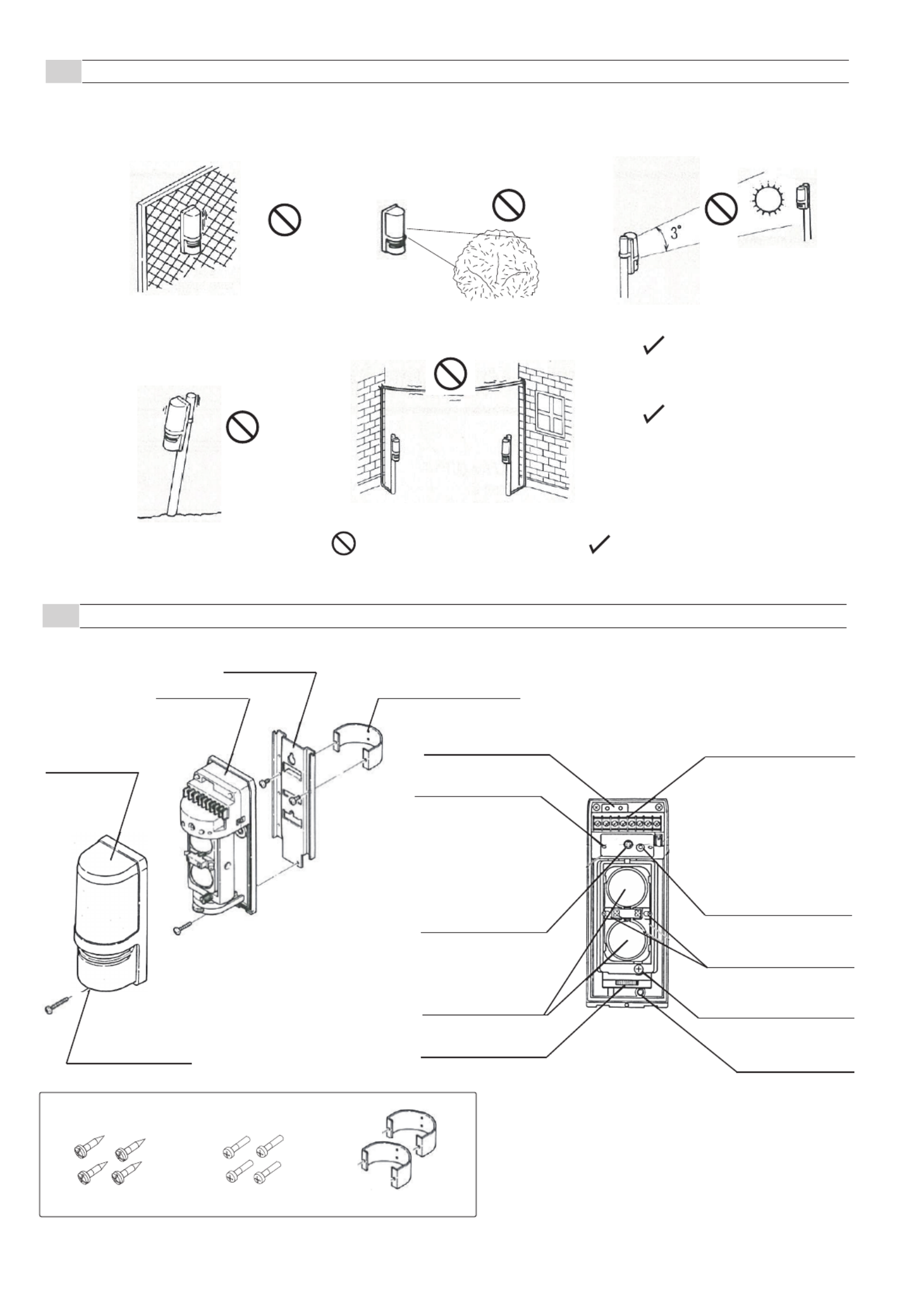

1-2 PRECAUTIONS

This symbol indicates prohibition. This symbol indicates recommendation.

Do not install the unit on an

unstable surface.

Do not install the unit in a location

where trees, leaves, or other objects

that may swing in the wind and block

the beam.

Do not install the receiver in a location

where it is exposed to direct sunlight.

1-3 PARTS IDENTIFICATION

The mounting pole should have a

solid basis with little movement at

the top of the pole.

Avoid aerial wiring. For indoor application, the wiring

installation is similar to that of

telephone wirings or the Internet.

For outdoor application, use wire

conduit as far as possible. Some

places require shielded wires or

underground wiring.

- 2 -

Mounting Plate

Unit Base

Front Cover

Cover Lock Screw

Wiring Knockout

Monitor Jack

Beam Interruption

Time Adjustment

Lens

Horizontal Alignment

Dial

Terminals

Alarm Indicator

(Receiver)

Transmitting Condition

(Transmitter)

View Finder

Vertical

Alignment Dial

Unit Base Mounting

Screw

U-Shaped Bracket

(accessory)

ACCESSORIES >>

U-Shaped brackets x 24×20 self tapping x 4 M4×14 screws x 4

Produkt Specifikationer

Mærke:	Optex
Kategori:	Ikke kategoriseret
Model:	AX-330PLUS
Bredde:	78 mm
Dybde:	83 mm
Højde:	196 mm
Vægt:	1040 g
Produktfarve:	Sort
Udgangsspænding:	10.5 - 28 V
Strøm (maks.):	0.046 A
Omgivelsestemperatur (min):	-25 °C
Omgivelsestemperatur (maks):	55 °C
Gear rækkevidde:	100 - 1000 m
