Side 1/8

< CONTENTS >

< FEATURES >

Multilingual instructions

Visit to the Web site to find

valious language versions.

https://navi.optex.net/manual/08697/

EN-1

No.59-2263-2 2207-16

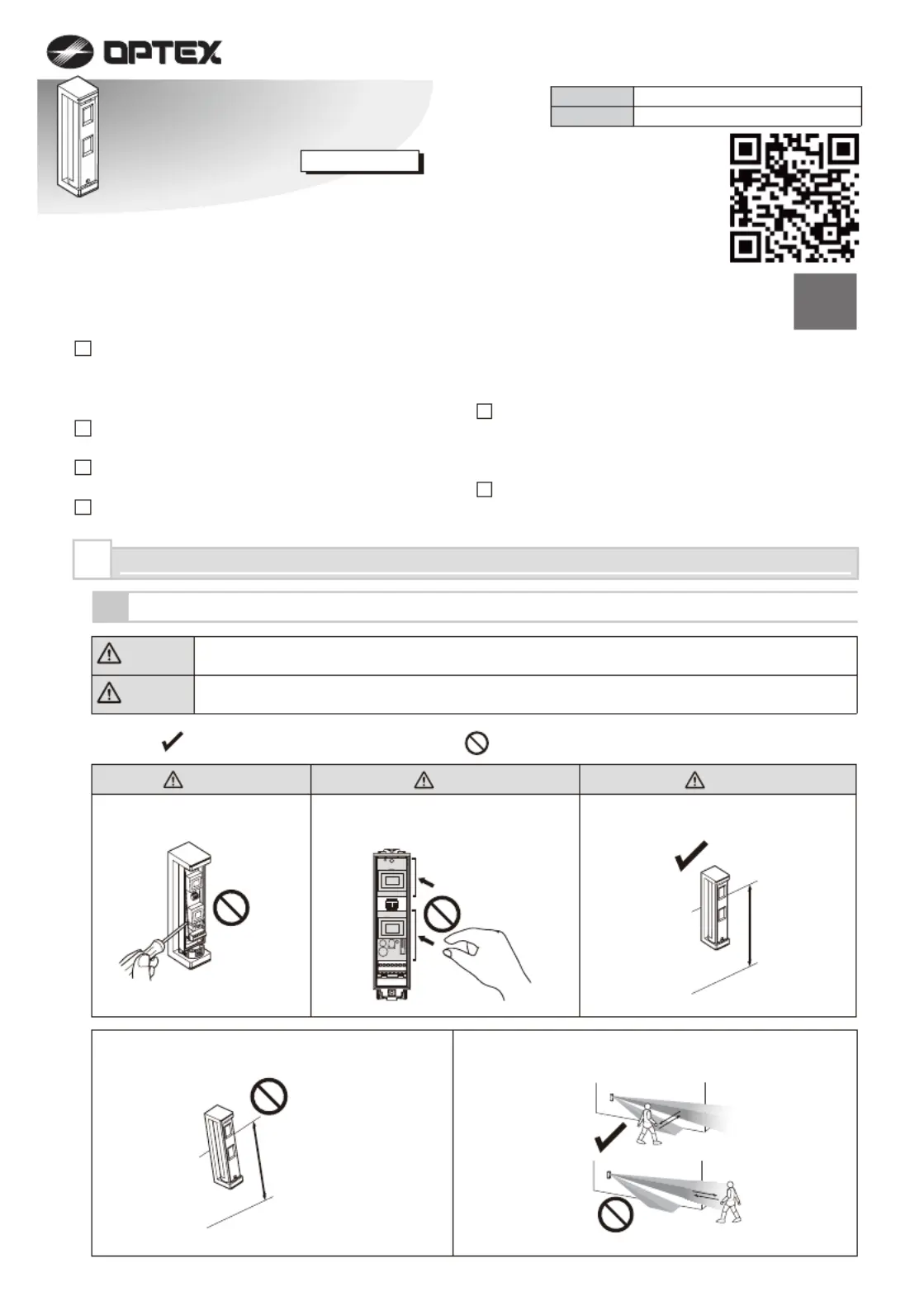

INSTALLATION INSTRUCTIONS

fit

FTN-ST Standard model with 2 PIRs

FTN-AM FTN-ST with anti-masking

Compact outdoor

detector

Compact outdoor

detector

series

series WIRED MODEL

• Compact design

• 190° adjustable bracket

• Intelligent AND logic

• Digital anti-masking (AM model)

• Wall tamper (option)

1 INTRODUCTION

1-1 BEFORE INSTALLATION ...................................... 1

1-2 PARTS IDENTIFICATION...................................... 2

1-3 DETECTION AREA................................................ 2

2 INSTALLATION

2-1 INSTALLATION...................................................... 3

3 WALK TEST

3-1 WALK TEST ........................................................... 5

4 DIP SWITCH SETTING

4-1 LED ........................................................................ 5

4-2 ALARM OUTPUT ................................................... 5

4-3 PIR SENSITIVITY .................................................. 5

4-4 ANTI-MASKING...................................................... 6

5 OTHERS

5-1 WALL TAMPER (OPTION) CONNECTION ........... 6

5-2 EXAMPLE OF EOL WIRING.................................. 7

5-3 LED LIGHT PATTERN ........................................... 7

6 SPECIFICATIONS

6-1 SPECIFICATIONS.................................................. 8

6-2 DIMENSIONS......................................................... 8

The check mark indicates recommendation. The nix sign indicates prohibition.

Warning

Caution

Failure to follow the instructions provided with this indication and improper handling may cause

death or serious injury.

Failure to follow the instructions provided with this indication and improper handling may cause

injury and/or property damage.

Warning Caution Caution

Do not remove the PCB.

2 3 4

0.8 to 1.2 m

(2.6 to 3.9 ft.)

Parallel

Mounting height.

Tilt

Keep the detector parallel to the ground. Consider the direction of the intruder,

for the setting of the detection area.

Do not touch the PCB except for the

DIP switch.

1INTRODUCTION

1-1

BEFORE INSTALLATION

EN-2

2 3 4 5

(m) (ft.)

(ft.)

(m)

-Optional accessories

Wall tamper (WRS-02)

Bracket

Sponge Fixture

Main unit

Main unit cover

Lens

Screw kit

Screw (3 × 20 mm)

0 5 10 15

0.8

(m)

1.0

1.2

2.6

0(ft.)

3.3

3.9

10 2 3 4 5

(m)

(ft.)

0 5 10 15

0.8

(m)

1.0

1.2 10 2 3 4 5

(m)

2.6

0(ft.)

3.3

3.9

(ft.)

Top view Side view

2 m detection length

5 m detection length

Adjustable range: 95°

(by 5° pitch)

Adjustable range: 95°

(by 5° pitch)

Sponge

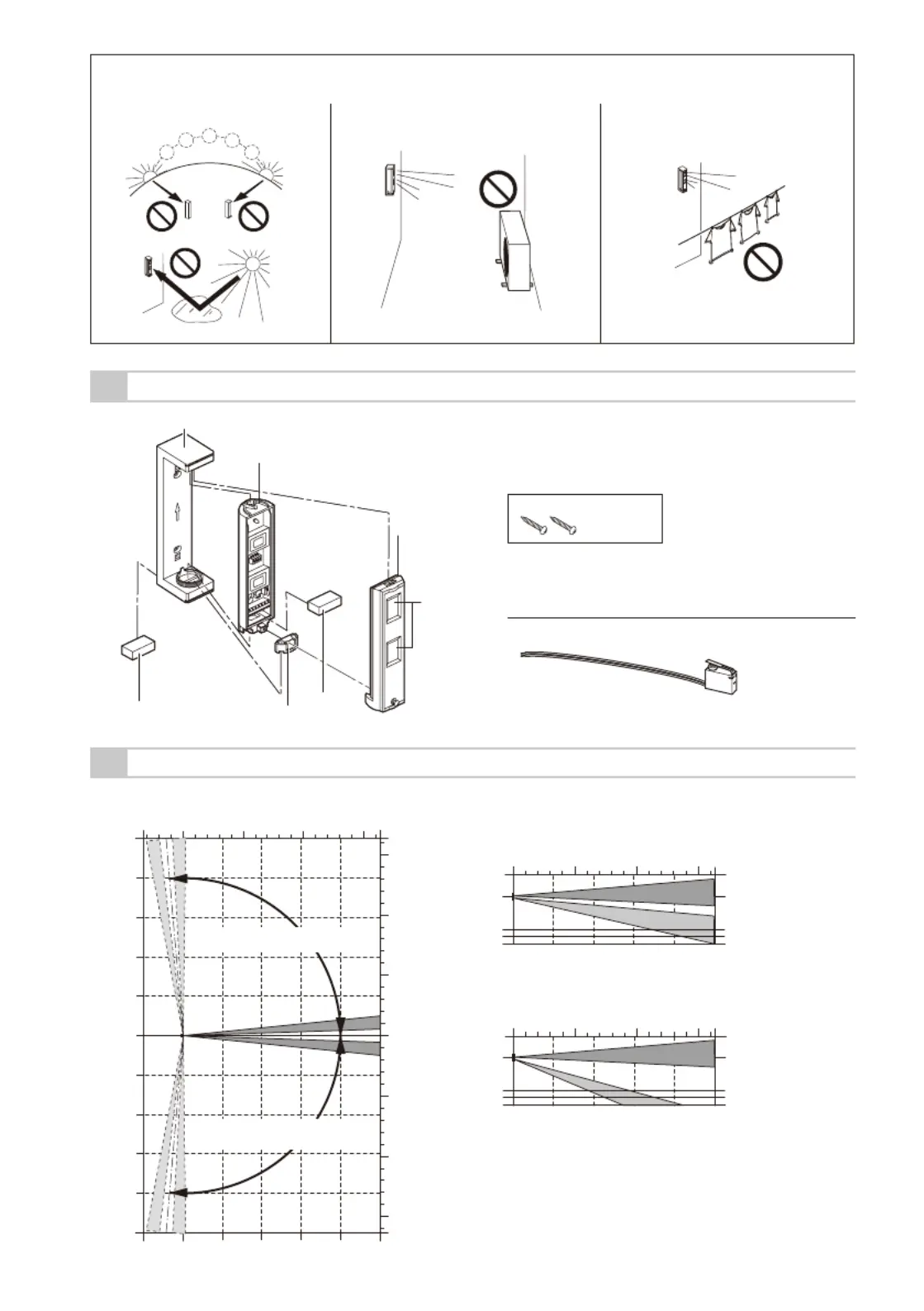

Install the detector in a place where it is free from false alarm factors. For example:

• Objects moving in the wind • Heat source• Sunlight and reflection

1-2

PARTS IDENTIFICATION

1-3

DETECTION AREA
