Side 1/13
- 1 -
INTRODUCTION
1
CONTENTS
! INTRODUCTION
1-1
BEFORE OPERATION ......................................................................... 1
1-2
PRECAUTIONS ................................................................................... 2
1-3
PARTS IDENTIFICATION .................................................................... 2
1-4
INSTALLATION WORK FLOWCHART................................................. 2
± TYPES OF INSTALLATION METHOD AND DETECTION AREAS
2-1
TYPES OF INSTALLATION METHOD ................................................. 3
2-2
TYPES OF DETECTION METHOD ..................................................... 3
2-3
AREA SETTING PROCEDURE ........................................................... 4
#
INSTALLATION AND ANGLE ADJUSTMENT
3-1
INSTALLING TO WALL OR CEILING PLANE ...................................... 4
3-2
INSTALLING TO POLE ........................................................................ 5
3-3
INSTALLING AT AN ANGLE TO WALL, CEILING PLANE OR POLE .. 5
3-4
CONFIRMATION OF LOCATION OF THE LASER PLANE ................. 6
$ PARTS LAYOUT INSIDE THE COVER AND THEIR FUNCTIONS
4-1
WIRING ................................................................................................ 6
4-2
SIGNAL OUTPUT ................................................................................. 6
4-3
POWERING ON ................................................................................... 6
4-4
LED FUNCTIONS ................................................................................ 7
4-5
INITIALIZATION TO FACTORY DEFAULT ........................................... 7
% SETTING HORIZONTAL DETECTION AREAS 2
5-1
SELECTOR SWITCH OPERATION ..................................................... 7
5-2
ADJUSTMENT OF HORIZONTAL DETECTION AREA ....................... 7
5-3
AUTO SETTING OF HORIZONTAL DETECTION AREA ..................... 8
& SETTING VERTICAL DETECTION AREA
6-1
SELECTOR SWITCH OPERATION ..................................................... 8
6-2
ADJUSTMENT OF VERTICAL DETECTION AREA ............................. 9
6-3
AUTO SETTING OF VERTICAL DETECTION AREA .......................... 9
² AREA CHECKUPS
7-1
WALK TEST ....................................................................................... 10
7-2
SYSTEM FUNCTION AFTER POWER FAILURE .............................. 10
( IP CONNECTION WITH REDSCAN
8-1
DEFAULT SETTINGS ......................................................................... 10
8-2
REDSCAN MANAGER ....................................................................... 10
8-3
REDWALL EVENT CODE ................................................................. 10
) SPECIFICATIONS
9-1
SPECIFICATIONS OF THE MAIN UNIT ............................................ 11
9-2
DIMENSIONAL DRAWING................................................................. 11
9-3
OPTIONS ........................................................................................... 11
1-1
BEFORE OPERATION
Read this instruction manual carefully prior to installation.
This manual uses the following warning indications to provide
information regarding correct usage of the product to prevent
you and other people from being harmed and your assets
from being damaged. These warning indications are described
below.
Ensure you understand these precautions before reading the
rest of this manual.
Warning
Failure to follow the instructions provided by
this warning and improper handling may cause
death or serious injury.
Caution
Failure to follow the instructions provided by
this caution and improper handling may cause
injury and/or property damage.
This symbol indicates prohibition.
The specic prohibited action is provided in and/or around
the gure.
This symbol requires an action or gives an instruction.
Warning
Do not use the product for purposes other than the
detection of moving objects such as people and
vehicles.
Do not use the product to activate a shutter, etc.,
which may cause an accident.
Do not touch the unit base or power terminals of
the product with a wet hand (do not touch when the
product is wet with rain, etc.). It may cause electric
shock.
Never attempt to disassemble or repair the product. It
may cause re or damage to the devices.
Do not exceed the voltage or current rating specied
for any of the terminals, doing so may cause re or
damage to the devices.
Ensure the power is turned o before connecting
wiring.
Conrm the signal name of every terminal to ensure
wiring is carried out correctly.
Whenever a commercial switching regulator is used,
be sure to connect PE (Protective Earth Terminal).
Hold the main unit securely when you install or
service it. Exercise care not to bump the product
against nearby objects or drop it inadvertently.
This product is not capable of detecting objects in the
dead zone of the laser scan.
Do not use this product for an application where it is
not capable of covering the detection area required
by the task.
Please note that the product can malfunction,
including producing an irregular output and
committing a detection error, if it is exposed to
unfavorable environmental conditions such as
strong ambient light, electronic noises or mechanical
vibrations.
Caution
Use of controls or adjustments or performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
Clean and check the product periodically for safe use.
If any problem is found, do not attempt to use the
product as it is.
When disposing of this product, be sure to follow the
waste-disposal regulations of the country or region
where it is used.
This product is intended to detect an intruder(s)
and is not designed to prevent theft, disasters or
accidents. The manufacturer shall not be held liable
for any damage to users property resulting from
theft, disasters or accidents.
FEATURES
* Detection range is 30m (Approx. 100ft.) radius, max. 190 degree
* Selectable horizontal or vertical detection area
* Recognition of the intrusion location which can activate 4
independent outputs for PTZ control
* Flexible and easy setup of the required detection area
* Analog (dry-contact) output and IP connection
REDSCAN is an area sensor that congures a fan-like detection
area of 30 m (Approx.100 ft.) radius over 190 degrees arc. using
laser beams.
REDSCAN detects target objects by emitting laser beams at the
target and measuring the time required for the emitted beams to
be reected and returned to the detector.
There are 2 modes for detecting an intruder. Horizontal Detection
Area2 and Vertical Detection Area. Each one is congured with
an independent detection algorithm.
No. 5918 5- 110 15 
INSTALLATION INSTRUCTIONS
RLS-3060L
Laser Scan Detector
Laser Scan Detector
RLS-3060L
- 2 -

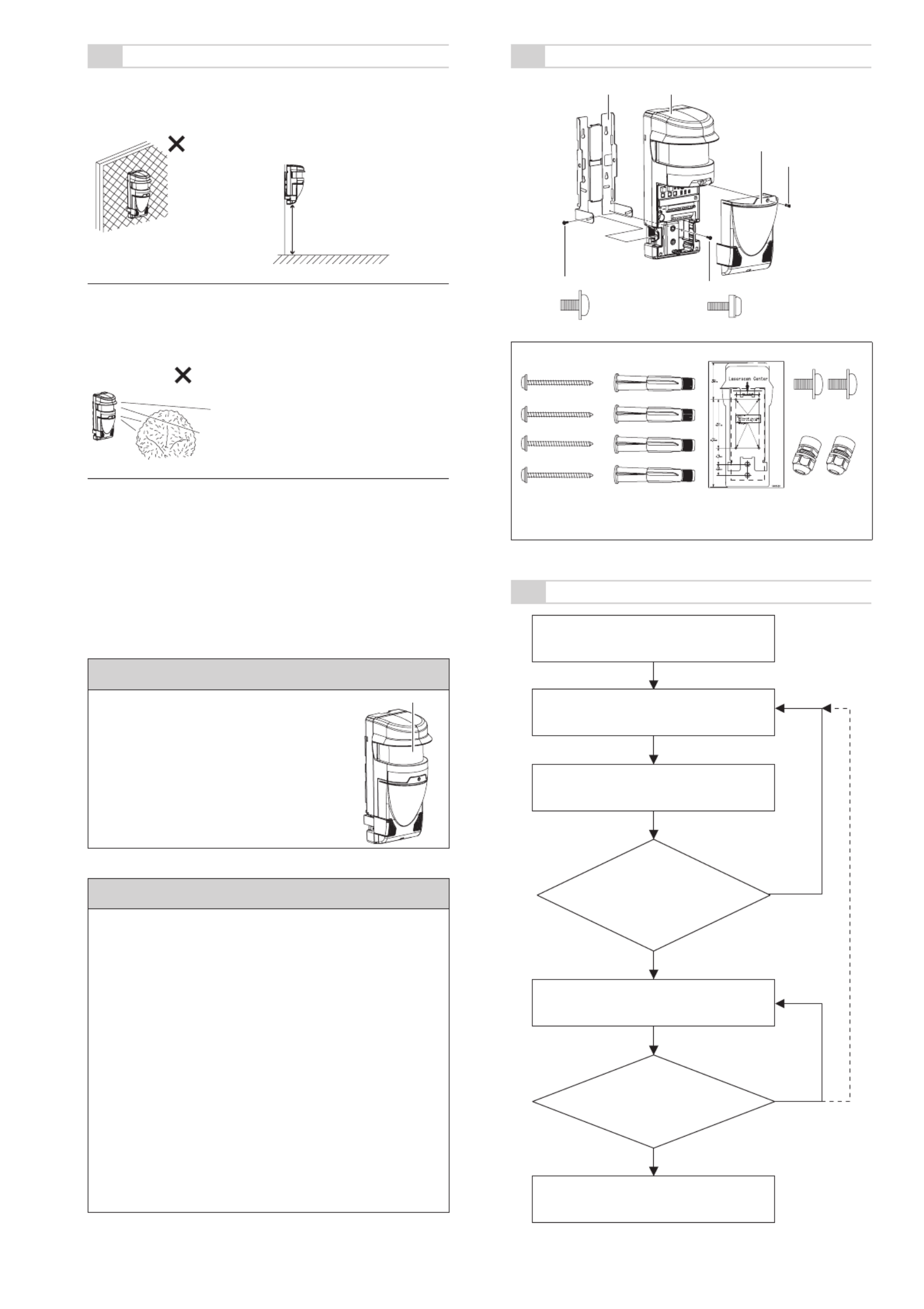

1-2
PRECAUTIONS
Install the product only on a
solid surface.
In the Horizontal Detection
Area, this product must
normally be used within the
recommended installation
height in order to detect an
intruder.
Install the product so that the
detection area is not inuenced
by interference from tall grass
or tree branches waving in the
wind.
Do not install or leave the
product in a location exposed
to heat, vibrations or impacts
Do not use the product in an
environment where solvent
fumes or corrosive gases are
present.
Do not use this product in
environments where there
may be oil mist particles which
may contaminate the window
of the detector; thus causing
detection errors and possible
corrosion which may lead to
product failure.
The symbol ” indicates prohibited actions.Í
Cleaning the Product
Clean the front window on a regular basis
using a wet cloth.
A smeared front window can limit the
detection area due to the reduced laser
sensitivity. In addition, heavy soiling of the
window can induce detection errors.
Front window
On Safety of Laser
This product is categorized as a Class 1 product in terms of the
Safety Standard.
Average Power : Max. 0.015 mW (AEL)
Wavelength : 905 nm
Pulse Width : 4 ns
Emission period : 36 μs
Standard : IEC60825-1
Class 1 of the Laser Safety Standard means that the safety
of laser products belonging to this class is warranted under
normal operating conditions (reasonably predictable operating
conditions). The product is marked to indicate that it is laser
equipment. No additional safety measures are necessary.
Complies with 21 CFR 1040.10 and 1040.11 except for
deviations pursuant to Laser Notice No.50,
dated June 24, 2007.
Class 1 laser product
Do not expose your eyes directly to the laser beam.
1-3
PARTS IDENTIFICATION
Mounting bracket Main unit
Cover
Cover mounting screw
Main unit mounting screw
Angle adjustment screw
Accessories>>
4 screws
(For xing the
mounting bracket)
4 anchors
for the wall
1 mounting holes
template
(printed on inside
of the carton box)
2 cable glands
2 screws
(spare parts)
1-4
INSTALLATION WORK FLOWCHART
Walk-test and conrm
the detection area.
(Refer 8-1)
Choose the detection area mode and
installation location. (Refer 2)
Mounting and angle adjustment.
(Refer 3)
Wiring and Power On.
(Refer 4)
Conrmation of location
of the laser plane.
(Refer 3-4)
Area adjustment (Refer 5, 6)
Completion
OK
OK
NG
NG
Installation height:
0.7 m to 1 m
(2.3 ft. to 3.3 ft.)
