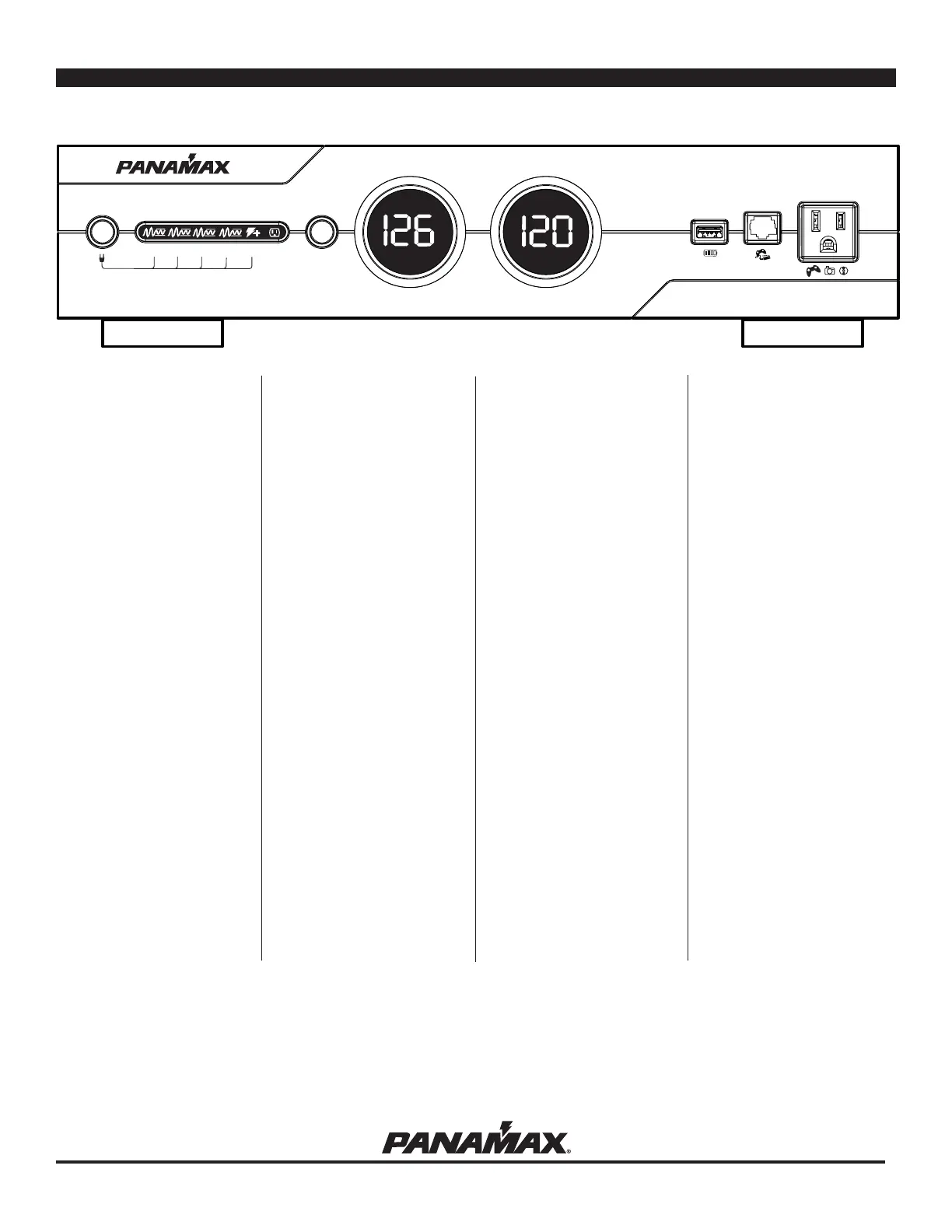

MAX® 5400-PM BACK PANEL FEATURES
1. 15A Main Circuit
Breaker:
Automatically opens
when the current load
is greater than 15
Amps. Push to reset.
4. Outlet Banks 1 and 2
Each bank features two always-on outlets with
voltage regulation and linear ltration technology
(LiFT). Power will only be turned o under a fault
condition. (See specications for over-voltage
and under-voltage thresholds). LiFT EMI/RFI
noise ltration is provided by a two-stage bal-
anced Pi lter which also provides noise isolation
from all other outlet banks.
5. Universal Coaxial
Connectorss
3 pairs of bidirectional
protection circuits optimized for
satellite, cable, and antenna
TV signal lines.
3. Outlet Banks 3 and 4
Each bank features two switched outlets with
voltage regulation and linear ltration technology
(LiFT) controlled by the front panel Power Button
or the DC Trigger input. Banks 3 & 4 will turn on
immediately and turn o after a 10 second delay.
LiFT EMI/RFI noise ltration is provided by a two-
stage balanced Pi lter which also provides noise
isolation from all other outlet banks.
2. Outlet Bank 5
Two switched, high-current outlets controlled by
the front panel Power Button or the DC Trigger in-
put. Bank 5 has a 5 second turn on delay and turns
o immediately upon shutdown. The High Current
outlets provide power from a low impedance noise
ltration circuit that does not limit the current to
your equipment. Its output is noise-isolated from all
other outlet banks
6. Main Power Cord 10ft.
Must be plugged into a
properly wired & grounded
3-wire outlet.
8. Bank 1 & 2 Indicator
Light
Normally ON, is lit when
there is power present
on the Bank 1 and 2
receptacles.
11. LAN Jacks
Protection circuits for 10/100 baseT Ethernet
lines. For the LAN 2 protected jacks, the incom-
ing LAN line MUST be plugged into the LINE
jack and the patch cord to the equipment MUST
be plugged into the EQUIP jack. For the LAN 1
protected jacks the incoming LAN line must be
plugged into the LINE jack and the equipment
must be plugged into the gaming jack on the
front panel. 8 wire protection, 52V clamping.
10. Voltage Sense Trigger
Input
3.5mm (1/8”) mono mini-plug.
Connect to a remote trigger
device that uses a DC output
to trigger a startup/shutdown
sequence.
7. Ground Lug:
Provides a common
grounding point for
equipment with separate
ground leads.
12. Phone Jacks
Protection circuits for standard
telephone or pay-per-view lines.
Phone circuit is autoresetting.
Incoming phone cord MUST be
plugged into the LINE jack. Patch
cords to the equipment (satellite
receiver, digital video recorder,
telephone, etc.) MUST be plugged
into the EQUIP jacks.
MAX® 5400-PM SPECIFICATIONS
UPC’S, QUANTITIES, WEIGHTS & MEASUREMENTS FOR ORDERING & SHIPPING
General________________________________________________________________
Dimensions......................................17 in. W x 12.75 in. D x 3.5 in H, (4.1 in. Including feet)
Weight.........................................................................................................................36 lbs.
AC Power_______________________________________________________________
Catastrophic Surge Circuit................................................................................................Yes
Auto-Resetting Over-voltage shuto............................................................142 VAC ± 8 VAC
Auto-Resetting Under-voltage shuto............................................................90 VAC ± 2 VAC
Thermal Fusing:...............................................................................................................Yes
Line Voltage.........................................................................................................120V, 60Hz
Initial Clamping Level....................................................................................................200V
UL1449 Suppression Rating..........................................................................................330V
Protection Modes.............................................................................................L-N, L-G, N-G
Maximum Current Rating................................................................................................15 A
Energy Dissipation..............................................................................................2125 Joules
Peak Impulse Current.............................................................................................. 72,000 A
EMI/RFI Noise Filtration___________________________________________________
Banks 1, 2, 3, 4 ............................................................................. 80 db, 100 KHz – 2 MHz
Bank 5, High Current Outlets..........................................................60 db, 100 KHz – 2 MHz
Voltage Regulation (Banks 1-4)_____________________________________________
Power / Current…………………………………………………………….....…....1500 VA / 12A
Input Voltage Range:……………………………………………………...……...…100-136 VAC
Output Voltage Range:…………………………………………………………120 VAC ± 6 VAC
Buck Stage:……….………………………………...… reduces voltage in the 125-136 V range
Boost Stage 1:………………………………………..… boosts voltage in the 109-119 V range
Boost Stage 2:…………………………………………. boosts voltage in the 100-109 V range
Specications are subject to changes due to product upgrades and improvements.
DC Trigger Input__________________________________________________________
Jacks......................................................................................... 3.5mm (1/8” mono mini-plug)
Voltage and Polarity........................................................................3 - 24V DC, Bidirectional
Current Requirement....................................................................4.6 mA @3V, 58 mA @24V
DC Trigger Output________________________________________________________
Pass through............................................................................................................no delay
Positive = Tip, Negative = Ring
LAN Circuits_____________________________________________________________
Clamping Level............................................................................................................... 52V
Wires Protected:......................................................................................................... 8-Wires
Connectors................................................................................................................... RJ-45
USB Circuit_____________________________________________________________
Jacks......................................................................................................................... USB-A
Power Delivery.......................................................................................... 500 mA @ 5VDC
Telco Protection_________________________________________________________
Fuseless/Auto-resetting..................................................................................................Yes
Clamping Level.............................................................................................................260V
Capacitance....................................................................................................30pf (approx.)
Suppression Modes..........................................................................Metallic & Longitudinal
Wires Protected.......................................................................................2-Wire, Pins 4 & 5
Connectors..................................................................................................................RJ-11
Universal Coax Protection_________________________________________________
HD 1080 i/p Ready...........................................................................................................Yes
Shielded..........................................................................................................................Yes
Clamping Level...............................................................................................................75V
Frequency Range....................................................................................... 0 MHz - 2.2 GHz
Insertion Loss........................................................................................................... < 0.5 dB
Connections.....................................................................................Female “F”, Gold Plated
Bidirectional.....................................................................................................................Yes
MODEL M5400-PM MASTER CARTONUNIT CARTON
Dimensions Weight Dimensions Weight UPC Qty Dimensions Weight UPC
17” x 12.75” x 3.5” 36 lbs 23.75” x 18.5” x 10” 39.5 Lbs 0 50616 00815 0 1 Same as 39.5 Lbs 5 00 50616 00815 5
4.1” H with feet Unit Carton
