For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

FS047A

Page 1 of 2

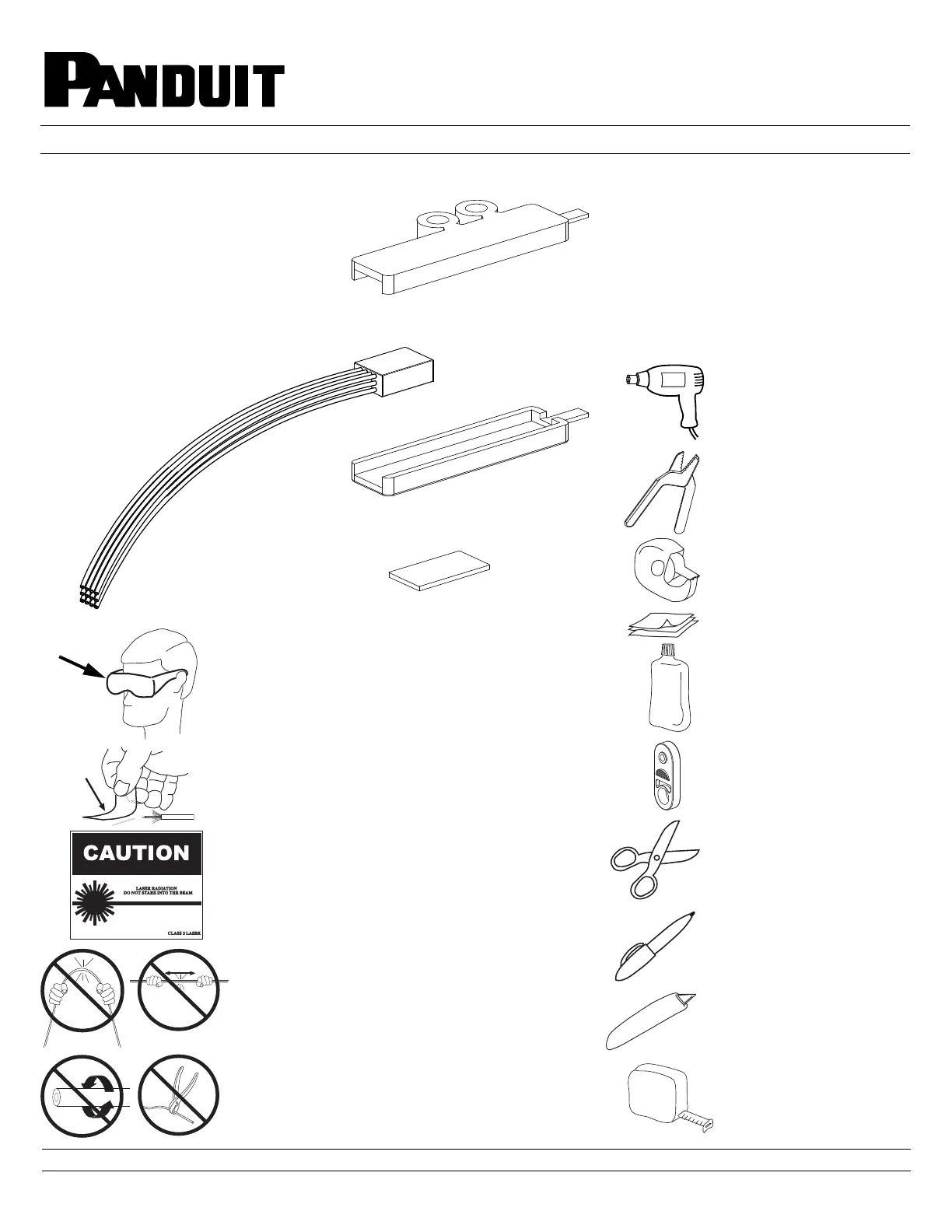

Opticom Fanout Kit

Part Numbers: FO6CB, FO12CB

PRECAUTIONS

1. SAFETY GLASSES

WARNING: It is strongly recommended that

safety glasses be worn when handling bare

optical fiber. The bare fiber is very sharp and

can easily damage the eye.

2. DISPOSAL OF BARE FIBERS

WARNING: Pick up and discard all pieces of

bare fiber with sticky tabs. Do not let cut pieces

of fiber stick to clothing or drop in the work

area where they are hard to see and can

cause injury.

3. LASER LIGHT PROTECTION

WARNING: Laser light is invisible. The invisi-

ble light is powerful enough to damage your

eyes. Serious damage to the retina of the eye

is possible. Never look into the end of a fiber

which may have a laser coupled into it. Should

accidental eye exposure to laser light be sus-

pected, arrange for an eye examination imme-

diately.

4. CABLE HANDLING

WARNING: Fiber optic cable can be damaged

by excessive pulling, twisting, crushing or

bending stresses. Consult the appropriate

specification sheets as provided by your cable

vendor. Any damage may result in decreased

optical performance.

CONTENTS

HEAT GUN

CABLE JACKET

STRIPPER (CST-115)

ADHESIVE TAPE

LINT-FREE WIPES

(FWP-C)

GEL CLEANER

CABLE STRIPPING

TOOL (CJT)

ARAMID YARN

CUTTER (FKC)

MARKING PEN

(PFX-0)

UTILITY KNIFE

TAPE MEASURE

COVER

BASE

TUBE ASSEMBLY

1 METER (36")

DOUBLE SIDED TAPE

REQUIRED

TOOLS

E-mail:

techsupport@panduit.com

Phone:

866-405-6654

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

FS047A

www.panduit.com

Page 2 of 2

ADHESIVE TAPE

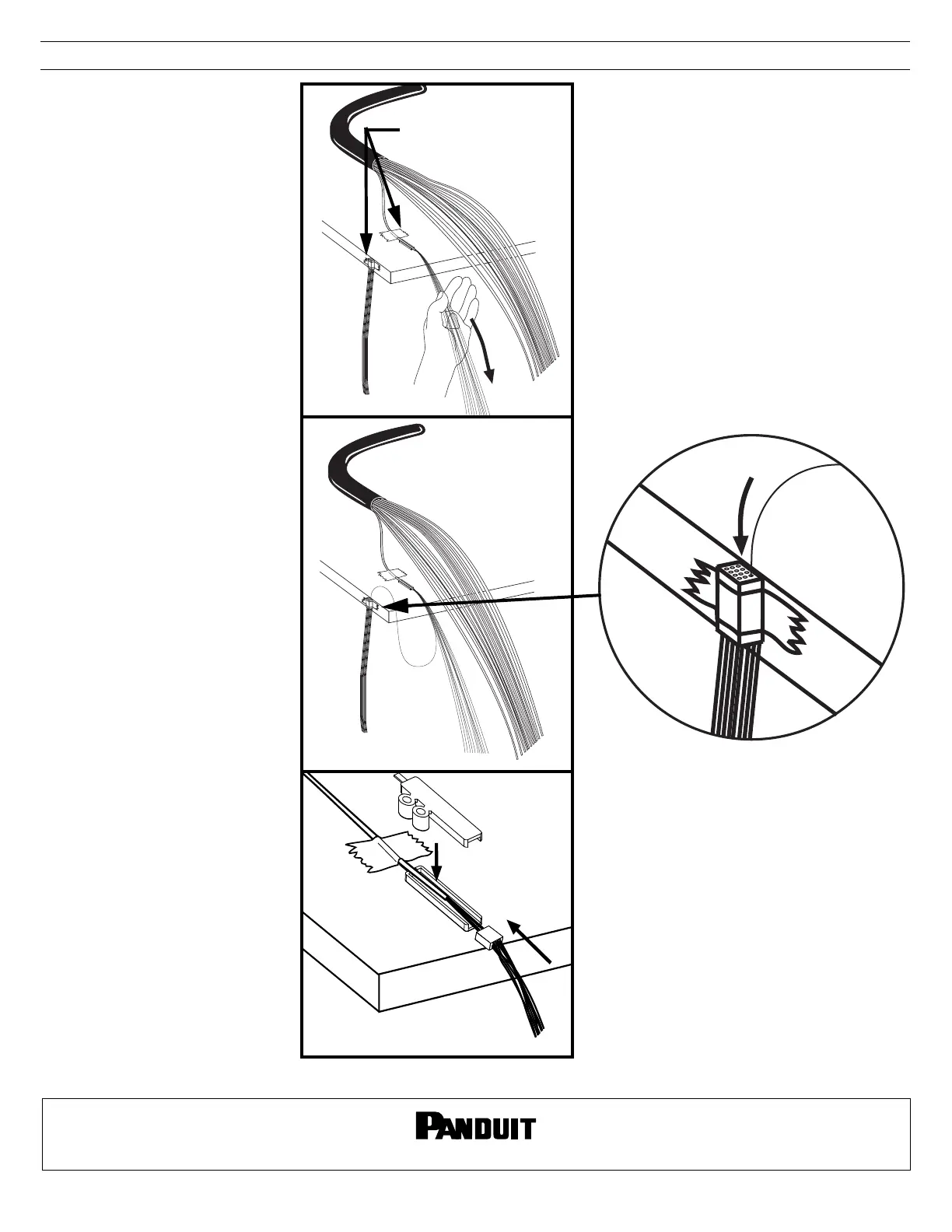

1. Slide heat shrink tube over

cable.

2. Prepare cable according to

cable manufacturer’s

instructions. Make sure the

fibers are free of all gel.

3. Lay the cable on a table as

shown in Fig. 1.

4. Tape the furcation tube

assembly securely to the

edge of the table as shown

in Fig. 2.

5. Carefully thread each fiber

into the tube assembly.

Match the fiber colors to the

colors of the tubing.

6. When the tube assembly is

loaded, remove it from the

edge of the table.

7. Slide the tube assembly

toward the base making

sure that the fibers do not

bend, kink, or twist as

shown in Fig. 3.

8. Place the tube assembly

into the base.

9. Snap the cover on top of the

base.

10. Slide the heat shrink tube up

and use heat gun to shrink

to the housing.

11. Use the double sided tape

to mount the base as

needed.

Fig. 1

Fig. 2

Fig. 3

Produkt Specifikationer

Mærke:	Panduit
Kategori:	Ikke kategoriseret
Model:	FO12CB
Produktfarve:	Flerfarvet
Kabellængde:	1 m
Bæredygtighedscertifikater:	RoHS
Fuld duplex:	Ingen
Kernediameter:	250 µm
Beklædning diameter:	- µm
