Side 1/4

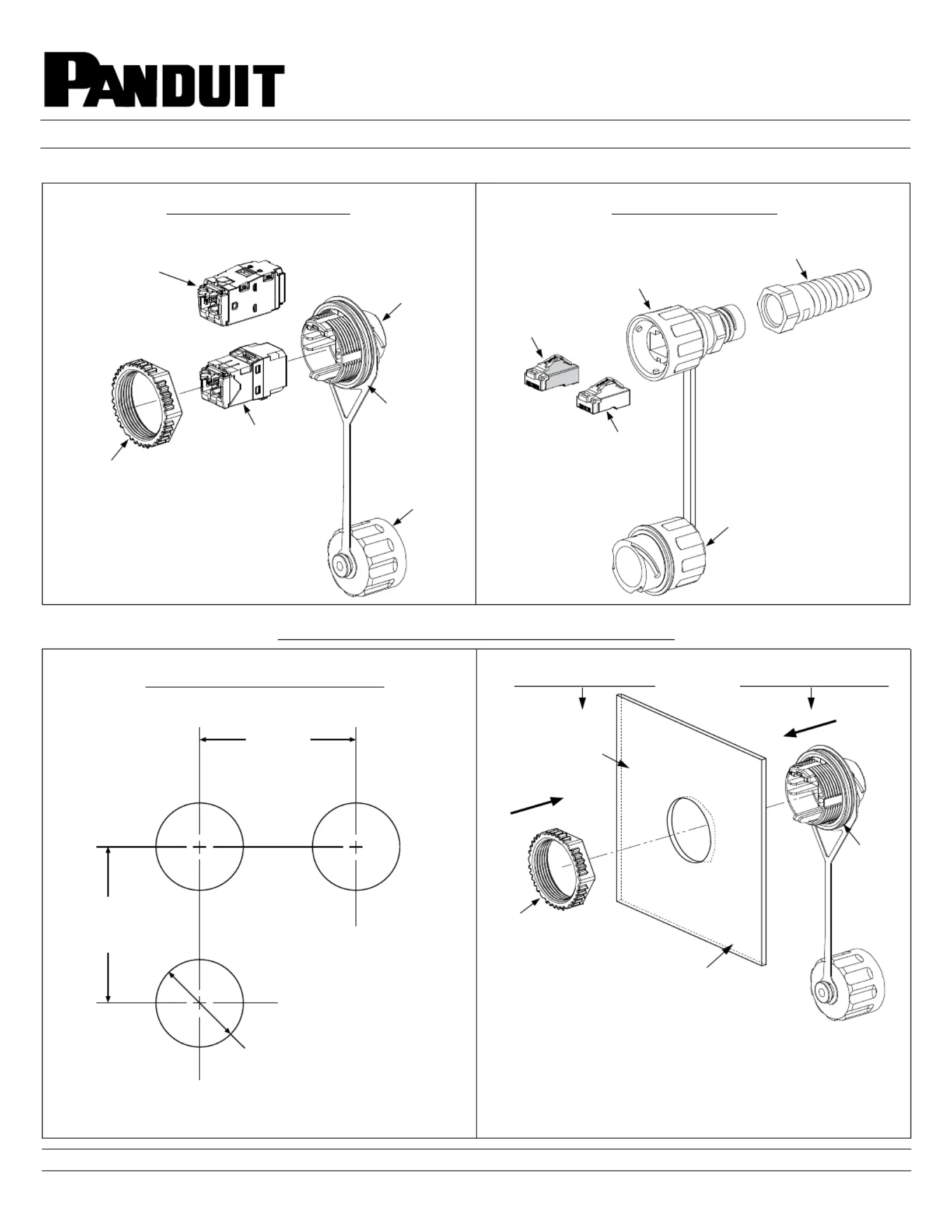

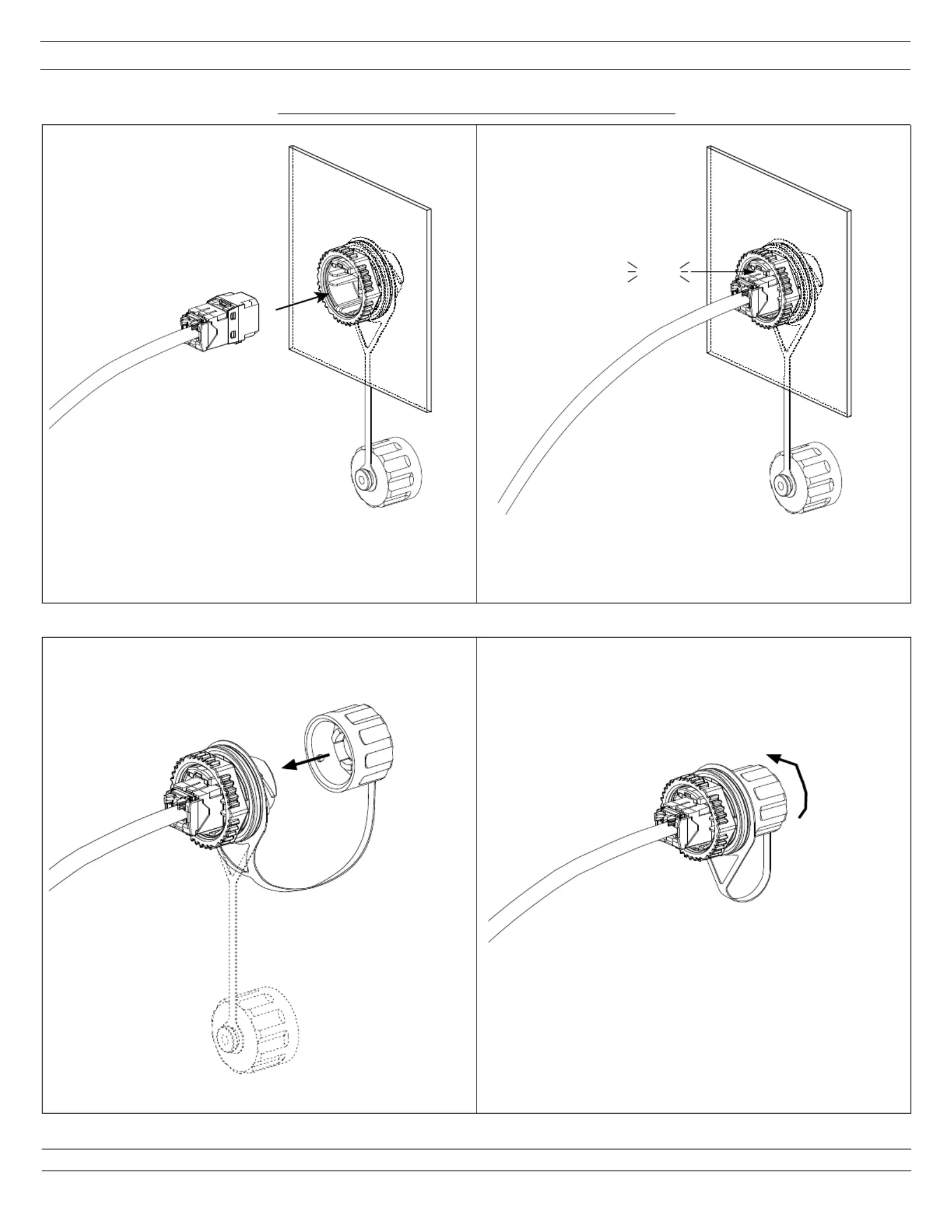

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

PN367E

Page 1 of 4

IAEBH5E / IAEBH6 / IAEBH6X / IAEBH5ES / IAEBH6S/

Shielded

Bulkhead w/

Nut

(For IAEBH5ES,

(For IAEBH5E,

UTP

Face Seal

Tether

Industrial Jack

Flex Tail

Shielded

(For MPSI588T)

(For MPI588T)

UTP

Plug Holder

Tether w/ Cap

(Optional)

Industrial Plug

MPSI588T / MPI588T

IAEBH6

w/ Cap

IAEBH6S,

Bulkhead

Seal

IAEBH6XS/ IAEBH (jack module not included)

Jack Module

Modular Plug

and IAEBH6XS)

and IAEBH6X)

IndustrialNet

Bulkhead Connectors

Part Numbers: IAEBH5E, IAEBH5ES, IAEBH6, IAEBH6S, IAEBH,

MPSI588T, MPI588T, IAEBH6XS, IAEBH6X

{not to scale}

Ø 1-13/64"

(30.6mm)

1-7/8"

(47.6mm)

1-7/8"

(47.6mm)

Enclosure Wall

Insert Bulkhead into prepared opening from outside of enclosure.

While holding Bulkhead in place, secure with Nut on inside of

enclosure. Hand turn Nut 4-1/4 to 5 full turns. Be careful not to

tighten to the point the Bulkhead Seal is over compressed and

displaced from the enclosure wall and the Bulkhead.

Note: If using wrench, flats on Nut should be on the outside.

Inside of Enclosure Outside of Enclosure

or Outlet Plate

Min. thickness: 0.035" (20 gauge)

Max. thickness: 0.135" (10 gauge)

Bulkhead

Seal

Nut

Bulkhead Opening Requirements

Installation for Industrial Jack Module

Note: Bulkhead combination must be used on a flat surface of a NEMA 4X Enclosure to maintain rating.

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

PN367E

Page 2 of 4Page 2 of 4

Tethered cap for sealing industrial jack module when

not in use with industrial modular plug.

(Enclosure wall removed from views for clarity)

3 4

Terminate jack module.

See Panduit installation instruction PN403* for UTP jack module

termination instructions and PN366* for shielded jack module.

Properly orient jack module as shown and insert

into bulkhead until it clicks into position.

Click

Installation for Industrial Jack Module

*Denotes revision level of installation instruction.

Produkt Specifikationer

Mærke:	Panduit
Kategori:	Ikke kategoriseret
Model:	MPSI588T
Kode for international beskyttelse (IP):	IP67
Bredde:	30 mm
Dybde:	95.6 mm
Højde:	132.5 mm
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Stik:	RJ45
Stikforbindelse kontakter plettering:	Bronze/guld
Stik køn:	Hanstik
AWG-ledningsstørrelse:	24
Standard for kabler:	Cat5e
Stik afskærmning:	Ja
Forbindelsesformfaktor:	Lige
