ISSUED: 03-19-03 SHEET #: 017-9011-4 06-13-07
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
1 of 6

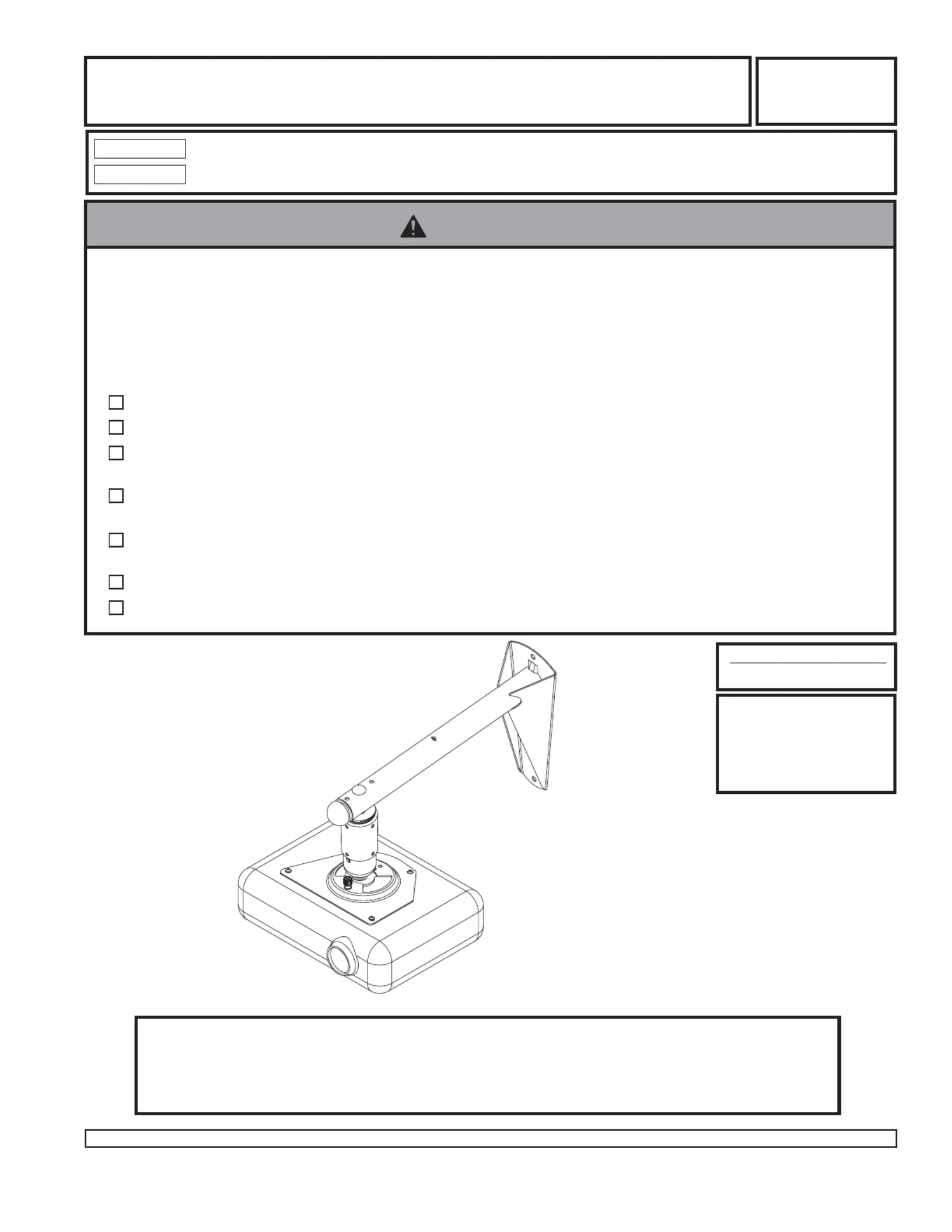

Installation and Assembly - Vector Pro
™
and PRS Projector
Wall Mounts
Models: PWA-14,
PWA-14S,
•This product was designed and intended to be mounted to the following supporting surfaces checked below with
the hardware included in this product as specied in the installation sheet. To mount this product to an alterna-
tive supporting surface, contact Peerless customer care at 1 800 865-2112.
•This product was designed to be installed on the following wall construction only;
WALL CONSTRUCTION ADDITIONAL HARDWARE REQUIRED
xWood Stud None
xWood Beam None
Solid Concrete Do not attach except with Peerless accessory kit for solid concrete;
Contact Customer Service for Peerless accessory kit for solid concrete.
Cinder Block Do not attach except with Peerless accessory kit for cinder block;
Contact Customer Service for Peerless accessory kit for cinder block.
Metal Stud Do not attach except with Peerless accessory kit for metal studs;
Contact Customer Service for Peerless accessory kit for metal studs.
Brick Contact Customer Service
Other or unsure? Contact Customer Service
WARNING
Max. Load Capacity
50 lb (22.7 kg)
Some of the following
tools may be required:
Drill, hammer, socket
wrench, pencil, stud finder
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
IMPORTANT! Certain types of walls require additional mounting hardware...
TURN TO THE APPROPRIATE PAGE FOR YOUR INSTALLATION.
Installations:
To Wood Stud Walls.............................................................. step 2, page 3
To Concrete Walls...................................................................step 3, page 4
To Metal Stud Walls.................................................................step 4, page 5
ISSUED: 03-19-03 SHEET #: 017-9011-4 06-13-07
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
2 of 6
D
B
G
E
C
H
A
A
B
C
D
E
F
G
H
Description
support arm
carriage bolt
M10 locknut
M10 steel washer
M10 bronze washer
#14 x 2.5 phillips wood screw
threaded rod adapter
end cap
Qty.
1
1
1
1
1
2
1
1
Parts List
Part #
017-1019
580-1022
530-9402
540-9407
540-9441
5S1-015-C03
580-1021
590-1014
Some parts may appear slightly different
than illustrated.
F

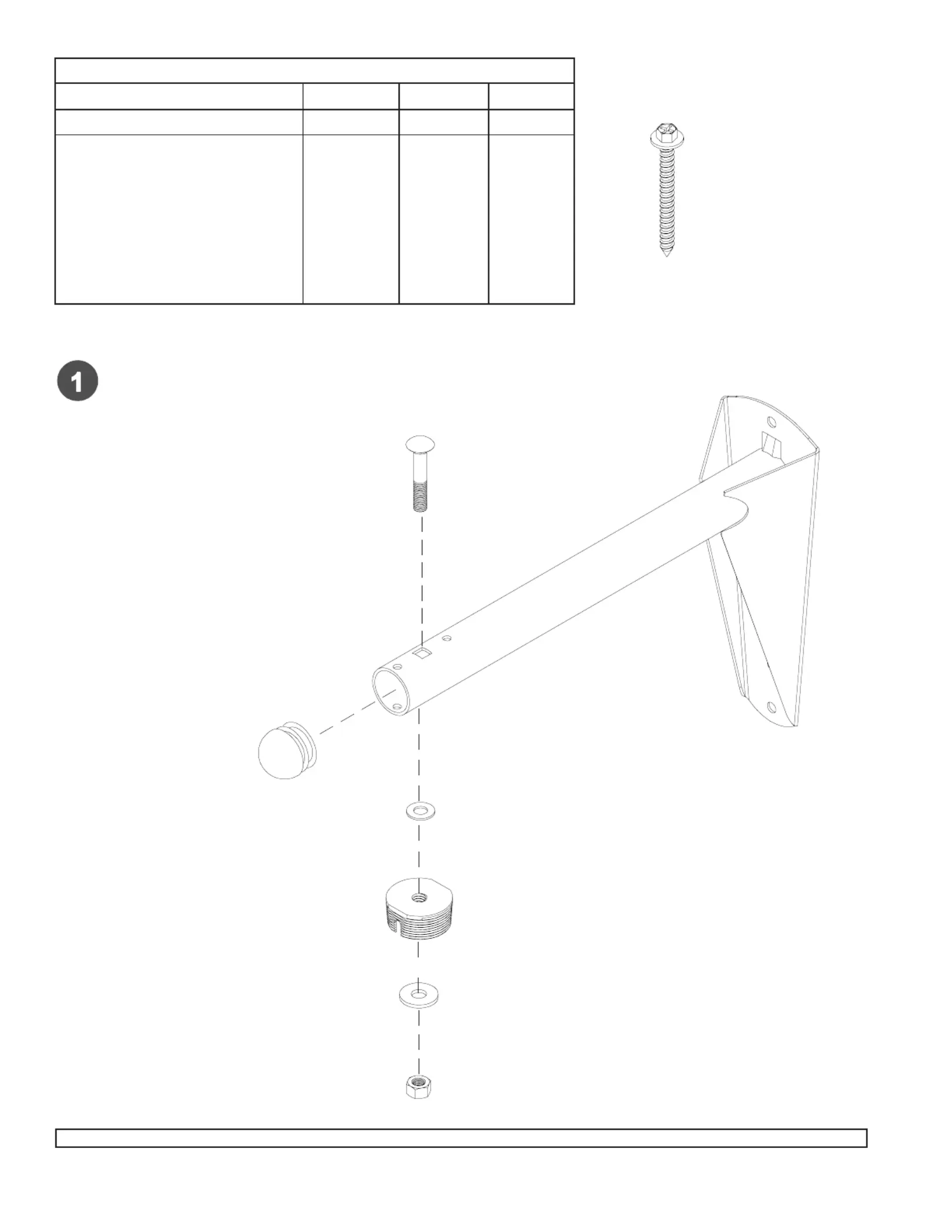

Attach threaded rod adapter (G) to
support arm (A) using carriage bolt
(B), locknut (C), steel washer (D) and
bronze washer (E) as shown. Insert
end cap (H) into end of support arm
(A) as shown.
Part #
017-4019
580-2022
530-9404
540-9470
540-9441
5S1-015-C04
580-2021
590-4014
Part #
017-2019
580-2022
530-9404
540-9470
540-9441
5S1-015-C04
580-2021
590-1001
Model # PWA-14 PWA-14S PWA-14W
