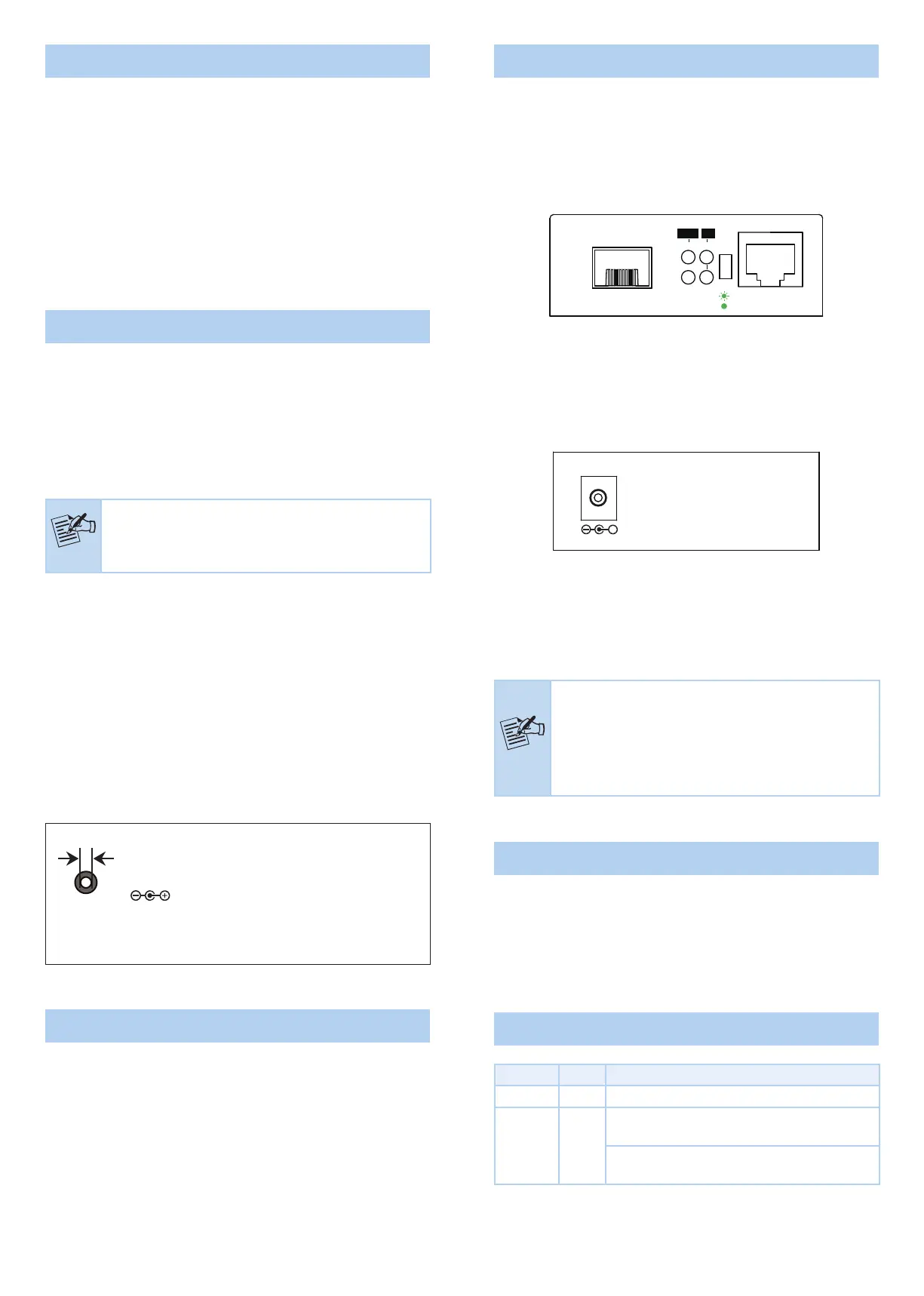

– 1 – – 2 –
– 3 –
– 4 –
1. Product Features
GT-805A Gigabit Ethernet Media Converter:
z Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/
FX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/LX
standard
z Data transfer rate: TP – 10/100/1000Mbps; SFP – 100/1000Mbps
z DIP switch for LFP function (Disable/Enable) setting
z 9K jumbo frame supported
z Compliant with PLANET’s 10”/19” media converter chassis
2. Checklist
Your GT-805A carton should contain the following items:
The Gigabit Ethernet Media Converter
AC-DC Power Adapter (Output: 5V DC, 2A max.)
This User’s Manual
If any item is missing or damaged, please consult the dealer from
whom you purchased your Gigabit Ethernet Media Converter.
Note
The GT-805A comes with one vacant SFP module
slot. The mini GBIC SFP module is not bundled in the
package.
3. Product Outlook
Front View
There are one RJ45 twisted-pair jack (auto-MDI/MDI-X), one
100/1000X SFP ber-optic slot and four LED indicators. Also one
DIP switch for Link-Fault Passthrough (LFP) feature and “ON” to
turn on the LLCF and LLR detection. And “OFF” to turn o the
feature. Please refer to the following sections for more.
Gigabit Ethernet Converter
10/100/1000BASE-T to 100/1000BASE-X
100/1000X
LNK
ACT
PWR 1000
LFP
OFF
ON
TPFiber
LNK /ACT
Figure 1: GT-805A Front View
Rear View
The rear panel of the Gigabit Ethernet Media Converter indicates
one DC jack, which accepts input power with 5V DC 2A.
5V DC
+
Figure 2: GT-805A Rear View
Power Information
The power jack of Gigabit Ethernet Media Converter measures
2.5mm in the central post and requires +5VDC power input.
It conforms to the bundled AC-DC adapter and Planet’s Media
Chassis. Should you have the issue to make the power connection,
please contact your local sales representative.
The AC-DC adapter is used as a spare part when your Gigabit
Ethernet Media Converter is installed to a Media Chassis.
2.5mm
DC Receptacle 2.5mm
+5V for each slot
DC receptacle is 2.5mm wide that conforms to the Gigabit
Ethernet Media Converter’s 2.5mm DC jack’s central post. Do
not install any improper unit.
4. Link Fault Pass-through (LFP)
The LFP function includes the Link-Fault-Passthrough function
(LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately
alarm administrators the issue of the link media and provide
ecient solution to monitor the network. The DIP Switch will
disable or enable the LFP function.
LLCF (Link Loss Carry Forward) means when a device is connected
to the converter and the TP line loses the link, the converter’s ber
will disconnect transmission link. LLR (Link Loss Return) means
when a device is connected to the converter and the ber line loses
the link, the converter’s ber will disconnect.
Note
LFP function is ON by default setting. If you are
familiar with the network installation and for
diagnostic purpose (i.e. check which end is broken),
you can turn it off and reset the converter to make
it take effect. Otherwise, please keep it in the default
position.
5. Duplex Mode Support
The GT-805A TP port supports triple speed -- 10/100/1000BASE-T,
auto-negotiation. It will auto detect the link speed and the
duplex mode by default with its link partner. The ber port
(100/1000BASE-FX/SX/LX) allows 100/1000Mbps full duplex by
auto-negotiation. Please also check the setting of the link partner.
6. LED Indication
LED Color Description
PWR Green Lit: To indicate +5V DC power is detected.
Fiber
LNK/ACT
Green
Lit: To indicate the link through ber port is
successfully established.
Blinks: To indicate the ber port is actively
sending or receiving data.
– 5 –
– 6 –
8.ProductSpecications
Model GT-805A
Fiber Connector SFP, LC type
Fiber Mode May vary on module
Fiber Maximum
Distance
May vary on module
Copper Connector 10/100/1000Mbps RJ45
Copper Modes Full duplex, auto-negotiation
Packet Forwarding
Rate (64bytes)
14880pps @10Mbps/148810pps
@100Mbps/1488000pps @ 1000Mbps
DIP switch LFP Disable/Enable
Protocols and
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
Jumbo Packet Size 9K
Dimensions
(W x D x H)
97 x 70 x 26 mm
Power 5V DC, 2A max.
Emission FCC CE
Temperature
Operating: 0 ~ 50°C
Storage: -10 ~ 70°C
Humidity 5% ~ 90% non-condensing
Installation Wall mount, DIN-rail, chassis installation
Note
1. For connection to the Gigabit Ethernet products,
please refer to the device’s technical manual.
2. Consult your dealer for DIN-rail or chassis installation.
TP
LNK/ACT
Green
Lit: To indicate the link through TP port is
successfully established.
Blinks: To indicate the port is actively sending
or receiving data.
TP 1000
LNK/ACT
Green
Lit: To indicate the port is running at
1000Mbps.
Blinks: To indicate the port is actively sending
or receiving data.
O: To indicate the port is running at
10/100Mbps.
7. Cable Connection Parameter
The wiring details are shown below:
Duplex Connection Limitation (max.)
Twisted Pair
Half/Full
Node to Node
Node to Switch/Hub
100 meters
Fiber Optic Cables:
Standard
(Wavelength)
100BASE-FX
(1310nm)
1000BASE-SX
(850nm)
1000BASE-LX
(1310nm)
Fiber Type
& Cable
Specications
Multi-mode 50/125μm or 62.5/125μm
Single-mode 9/125μm
