HIMALAYA WB

The HIMALAYA WB is a fixed antenna,

specially de-signed to give maximum results in the

CB channel band +10 and + 12 m.

A standard socket «SO-239» is used for the

connection of the antenna.

Art. N° AFFM316

SPECIFICATIONS

Type : 1/2 wave length (λ)

Impedance : 50 Ohm (Ω)

Frequency : 22-30 MHz

Polarization : Vertical

SWR : 1.15/1

Gain : + 8 dBi

Max. power : 2000 Watt P.E.P

Band width : 8000 kHz (800 cx)

Weight : 2 kg / 4.41 lbs

Length : 5270 mm / 207.48 inches

Whip : Fiber / graphite

www.president-electronics.com

Any under warranty ex-

pedition must be done to

our factory in Barcelona -

Spain, the only authorized

to decide about the warranty

application (an original proof of purchase

sales receipt must be included).

MADE IN EUROPE - SPAIN

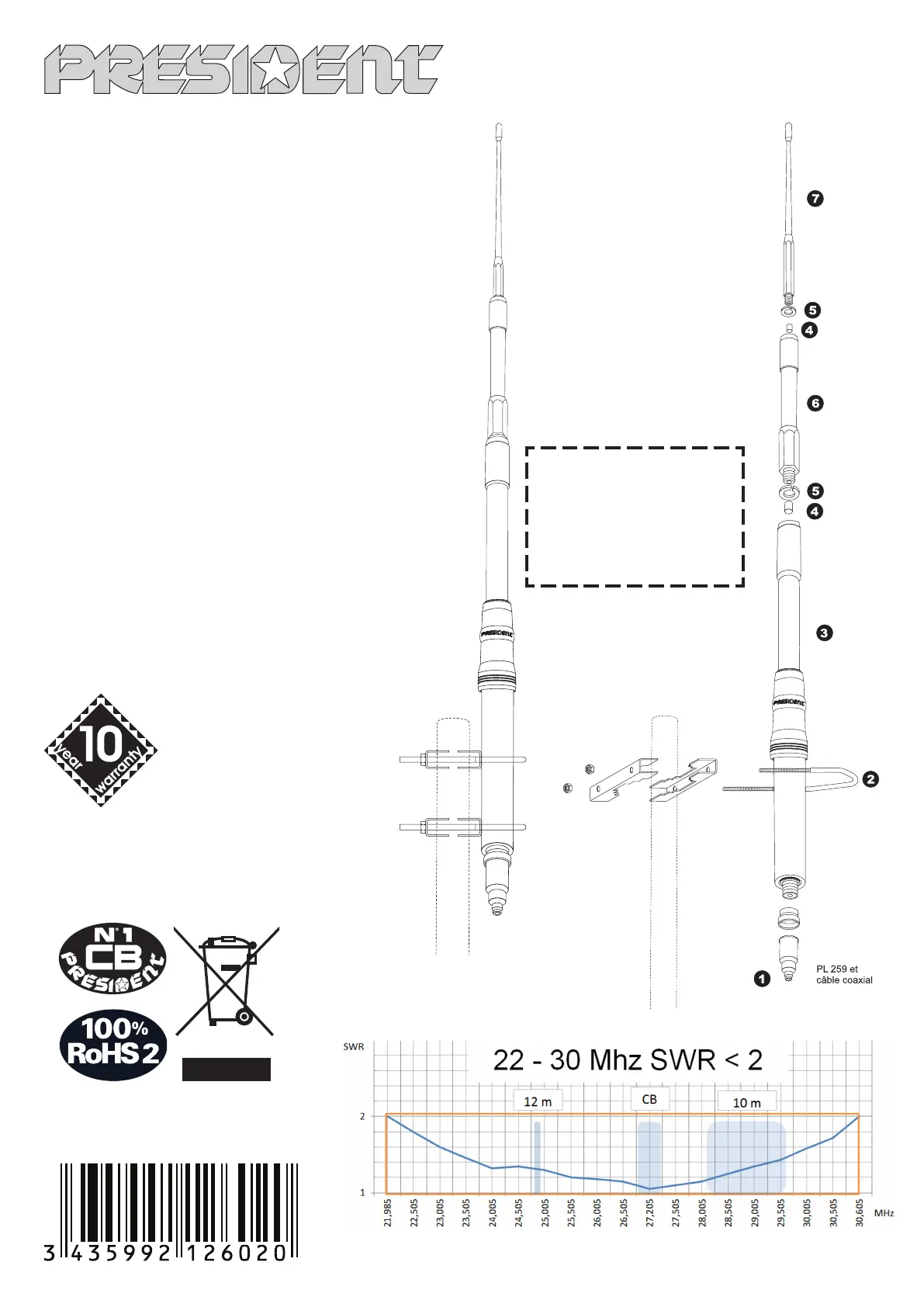

DESCRIPTION

1 PL-259 protection cover

2 Fixing clamp (2)

3 1

antenna section

4 Rubber foam (2)

5 Lock washer (2)

6 2

antenna section

7 3

antenna section

WARNING : Caution

with wires, you can be

electrocuted if this anten-

na touches electric power

lines.

The 1st and 2nd antenna sections

MUST NOT be exchanged with

older models, such as HIMALAYA

and BLACK PIRATE.

- TECHNICAL ADVICE - Preventive maintenance:

To make easier the antenna dismantling if needed later, WE DO RECOMMEND TO PROTECT THE MECHANICAL PARTS

(mounting bracket) WITH SOME GREASE (like silicone). This will avoid any jam.

HIMALAYA WB is a handmade antenna with high quality materials, checked one by one, and entirely built in our factory located in

Barcelona, SPAIN.

HIMALAYA WB is a pre-tuned antenna and does not need any regulation by customer's side.

HIMALAYA WB is an external fixed antenna specially designed to give maximum results in the CB band, 10m band (28MHz) and

12m band (24MHz).

Installation of this product near to power lines is dangerous. We do recommend to mount your antenna at minimum 3 meters above

the roof, as far as possible from other structures, such as walls or buildings and away from any metal objects in the area.

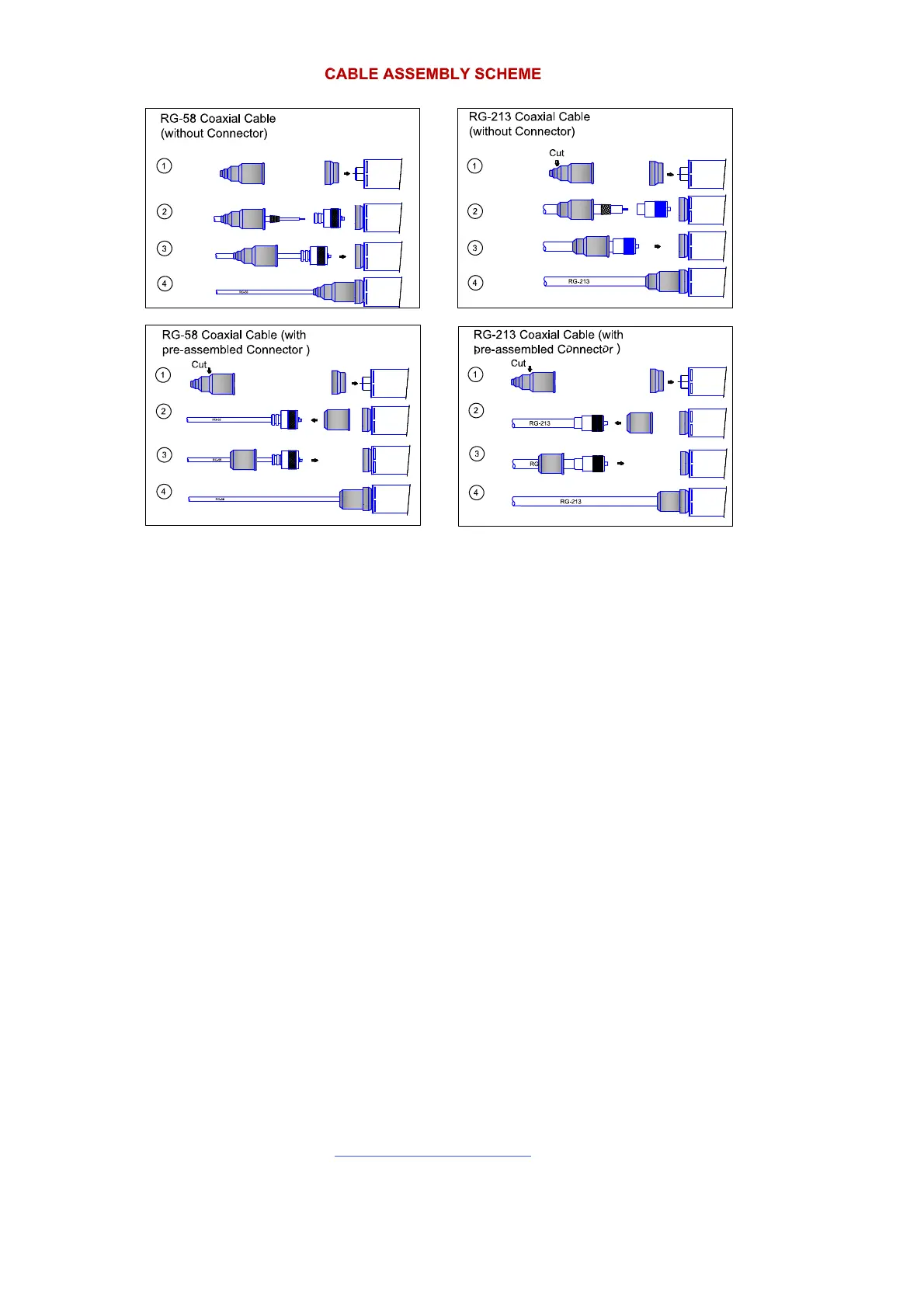

We do recommend to use good coax cable (RG-213), as short as possible, to get the best performance. It is expectable no cable joints

between transceiver and antenna. Be sure that cable is not pinched, shorted, broken or kinked.

Before mounting your antenna, check that your radio transceiver and SWR-meter work properly.

All these recommendations are all you need to do in order to have best performance.

In case of having followed all our recommendations, you have some setbacks with measurements, or you find there is something

wrong with its performance; it will be due to faulty installation or unappropriated site selection.

For the purpose of solving these setbacks, you should check all antenna installation and also its mounting location. But if you continue

having same difficulties than before, we do recommend installing a good GROUND to drain off static electricity build-up by

connecting a ground cable to mast. In addition to this, you could add one extra improvement either by making a cable coil (1) or by

using some ferrite rings (2).

(1) Cable Coil. It could be necessary to coil the cable around 3 or 4 turns next to antenna connection. Each turn should have a diameter

of about 20 or 30 centimetres.

(2) Ferrite Ring. It could be necessary to install 10 Ferrite Rings in cable, 25 centimetres away from antenna connection, separate 20-25

centimetres each one.

You will find more details and pictures on: www.president-electronics.com
